*Note:
Refer also to the instructions included with the aftermarket radio.
99-7603 DASH DISASSEMBLY
NISSAN VERSA 2007-2011
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the panel above
2
the radio. (
3
Remove (2) Phillips screws securing
the radio trim panel then unclip and
remove the entire panel surrounding
the radio and a/c controls.
Figure A,B)
(Figure C)
A
B
C
1
99-7603 DASH DISASSEMBLY
VOL
CD
LOAD
SCRL
AUDIO
SCAN
CAT
CH
AUX
6CD CHANGER
RPT
RDM
DISP
CLOCK
RADIO
PRESET A-B-C
SEEK
TRACK
FILE
TUNE
FF-REW
FOLDER
PWR
PUSH
1
2
3
4
5
6
NISSAN VERSA 2007-2011
Remove (4) Phillips screws securing
4
radio, unplug and remove radio.
(Figure D)
5
Remove (4) Phillips screws securing
each bracket to factory radio. (Retain
these brackets to be re-used during
double DIN or stacked ISO kit assem-
(Figure E)
bly.)
Continue to kit assembly.
E
D
2

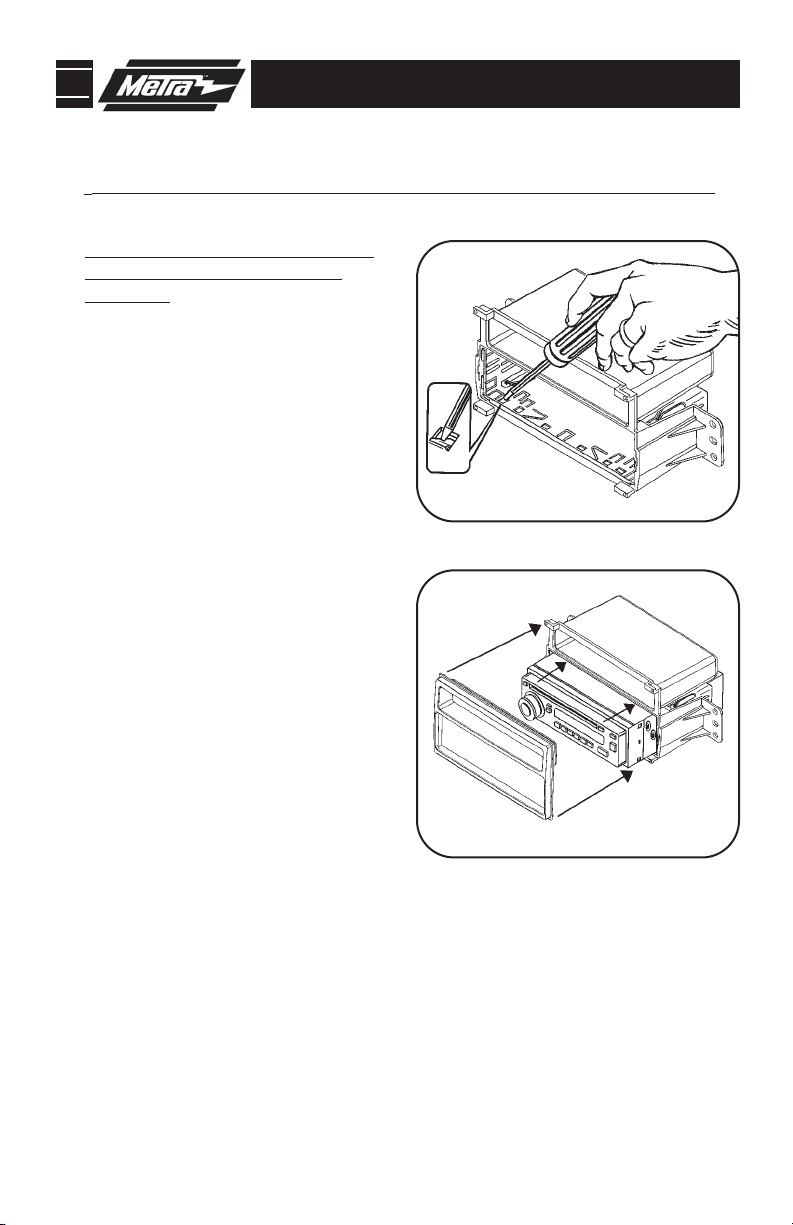

99-7603 KIT ASSEMBLY
DIN MOUNT RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Note: You will need to remove the
aftermarket radio’s trim ring if
equipped.
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs outward.
Slide the aftermarket radio into the
2
cage until it snaps into place.
3
Attach the trim plate supplied with the
kit to the front of the radio housing
assembly.
Continue to final assembly.
(Figure B)
(Figure A)
(Figure B)
B
3

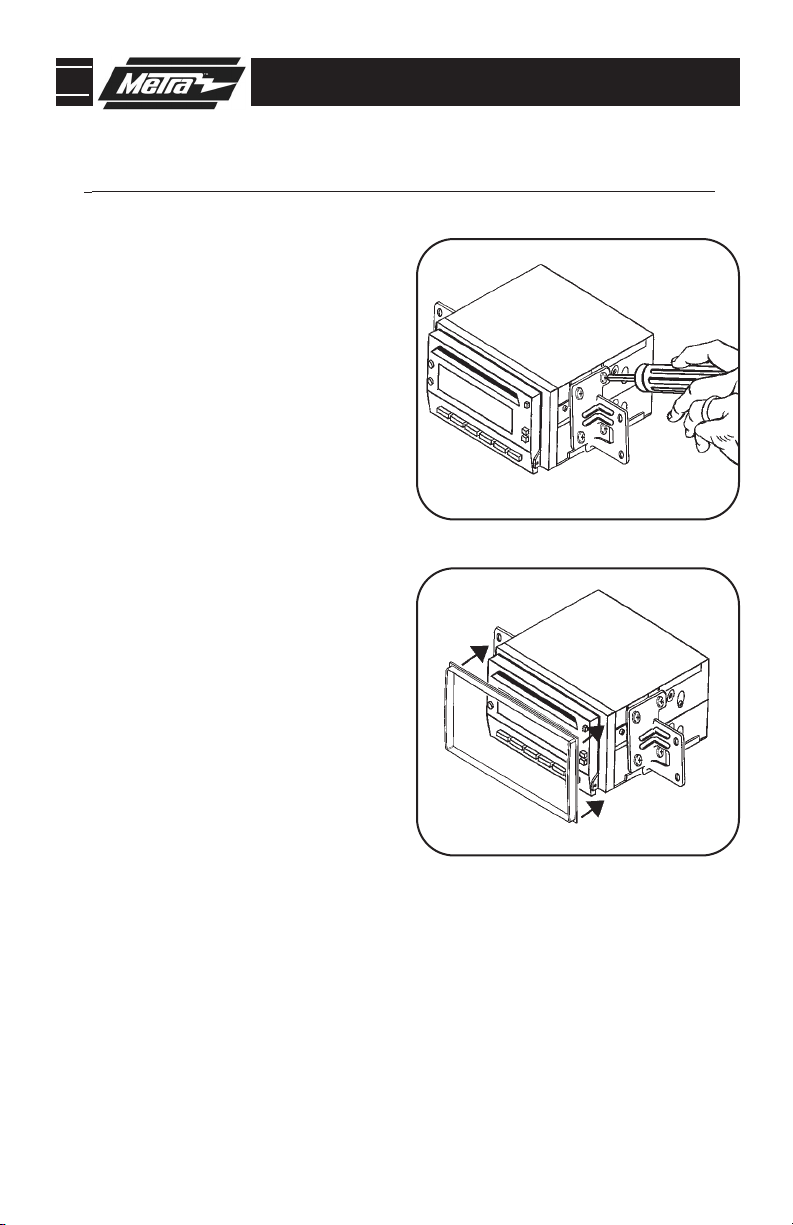

99-7603 KIT ASSEMBLY
FRONT
FACERIGHT
SIDE
BRACKET
ISO MOUNT RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
Note: The following modification
will need to be made to both
ISO brackets when using the ISO
mount radio provision. Cut or trim
the area shown from the ISO
bracket.
Mount the ISO Brackets to the after-
1
market radio using the screws supplied with the radio.
Slide the radio into the radio housing
2
until it snaps into place.
Attach the trim plate supplied with
3
the kit to the front of the radio housing assembly.
Continue to final assembly.
(Figure A)
(Figure B)
(Figure C)
(Figure C)
A
C
B
4

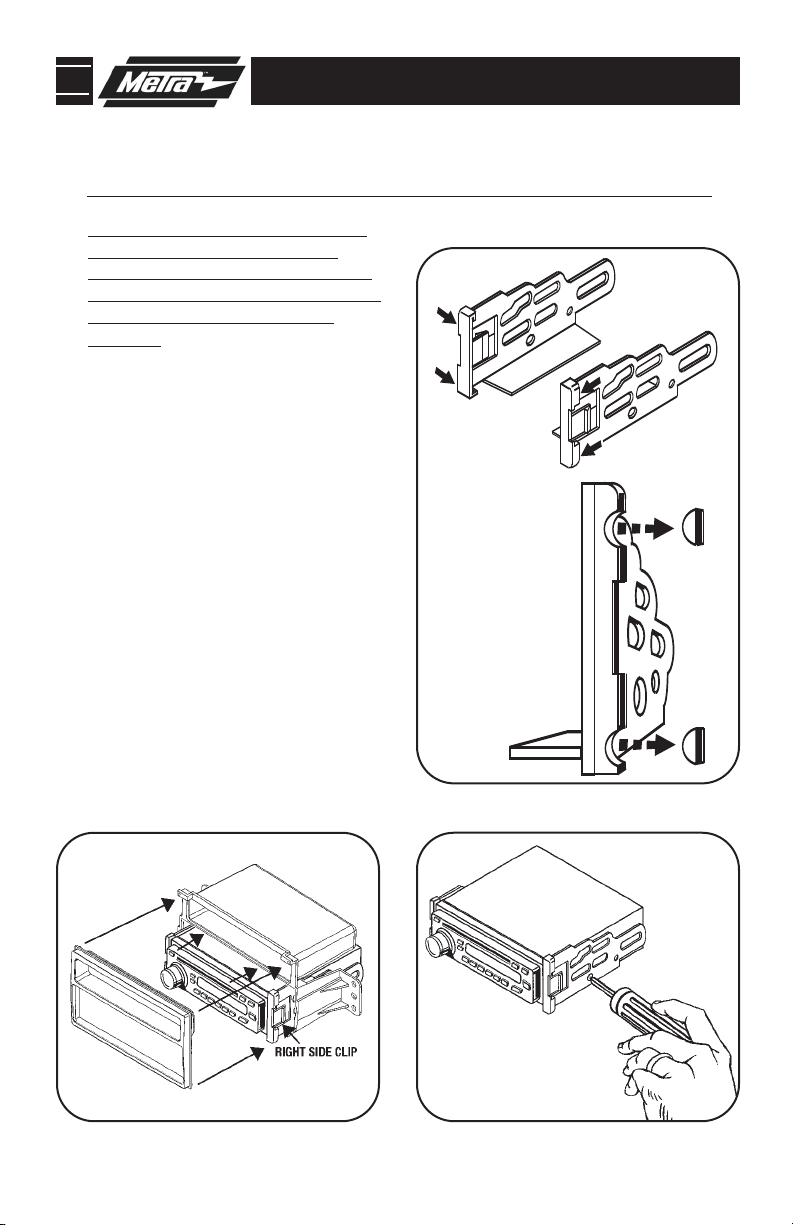

99-7603 KIT ASSEMBLY
DOUBLE DIN MOUNT RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
1
Mount the factory brackets (removed
from factory radio during disassembly)
to the sides of the double DIN radio
using screws supplied with the double
DIN radio.
Place the double DIN trim plate on the
2
front of the double DIN radio.
Continue to final assembly.
(Figure A)
(Figure B)
B
5

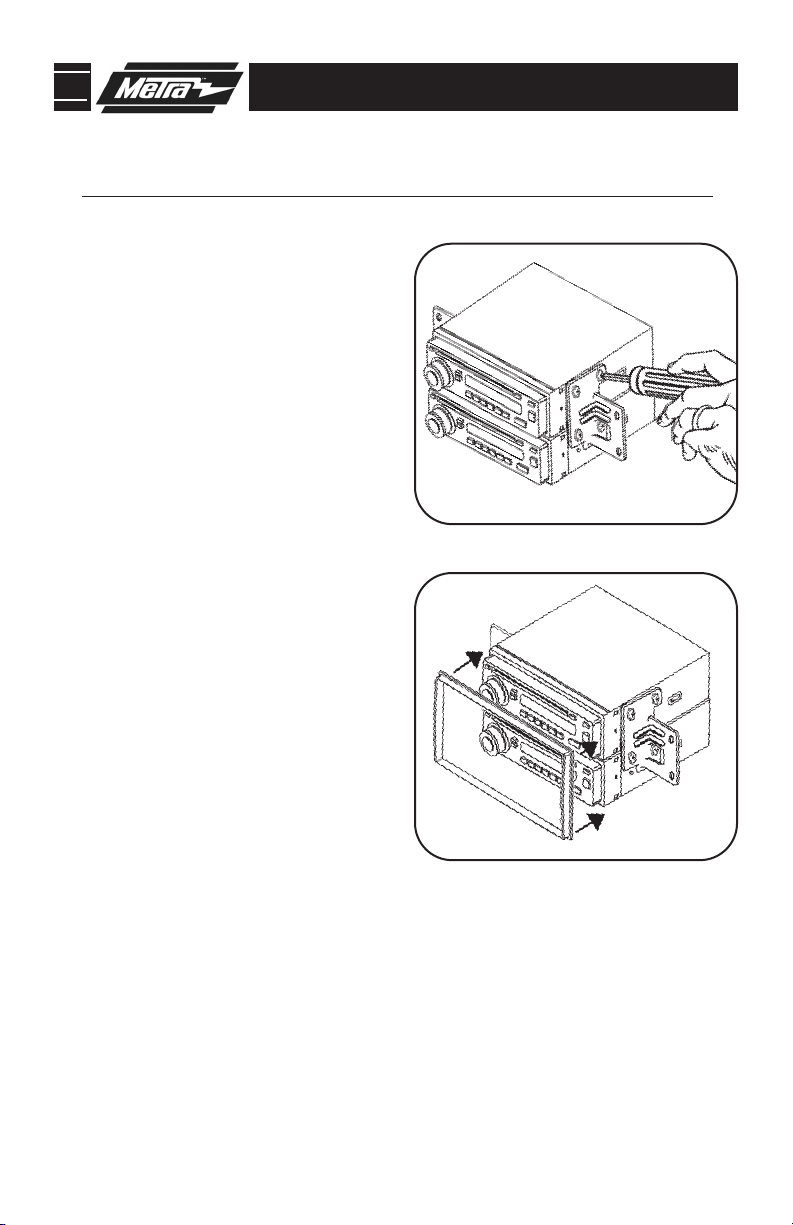

99-7603 KIT ASSEMBLY
STACKED ISO UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
1
Mount the factory brackets (removed
from factory radio during disassembly)
to the sides of the stacked ISO units
using screws supplied with the ISO
(Figure A)
units.
Place the double DIN trim plate on the
2
front of the stacked ISO units.
Continue to final assembly.
(Figure B)
B
6
99-7603 FINAL ASSEMBLY
FINAL ASSEMBLY

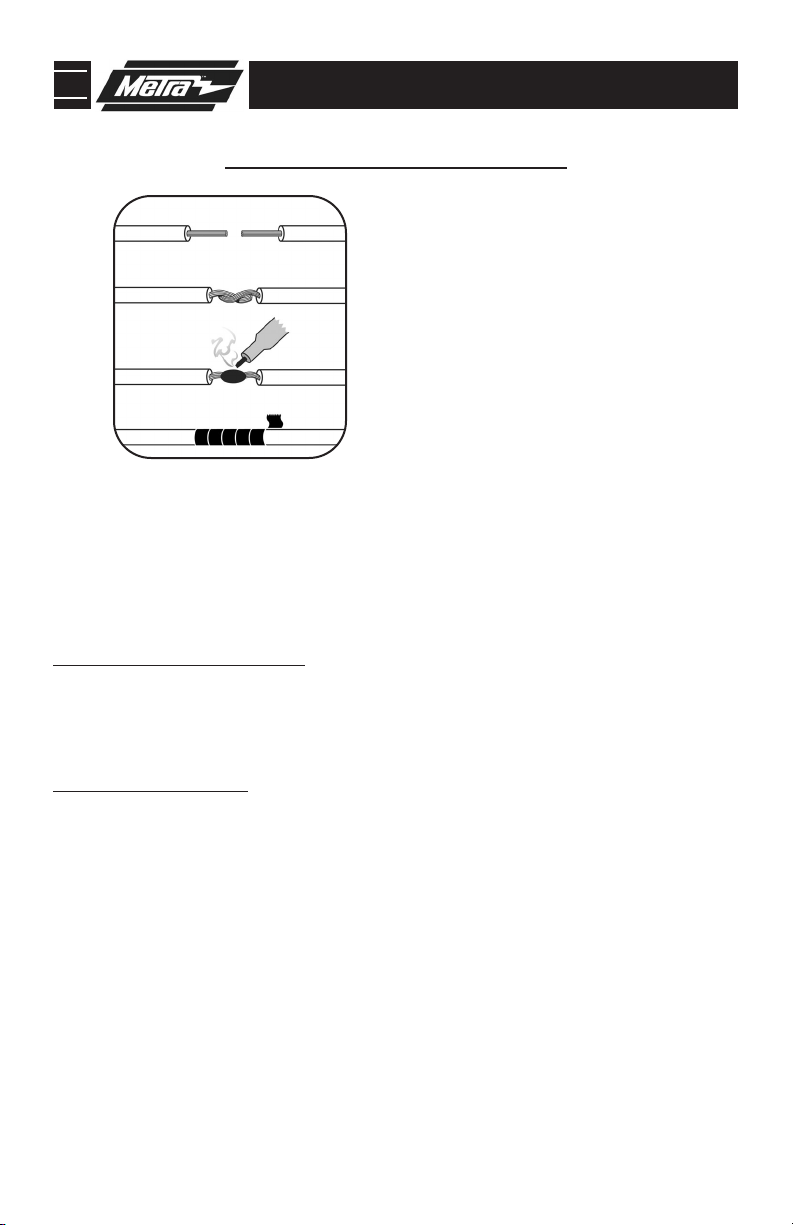

A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
