INSTALLATION INSTRUCTIONS FOR PART 99-7502
APPLICATIONS
Mazda MPV 2000-2006
99-7502
KIT FEATURES
• DIN Mount Radio Provision
• ISO Mount Radio Provision
KIT COMPONENTS
A) Radio Housing • B) ISO Snap In Brackets • C) Trim Plate
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2004 METRA ELECTRONICS CORPORA
B
www.metr
C
aonline.com
TION
99-7502
TABLE OF CONTENTS
Dash Disassembly
-
Mazda MPV 2000-2006 . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . 1
Kit Assembly
- DIN Mount Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
- ISO DIN Mount Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Final
*Note:
Refer also to the instructions included with the aftermarket radio.

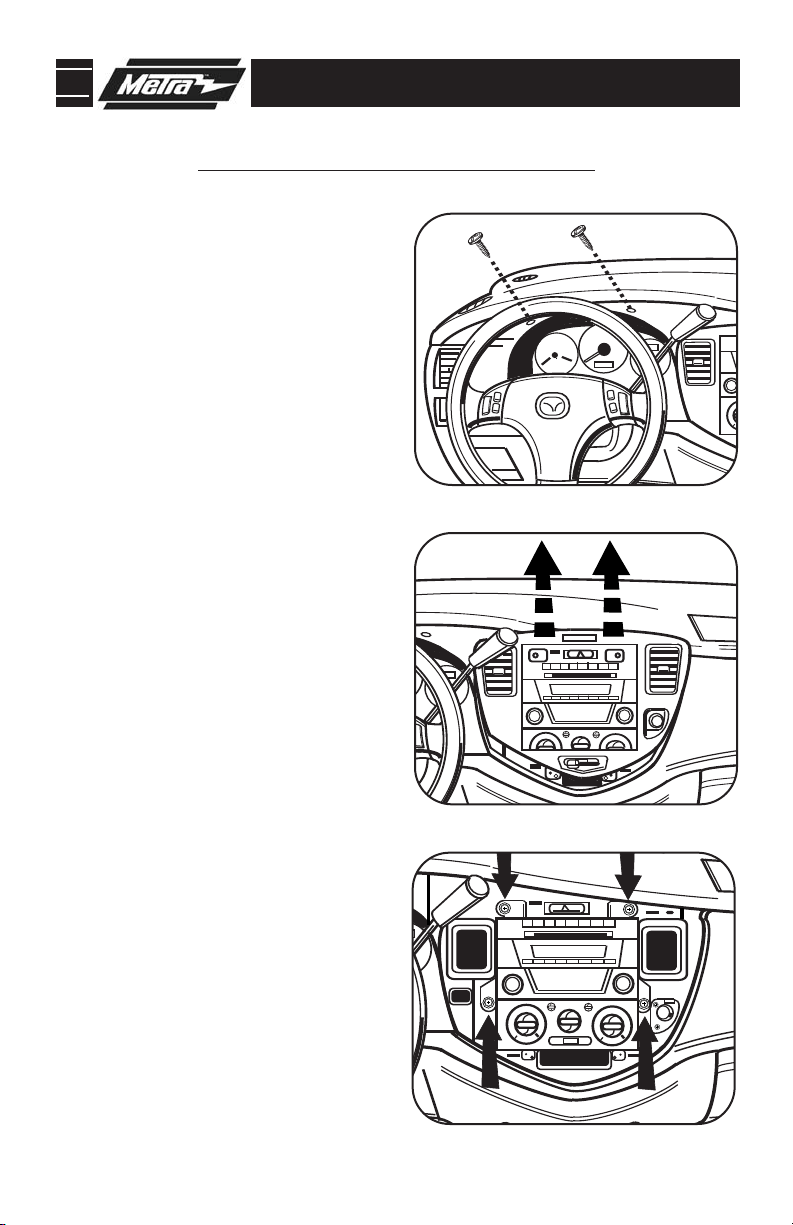

99-7502 DASH DISASSEMBLY
MAZDA MPV 2000-2006
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Remove (2) Phillips head screws from
2
above instrument cluster. (
Unclip and remove the radio trim
3
panel.
(Figure B)
Remove (4) Phillips screws securing
4
the radio. Unplug and remove radio.
(Figure C)
Continue to kit assembly.
Figure A)
A
B
C
1
99-7502 KIT ASSEMBLY
DIN MOUNT RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs outward.
Slide the aftermarket radio into the
2
cage until it snaps into place.
Continue to final assembly.
(Figure A)
(Figure B)
B
2

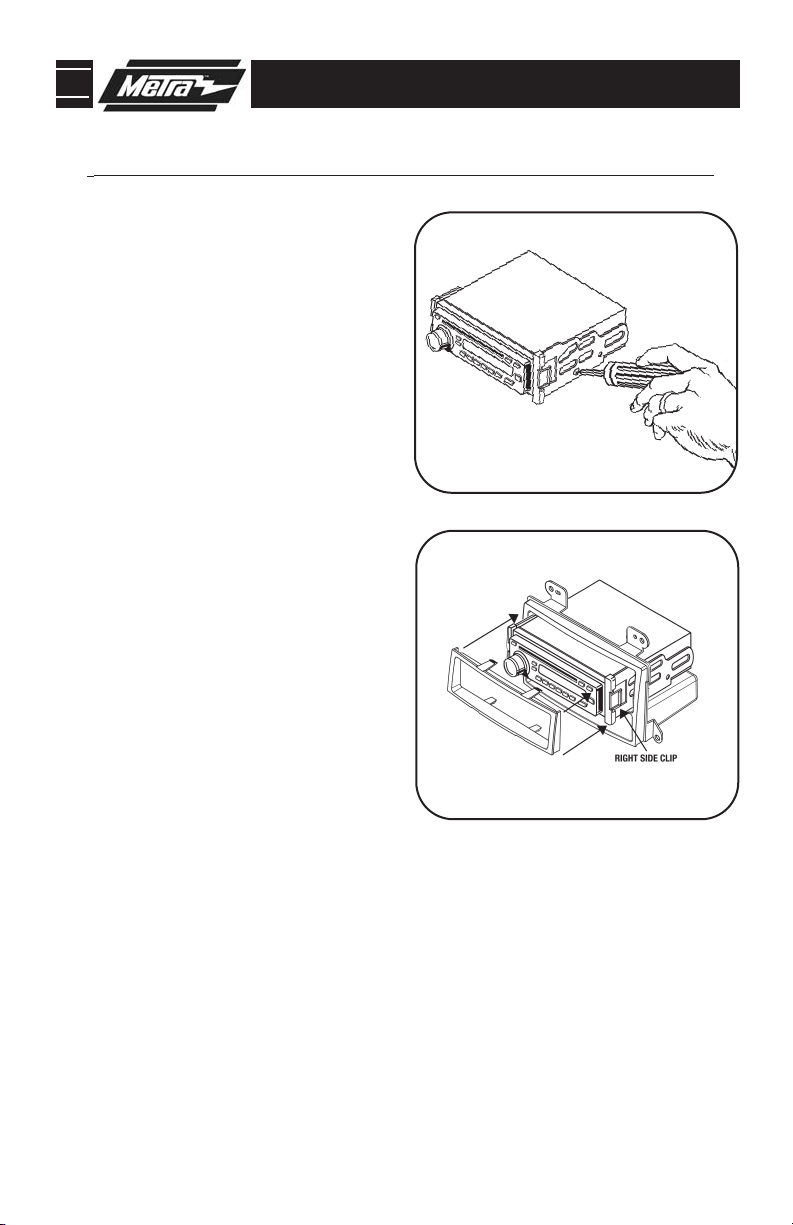

99-7502 KIT ASSEMBLY
ISO DIN MOUNT RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Mount the ISO Brackets to the radio
1
using the screws supplied with the
radio.
(Figure A)
2
Slide the radio into the radio housing
until it snaps into place.
3
Snap the Trim plate onto the front of
the Radio Housing assembly.
(Figure B)
(Figure B)
Continue to final assembly.
B
3
99-7502 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’
s specifica
tions.
4
