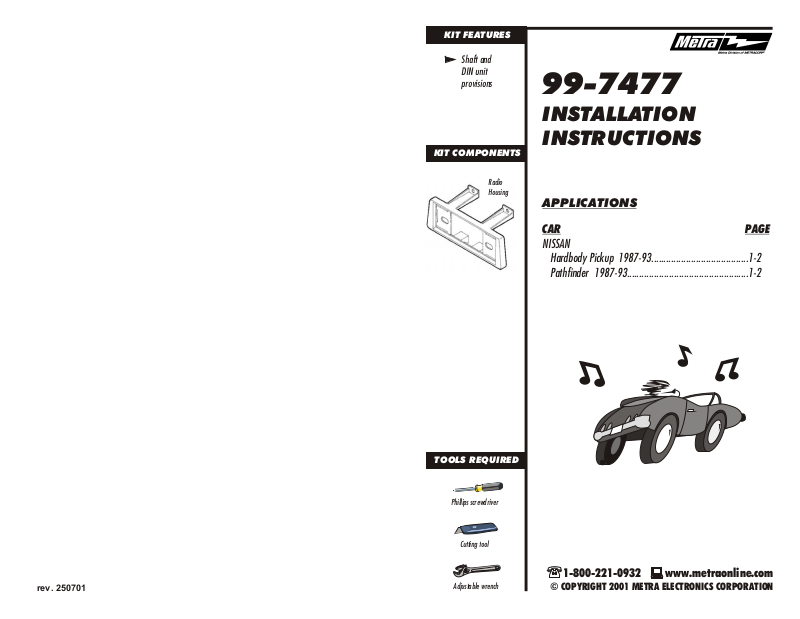

Metra Electronics 99-7477 User Manual
KIT FEATURES
Shaft and
DIN unit
provisions
KIT COMPONENTS
Radio
Housing
99-7477
INSTALLATION
INSTRUCTIONS
APPLICATIONS
CAR PAGE
NISSAN
Hardbody Pickup 1987-93.......................................1-2
Pathfinder 1987-93.................................................1-2
rev. 250701
TOOLS REQUIRED
Phillips screwdriver
Cutting tool
Adjustable wrench
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
ALL VEHICLES
3 4
A
1
Disconnect the negative battery terminal to prevent an accidental short circuit. Remove the
ashtray and (1) screw exposed in the top-right corner of the ashtray cavity. Remove (2) Phillips
screws above the climate controls. Remove (2) Phillips screws from the base of the radio trim
bezel. Unclip the radio trim bezel and disconnect the cigarette lighter wiring. Remove the
bezel. Remove (4) screws securing the factory head unit and disconnect the wiring.
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
5
"A"
Locate the (4) mounting positions in the sub-dash
("A").
2
Fig. A
Fig. B
2-SHAFT HEAD UNITS: Slide the aftermarket head unit into the kit and secure with shaft
nuts. (see Fig. A)
DIN HEAD UNITS: Cut and remove the shaft supports from the Radio Housing. Slide the
DIN cage into the kit and secure by bending the metal locking tabs down. Slide the aftermarket
head unit into the cage until secure. (see Fig. B)
1
Re-connect the battery terminal and test the unit for proper operation. Mount the head unit/kit
assembly to the sub-dash with (4) screws previously removed in step #1.
2
