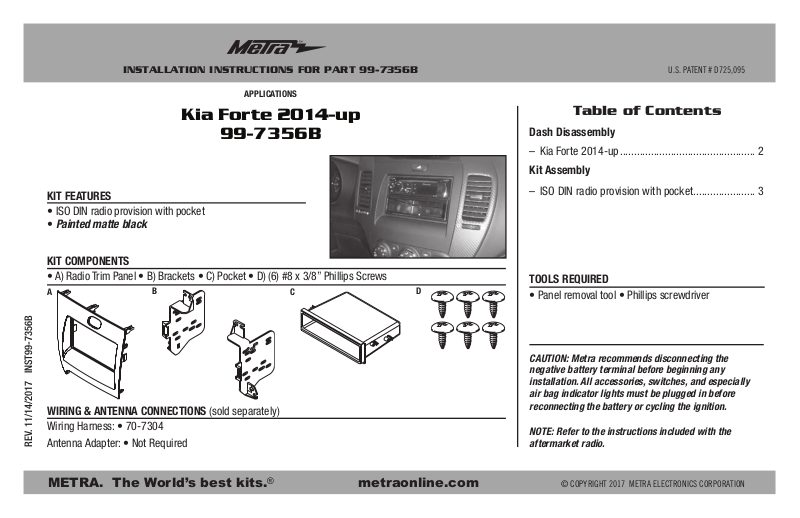

– Kia Forte 2014-up ................................................ 2
Kit Assembly
– ISODIN radio provision with pocket ...................... 3
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.

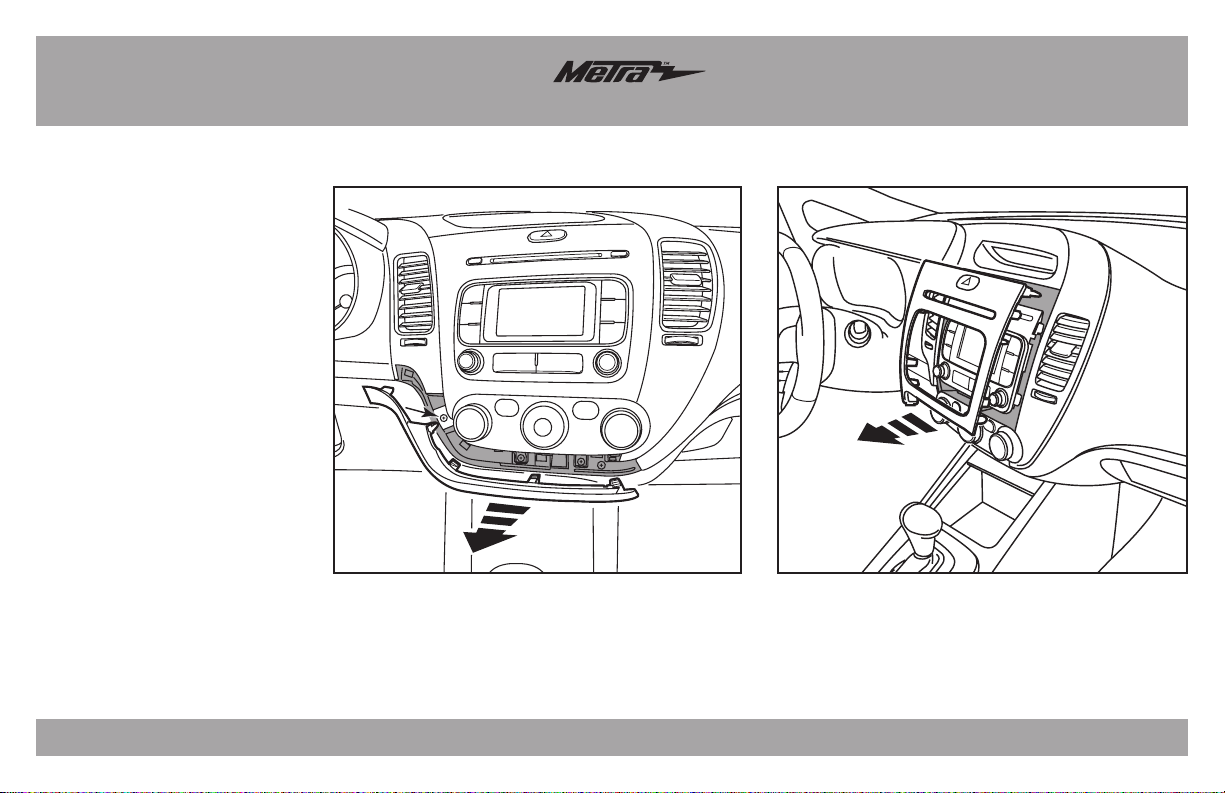

1. Unsnap and remove the small trim
below the climate controls, then
remove one Phillips screw from the
radio trim panel. (Figure A)
2. Unsnap and remove the radio trim
panel. (Figure B)
3. Remove the panel clips from the
factory radio, save them for the
kit assembly.
4. Unscrew the factory hazard button,
save it for the kit assembly.
5. Remove four Phillips screws to
remove the factory radio.
Continue to kit assembly
99-7356B
Dash Disassembly
(Figure A)(Figure B)
2
Page 3
ISO DIN radio provision

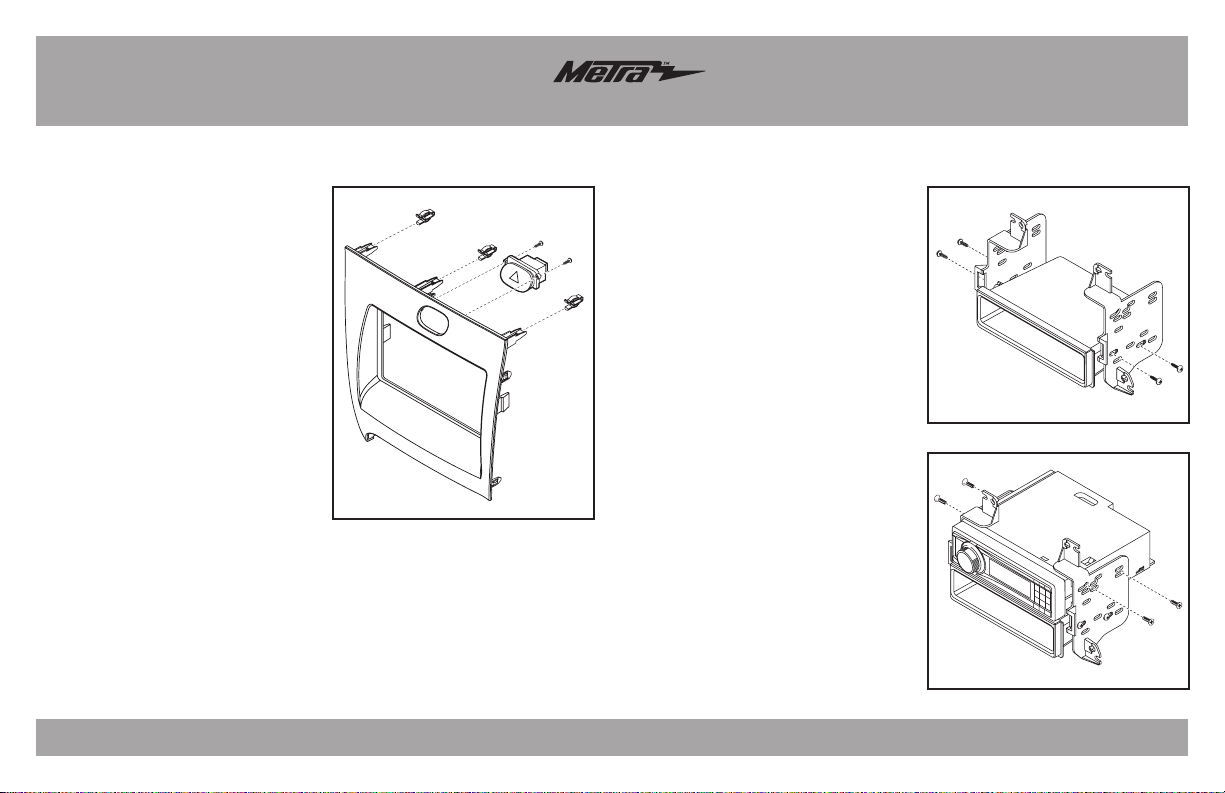

1. Attach the factory panel clips to
the radio housing (Figure A)
2. Attach the factory hazard button to
the radio trim panel with (2) of the
#8 x 3/8” screws provided.
(Figure A)
3. Attach the pocket to the radio
brackets with (4) of the #8 x 3/8”
screws provided. (Figure B)
4. Slide the radio into the radio
brackets/pocket assembly and
secure with the screws supplied
with the radio. (Figure C)
5. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the unit for proper operation.
6. Snap the radio trim panel over the
new radio and reassemble dash in
reverse order of disassembly.
(Figure A)
99-7356B
Kit Assembly
(Figure B)
(Figure C)
3
Page 4
INSTALLATION INSTRUCTIONS FOR PART 99-7356B
REV. 11/14/2017 INST99-7356B
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7356B
APLICACIONES
Kia Forte 2014 y mas
99-7356B
CARACTERÍSTICAS DEL KIT
• Provisión de radio ISO DIN
• Pintura negro mate

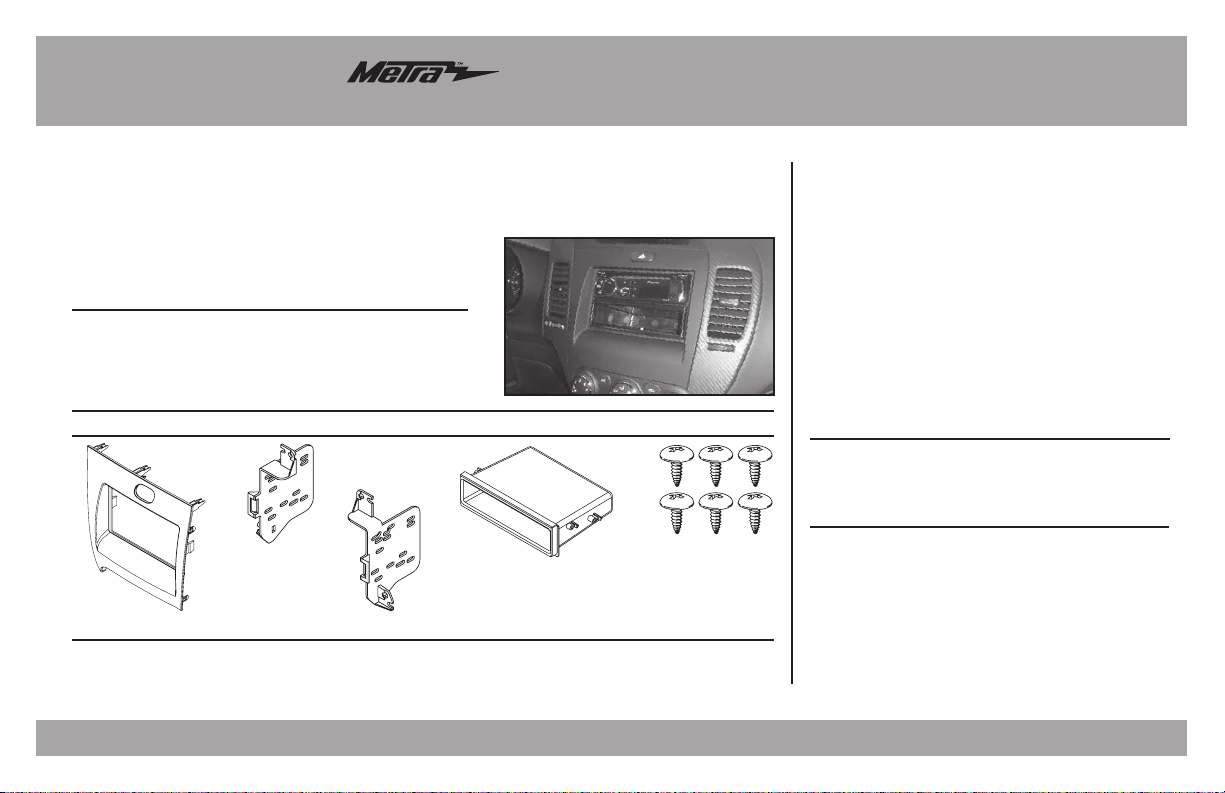

COMPONENTES DEL KIT
• A) Panel de moldura para radio • B) Soportes • C) Cavidad • D) (6) tornillos Phillips #8 de 3/8”
AC
CABLEADO Y CONEXIONES DE ANTENA (se venden por separado)
Arnés de cables: • 70-7304
Adaptador de antena: • no se requiere
REV. 11/14/2017 INST99-7356B
BD
U.S. PATENT # D725,095
Indice
Desmontaje del tablero
– Kia Forte 2014 y mas ........................................... 2
Ensamble del kit
– Provisión de radio ISO DIN con cavidad .................. 3
HERRAMIENTAS REQUERIDAS
• Herramienta para quitar paneles
• Destornillador Phillips
PRECAUCIÓN: Metra recomienda desconectar el terminal
negativo de la batería antes de comenzar cualquier
instalación. Todos los accesorios, interruptores y,
especialmente, las luces indicadoras de airbag deben
estar enchufados antes de volver a conectar la batería o
comenzar el ciclo de ignición.
Nota: Remítase a las instrucciones incluidas con el radio
de posventa.

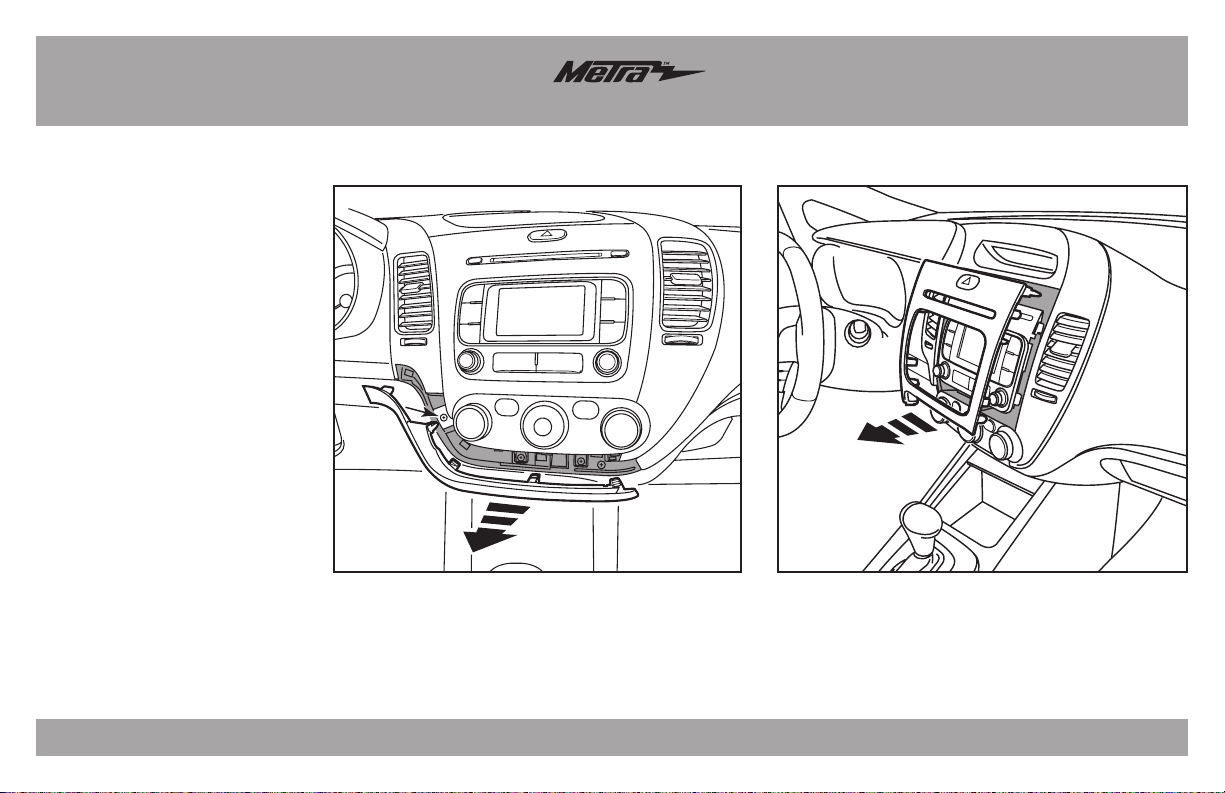

1. Suelte a presión y quite la moldura
pequeña de abajo de los controles
del clima, luego quite un tornillo
Phillips del panel de la moldura del
radio. (Figura A)
2. Suelte a presión y quite el panel de
la moldura del radio. (Figura B)
3. Quite los ganchos del radio de
fábrica y guárdelos para ensamblar
el kit.
4. Desenrosque el botón de las luces
intermitentes de fábrica y guárdelo
para ensamblar el kit.
5. Quite cuatro tornillos Phillips para
quitar el radio de fábrica.
Continuará la preparación del kit
99-7356B
Desmontaje del tablero
(Figura A)(Figura B)
2
Page 7
99-7356B
Ensamble del kit
Provisión de radio ISO DIN

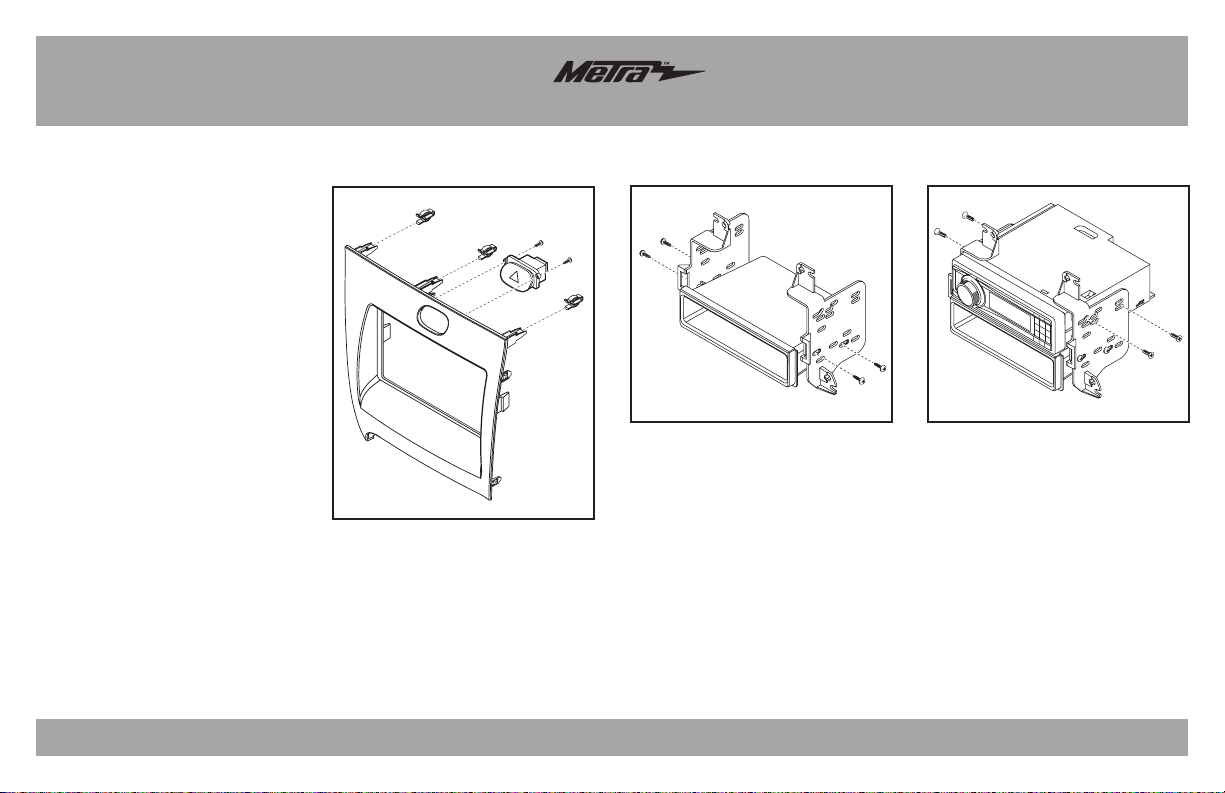

1. Coloque los ganchos del panel
de fábrica en la carcasa del radio
(Figura A)
2. Coloque el botón de las luces
intermitentes de fábrica en el panel
de la moldura del radio con (2) de
los tornillos #8 x 3/8” incluidos.
(Figura A)
3. Coloque la cavidad en los soportes
del radio con (4) de los tornillos #8
x 3/8” incluidos. (Figura B)
4. Deslice el radio en el conjunto de
los soportes/cavidad y sujételo con
los tornillos suministrados con el
radio. (Figura C)
(Figura A)
5. Ubique el arnés de cableado
de fábrica en el tablero. Metra
recomienda el uso de un adaptador
adecuado de acoplamiento de
Metra o de AXXESS. Vuelva a
conectar la terminal negativa
de la batería y pruebe la unidad
para verificar que funcione
correctamente.
6. Ponga a presión el panel de la
moldura del radio sobre el nuevo
radio y vuelva a armar el tablero al
revés de como lo desarmó.
3
(Figura B)
(Figura C)
Page 8
