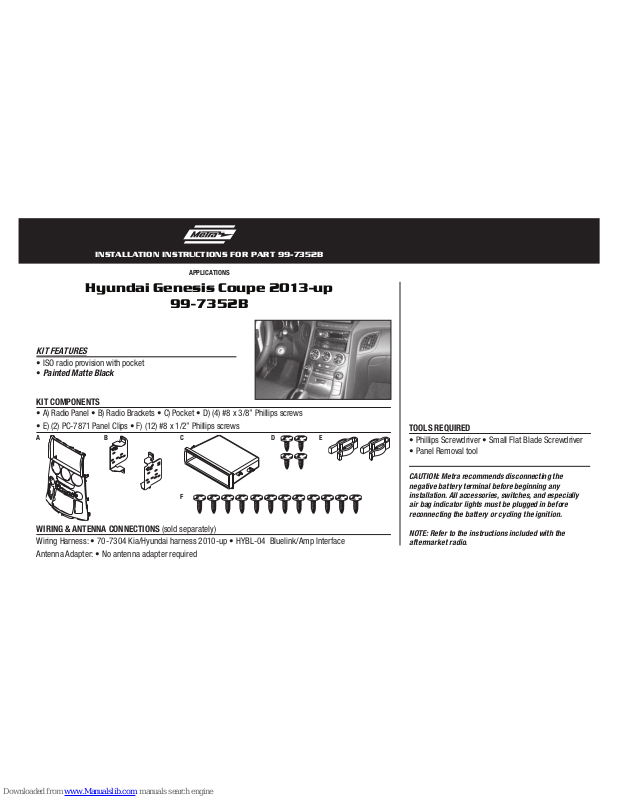

INSTALLATION INSTRUCTIONS FOR PART 99-7352B
APPLICA
TIONS
C
AUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
• ISO radio provision with pocket
• Painted Matte Black
• A) Radio Panel • B) Radio Brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws
• E) (2) PC-7871 Panel Clips • F) (12) #8 x 1/2” Phillips screws
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7304 Kia/Hyundai harness 2010-up • HYBL-04 Bluelink/Amp Interface
Antenna Adapter: • No antenna adapter required
• Phillips Screwdriver • Small Flat Blade Screwdriver
• Panel Removal tool
TOOLS REQUIRED
Hyundai Genesis Coupe 20
13-up
99-7352B
A
B C D E
F
99-7352B
1. Unclip and remove the shifter trim
panel. (Figure A)
2. Unclip and remove the display trim
panel above radio. (Figure B)
3. Unclip and remove the radio/
climate control trim panel.
(Figure C)
4. Remove (4) Phillips screws
securing the radio. (Figure D)
Dash Disassembly
(Figure A)
(Figure D)
(Figure B)
(Figure E)
(Figure C)
(Figure F)
5. Remove (4) Phillips screws
securing the factory gauges to the
radio/climate control panel.
(Figure E)
6. Remove (4) Phillips screws
securing the climate control to the
radio/climate control panel.
(Figure E)
7. Remove (4) Phillips screws
securing the pocket assembly to
the radio/climate control panel.
(Figure F)
Continue to kit preparation
99-7352B
Kit Preparation Kit Assembly
(Figure A)
1. Attach the pocket assembly to the
99-7352B radio panel using the (4)
#8 x 1/2” Phillips screws provided.
(Figure A)
2. Attach the climate control to the
99-7352B radio panel using (4)
#8 x 1/2” Phillips screws provided.
(Figure B)
3. Attach the factory gauges to the
99-7352B radio panel using (4)
#8 x 1/2” Phillips screws provided.
(Figure B)
(Figure B)
1. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS.
Re-connect the negative battery
terminal and test the unit for
proper operation.
2. Attach the radio brackets to the
aftermarket radio using the screws
supplied with the radio, then
secure the assembly to the pocket
using the (4) #8 x 3/8” Phillips
screws. (Figure A)
3. Mount the assembly into the
sub-dash.
4. Reassemble dash in reverse
order of disassembly using the
99-7352B trim panel instead of the
factory trim panel.
(Figure A)
4. Attach the provided (2) panel
clips to the upper legs and the (2)
factory clips to the lower legs of
the 99-7352B radio panel.
