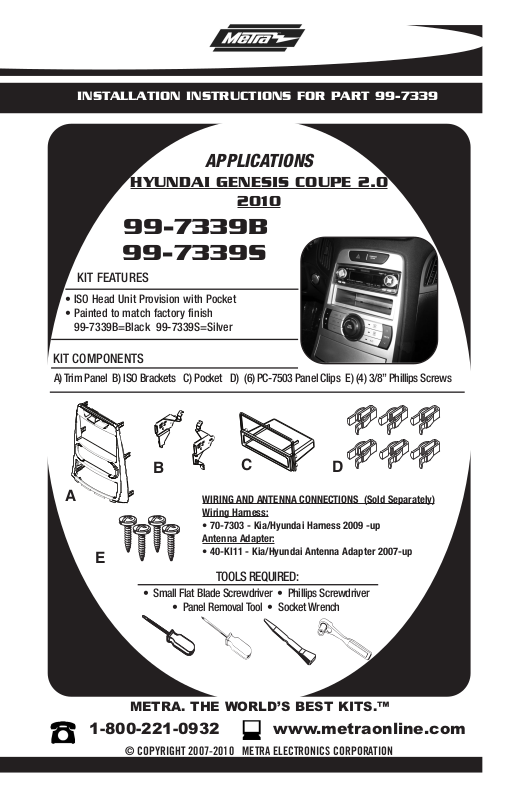

INSTALLATION INSTRUCTIONS FOR PART 99-7339
APPLICATIONS
HYUNDAI GENESIS COUPE 2.0
2010
99-7339B
99-7339S
KIT FEATURES
• ISO Head Unit Provision with Pocket
• Painted to match factory finish
99-7339B=Black 99-7339S=Silver
KIT COMPONENTS
A) Trim Panel B) ISO Brackets C) Pocket D) (6) PC-7503 Panel Clips E) (4) 3/8” Phillips Screws
B
A
E
• Small Flat Blade Screwdriver • Phillips Screwdriver
• Panel Removal Tool • Socket Wrench
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2007-2010 METRA ELECTRONICS CORPORATION
C
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-7303 - Kia/Hyundai Harness 2009 -up
Antenna Adapter:
• 40-KI11 - Kia/Hyundai Antenna Adapter 2007-up
TOOLS REQUIRED:
D
www.metraonline.com
TABLE OF CONTENTS
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Dash Disassembly
99-7339
- Hyundai Genesis Coupe 2010 . . . .
..........................
Kit Preparation
- Hyundai Genesis Coupe 2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Kit
Assembly
- ISO DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
*Note:
er also to the instructions included with the aftermarket radio.
Ref
1
Metra recommends MECP certified
technicians.
99-7339 DASH DISASSEMBLY
HYUNDAI GENESIS COUPE 2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the shifter trim
2
panel. (
Unclip and remove the radio/climate
3
control trim panel.
4
Unclip and remove the display trim
panel above radio.
Remove (4) Phillips screws securing
5
the radio.
Figure A)
(Figure B)
(Figure C)
A
B
Remove (4) Phillips screws securing
6
the climate control to the factory trim
panel.
C
1
99-7339 KIT PREPARATION
KIT PREPARATION
HYUNDAI GENESIS COUPE 2010
Attach the climate control to the 95-
1
7336S trim plate using the factory
hardware. (Figure A)
Attach the (6) panel clips to the 95-
2
7336S trim plate. (Figure B)
A
B
Continue to kit assembly
2
99-7339 KIT ASSEMBLY
HYUNDAI GENESIS COUPE 2010
ISO DIN HEAD UNIT PROVISION
Locate the factory wiring harness in
1
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
Attach the ISO brackets to the after-
2
market radio (figure A), then secure
the assembly to the pocket using the
(4) supplied Phillips screws (figure B).
Mount the assembly into the sub
3
dash.
Reassemble dash in reverse order of
4
disassembly using the 99-7339 trim
panel instead of the factory trim
panel.
A
B
3
99-7339
NOTES
99-7339
NOTES
99-7339 INSTRUCTIONS
INSTRUCTIONS
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932
REV. 12/15/09 © COPYRIGHT 2003-2010 METRA ELECTRONICS CORPORATION INST99-7339
