INSTALLATION INSTRUCTIONS FOR PART 99-7334
APPLICATIONS
KIA Borrego 2009
99-7334
KIT FEATURES
• DIN Radio Provision
• ISO DIN Radio Provision
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Radio Housing • B) ISO Trim Plate • C) ISO Brackets • D) Double DIN Trim Plate
• E) Double DIN Brackets • F) Pocket
B
A
D
E
Small Flat Blade Screwdriver/ Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
C
Wiring & Antenna Connections (sold separately)
• 70-7303 - Hyundai / Kia Harness 2009
• 40-KI10 - Kia Antenna Adapter 2007-up
F
TOOLS REQUIRED:
• Phillips Screwdriver
www.metraonline.com
99-7334
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
-
KIA Borrego 2009 . . . . . . . . . . . . . . . . . . .... . . . . . . .
. . . . . . 1
Kit Assembly
- DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
- ISO Mount Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
- Double DIN/Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . 4
Final
Assembly .......................................... . 5
*Note:
Refer also to the instructions included with the aftermarket radio.
99-7334 DASH DISASSEMBLY
KIA BORREGO 2009
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Unclip and remove the side trim
2
panels. (
3
Remove (4) Phillips screws securing
the radio and (2) Phillips screws
securing the A/C vent panel above the
radio.
Unclip and remove the radio and A/C
4
vent panel as one piece then unplug
the radio and vent panel and separate.
(Figure C)
Continue to kit assembly.
Figure A)
(Figure B)
A
B
C
1
99-7334 KIT ASSEMBLY
DIN RADIO PROVISION

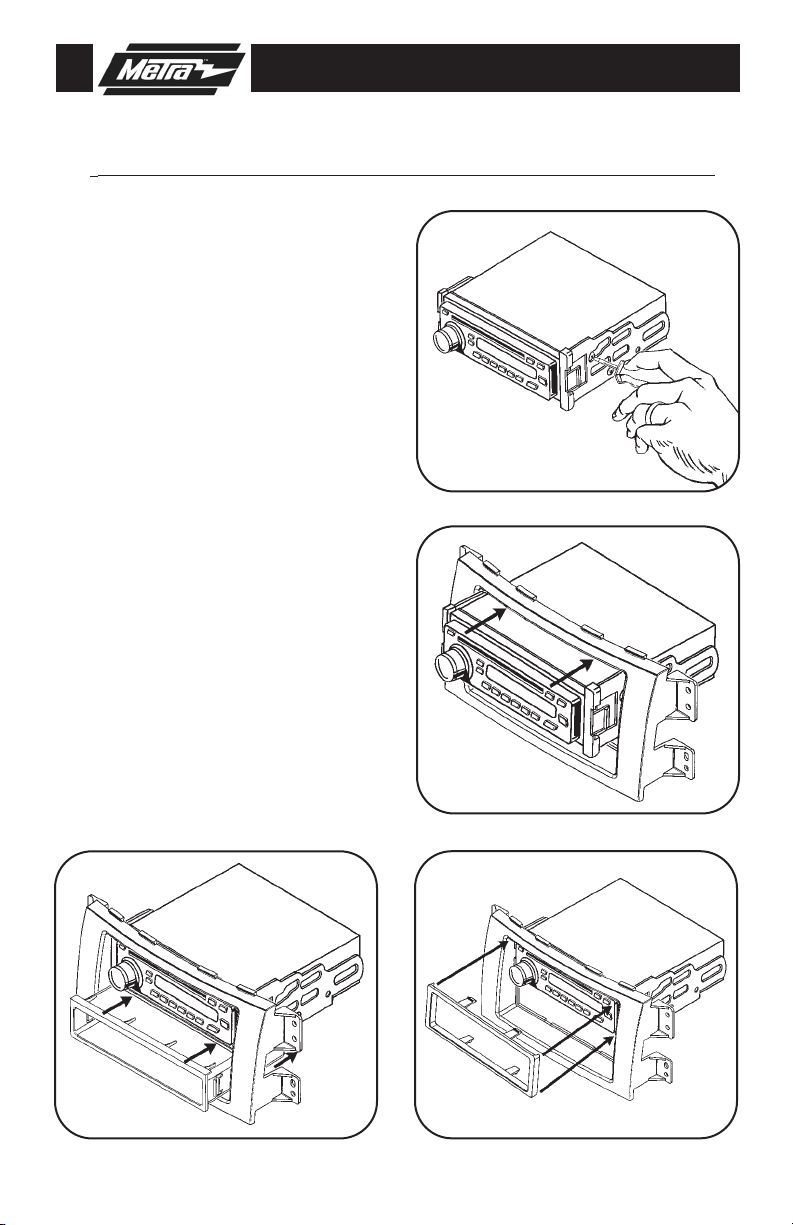

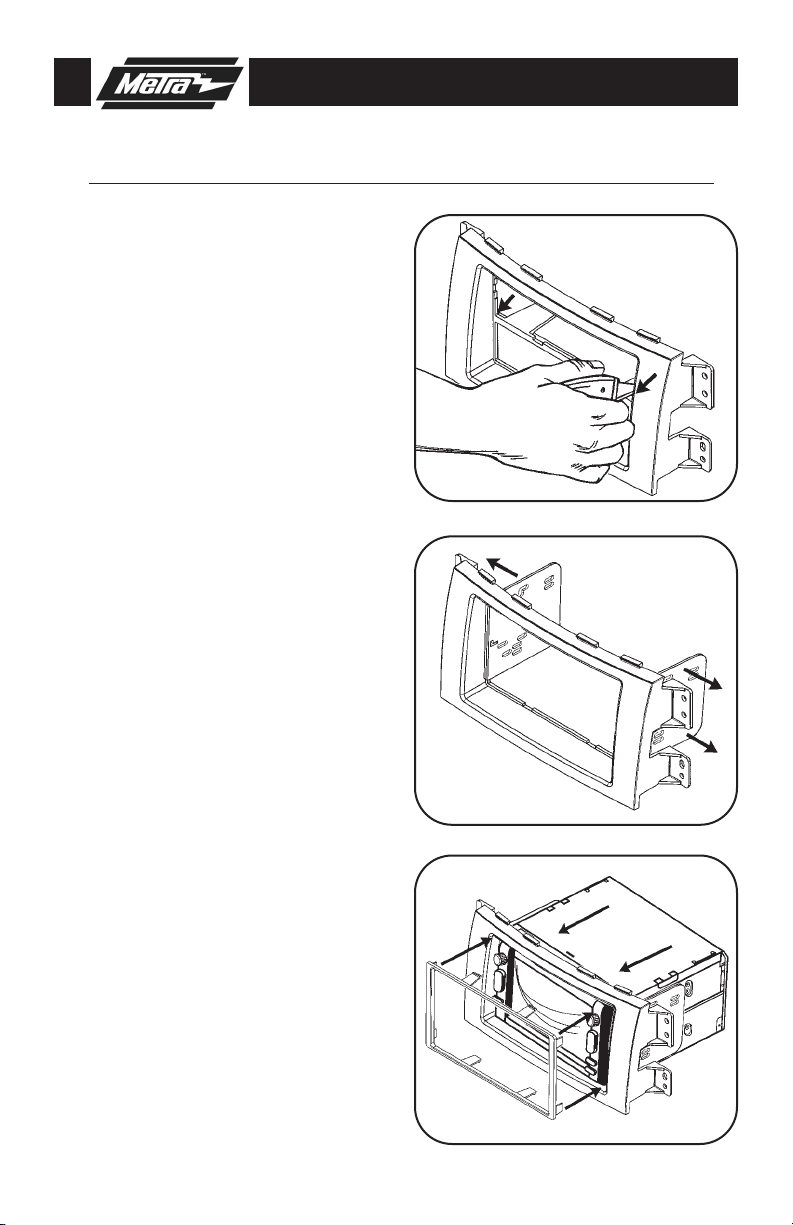

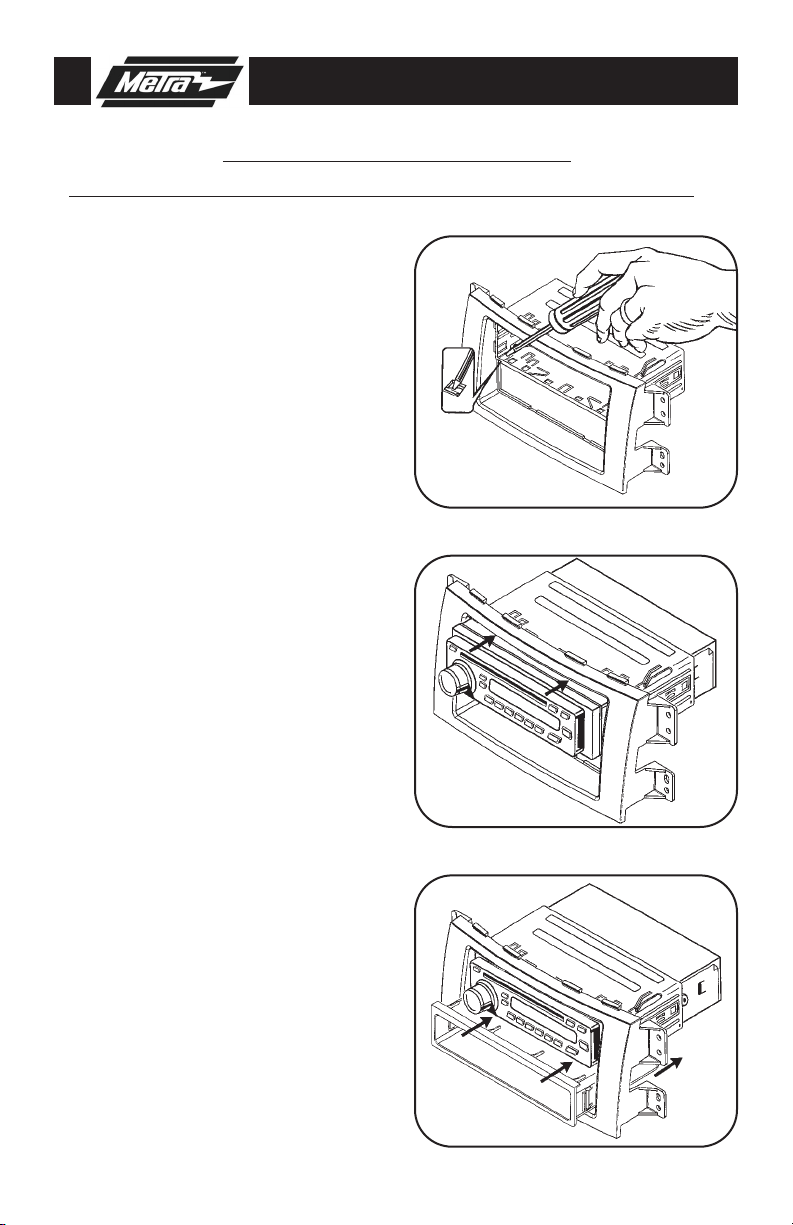

*Note: Refer also to the instructions included with the aftermarket radio.
A
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs outward.
Slide the aftermarket radio into the
2
cage until it snaps into place.
Snap the pocket into the bottom
3
opening of the radio housing.
Continue to final assembly.
(Figure A)
(Figure B)
(Figure C)
B
2
C
99-7334 KIT ASSEMBLY
ISO MOUNT RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Mount the ISO Brackets to the radio
1
using the screws supplied with the
radio.
(Figure A)
Slide the radio/bracket assembly into
2
the radio housing until it snaps into
place.
(Figure B)
3
Snap the ISO Trim plate onto the front
of the Radio Housing.
(Figure C)
Snap the pocket into the bottom
4
opening of the radio housing.
(Figure D)
Continue to final assembly.
D
B
C
3
99-7334 KIT ASSEMBLY
DOUBLE DIN/STACKED ISO MOUNT UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Cut and remove the center bar from
1
the radio housing.
2
Snap the Double DIN brackets to the
inside edge of the Radio Housing.
(Figure B)
3
Slide the Double DIN or stacked ISO
mount unit(s) into the bracket/radio
housing assembly and secure the
unit(s) to the assembly using the
screws supplied with the unit(s).
(Figure C)
4
Snap the Double DIN Trim plate onto
the front of the Radio Housing.
(Figure C)
(Figure A)
B
Continue to final assembly.
C
4
99-7334 FINAL ASSEMBLY
FINAL ASSEMBLY

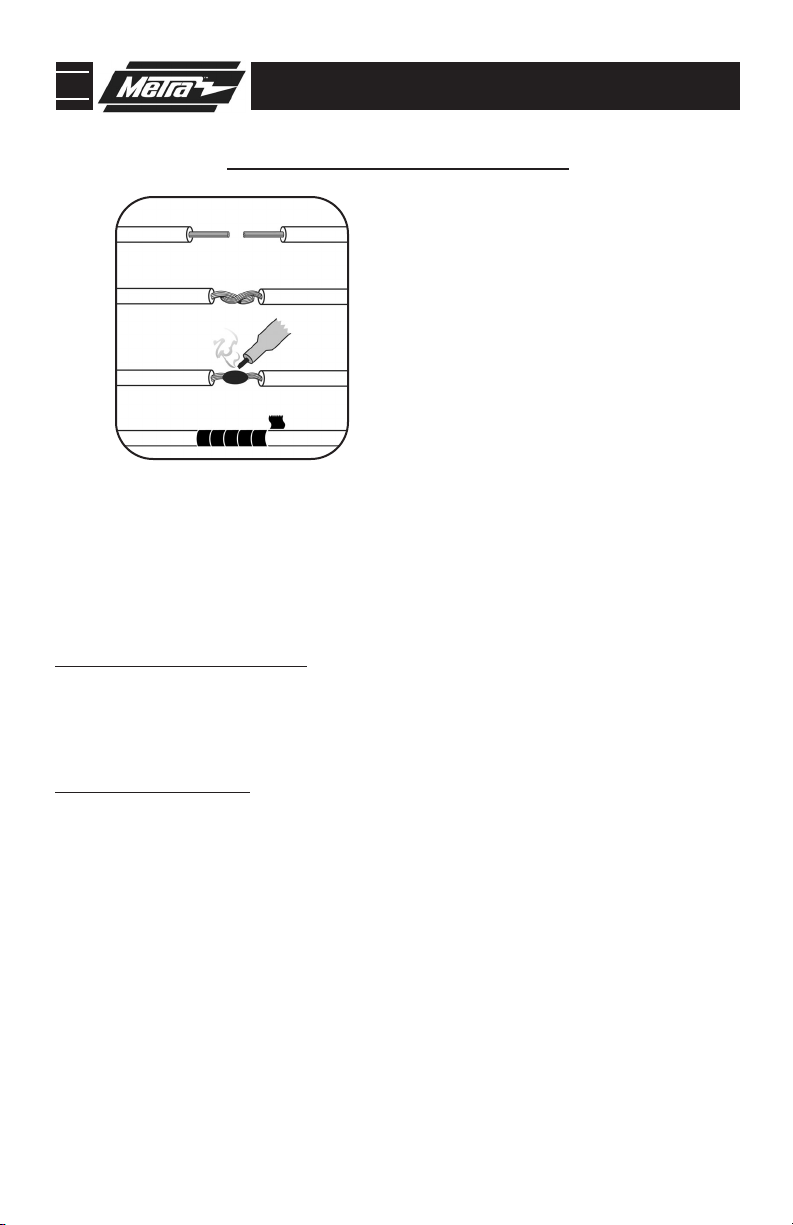

A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’
Enjoy your newly installed radio!
s specifications.
5
99-7334 INSTRUCTIONS
1-800-221-0932
REV. 09/01/10 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION INST99-7334
