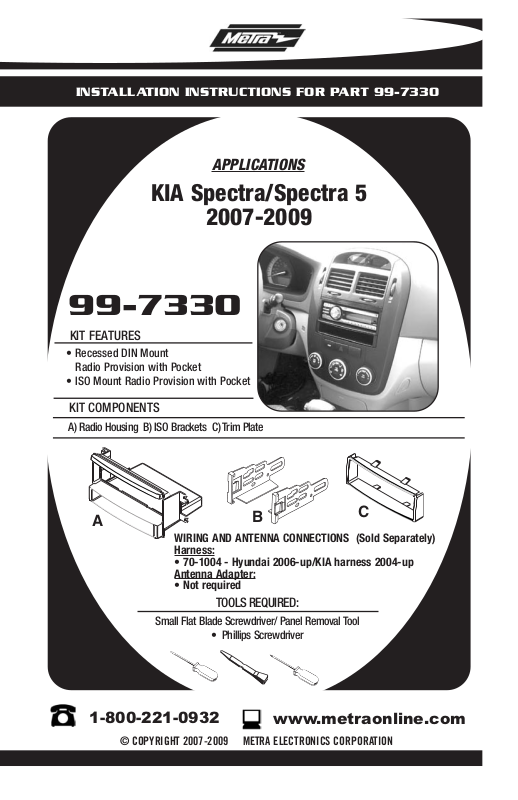

INSTALLATION INSTRUCTIONS FOR PART 99-7330
APPLICATIONS
KIA Spectra/Spectra 5
2007-2009
99-7330
KIT FEATURES
• Recessed DIN Mount
Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing B) ISO Brackets C) Trim Plate
A
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1004 - Hyundai 2006-up/KIA harness 2004-up
Antenna Adapter:
• Not required
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2007-2009 METRA ELECTRONICS CORPORATION
B
TOOLS REQUIRED:
www.metraonline.com
C
99-7330
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com
or call 800-354-6782 for more information
and take steps toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
- KIA Spectra/Spectra 5 2007-2009 ...................................1
Kit Assembly
- DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
- ISO Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Final
*Note:
Refer also to the instructions included with the aftermarket radio.
4
99-7330 DASH DISASSEMBLY
KIA SPECTRA/SPECTRA 5 2007-2009
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the trim panel sur-
2
rounding the radio and including the
a/c vents.
Remove (4) Phillips screws securing
3
the radio. Unplug and remove radio.
(Figure B)
Continue to kit assembly.
(Figure A)
A
B
1
99-7330 KIT ASSEMBLY
RECESSED DIN MOUNT RADIO
PROVISION WITH POCKET
*
Note: Refer also to the instructions included with the aftermarket radio.
A
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs outward.
Slide the aftermarket radio into the
2
DIN cage/housing assembly until it
snaps into place.
Continue to final assembly.
(Figure B)
(Figure A)
B
2
99-7330 KIT ASSEMBLY
ISO MOUNT RADIO PROVISION WITH POCKET
*
Note: Refer also to the instructions included with the aftermarket radio.
A
Align the holes from the ISO snap in
1
brackets with the holes in the side of
the radio and mount the brackets to
the radio using screws supplied with
the radio.
Slide the radio/bracket assembly into
2
the radio housing until the assembly
snaps into place.
Snap the ISO trim plate onto the radio
3
and housing assembly.
Continue to final assembly.
(Figure A)
(Figure B)
(Figure B)
B
3
99-7330 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
4
99-7330
NOTES
5
99-7330 INSTRUCTIONS
1-800-221-0932
REV. 06/24/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-7330
www.metraonline.com
