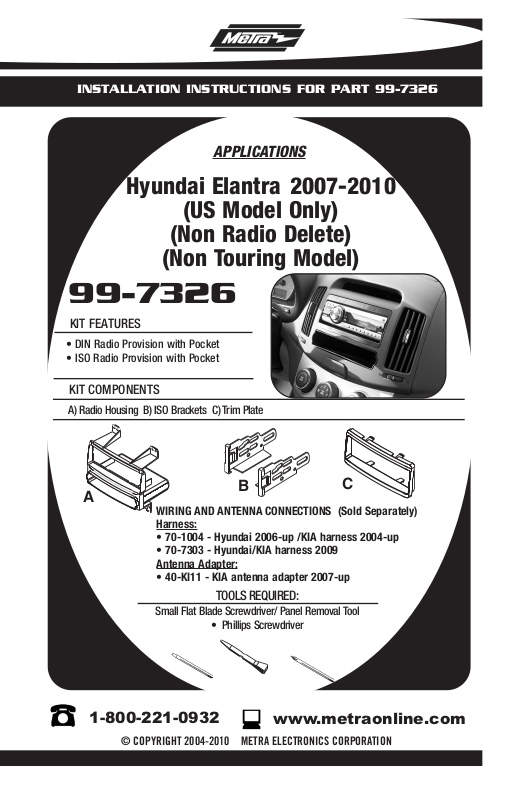

INSTALLATION INSTRUCTIONS FOR PART 99-7326
APPLICATIONS
Hyundai Elantra 2007-2010
(US Model Only)
(Non Radio Delete)
(Non Touring Model)
99-7326
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing B) ISO Brackets C) Trim Plate
A
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1004 - Hyundai 2006-up /KIA harness 2004-up
• 70-7303 - Hyundai/KIA harness 2009
Antenna Adapter:
• 40-KI11 - KIA antenna adapter 2007-up
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
www.metraonline.com
C
99-7326
TABLE OF CONTENTS
Dash Disassembly
- Hyundai Elantra 2007-2010........................................1
Kit
Assembly
- DIN Radio Provision with Pocket ..................................2
- ISO Radio Provision with Pocket ...................................3
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
*Note:
er also to the instructions included with the aftermarket radio.
Ref
99-7326 DASH DISASSEMBLY
1
2
3
4
A/C
HYUNDAI ELANTRA 2007-2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the panel sur-
2
rounding the radio including the a/c
vents and hazard button.
Remove (4) Phillips screws to remove
3
radio.
Continue to kit assembly.
(Figure A)
A
B
1
99-7326 KIT ASSEMBLY
DIN RADIO PROVISION WITH POCKET
*Note: Refer also to the instructions included with the aftermarket radio.
A
Note: The trim plate supplied with the
99-7326 is required for a complete
installation. ISO mounting may be preferrred as it is easier than DIN mounting and using this trim plate.
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs outward.
2
Slide the aftermarket radio into the
cage until it snaps into place.
(Figure A)
(Figure B)
3
Snap the trim plate into the Radio
Housing.
Continue to final assembly.
(Figure B)
B
2
99-7326 KIT ASSEMBLY
ISO RADIO PROVISION WITH POCKET
*Note: Refer also to the instructions included with the aftermarket radio.
A
Mount the ISO Brackets to the after-
1
market radio using the screws supplied with the radio.
2
Slide the radio into the radio opening
until the side clips snap into place.
(Figure B)
Snap the trim plate onto the front of
3
the Radio Housing.
Continue to final assembly.
(Figure A)
(Figure B)
B
3
99-7326 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
4
99-7326
