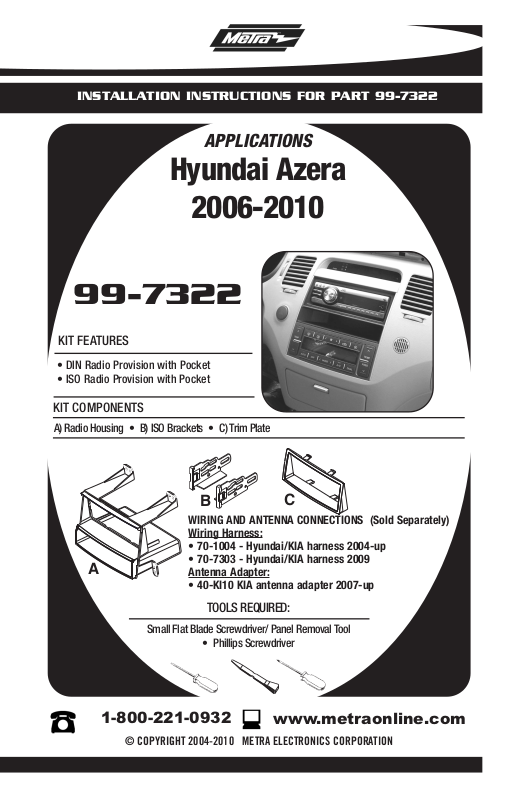

INSTALLATION INSTRUCTIONS FOR PART 99-7322
APPLICATIONS
Hyundai Azera
2006-2010
99-7322
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) Trim Plate
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-1004 - Hyundai/KIA harness 2004-up
A
Small Flat Blade Screwdriver/ Panel Removal Tool
• 70-7303 - Hyundai/KIA harness 2009
Antenna Adapter:
• 40-KI10 KIA antenna adapter 2007-up
TOOLS REQUIRED:
• Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
C
www.metraonline.com
Page 2
99-7322
TABLE OF CONTENTS
Dash Disassembly
-
Hyundai Azera 2006-2010. . . . . . . . . . . . . . . . . . . . .
. . . . . . 1,2
Kit Assembly
- DIN Radio Provision . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
- ISO Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
*Note:
Refer also to the instructions included with the aftermarket radio.
Page 3
99-7322 DASH DISASSEMBLY
HYUNDAI AZERA 2006-2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Remove (1) Phillips head screw from
bottom right hand corner then unclip
and let the panel below the steering
column hang. (
3
Remove (1) Phillips screw from the
lower left side of the radio panel
behind panel removed in step 2.
(Figure B)
4
Unclip and remove the trim panel
above the radio that extends across
the dash to the passenger side.
(Figure C)
Figure A)
A
B
C
1
Page 4
99-7322 DASH DISASSEMBLY
TEM
P
TEMP
MODE
A/C
OFF
AUT
O
DUA
L
PAS
S
HYUNDAI AZERA 2006-2010
Remove (3) Phillips screws from the
5
top of the radio trim panel.
Remove (2) Phillips screws from
6
under radio trim panel.
Unclip and remove the entire trim
7
panel surrounding the radio.
Remove (4) Phillips screws securing
8
the radio. Unplug and remove radio.
(Figure G)
Continue to kit assembly.
(Figure D)
(Figure E)
(Figure F)
D
E
G
F
2
Page 5
99-7322 KIT ASSEMBLY
DIN RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs outward.
Slide the aftermarket radio into the
2
cage and secure.
Continue to final assembly.
(Figure B)
(Figure A)
B
3
Page 6
99-7322 KIT ASSEMBLY
ISO DIN RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Mount the ISO Brackets to the after-
1
market radio using the screws supplied with the radio.
Slide the radio into the radio opening
2
until the side clips snap into place.
(Figure B)
Snap the trim plate into the Radio
3
Housing.
(Figure B)
(Figure A)
Continue to final assembly.
B
4
Page 7
99-7322 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
5
