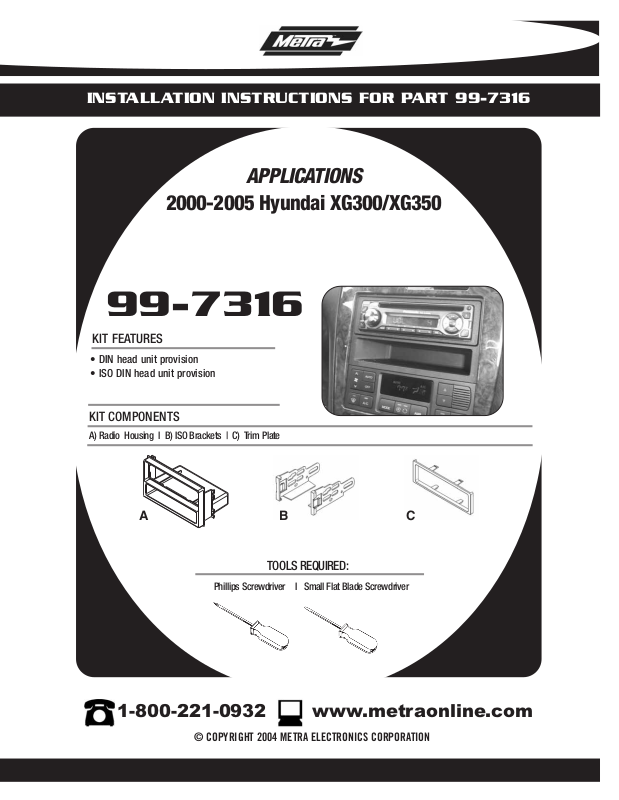

INSTALLATION INSTRUCTIONS FOR PART 99-7316
APPLICA TIONS
2000-2005 Hyundai XG300/XG350
99-7316
KIT FEATURES
• DIN head unit provision
• ISO DIN head unit pro
vision
KIT COMPONENTS
A) Radio Housing l B) ISO Brackets | C) Trim Plate
A
TOOLS REQUIRED:
Phillips Screwdriver I Small Flat Blade Screwdriver
B
C
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
99-7316
TABLE OF CONTENTS
Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 3
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
99-7316
2000-2005 HYUNDAI XG300/XG350
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Unclip and remove entire panel surrounding radio and climate controls
including pocket assembly at bottom
of panel.
Remove (4) Phillips screws per side
3
to remove radio and climate control.
Note: It is not necessary to disconnect climate control.
(Figure A)
(Figure B)
DASH DISASSEMBLY
A
B
1
99-7316
DIN HEAD UNIT PROVISION
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs down.
Slide the aftermarket head unit into
2
the cage and secure. (
(Figure A)
Figure B)
KIT ASSEMBLY
A
B
2
99-7316
ISO DIN HEAD UNIT PROVISION
Mount the ISO Brackets to the head
1
unit with the screws supplied with
the unit.
Slide the head unit into the radio
2
opening until the side clips engage.
(
Figure B)
Snap the Trim plate into the Radio
3
Housing.
(Figure A)
(Figure B)
KIT ASSEMBLY
A
B
3
99-7316
KIT ASSEMBLY
FINAL ASSEMBLY
Locate the factory wiring harness in the dash and make the connection as shown.
1
Metra recomends using the proper mating adapter and making the connections as
shown. (Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
3
Reassemble radio and dash assemblies in reverse order of disassembly.
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
A
B
C
D
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
Right Front (+) . . . . . Gray
Right Front (-) . . . . . . Gray / Black
Left Front (+) . . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Dimmer . . . . . . . . . . Orange / White
*NOTE: When Black a wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Left Rear (-) . . . . . . . Green / Black
4
99-7316
NOTES
5
INST997316
1-800-221-0932 www.metraonline.com
REV. 09/01/05
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
