Metra Electronics 99-7313 Installation Manual

Page 1

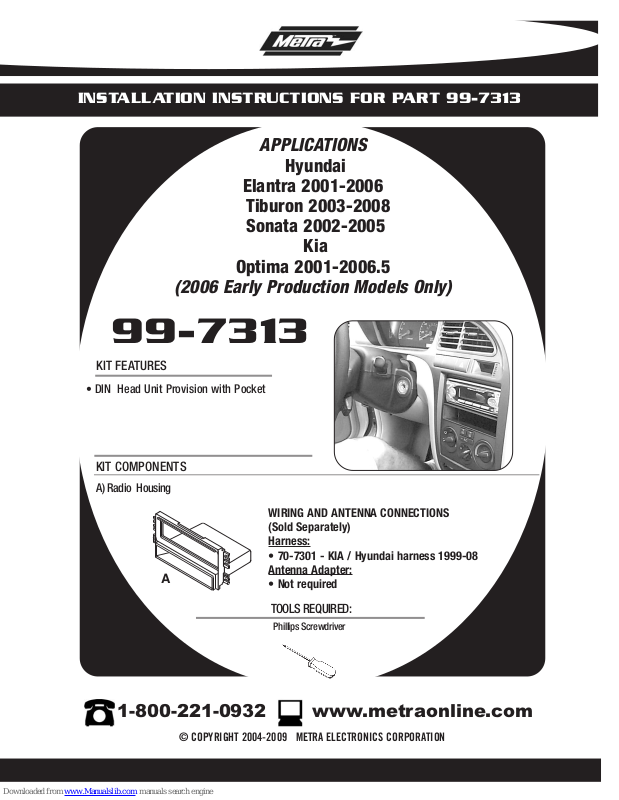

INSTALLATION INSTRUCTIONS FOR PART 99-7313
APPLICATIONS
Hyundai
Elantra 2001-2006
Kia
Optima 2001-2006.5
(2006 Early Production Models Only)
99-7313
KIT FEATURES
DIN Head Unit Provision with Pocket
KIT COMPONENTS
A) Radio Housing
WIRING AND ANTENNA CONNECTIONS (Sold Separately) Harness:
• 70-7301 - KIA / Hyundai harness 1999-08
A
Antenna Adapter:
• Not required
TOOLS REQUIRED:
Phillips Screwdriver
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
Page 2
99-7313
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
- Hyundai Elantra 2001-2006 . . . . . . . . . . . . . . . . . . . . . . . . 1
- Hyundai Tiburon 2003-2008 . . . . . . . . . . . . . . . . . . . . . . . . 2
- Hyundai Sonata 2002-2005 . . . . . . . . . . . . . . . . . . . . . . . . . 3
- Kia Optima 2001-2006.5
Assembly
Kit
(2006 Early Production Models Only)
. . . . . . . 3
- DIN Head Unit Provision with Pocket . . . . . . . . . . . . . . . . . . 4
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Page 3
2001-2006 HYUNDAI ELANTRA
Disconnect the negative battery
1
terminal to prevent an accidental short circuit.
2
Remove (2) Phillips screws from under the instrument cluster.
Remove ashtray then remove (2)
3
Phillips screws in ashtray cavity.
Unclip and remove panel surround-
4
ing radio and remove the bezel.
(Figure A)
99-7313
A
DASH DISASSEMBLY
5
Remove (4) Phillips screws securing radio.
1
Page 4
2003-2008 HYUNDAI TIBURON
CUT
CUT
Disconnect the negative battery ter-
1
minal to prevent an accidental short circuit.
Unclip and remove the radio trim
2
panel starting with the bottom edge.
(Figure A)
Remove (2) Phillips screws securing
3
radio.
99-7313
DASH DISASSEMBLY
A
NOTE: For the 2003-2008 Hyundai Tiburon applications you will need to cut and remove the bottom mount­ing tabs on the DDIN brackets.
(Figure B)
B
2
Page 5
2002-2005 HYUNDAI SONATA
2001-2006.5 KIA OPTIMA
(2006 OPTIMA EARLY PRODUCTION MODELS ONLY)
Disconnect the negative battery
1
terminal to prevent an accidental short circuit.
2
Unclip and remove entire panel sur­rounding radio.
Remove (4) Phillips screws securing
3
radio.
(Figure A)
99-7313
A
DASH DISASSEMBLY
NOTE: The rear support bar in the sub dash will need to be cut and removed for aftermarket radio clear­ance.
(Figure B)
B
3
Page 6
99-7313
KIT ASSEMBLY
DIN HEAD UNIT PROVISION WITH POCKET
Slide the DIN cage into the Radio
1
Housing and secure by bending the metal locking tabs down.
Slide the aftermarket head unit into
2
the cage until secure.
(Figure A)
(Figure B)
A
B
4
Page 7
99-7313
FINAL ASSEMBLY
FINAL ASSEMBLY
A
B
C
D
1
2 3
Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red 12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
*NOTE: When Black a wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Dimmer . . . . . . . . . . Orange / White
Right Front (+) . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Left Rear (-) . . . . . . . Green / Black
5
Page 8
99-7313 INSTRUCTIONS
1-800-221-0932 www.metraonline.com
REV. 06/18/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-7313
