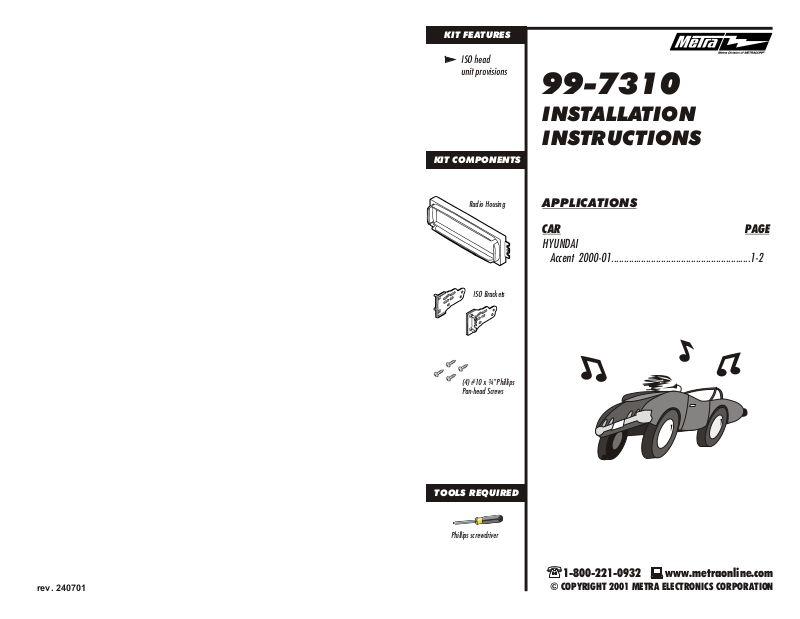

Metra Electronics 99-7310 User Manual

KIT FEATURES

ISO head
unit provisions

KIT COMPONENTS

99-7310

INSTALLATION
INSTRUCTIONS

Radio Housing

ISO Brackets

(4) #10 x ¾" Phillips
Pan-head Screws

TOOLS REQUIRED

APPLICATIONS

CAR PAGE

HYUNDAI

Accent 2000-01........................................................1-2

rev. 240701

Phillips screwdriver

1-800-221-0932 www.metraonline.com

© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION

ALL VEHICLES

3

4

A

1

Disconnect the negative battery terminal to prevent an accidental short circuit. Open the
cupholder and remove (2) Phillips screws exposed. Lower the glove box and detach the vent
cable exposed. Reach under the driver's side dash and detach (2) vent cables located above
the accelerator. Unclip the dash trim bezel and remove. Remove (4) screws securing the
factory head unit and disconnect the wiring.

2

Slide the head unit into the Radio Housing, align
the holes in the head unit with the holes in the
Housing and mount the unit with the screws
supplied with the unit.

5

B

C

D

A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape

Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).

Snap the ISO Brackets over the mounting tabs on the Radio Housing.

1

Re-connect the battery terminal and test the unit for proper operation. Mount the head unit/kit
assembly to the sub-dash with (4) Phillips screws previously removed in step #1.

2
