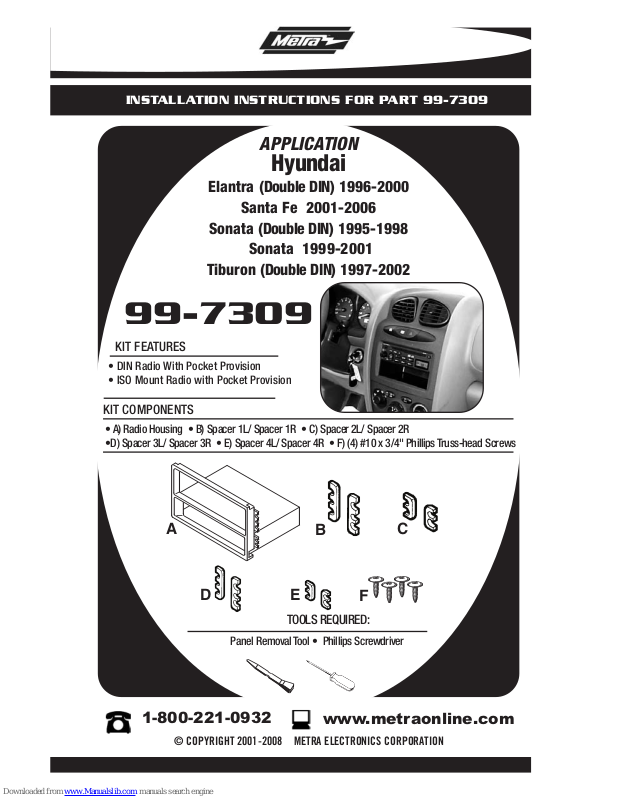

Page 1

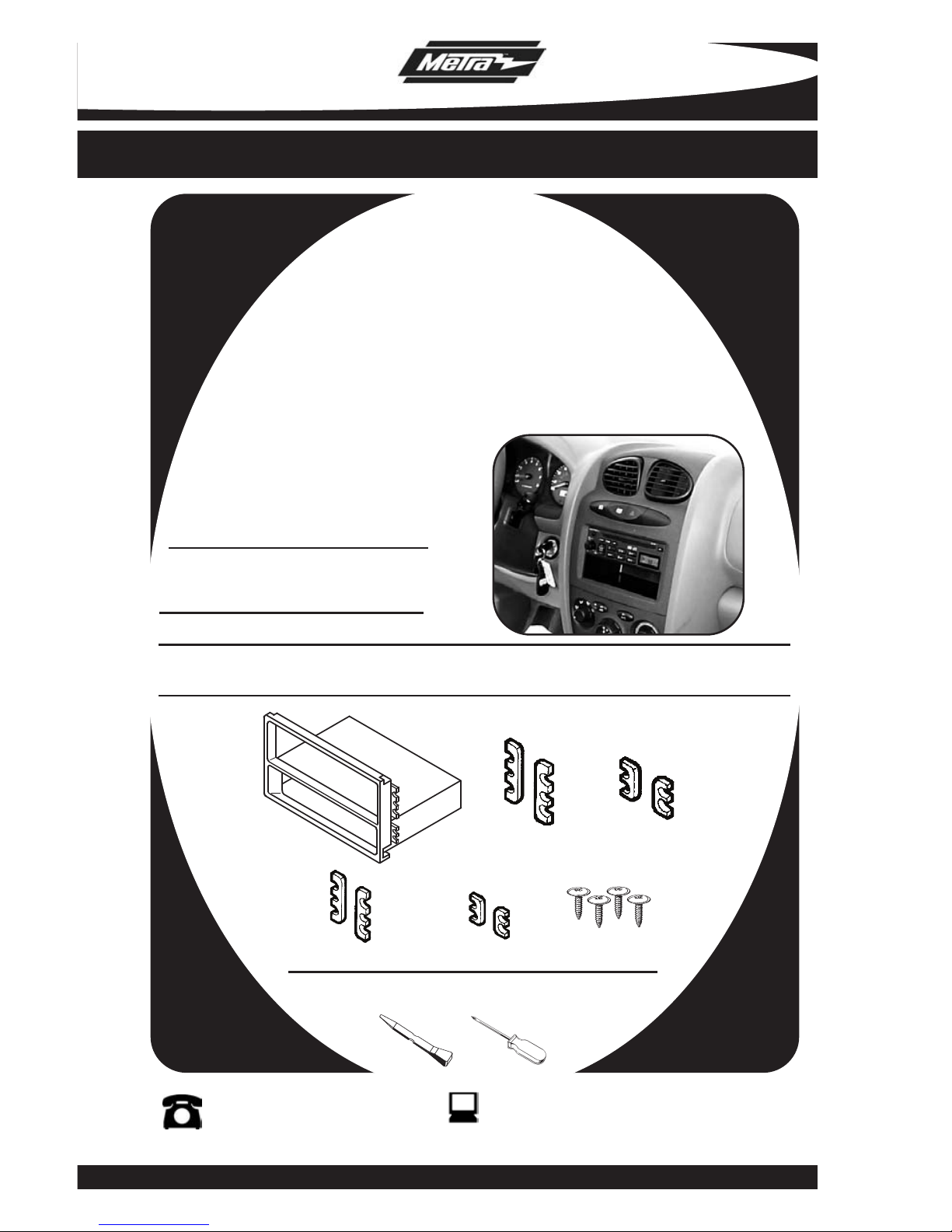

INSTALLATION INSTRUCTIONS FOR PART 99-7309
APPLICATION
Hyundai
Elantra (Double DIN) 1996-2000
Santa Fe 2001-2006
Sonata (Double DIN) 1995-1998
Sonata 1999-2001
Tiburon (Double DIN) 1997-2002
KIT FEATURES
• DIN Radio With Pocket Provision
• ISO Mount Radio with Pocket Provision
• A) Radio Housing • B) Spacer 1L/ Spacer 1R • C) Spacer 2L/ Spacer 2R
•D) Spacer 3L/ Spacer 3R • E) Spacer 4L/ Spacer 4R • F) (4) #10 x 3/4" Phillips Truss-head Screws
KIT COMPONENTS
TOOLS REQUIRED:
Panel Remo
val Tool • Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2001-2008 METRA ELECTRONICS CORPORA
TION
www.metr
aonline.com
A
B
C
99-7309
D
E
F
Page 2
Dash Disassembly
-
Elantra
(Double DIN)
1996-2000 . . . .
. . . . . . . . . . . . . . . . . 1
-
Santa Fe 2001-2006 . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . 1
-
Sonata
(Double DIN)
1995-1998 . . .
. . . . . . . . . . . . . . . . . . . 2
-
Sonata 1999-2001. . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . 2
-
Tiburon
(Double DIN)
1997-2002. . .
. . . . . . . . . . . . . . . . . . . 3
All Vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
TABLE OF CONTENTS
99-7309
*Note:
Refer also to the instructions included with the aftermarket radio.
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and
respected mobile electronics school in our
industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take
steps toward a better tomorrow.
Page 3

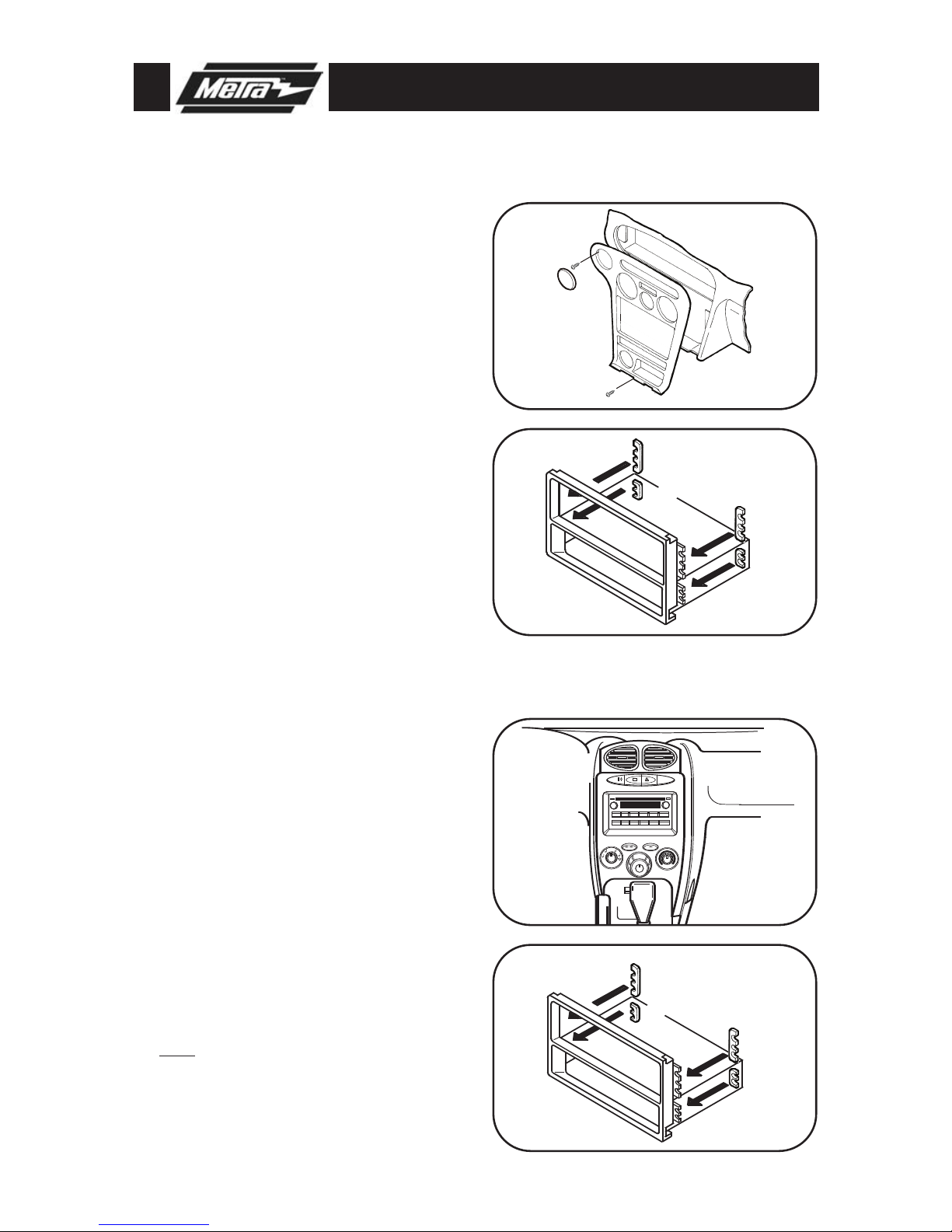

99-7309 DASH DISASSEMBLY
Hyundai Elantra (Double DIN) 1996-2000
Hyundai Santa Fe 2001-2006
1
Disconnect the negative battery terminal to prevent an accidental short circuit. Pop out the dimmer switch panel and remove (1) Phillips screw
exposed. Unsnap the gear shifter trim plate and
remove (1) Phillips screw exposed at the base of
the dash trim bezel. Reach under the driver's
side dash, locate the temperature control cable
and remove the cable from the white plastic
bracket. Position the gear shifter in low, pull the
dash panel away and disconnect all wiring harnesses. Remove the trim bezel (the temperature
controlcable will be attached). Remove (4)
Phillips screws securing the factory head unit
and disconnect the wiring. (
Figure A)
1
2
2
Disconnect the negative battery terminal to prevent an accidental short circuit. Remove ashtray
and (2) Phillips screws exposed in cavity.
Unsnap and remove climate controls with caution. The climate controls have (2) clips that connect with the radio bezel. Remove (2) phillips
screws now exposed under radio bezel (facing
up). Unsnap the bottom of the radio bezel, then
the top and pull straight back. Remove (4)
phillips screws and remove pocket from bezel.
Remove (4) Phillips screws to remove radio from
dash. (
Figure A)
1
A
“1R”
“1L”
“2L”
“2R”
B
A
“3R”
“3L”
“3L”
“4R”
B
Attach Spacer 1L and 2L to the left mounting
tabs of the Radio Housing and Spacer 1R and 2R
to the right mounting tabs of the Radio Housing
as shown. Skip to the Installation Instructions
for ALL VEHICLES on Page #3. (
Figure B)
Attach Spacer 3L and 4L to the left mounting
tabs of the Radio Housing and Spacer 3R and 4R
to the right mounting tabs of the Radio Housing
as shown. (
Figure B)
NOTE:
In cars with factory single DIN radio and pock
et, you may have to file the inside edge of the factory bezel.
Page 4

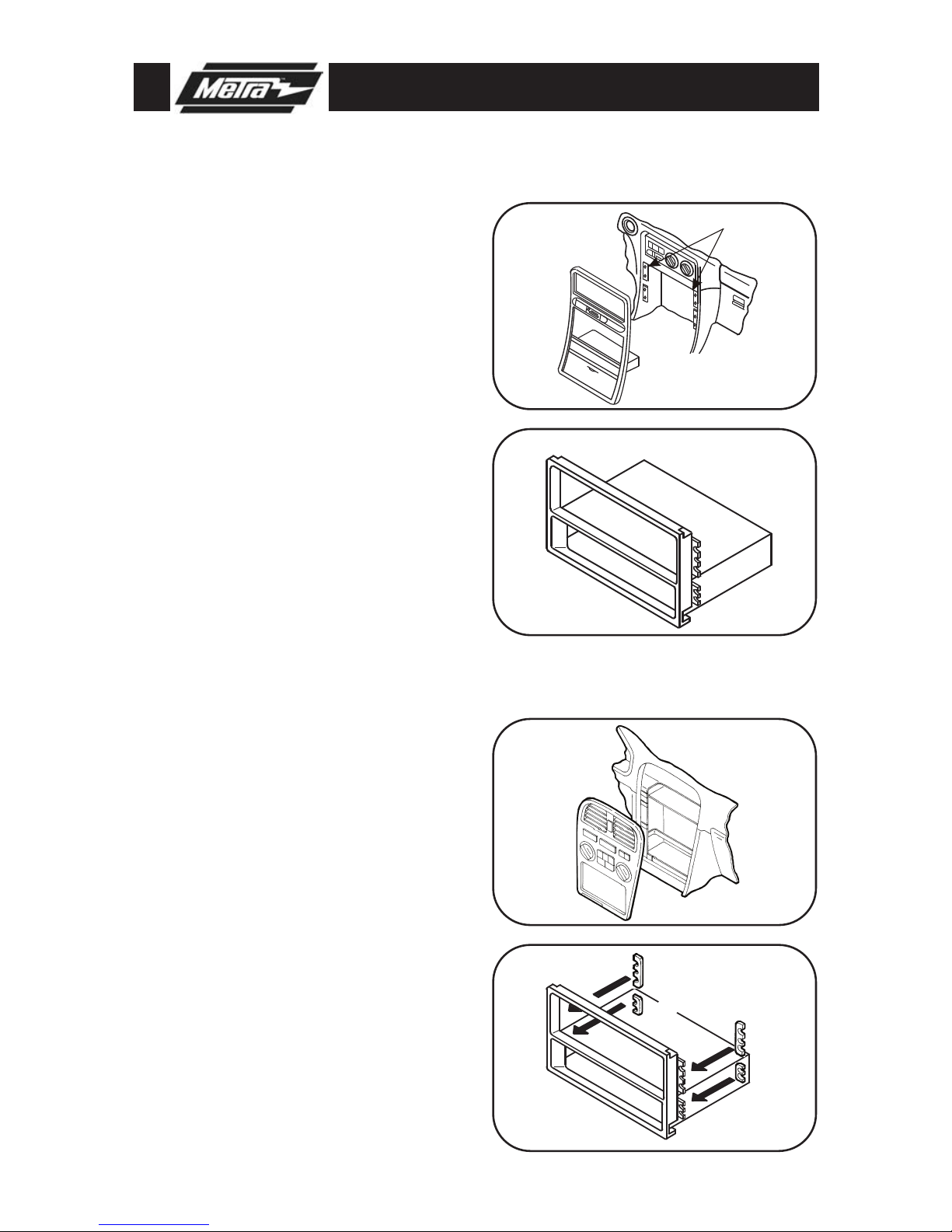

99-7309 DASH DISASSEMBLY
Hyundai Sonata (Double DIN)1995-1998
Hyundai Sonata 1999-2001
2
Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip the gear
shifter trim panel and remove (1) screw
exposed. Unclip the dash trim bezel and remove.
Remove (4) Phillips screws securing the factory
head unit and disconnect the wiring. Cut and
remove tabs "A" located in the top corners of
the dash cavity. (
Figure A)
1
Disconnect the negative battery terminal to prevent an accidental short circuit. Detach the
cable located under the left side of the glove
box. Unclip the trim piece in front of the gear
shifter and remove (2) Phillips screws exposed.
Unclip the gear shifter trim and remove (2)
Phillips screws exposed. Unclip the radio trim
bezel and remove. Remove (6) Phillips screws
securing the factory head unit and disconnect
the wiring. (
Figure A)
1
"
A"
A
B
A
“3R”
“3L”
“4L”
“4R”
B
Locate the Radio Housing. Skip to the Installation
Instructions for VEHICLES on Page #3. (
Figure B)
Attach Spacer 3L and 4L to the left mounting
tabs of the Radio Housing and Spacer 3R and 4R
to the right mounting tabs of the Radio Housing
as shown. Skip to the Installation Instructions for
ALL VEHICLES on Page #3. (
Figure B)
2
2
Page 5

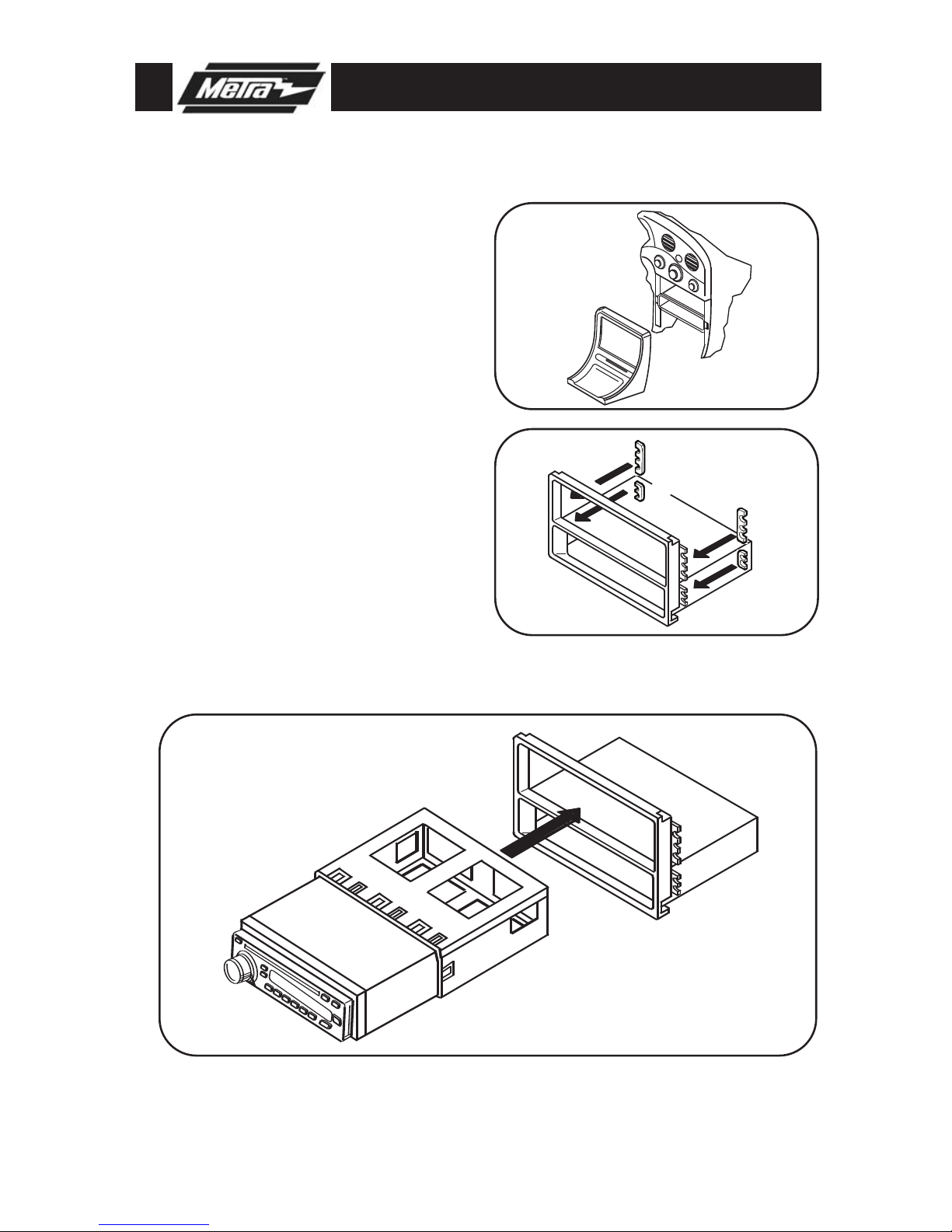

99-7309 DASH DISASSEMBLY
Hyundai Tiburon (Double DIN)1997-2002
All Vehicles
3
Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (4)
Phillips screws securing the center console. Pry
out on the front edge of the console and unclip
the radio trim bezel. Remove (2) Phillips screws
securing the factory pocket and remove.Remove
(4) Phillips screws securing the factory head
unit and disconnect the wiring. (
Figure A)
1
2
Slide the DIN cage into the kit and secure by bending the metal locking tabs down.
Slide the aftermarket head unit into the cage until secure.
A
“3R”
“3L”
“4L”
“4R”
B
Attach Spacer 3L and 4L to the left mounting
tabs of the Radio Housing and Spacer 3R and 4R
to the right mounting tabs of the Radio Housing
as shown. Skip to the Installation Instructions for
ALL VEHICLES on Page #3. (
Figure B)
Page 6
99-7309 FINAL ASSEMBLY

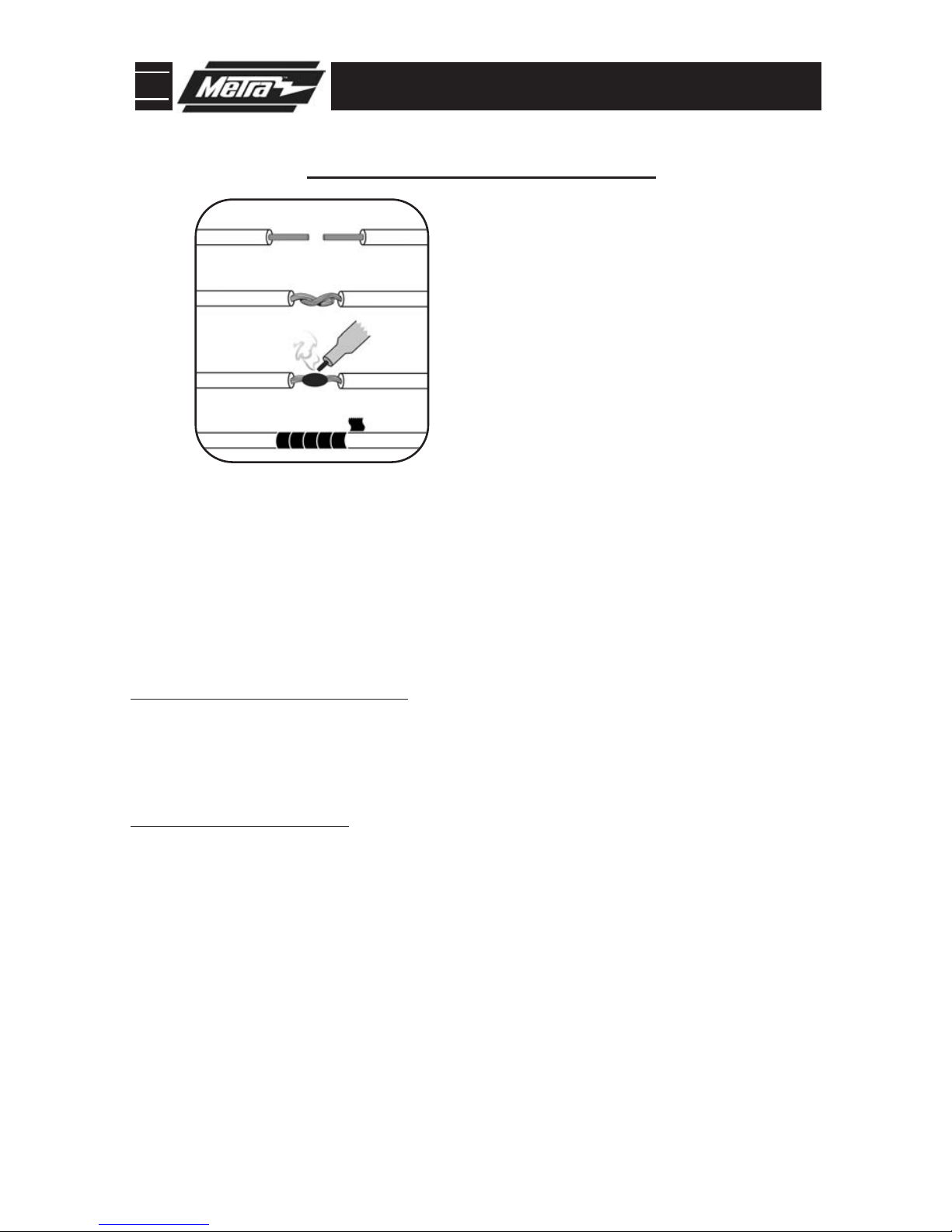

FINAL ASSEMBLY
(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Mount the head unit/kit assembly to the sub-dash with (4) #10 x 3/4” Phillips
truss-head screws supplied.
1
2
3
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+)
. . . . . . . . . . . . .
Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
4
Page 7
99-7309
NOTES
5
