Page 1

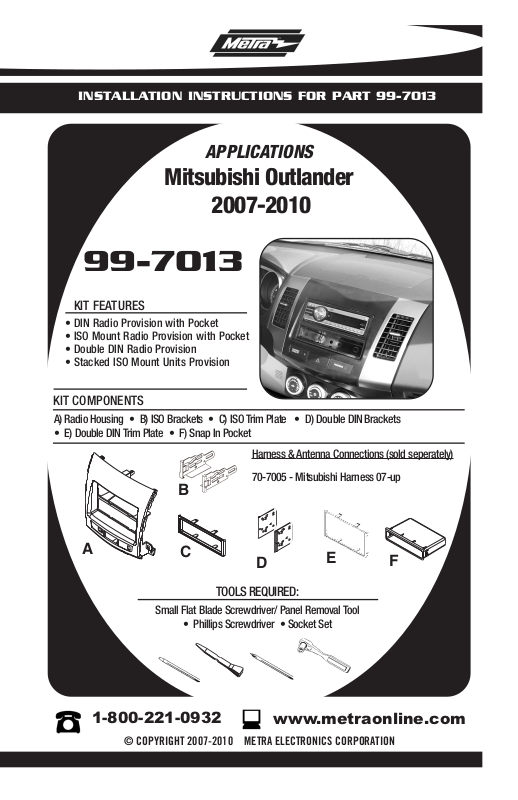

INSTALLATION INSTRUCTIONS FOR PART 99-7013
APPLICATIONS
Mitsubishi Outlander
2007-2010
99-7013
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Snap In Pocket
ness & Antenna Connections (sold seperately)
Har
B
A
C
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
1-800-221-0932
© COPYRIGHT 2007-2010 METRA ELECTRONICS CORPORATION
70-7005 - Mitsubishi Harness 07-up
D
E
F
www.metraonline.com
Page 2
99-7013
TABLE OF CONTENTS
Dash Disassembly
-
Mitsubishi Outlander 2007-2010. . . . . . . . . . . . . . .
. . . . . 1,2
Kit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Kit
Assembly
- DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
- ISO Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . 5
- Double DIN/Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . 6
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
*Note:
er also to the instructions included with the aftermarket radio.
Ref
Page 3
99-7013 DASH DISASSEMBLY
PAS
SE
N
G
ER
AIR
BAG
O
FF
P
A
S
S
E
N
G
E
R
PA
S
SEN
GER
AIR
BAG
O
F
F
P
AS
SEN
G
ER
MITSUBISHI OUTLANDER 2007-2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unclip and remove the vents from the
left and right side of the factory radio
panel. (
Figure A)
Remove (2) Phillips screws securing
3
the radio trim panel then unclip and
remove the panel.
4
Remove (4) Phillips screws securing
(Figure B)
the radio chassis. Unplug and remove
the chassis.
(Figure C)
Continued on page 2.
A
B
C
1
Page 4
99-7013 DASH DISASSEMBLY
REMOVE
“9” PHILLIPS SCREWS
(RETAI N SCREWS)
MITSUBISHI OUTLANDER 2007-2010
Remove (7) Phillips screws securing
5
the hazard switch assembly to the
back of the factory radio trim panel.
Unplug the ribbon cable from the
hazard switch assembly and remove
assembly from panel from rear.
(Retain the screws and switch
assembly to be reused during kit
preparation) (
6
Remove the labels from the front of
Figure D,E)
the radio trim panel at each side of
the hazard switch by pushing them
out from behind the panel. (Retain the
labels to be reused during kit prepa-
Figure F)
ration) (
Continued to kit preparation.
D
E
F
2
Page 5
99-7013 KIT PREPARATION
PAS
SENGER
AIR
BAG
OFF
PAS
SEN
GER
MITSUBISHI OUTLANDER 2007-2010

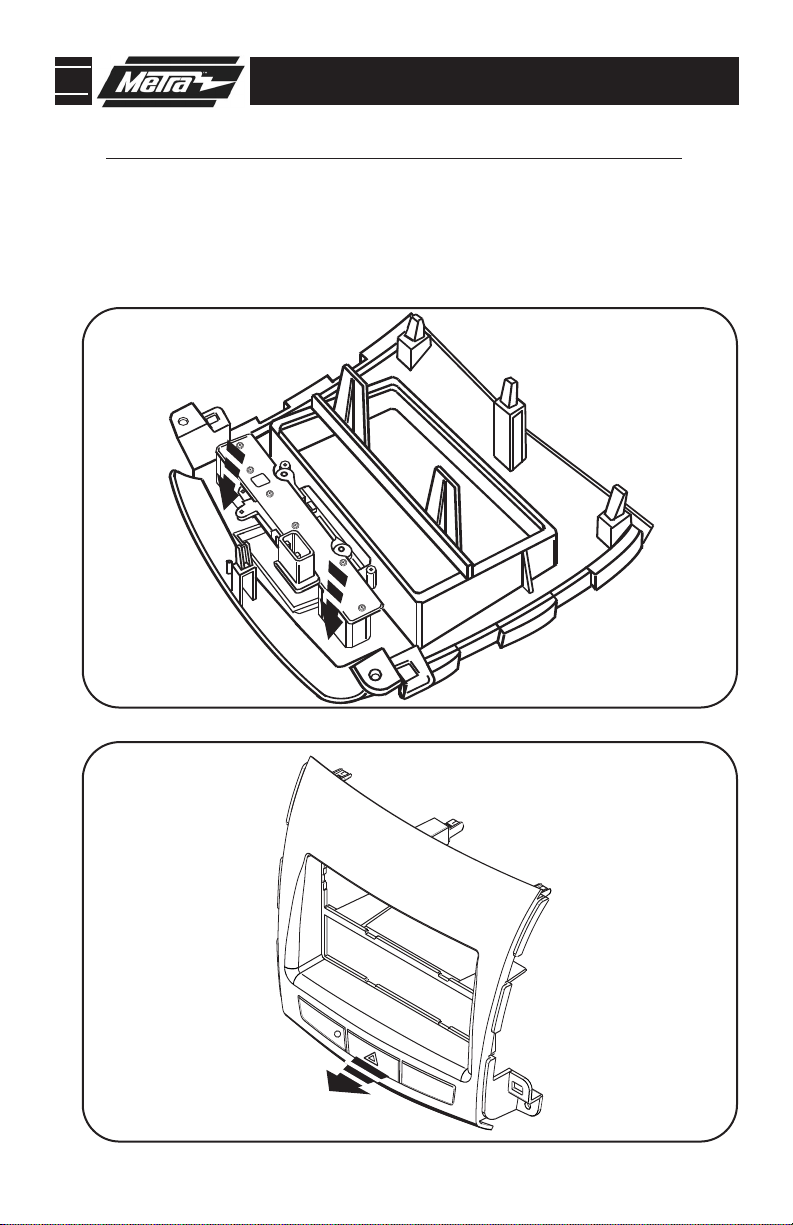

Secure the hazard switch panel into the radio housing using the factory hardware
5
removed previously and apply labels from the front of the factory radio trim panel to
front of the Metra radio panel.
Continue to kit assembly.
A
(Figure A,B)
B
3
Page 6
99-7013 KIT ASSEMBLY
DIN RADIO PROVISION WITH POCKET
*Note: Refer also to the instructions included with the aftermarket radio.
1
Slide the DIN cage into the Radio
Housing and secure by bending the
metal locking tabs outward.
2
Slide the aftermarket radio into the
cage until it snaps into place.
Snap the pocket into the radio housing.
3
(Figure C)
Continue to final assembly.
(Figure A)
(Figure B)
A
B
4
C
Page 7
99-7013 KIT ASSEMBLY

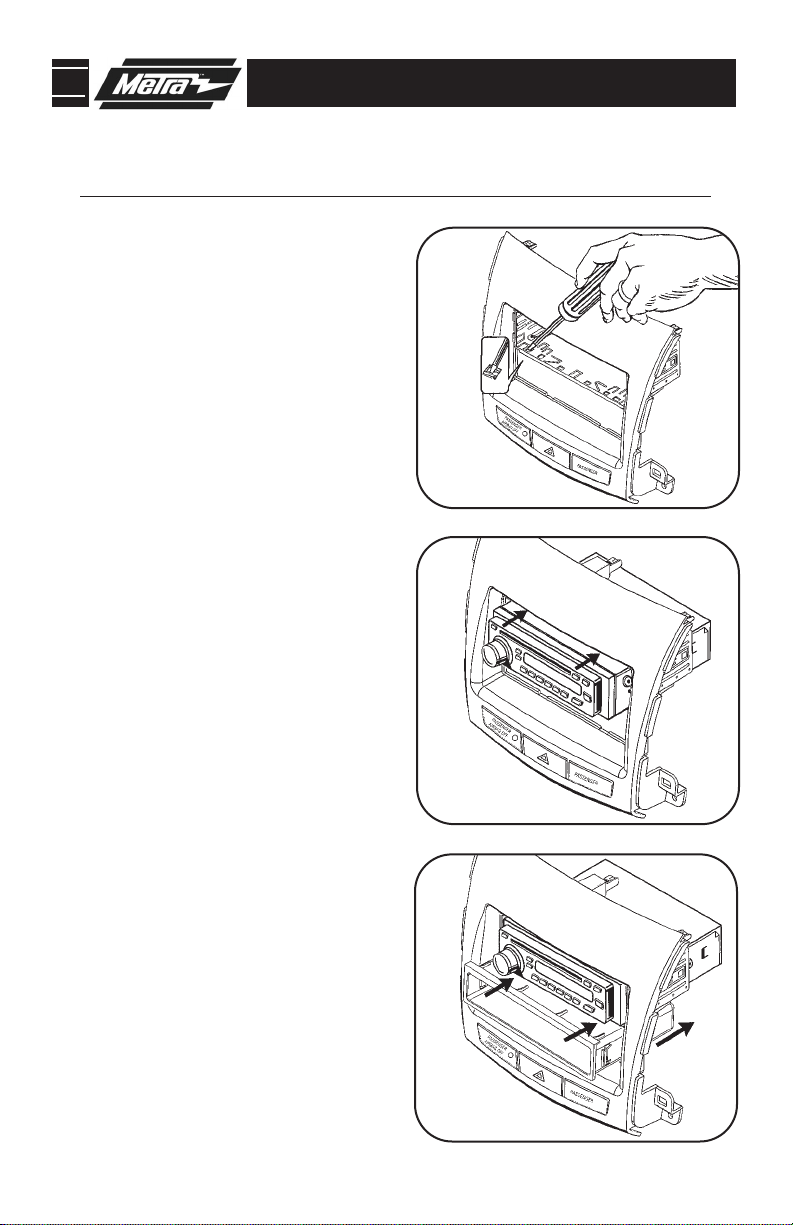

ISO MOUNT RADIO PROVISION WITH POCKET
*Note: Refer also to the instructions included with the aftermarket radio.
1
Mount the ISO Brackets to the aftermarket radio using the screws supplied with the radio.
Slide the radio into the Radio Housing
2
until it snaps into place.
Snap the Trim Plate onto the front of
3
the Radio Housing.
Snap the pocket into the Radio
4
Housing.
Continue to final assembly.
(Figure D)
(Figure A)
(Figure B)
(Figure C)
A
B
D
C
5
Page 8
99-7013 KIT ASSEMBLY

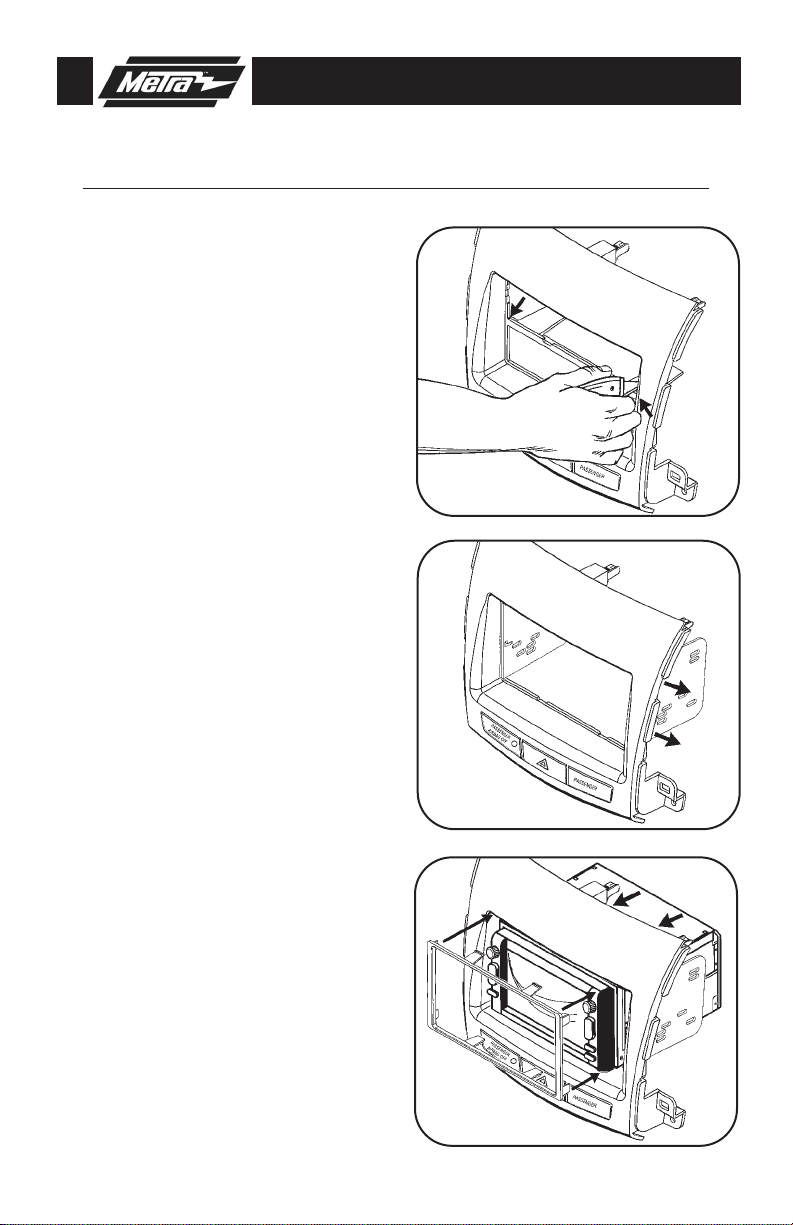

DOUBLE DIN/STACKED ISO UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
Cut and remove the center bar from
1
the Radio Housing.
Snap the Double DIN Brackets to the
2
inside edge of the Radio Housing.
(Figure B)
3
Slide the Double DIN or stacked ISO
unit(s) into the bracket/radio housing
assembly and secure the Double DIN
or stacked ISO unit(s) to the assembly
using the screws supplied with the
(Figure C)
unit(s).
4
Snap the Double DIN Trim Plate onto
the front of the Radio Housing.
(Figure C)
(Figure A)
A
B
Continue to final assembly.
C
6
Page 9

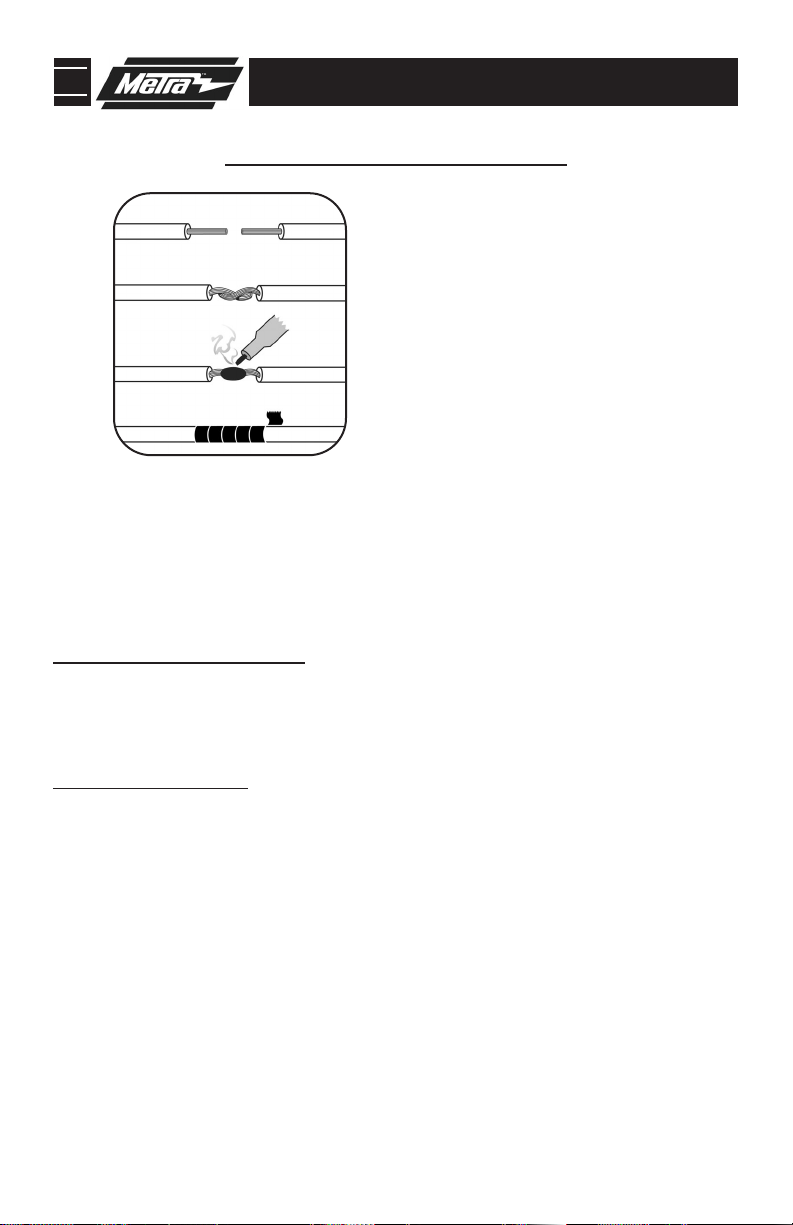

99-7013 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually
tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
7
Page 10
99-7013
NOTES
8
Page 11
99-7013
NOTES
9
Page 12
99-7013 INSTRUCTIONS
1-800-221-0932
REV. 04/21/10 © COPYRIGHT 2007-2010 METRA ELECTRONICS CORPORATION INST99-7013
www.metraonline.com
