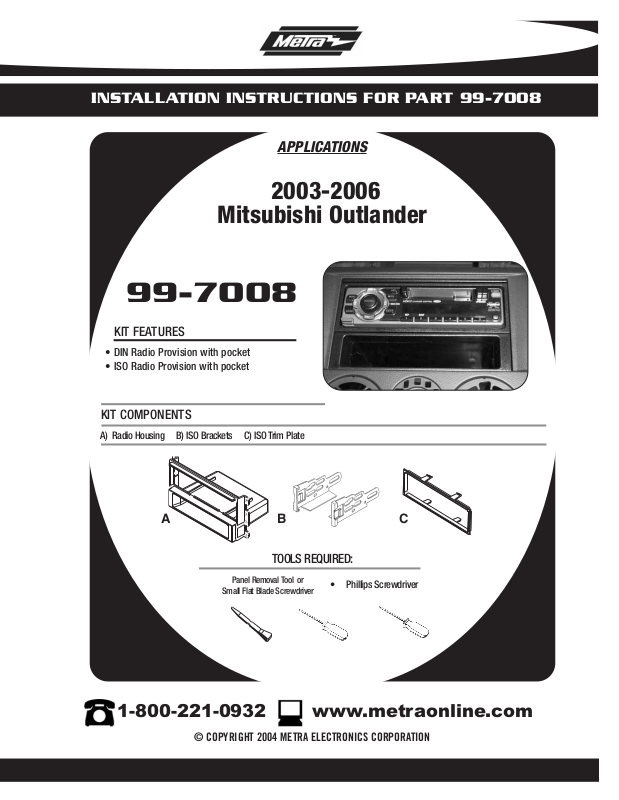

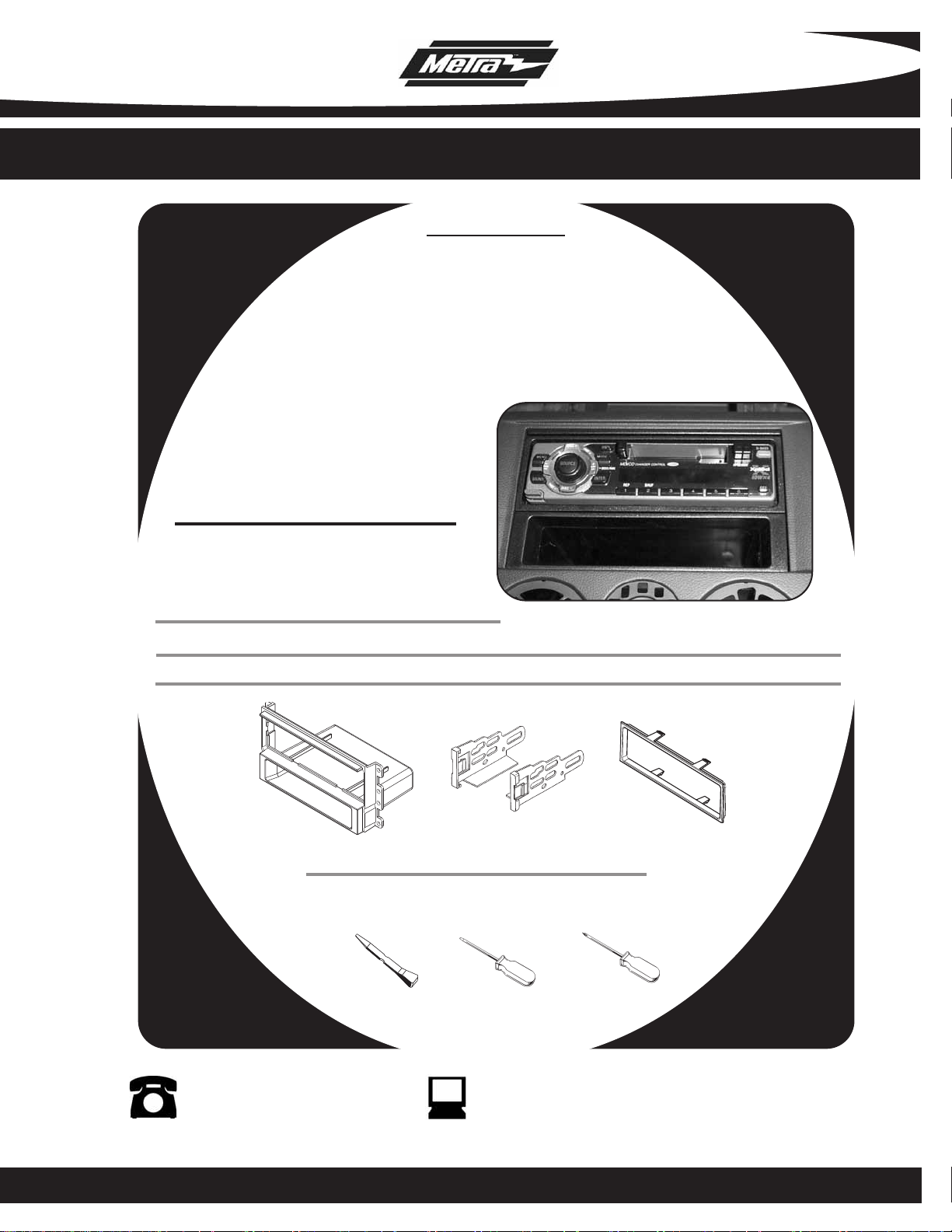

INSTALLATION INSTRUCTIONS FOR PART 99-7008
APPLICATIONS
2003-2006
Mitsubishi Outlander
99-7008
KIT FEATURES
• DIN Radio Provision with pocket
• ISO Radio Provision with pocket
KIT COMPONENTS
A) Radio Housing B) ISO Brackets C) ISO Trim Plate
A
Panel Remo
Small Flat Blade Screwdriver
B
TOOLS REQUIRED:
al Tool or
v
• Phillips Scr
C
ewdriver
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
99-7008
TABLE OF CONTENTS
Dash Disassembly ............................................................................ 1
2003-2006 Mitsubishi Outlander
Kit Assembly
Din Mount Radio Provision with pocket..........................................................
ISO Mount Radio Provision with pocket..........................................................
Final Assembly
................................................................................. 4
2
3
99-7008
MITSUBISHI OUTLANDER 2003-2006
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Remove all (3) climate control knobs.
(Figure A)
Remove (2) Phillips head screws
3
from behind the (2) outside climate
control knobs.
(Figure A)
DASH DISASSEMBLY
A
B
Unsnap the top edge of the trim
4
panel below the Climate controls. It
is not necessary to completely
remove this panel.
Unsnap and remove the radio/climate
5
control trim panel.
Remove (4) Phillips head screws
6
securing the radio. Unplug and
remove the radio.
(Figure B)
(Figure C)
C
1
99-7008
KIT ASSEMBLY
DIN MOUNT RADIO PROVISION WITH POCKET
A
Slide the DIN cage (supplied with radio)
1
into the Radio Housing from the front.
(Figure A)
B
Secure DIN cage to radio housing by
2
bending the locking tabs outward.
(Figure B)
Slide the radio into the DIN cage until it
3
snaps into place.
Continue to final assembly.
(Figure C)
C
2
99-7008
ISO MOUNT RADIO WITH POCKET
Align the holes in the ISO brackets with
1
the holes in the radio. Mount the
brackets to the radio using screws
supplied with the radio.
(Figure A)
KIT ASSEMBLY
A
B
Slide the radio/bracket assembly into the
2
radio housing until it snaps into place.
(Figure B)
Snap the ISO trim-plate onto the front of
3
the assembled radio and housing.
(Figure C)
Continue to final assembly.
C
NOTE: To remove the radio unsnap and remove the ISO trim-plate. Using a flat
blade screwdriver disengage ISO brackets from the radio housing and slide
radio out of radio housing.
3
99-7008
FINAL ASSEMBLY
FINAL ASSEMBLY
Locate the factory wiring harness in the dash and make the connection as shown.
1
Metra recomends using the proper mating adapter and making the connections as
shown. (Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
3
Reassemble radio and dash assemblies in reverse order of disassembly.
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
A
B
C
D
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground
Illumination. . . . . . . . Orange
. . . . . . . Black / White
Right Front (+) . . . . . Gray
Right Front (-). . . . . . Gray / Black
Left Front (+) . . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Dimmer . . . . . . . . . . Orange / White
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Left Rear (-) . . . . . . . Green / Black
4
