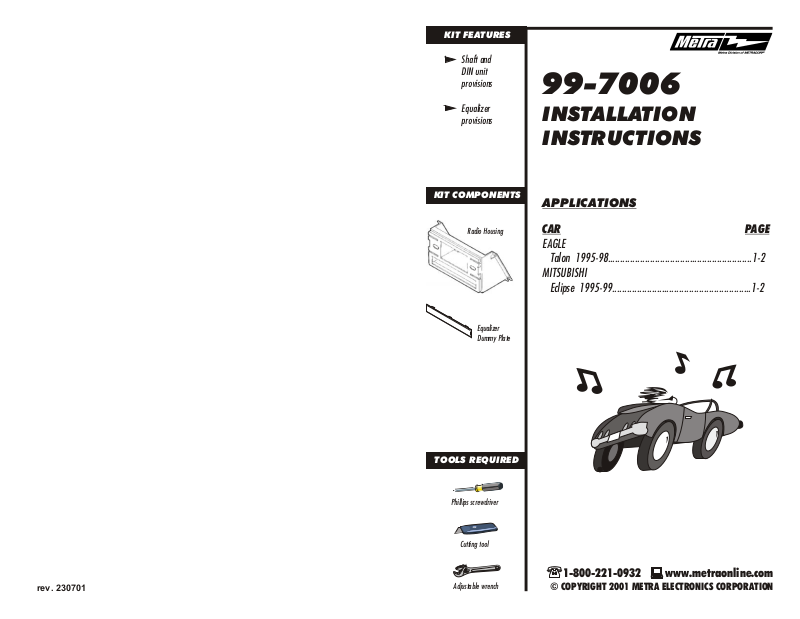

KIT FEATURES
Shaft and
DIN unit
provisions
99-7006
Equalizer
provisions
KIT COMPONENTS
Radio Housing
Equalizer
Dummy Plate
INSTALLATION
INSTRUCTIONS
APPLICATIONS
CAR PAGE
EAGLE
Talon 1995-98..........................................................1-2
MITSUBISHI
Eclipse 1995-99........................................................1-2
rev. 230701
TOOLS REQUIRED
Phillips screwdriver
Cutting tool
Adjustable wrench
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
ALL VEHICLES
1
Center console
Radio trim bezel
Disconnect the negative battery terminal to prevent an accidental short circuit. Slide the front
seats forward. Remove (1) cover cap and (1) Phillips screw from each side of the center
console. Unclip the cupholder/ashtray assembly from the center console and remove (2)
Phillips screws exposed. Unclip the radio trim bezel and remove (2) Phillips screws exposed.
Unscrew the gear shifter knob. Disconnect the cigarette lighter and light wiring. Lift up on the
center console and remove. Remove (4) Phillips screws securing the factory head unit and
disconnect the wiring.
3
Fig. A
Fig. B
IF AN EQUALIZER WILL BE INCLUDED: Slide the aftermarket equalizer into the back of the
Radio Housing. Using the hardware included with the equalizer, mount the unit to the kit.
(see Fig. A)
IF AN EQUALIZER WILL NOT BE INCLUDED: Snap the Equalizer Dummy Plate into the
Radio Housing. (see Fig. B)
4 5
A
B
2
Fig. A
Fig. B
2-SHAFT HEAD UNITS: Slide the aftermarket head unit into the kit and secure with shaft
nuts. (see Fig. A)
DIN HEAD UNITS: Cut and remove the shaft supports from the Radio Housing. Slide the
DIN cage into the Housing and secure by bending the metal locking tabs down. Slide the
aftermarket head unit into the cage until secure. (see Fig. B)
1
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
Re-connect the battery terminal and test the unit
for proper operation. Mount the head unit/kit
assembly to the sub-dash with (4) Phillips screws
previously removed in step #1.
2
