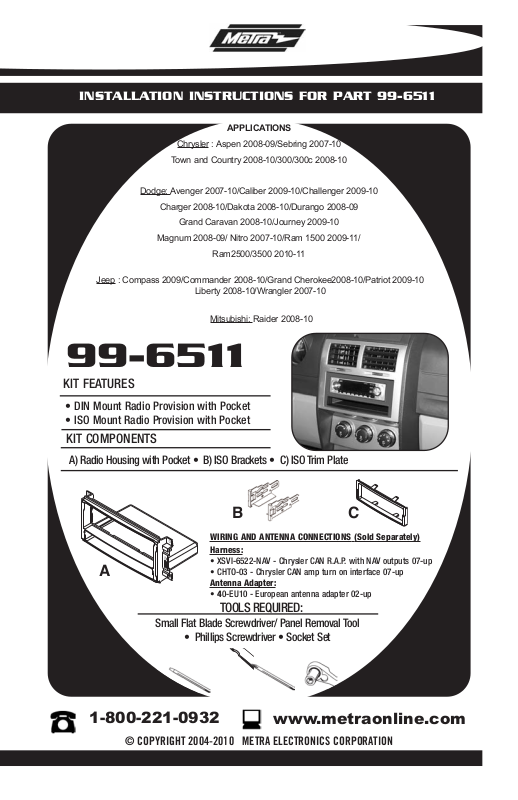

INSTALLATION INSTRUCTIONS FOR PART 99-6511
APPLICATIONS
Chrysler
: Aspen 2008-09/Sebring 2007-10
Town and Country 2008-10/300/300c 2008-10
Avenger 2007-10/Caliber 2009-10/Challenger 2009-10
Dodge:
Charger 2008-10/Dakota 2008-10/Durango 2008-09
Grand Caravan 2008-10/Journey 2009-10
Magnum 2008-09/ Nitro 2007-10/Ram 1500 2009-11/
Ram2500/3500 2010-11
Jeep : Compass 2009/Commander 2008-10/Grand Cherokee2008-10/Patriot 2009-10
Liberty 2008-10/Wrangler 2007-10
Mitsubishi:
Raider 2008-10
99-6511
KIT FEATURES
• DIN Mount Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing with Pocket • B) ISO Brackets • C) ISO Trim Plate
A
B
WIRING AND ANTENNA CONNECTIONS
Harness:
• XSVI-6522-NAV - Chrysler CAN R.A.P. with NAV outputs 07-up
• CHTO-03 - Chrysler CAN amp turn on interface 07-up
Antenna Adapter:
• 40-EU10 - European antenna adapter 02-up
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
C
(Sold Separately)
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
Page 2
99-6511
TABLE OF CONTENTS
Dash Disassembly
-
Chrysler Aspen 2008-2009/Dodge Durango 2008-2009 . . . . . .
-
Chrysler Sebring 2007-2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-
Chrysler Town and Country 2008-2010 . . . . . . . . . . . . . . . . . . . . .
-
Chrysler 300/300C 2008-2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-
Dodge Avenger 2007-2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-
Dodge Caliber 2009-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-
Dodge Challenger 2009-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-
Dodge Dakota 2008-2010 . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .
-
Dodge Grand Caravan 2008-2010 . . . . . . . . . . . . . . . . . . . . . . . . . .
-
Dodge Magnum 2008-09/Charger 2008 -10 . . . . . . . . . . . . . . . . . . . . .
-
Dodge Nitro 2007-2010/Liberty 2008-2010 . . . . . . . . . . . . . . . . .
-
Dodge Journey 2010 (Modifications to radio cavity required
-
Dodge Ram 1500 2009-11/Ram 2500/3500 2010-11. . . . . . . . . .
-
Jeep Commander/Grand Cherokee 2008-2010 . . . . . . . . . . . . . . . . . . . . . . . . . .
-
Jeep Compass 2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-
Jeep Patriot 2009-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-
Jeep Wrangler 2007-2010 (Modifications to radio cavity required) . . . . . . . . . . . . . 11
-
Mitsubishi Raider 2008-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
. . . . ... . . . . . . . .1
. . . . ... . . . . . . .2
. . . . . . . . . . . . 3,4
. . . . . . . . . . . . 5
. . . . .. . . . . . . . 6
. . . . ... . . . . . . 12
. . . . ... . . . . . . 12
. . . . .. . . . . . . . 7
. . . . . . . . . . .3,4
. . . . . . . . . 5
. . . . .. . . . . . . . . . 8
) . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . .13,14
.. . . . . . .12
. . . . . . . . 12
..10
Kit Assembly
- DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
- ISO Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
*Note:
Refer also to the instructions included with the aftermarket radio.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Page 3
99-6511 DASH DISASSEMBLY
POWER
OUTLET
12
3
1
2
3
4
5
6
6
9
CHRYSLER ASPEN 2008-2009
DODGE DURANGO 2008-2009
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unsnap and remove storage cup
holder assembly. (
3
Remove (2) screws from bottom edge
of center dash trim panel. Unsnap
and remove the panel. (
4
Remove (4) screws securing the
radio. Unplug and remove radio.
Figure C)
(
Continue to kit assembly.
Figure A)
Figure B)
A
B
12
3
9
6
4
5
3
1
2
6
POWER
OUTLET
C
1
Page 4
99-6511 DASH DISASSEMBLY

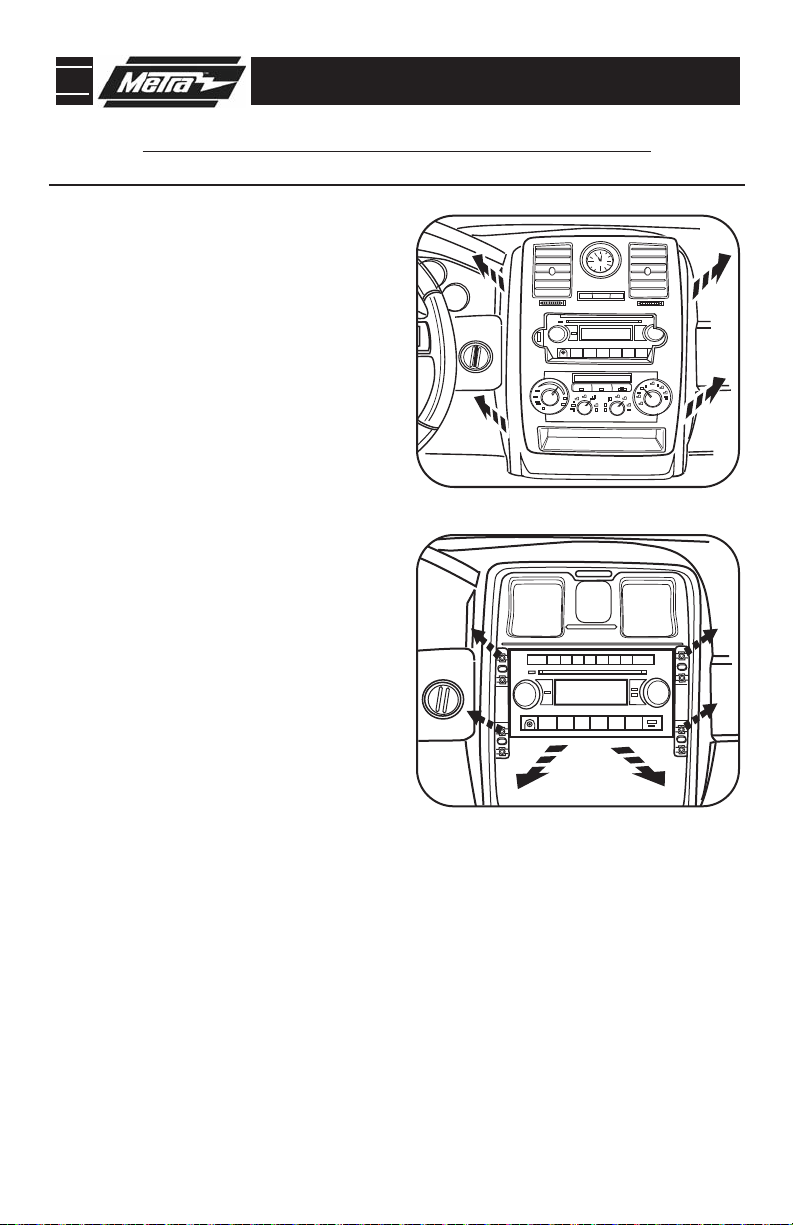

CHRYSLER SEBRING 2007-2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unclip entire panel surrounding radio
including a/c vents and clock. Unplug
and remove panel. (
3
Remove (4) 7MM screws securing
radio. Unplug and remove radio.
(
Figure B)
Figure A)
A
Continue to kit assembly.
B
2
Page 5
99-6511 DASH DISASSEMBLY
CHRYSLER TOWN AND COUNTRY 2008-2010
DODGE GRAND CARAVAN 2008-2010
A
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Remove (2) screw covers facing up
above radio then remove the (2)
Phillips screws exposed. (
3
Lift up on panel above radio then
remove (2) Phillips screws exposed at
front edge of radio trim panel.
Figure B)
(
4
Remove (3) plastic push pins per side
of bottom trim panel then slide panel
toward rear of van to access (2)
screws on bottom of radio trim panel.
Figure C)
(
Figure A)
B
Continued on page 3.
C
3
Page 6
99-6511 DASH DISASSEMBLY
CHRYSLER TOWN AND COUNTRY 2008-2010
DODGE GRAND CARAVAN 2008-2010
D
Remove (2) Phillips screws exposed
5
at bottom edge radio trim panel.
Figure D)
(
6
Unclip and remove entire panel surrounding radio including climate controls, vents and clock. (
7
Remove (4) Phillips screws securing
radio. (
Figure F)
Figure E)
Continue to kit assembly.
E
F
U
SCAN
PUSH ON
VOLUME
SET
SEEKSEEK
AM
FM
DISC
12
3
TIME INFO RW FF
5
4
LIST
MUSIC
TYPE
SEL;ECT
6 AUX
PUSH AUDIO/SELECT
TUNE/SCROLL
AUX
4
Page 7
99-6511 DASH DISASSEMBLY
1
2
3
4
5
6
123 4
5
6
CHRYSLER 300/300C 2008-2010
DODGE MAGNUM2008-09/CHARGER 2008-10
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unsnap and remove center dash trim
Figure A)
panel. (
3
Remove (4) screws securing the
radio. Disconnect and remove the
radio. (
Figure B)
Continue to kit assembly.
A
B
5
Page 8
99-6511 DASH DISASSEMBLY

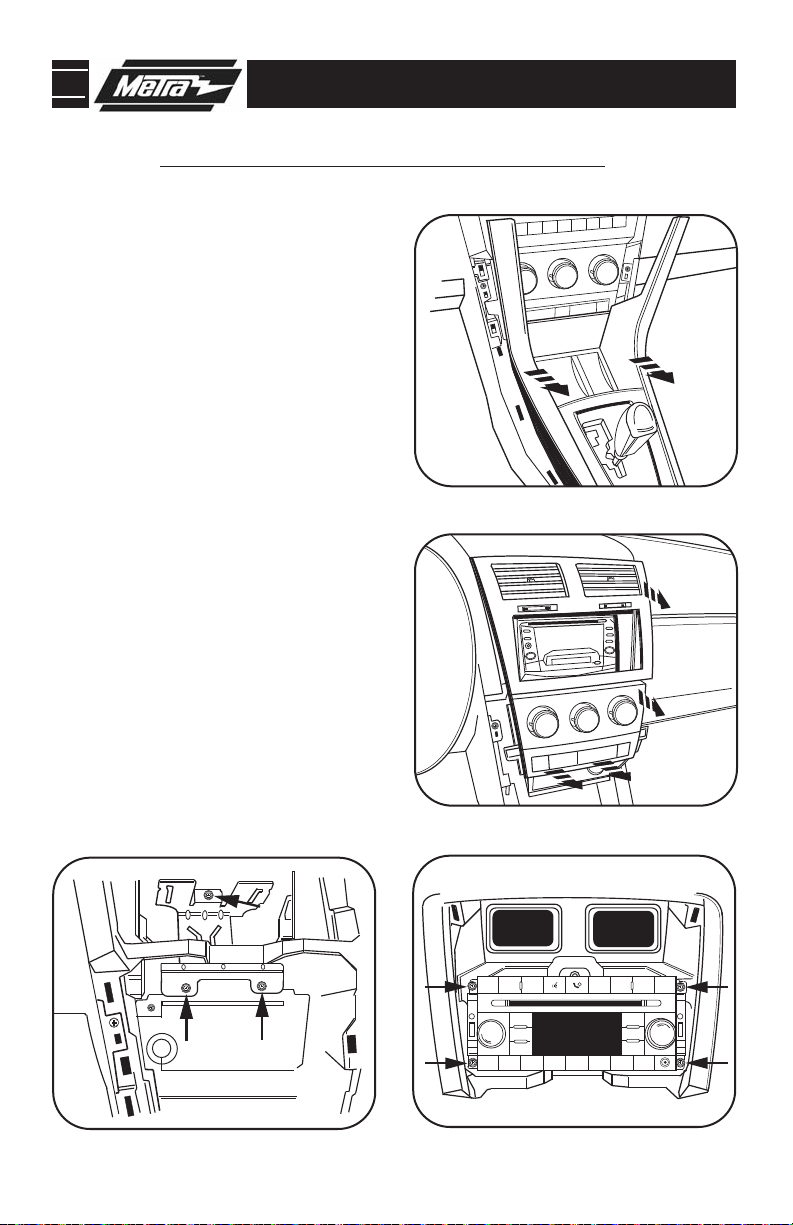

DODGE AVENGER 2007-2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unclip and remove the center console
trim panel. (
3
Unclip the center dash trim panel.
(
Figure B)
4
Remove (4) screws securing the
radio. Disconnect and remove the
radio. (
5
Remove (3) screws securing the radio
rear support bracket and remove the
bracket. (
Figure A)
Figure C)
Figure D)
A
B
Continue to kit assembly.
D
6
C
U
SCAN
SEEKSEEK
PUSH ON
AM
FM
DISC
VOLUME
1 2
SET
3
TIME INFO RW FF
5
4
MUSIC
TYPE
SEL;ECT
6 AUX
PUSH AUDIO/SELECT
LIST
TUNE/SCROLL
AUX
Page 9
99-6511 DASH DISASSEMBLY
12
3
4
5
6 AUX
AUX
SET
VOLUME
PUSH ON
PUSH AUDIO/SELECT
AM
FM
DISC
LIST
MUSIC
TYPE
SEL;ECT
TUNE/SCROLL
SEEKSEEK
SCAN
TIME INFO RW FF
U
DODGE DAKOTA 2008-2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unclip and remove the trim panel
surrounding the radio. (
3
Remove (4) Phillips screws securing
the radio. (
Figure B)
Continue to kit assembly.
Figure A)
A
B
MITSUBISHI RAIDER 2008-10
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unsnap and remove center dash
Figure A)
panel. (
3
Remove (4) 7mm screws securing
the radio. Unplug and remove radio.
Continue to kit assembly.
A
7
Page 10
99-6511 DASH DISASSEMBLY
6
1
2
3
4
5
2
3
4
5
6
1
DODGE NITRO 2007-2010
JEEP LIBERTY 2008-2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unclip entire panel surrounding radio
and climate controls, including a/c
vents. Unplug and remove panel.
Figure A)
(
3
Remove (4) 7MM screws securing
radio. Unplug and remove radio.
Figure B)
(
Continue to kit assembly.
A
B
8
Page 11
99-6511 DASH DISASSEMBLY
12
3
4
5
6 AUX
AUX
SET
VOLUME
PUSH ON
PUSH AUDIO/SELECT
AM
FM
DISC
LIST
MUSIC
TYPE
SEL;ECT
TUNE/SCROLL
SEEKSEEK
SCAN
TIME INFO RW FF
U
POWER
12
345
6 AUX
AUX
SET
VOLUME
PUSH ON
PUSH AUDIO/SELECT
AM
FM
DISC
LIST
MUSIC
TYPE
SEL;ECT
TUNE/SCROLL
PUSH
PUSH
OFF
PUSH
OUTLET
POWER
OUTLET
DODGE JOURNEY 2009-10
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unclip and remove the entire factory
radio trim panel including the a/c
controls. (
TIP: Open the compartment door at the
top of the radio trim panel.
3
Remove (4) 7MM screws securing
radio to dash to remove. (
NOTE: The top of the metal bracket in
the sub dash will need to be cut to
allow for the clearance of the Double
DIN radio’s chassis. (
Figure A)
Figure B)
Figure C)
A
B
Continue to kit assembly.
C
9
Page 12
99-6511 DASH DISASSEMBLY
POWER
OUTLET
12
345
6 AUX
AUX
SET
VOLUME
PUSH ON
PUSH AUDIO/SELECT
AM
FM
DISC
LIST
MUSIC
TYPE
SEL;ECT
TUNE/SCROLL
SEEKSEEK
SCAN
TIME INFO RW
FF
U

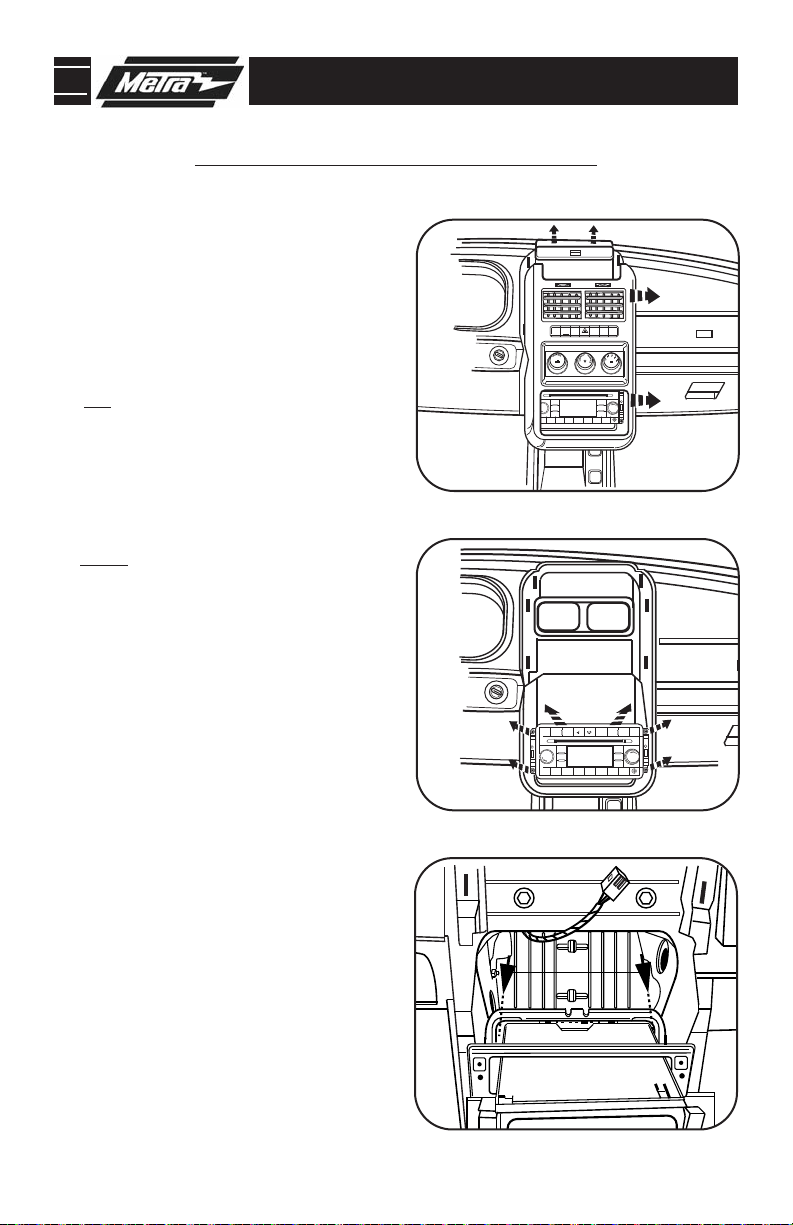

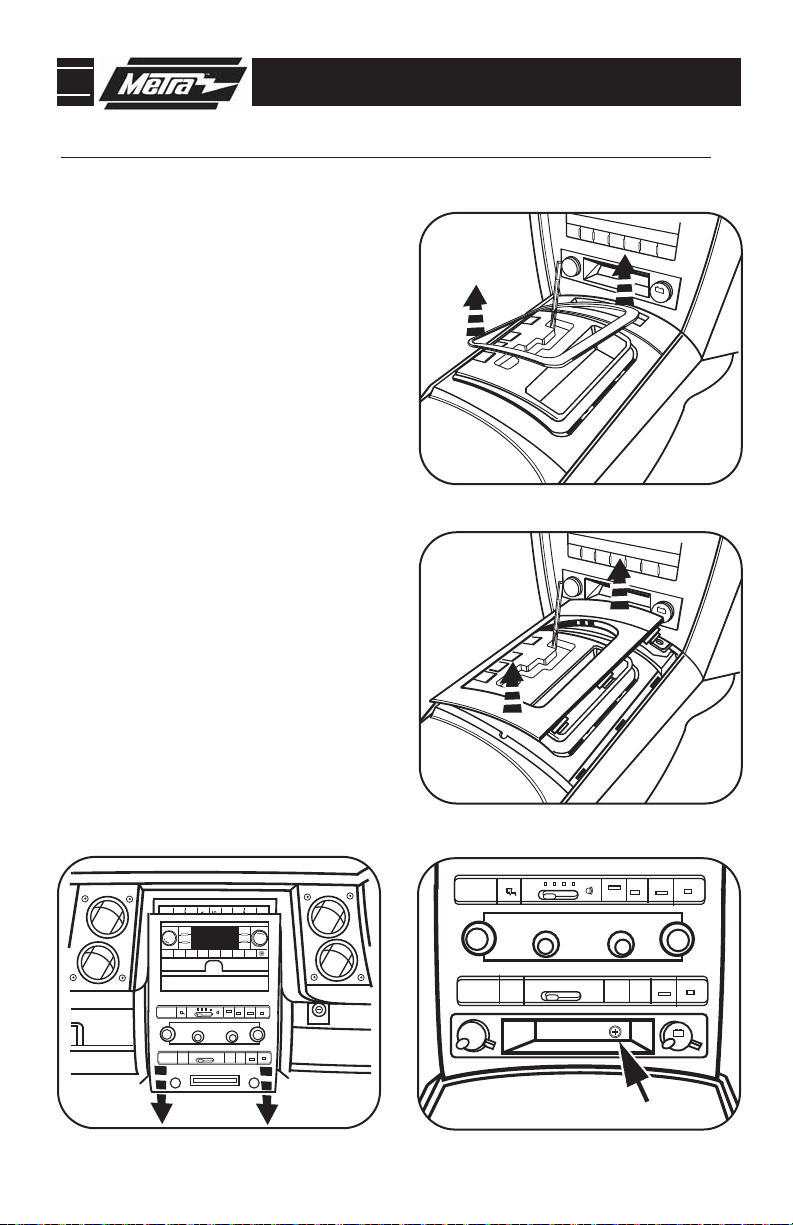

JEEP COMMANDER/GRAND CHEROKEE 2008-2010
A
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unsnap and remove the small trim
around the console shifer. (
3
Unsnap and remove the larger trim
around the console shifter. (
4
Remove one Phillips screw from
inside the small storage pocket in the
lower dash, between the power outllets. (
Figure C)
5
Unsnap and remove the dash panel
from around the radio (including climate controls). (
Figure D)
Figure A)
Figure B)
B
6
Remove (4) Phillips screws securing
the radio. Unplug and remove radio.
Continue to kit assembly.
D
C
10
Page 13
99-6511 DASH DISASSEMBLY

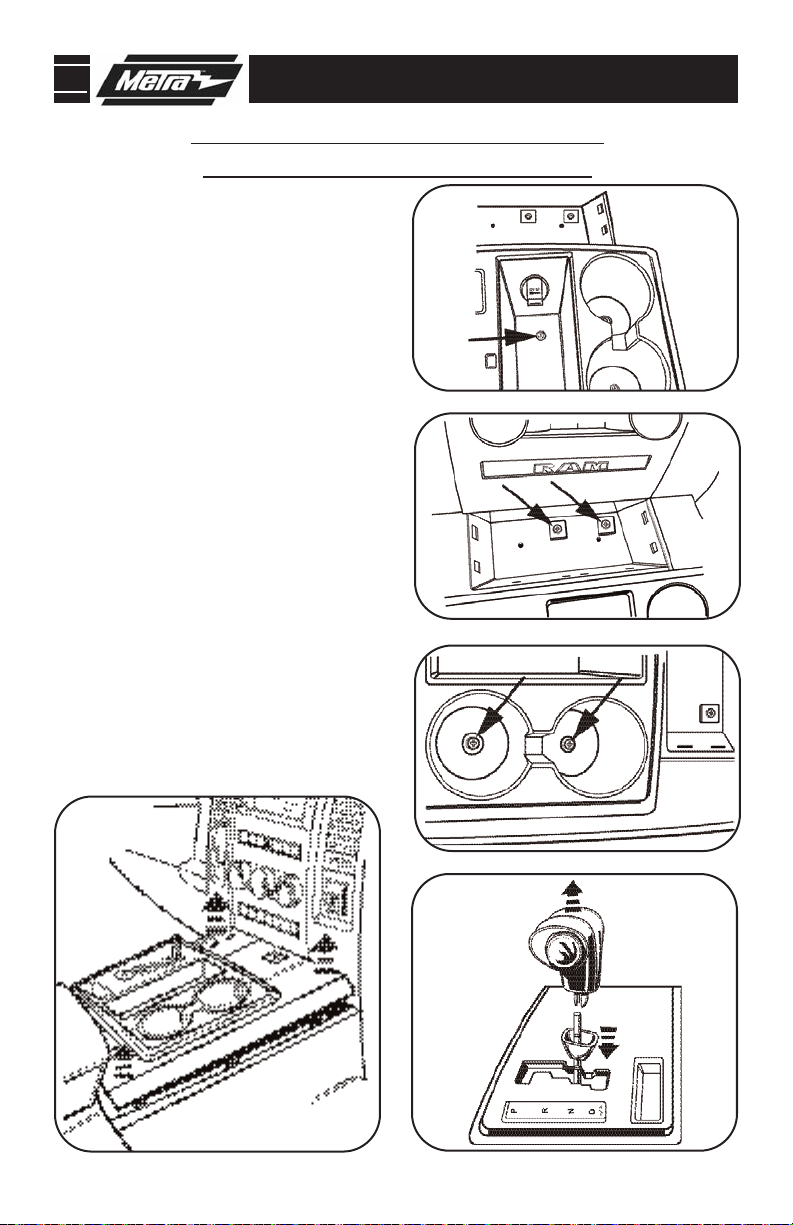

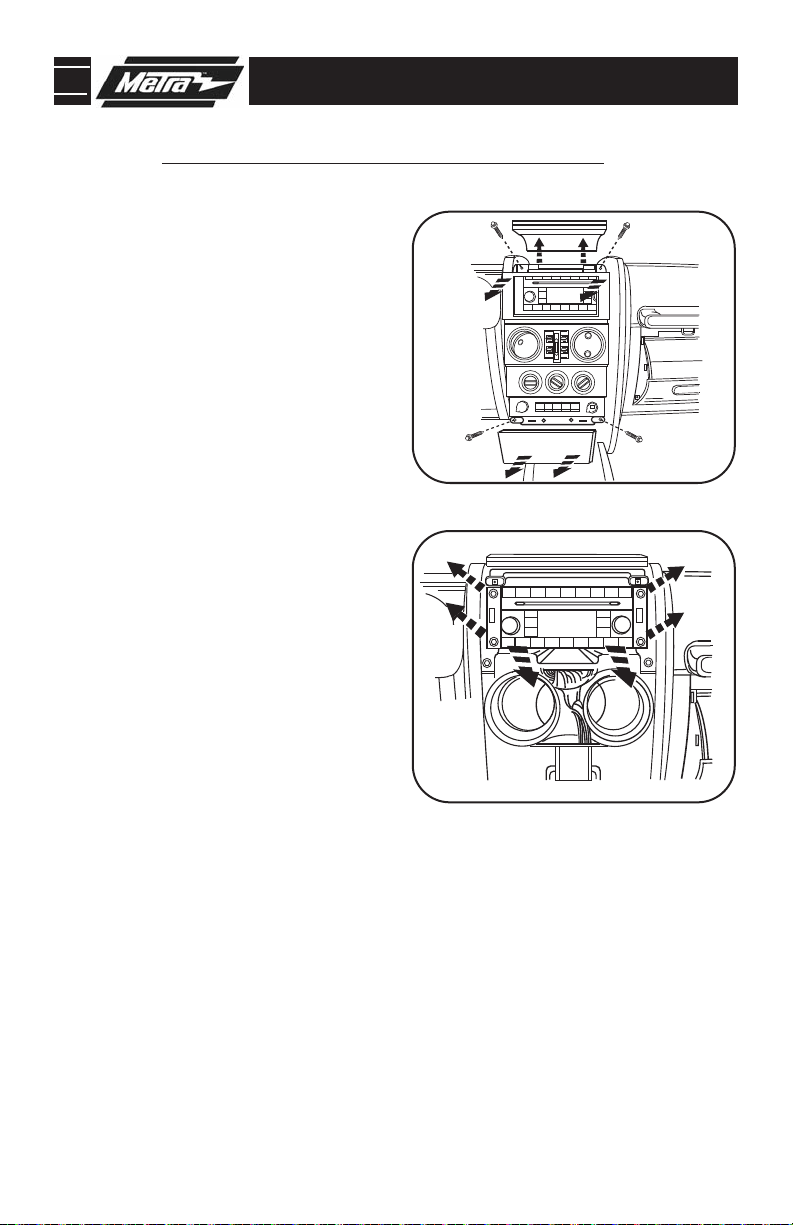

JEEP WRANGLER 2007-2010
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Unclip and remove the lower center
trim below a/c controls. (
3
Remove (2) Phillips screws exposed
behind lower center panel. (
4
Unclip and remove the upper center
trim starting towards the rear of the
Figure A)
panel. (
5
Remove (2) Phillips screws exposed
behind upper center panel. (
6
Unclip and remove entire panel
surrounding radio and climate
controls, including a/c vents.
Figure A)
Figure A)
Figure A)
A
1
6
234 5
B
1
2345
6
Remove (4) 7MM screws securing
7
radio. Unplug and remove radio.
Figure B)
(
Continue to kit assembly.
11
Page 14
99-6511 DASH DISASSEMBLY

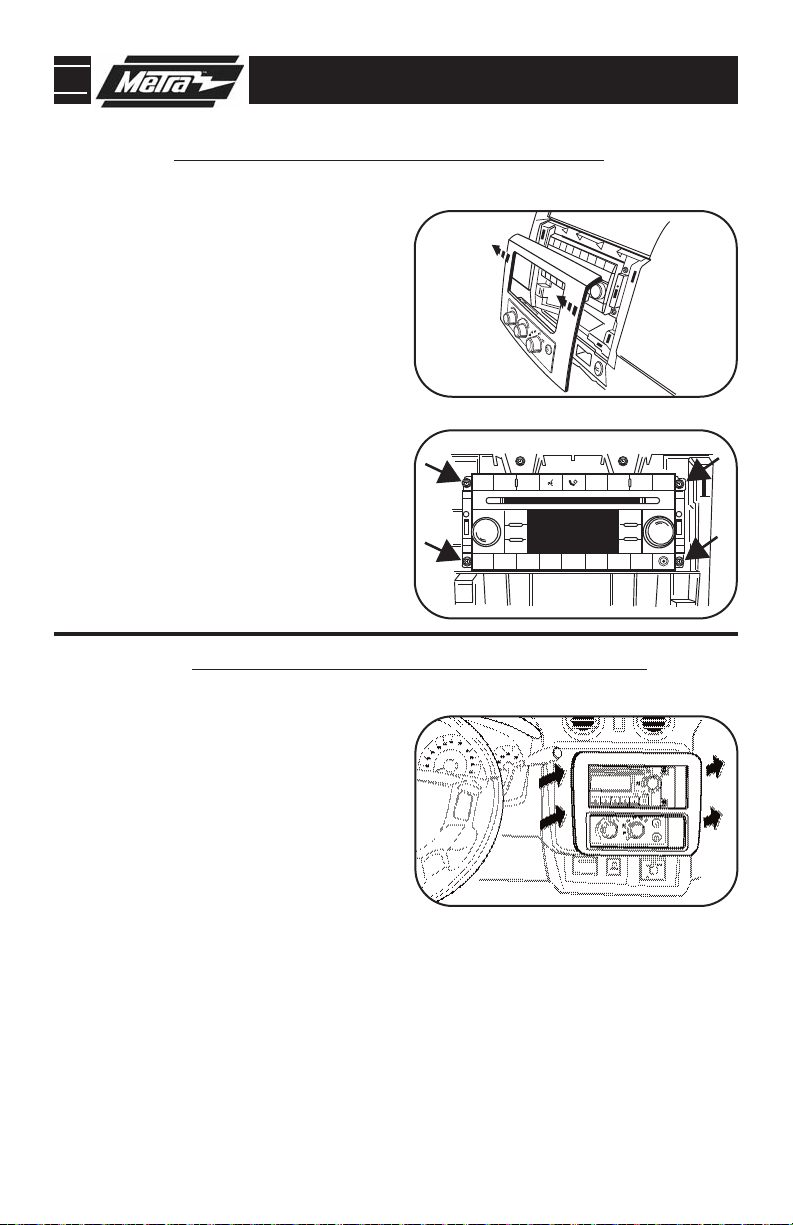

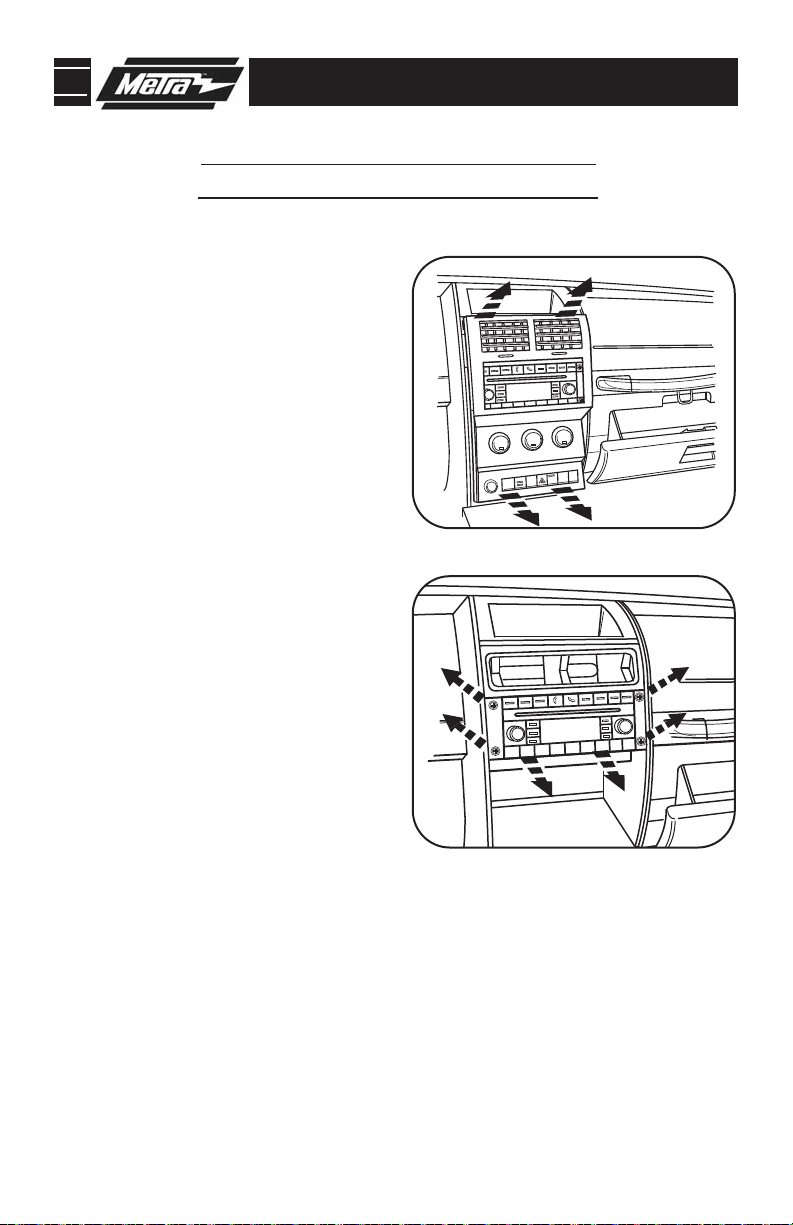

DODGE CALIBER 2009-10
DODGE CHALLENGER 2009-10
JEEP COMPASS 2009
JEEP PATRIOT 2009-10
Disconnect the negative battery terminal
1
to prevent an accidental short circuit.

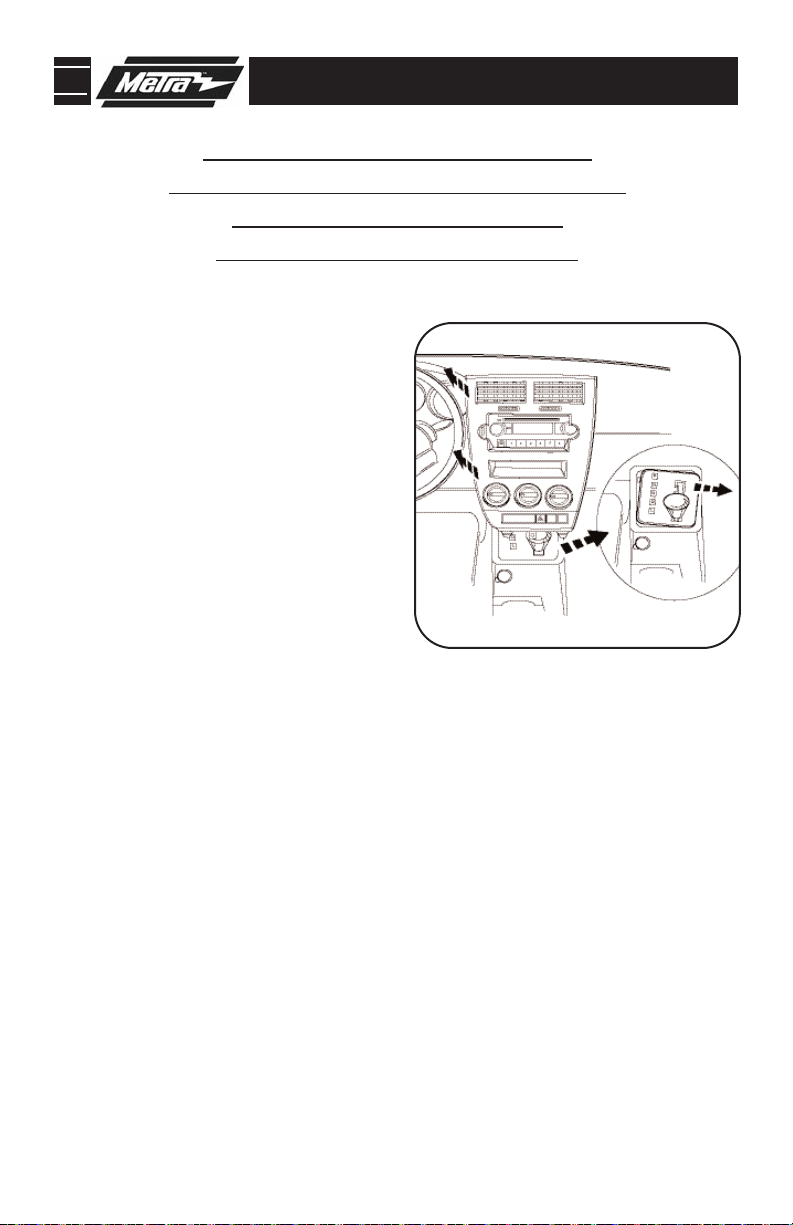

Unsnap and move shifter trim to the side.
2
(Figure A)
3
Unsnap center dash trim panel (do not
remove until climate controls are
Remove (4) Phillips screws holding cli-
4
mate control panel t
5
Remove (4) 7MM screws securing radio.
6
The metal bracket in the sub-dash will
need to be removed for the aftermarket
Double DIN radio’s depth.
Continue to kit assembly.
o backside of the
A
12
Page 15
99-6511 DASH DISASSEMBLY
DODGE RAM 1500 2009-11
RAM 2500/3500 2010-11
Disconnect the negative battery terminal
1
to prevent an accidental short circuit.

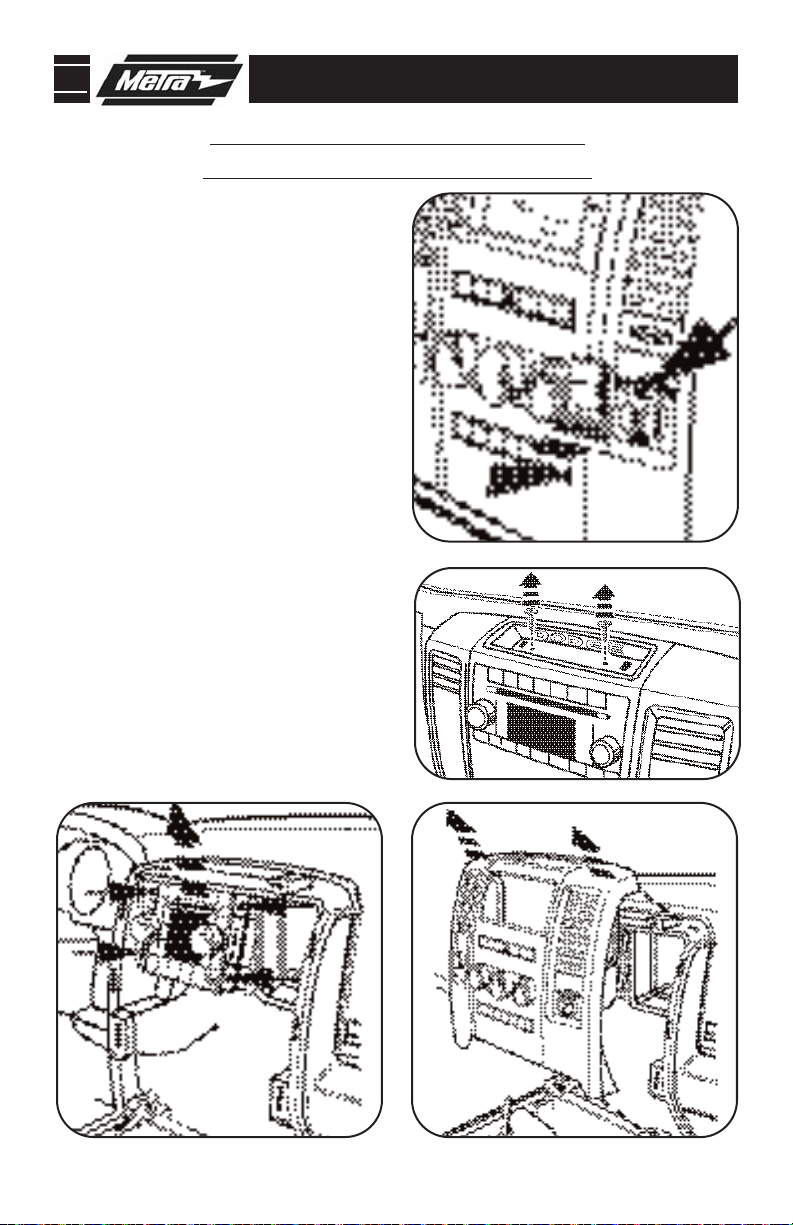

Remove (1) T25 Torx screw in the compart-
2
ment next to the cup holders. (Figure A)
3
Remove (2) Phillips screws in the pocket
below the climate control in the front of
4
Remove (2) 9/32” screws in the cup
holders. (Figure C)
5
Push down on the collar below the shifter
then pull the shifter straight up to remove.
(Figure D)
A
B
6
Unclip and remove the top of the center
c
onsole including the cup holders.
Continued on page 14.
E
C
D
13
Page 16
99-6511 DASH DISASSEMBLY
DODGE RAM 1500 2009
RAM 2500/3500 2010-11
Unclip and remove the trim panel from the
7
accessory socket on the radio trim panel,
then remove (1) T25 Torx screw. (Figure F)
8
Remove (2) T25 Torx screws from the top
of the radio trim panel. (Figure G)
9
Unclip and remove the entire radio trim
panel including the climate controls.
(Figure H)
Remove (4) 9/32” screws securing the
10
radio. (Figure I)
Continue to kit assembly.
F
G
I
H
14
Page 17
99-6511 KIT ASSEMBLY
DIN MOUNT RADIO PROVISION WITH POCKET
*Note: Refer also to the instructions included with the aftermarket radio.
A
1

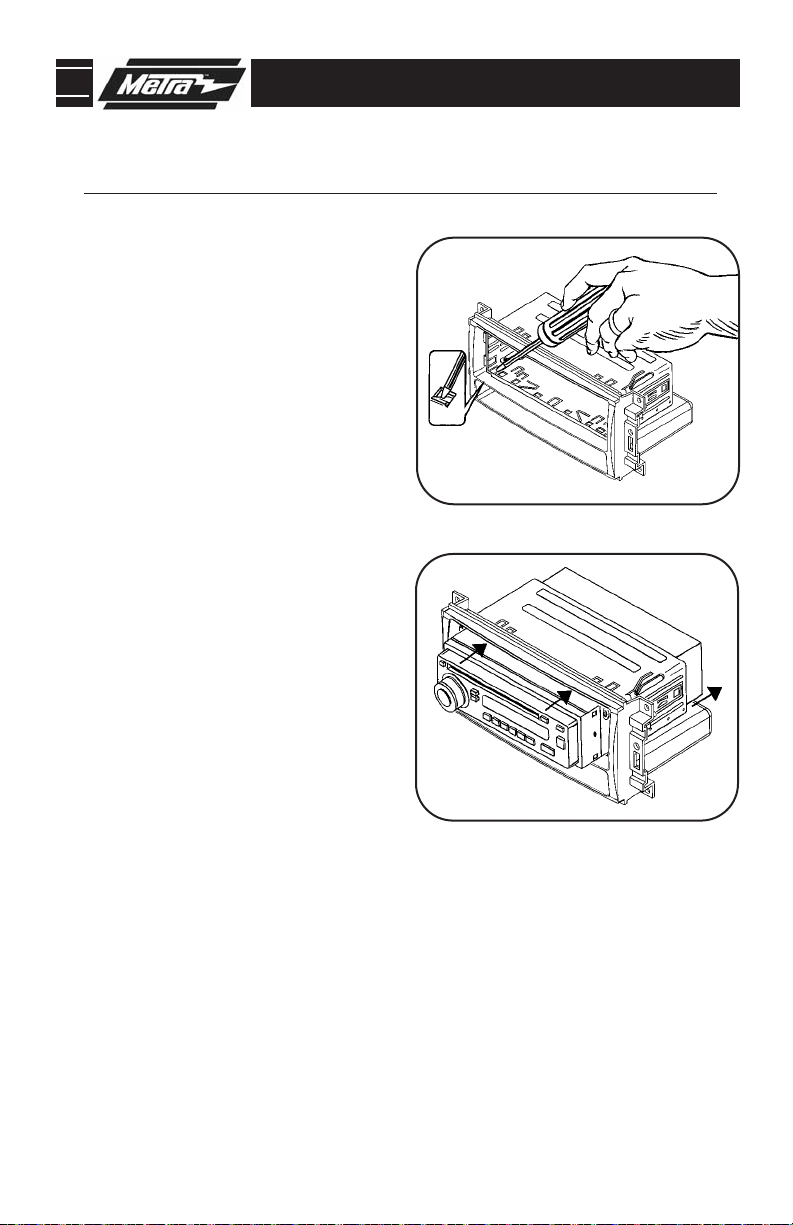

Slide the DIN cage into the Radio
Housing and secure by bending the
metal locking tabs outward.
2
Slide the aftermarket radio into the DIN
cage until it snaps into place.
Continue to final assembly.
(Figure A)
(Figure B)
B
15
Page 18
99-6511 KIT ASSEMBLY
ISO MOUNT RADIO PROVISION WITH POCKET
*Note: Refer also to the instructions included with the aftermarket radio.
1
Mount the ISO Brackets to the radio
using the screws supplied with the
(Figure A)
radio.
2

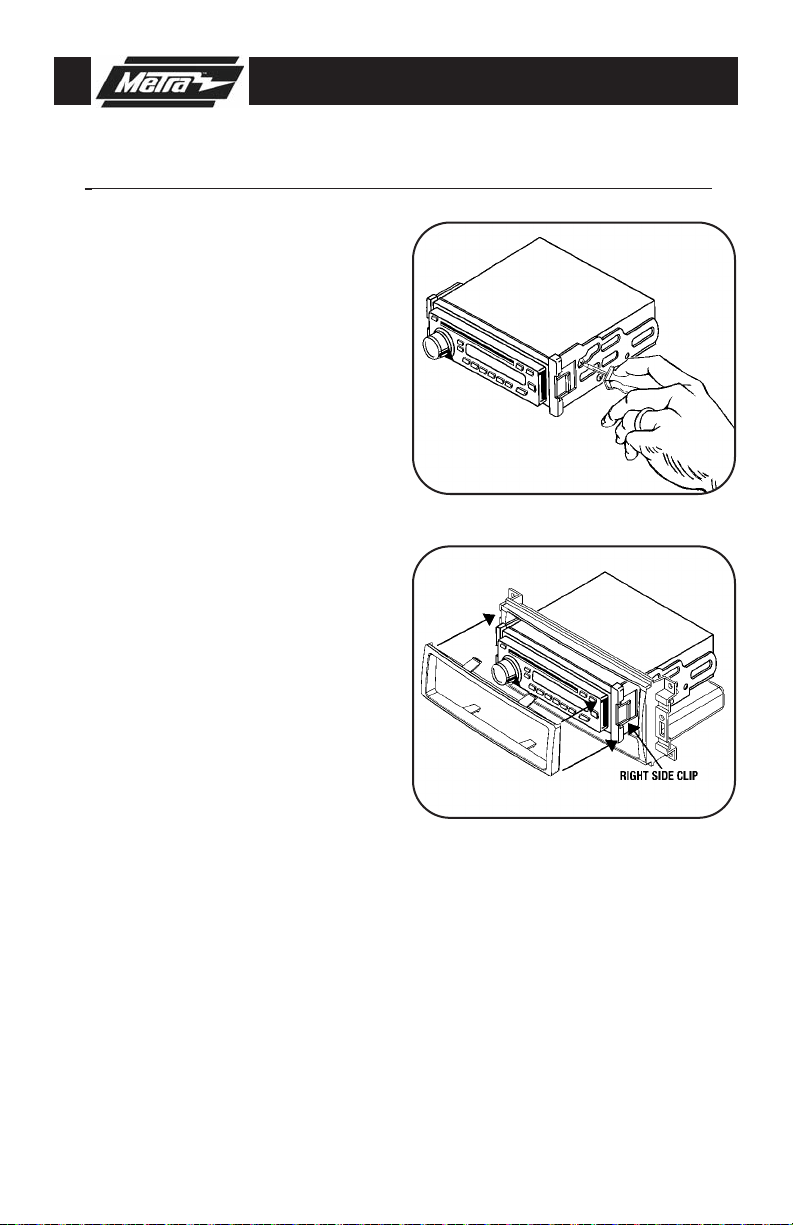

Slide the radio into the radio opening
until it snaps into place.
3
Snap the ISO Trim Plate onto the front
of the Radio Housing.
Continue to final assembly.
(Figure B)
(Figure B)
A
B
16
Page 19
99-6511 FINAL ASSEMBLY
FINAL ASSEMBLY
A

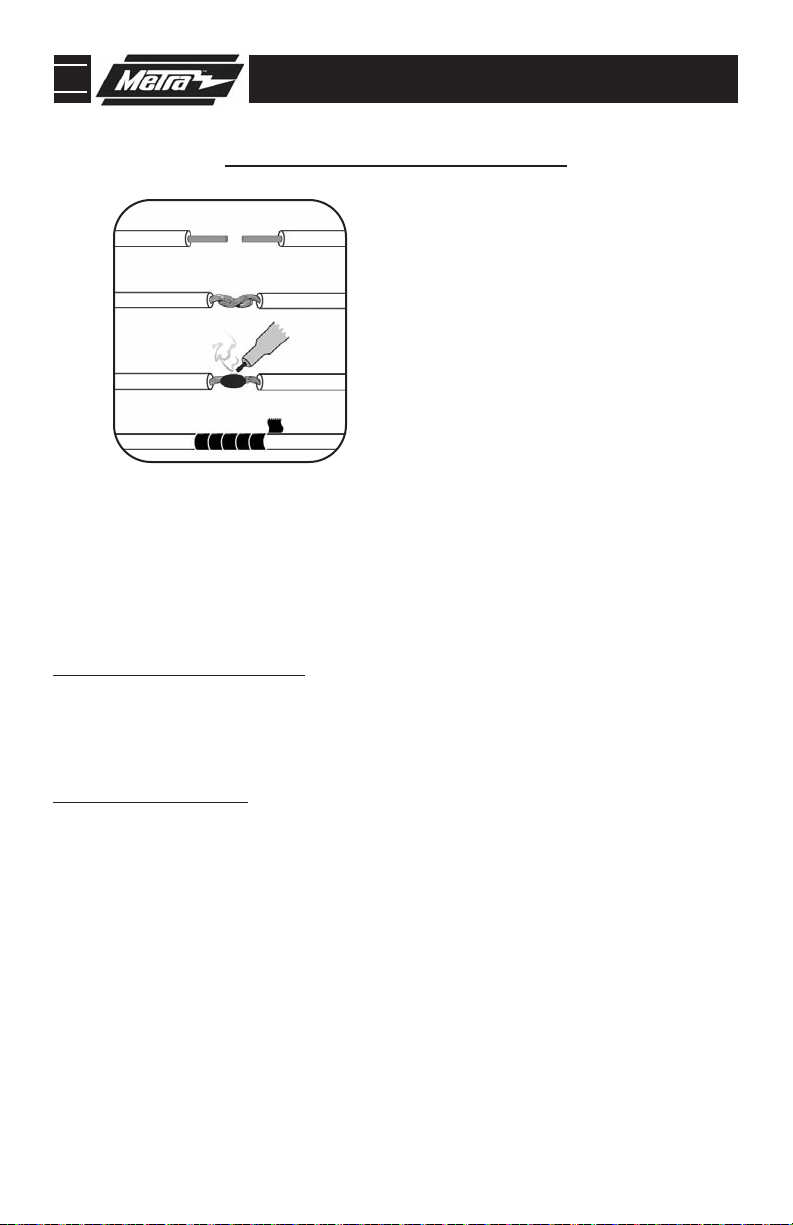

(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
2
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
17
Page 20
99-6511 INSTRUCTIONS
1-800-221-0932
REV. 11/18/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-6511
www.metraonline.com
Loading...
