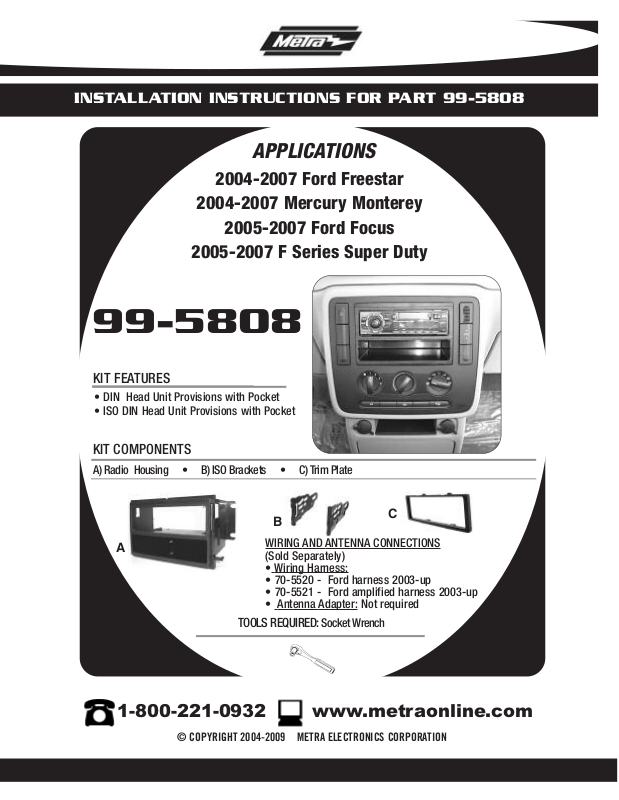

INSTALLATION INSTRUCTIONS FOR PART 99-5808

APPLICATIONS

2004-2007 Ford Freestar

2004-2007 Mercury Monterey

2005-2007 Ford Focus

2005-2007 F Series Super Duty

99-5808

KIT FEATURES

• DIN Head Unit Provisions with Pocket

• ISO DIN Head Unit Provisions with Pocket

KIT COMPONENTS

A) Radio Housing • B) ISO Brackets • C) Trim Plate

B

A

WIRING AND (Sold Separately)

• Wiring Harness:

• 70-5520 - Ford harness 2003-up

• 70-5521 - Ford amplified harness 2003-up

• Antenna Adapter: Not required

TOOLS REQUIRED:

ANTENNA CONNECTIONS

Socket Wrench

C

1-800-221-0932 www.metraonline.com

99-5808

K

NOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Dash Disassembly

- Ford Freestar 2004-2007 ............................................................. 1

- Mercury Monterey 2004-2007 ..................................................... 1

- Ford Focus 2005 -2007 .............................................................. 1

- F Series Super Duty 2005-2007 ...................................................2

DIN Head Unit Provision ................................................................. 3

ISO DIN Head Unit Provision ........................................................... 3

Final Assembly ............................................................................... 4

Notes .............................................................................................. 5

TABLE OF CONTENTS

99-5808

FORD FREESTAR 2004-2007 MERCURY MONTEREY 2004-2007

Disconnect the negative battery terminal

1

to prevent an accidental short circuit.

Unsnap and remove entire panel surrounding

2

radio and climate controls.

3

Remove (4) 7mm screws to remove factory radio. (FIGURE B)

(FIGURE A)

A

B

DASH DISASSEMBLY

FORD FOCUS 2005-2007

Disconnect the negative battery terminal to

1

prevent accidental short circuit.

2

Unsnap and remove entire panel surrounding the radio and climate controls.

(FIGURE A)

Remove (4) 7mm screws to remove factory

3

radio.

1

A

99-5808

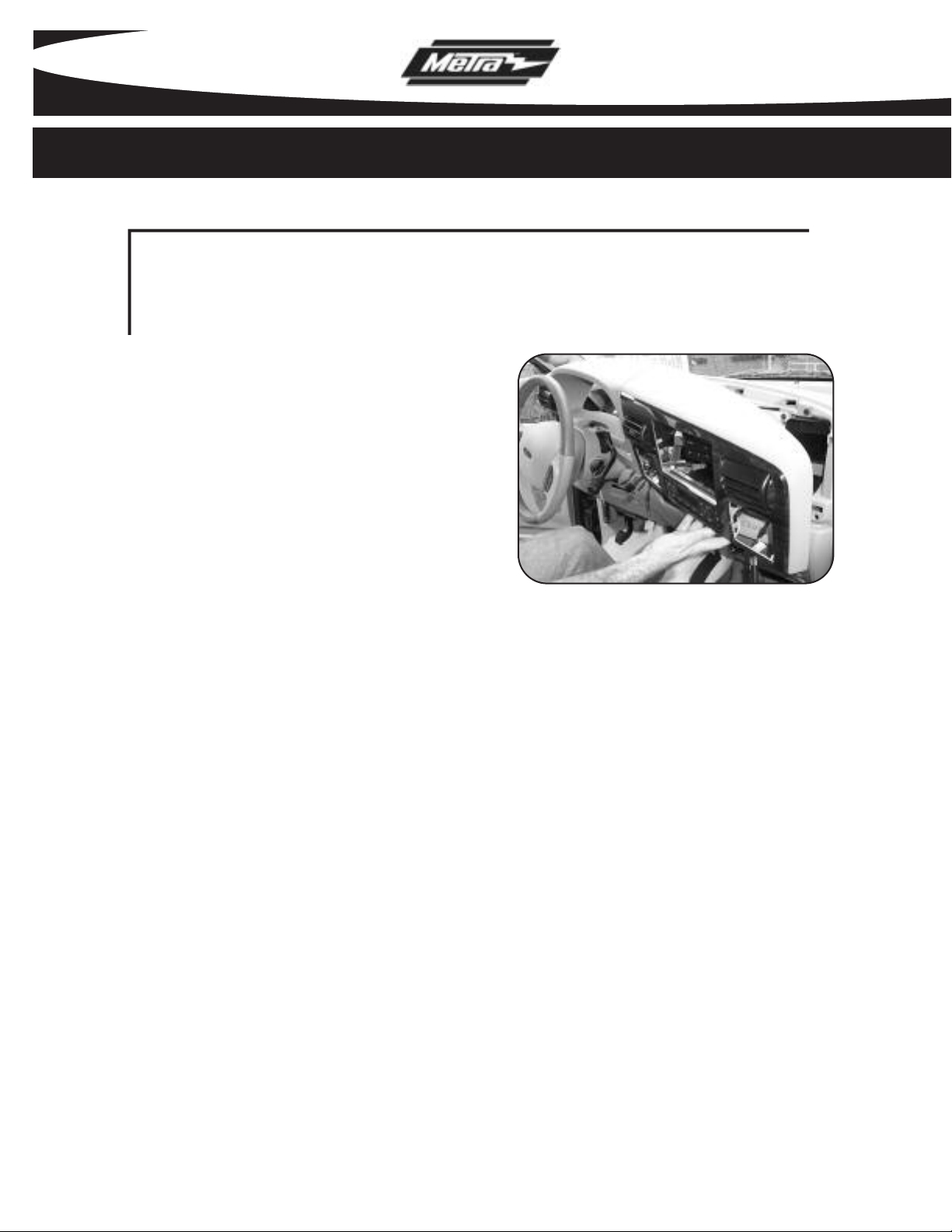

F SERIES SUPER DUTY 2005-2007

Disconnect the negative battery terminal

1

to prevent an accidental short circuit.

Unsnap and remove entire panel sur-

2

rounding radio and climate controls.

(FIGURE A)

3

Remove (4) 7mm screws to remove

factory radio.

A

DASH DISASSEMBLY

2

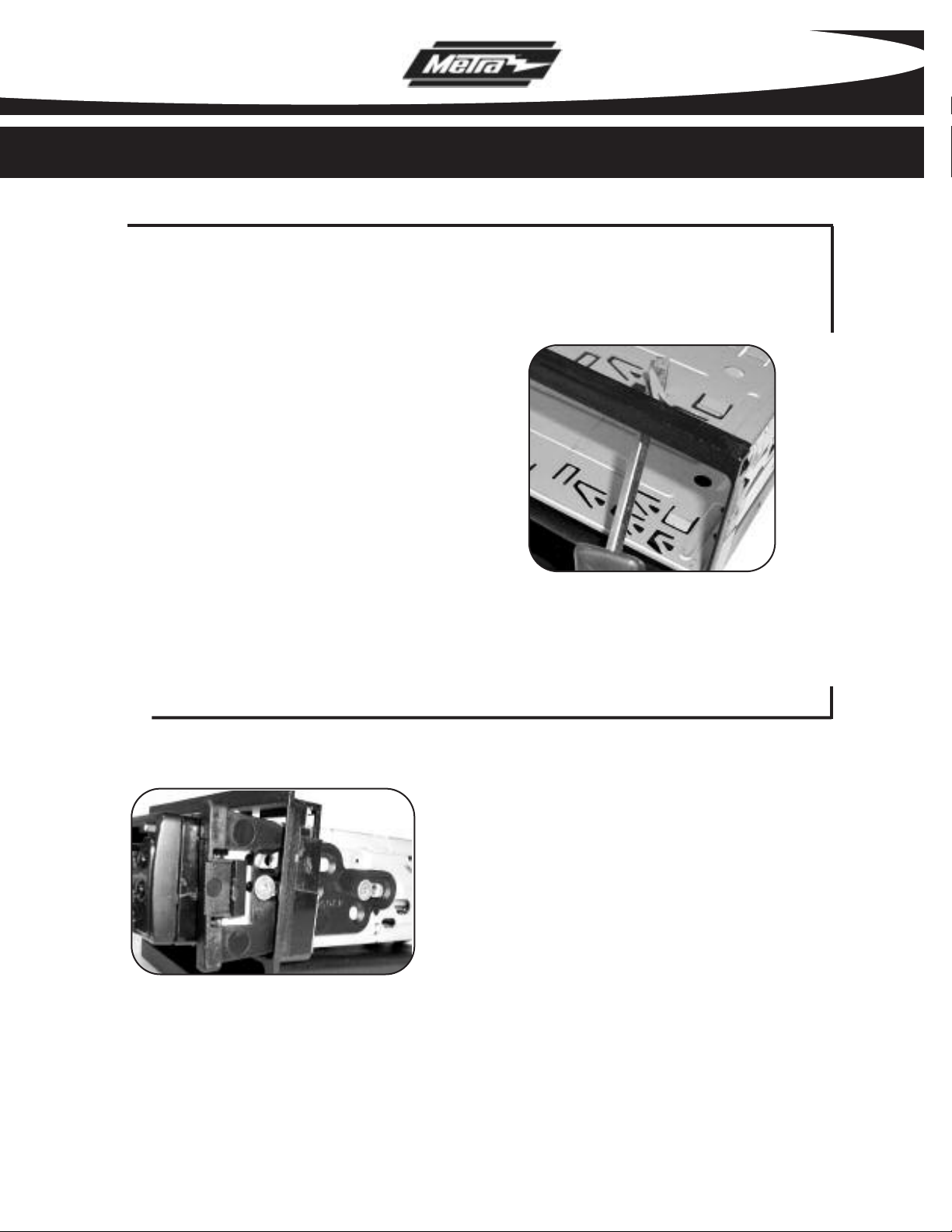

DIN HEAD UNIT PROVISIONS:

Slide the DIN cage into the

1

Radio Housing and secure by bending the metal locking tabs

99-5808

KIT ASSEMBLY

down.

Slide the after-market head

2

unit into the cage and secure.

(Figure B)

(Figure A)

ISO DIN Head Unit Provision

Mount the ISO Brackets to the head

1

unit with the screws supplied with the unit.

Slide the head unit into the radio

2

opening until the side clips engage.

Snap the Trim plate into the Radio

3

Housing.

3

99-5808

A

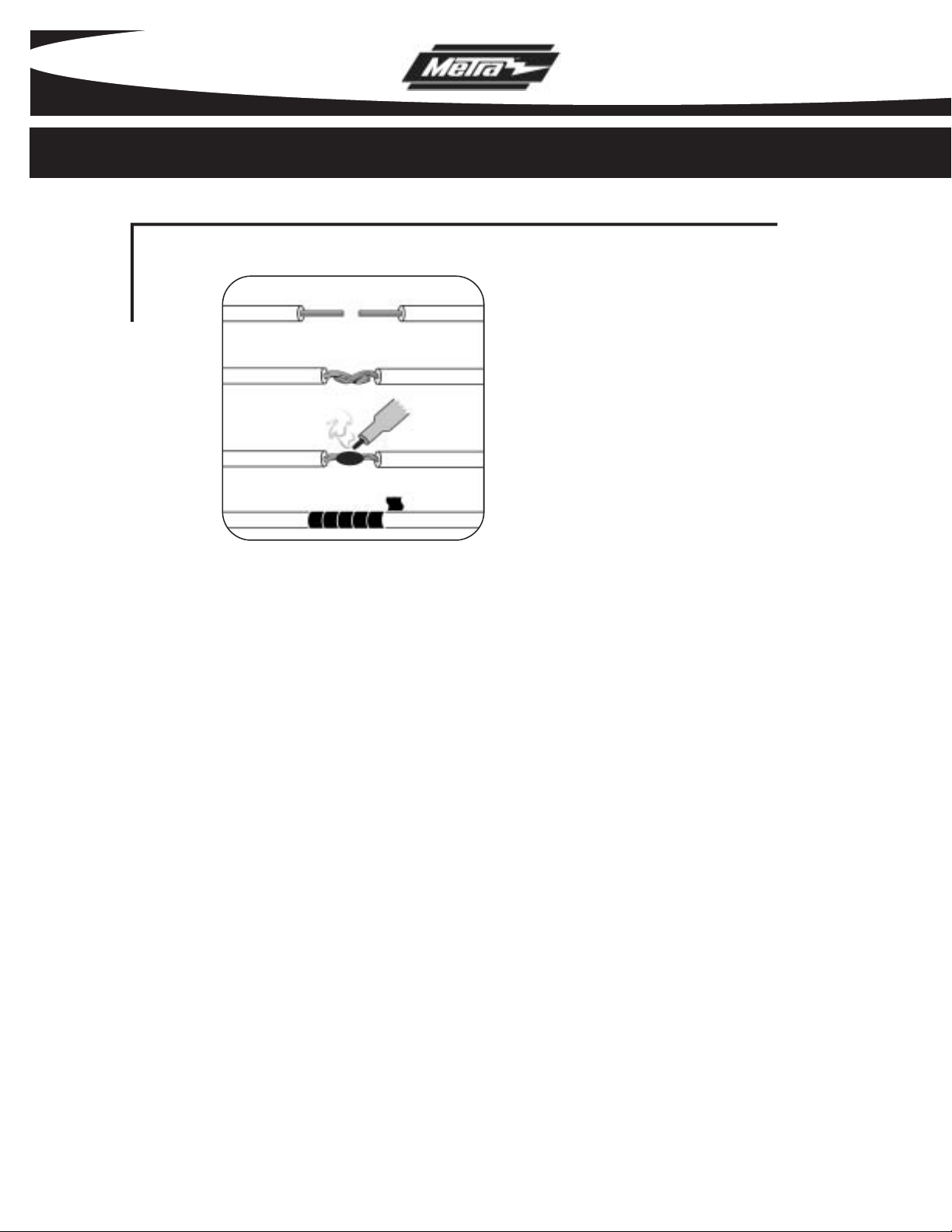

FINAL ASSEMBLY

B

C

D

Locate the factory wiring har-

1

ness in the dash. Metra recommends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit)

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Re-connect the negative battery

2

terminal and test the unit for proper operation.

Reassemble radio and dash

3

assemblies in reverse order of disassembly.

4

99-5808

____________________________________________________________

NOTES

____________________________________________________________

5

INST995808

1-800-221-0932 www.metraonline.com
