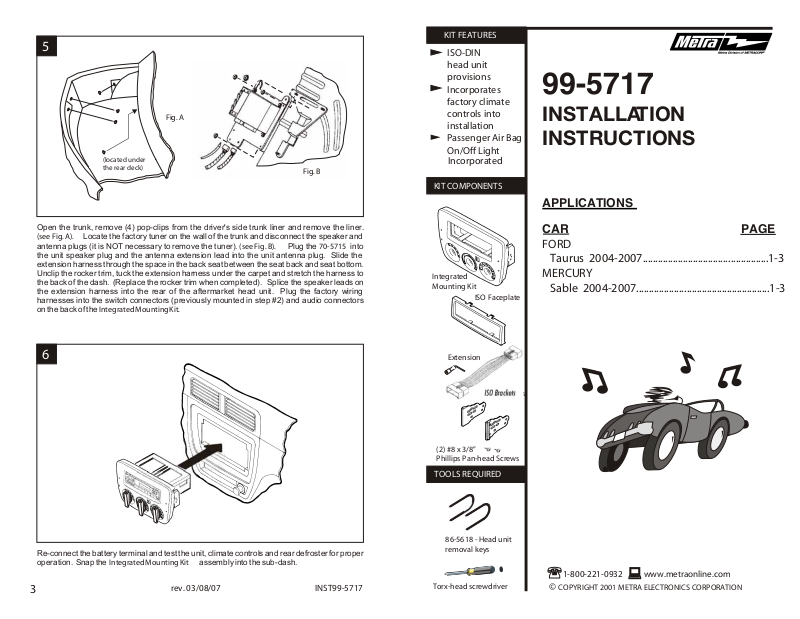

Metra Electronics 99-5717 User Manual

KIT FEATURES

5

Fig. A

(located under
the rear deck)

Fig. B

ISO-DIN
head unit
provisions
Incorporates
factory climate
controls into

installation
Passenger Air Bag
On/Off Light

Incorporated

KIT COMPONENTS

99-5717

INSTALLATION
INSTRUCTIONS

APPLICATIONS

Open the trunk, remove (4) pop-clips from the driver's side trunk liner and remove the liner.

Fig. A). Locate the factory tuner on the wall of the trunk and disconnect the speaker and

(see

antenna plugs (it is NOT necessary to remove the tuner). (see Fig. B). Plug the 70-5715 into
the unit speaker plug and the antenna extension lead into the unit antenna plug. Slide the
extension harness through the space in the back seat between the seat back and seat bottom.
Unclip the rocker trim, tuck the extension harness under the carpet and stretch the harness to
the back of the dash. (Replace the rocker trim when completed). Splice the speaker leads on
the extension harness into the rear of the aftermarket head unit. Plug the factory wiring
harnesses into the switch connectors (previously mounted in step #2) and audio connectors
on the back of the Integrated Mounting Kit.

6

Integrated
Mounting Kit

ISO Faceplate

Extension

ISO Brackets

(2) #8 x 3/8"
Phillips Pan-head Screws

TOOLS REQUIRED

CAR PAGE

FORD

Taurus 2004-2007..................................................1-3

MERCURY

Sable 2004-2007.....................................................1-3

Re-connect the battery terminal and test the unit, climate controls and rear defroster for proper
operation. Snap the Integrated Mounting Kit assembly into the sub-dash.

3

rev. 03/08/07 INST99-5717

86-5618 - Head unit
removal keys

Torx-head screwdriver

1-800-221-0932 www.metraonline.com

© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION

ALL VEHICLES

3

1

Disconnect the negative battery terminal to prevent an accidental short circuit. Using Metra's

86-5618,

system connectors, blower motor switch connector, vacuum hose harness, a/c damper door
switch connector, and potentiometer connector. Remove the panel.

pull the factory radio/climate control panel from the dash. Disconnect the audio

2

Fig. A

Fig. B

Fig. A

Remove (2) torx-head screws securing the mounting clips to the sides of the factory
radio/climate control panel and remove the clips. (see Fig. A). Mount the clips to the

Integrated

Mounting Kit with the same torx-head screws. (see Fig. B)

4

Fig. A

Fig. B

Fig. D

Fig. C

Turn the factory climate control dials into a vertical position and pull the dials off. (see Fig. A).
Remove (2) 5/16" hex-head screws securing the temperature and fan control switches and
remove the switches. Unclip the climate control switch and remove the switch. (see Fig. B).
Mount the switches to the back of the Integrated Mounting Kit with (2) #8 x 3/8" Phillips Pan-

Screws supplied. (see Fig. C). Holding the climate control dials in a vertical position,

head

insert the dials onto the posts of the mounted switches and secure. (see Fig. D)

1

Fig. B

ISO HEAD UNITS: Snap the ISO Faceplate into the radio opening. Attach the ISO Brackets

to the inner lip of the radio opening. Slide the head unit into the radio opening, align the holes in
the head unit with the holes in the ISO Brackets and mount the unit to the brackets with the
screws supplied with the unit. (see Fig. A).

HEAD UNITS: Slide the DIN cage into the Integrated Mounting Kit and secure by

DIN

bending the metal locking tabs down. Slide the aftermarket head unit into the cage and
secure. (see Fig. B)

2
