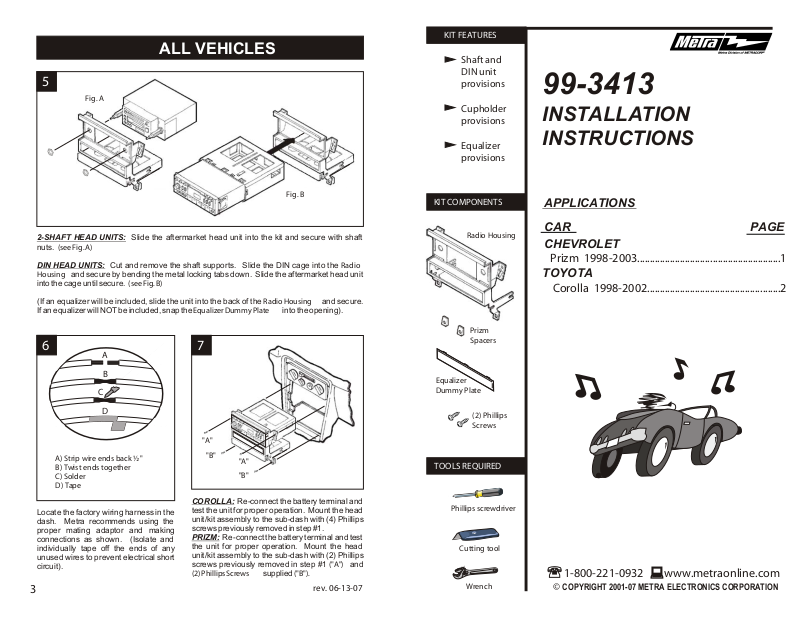

Metra Electronics 99-3413 User Manual
KIT FEATURES
ALL VEHICLES
Shaft and
DIN unit
5
Fig. A
provisions
Cupholder
provisions
99-3413
INSTALLATION
Fig. B
2-SHAFT HEAD UNITS: Slide the aftermarket head unit into the kit and secure with shaft
nuts. (see Fig. A)
DIN HEAD UNITS: Cut and remove the shaft supports. Slide the DIN cage into the Radio
Housing
into the cage until secure. (see Fig. B)
(If an equalizer will be included, slide the unit into the back of the Radio Housing and secure.
If an equalizer will NOT be included, snap the Equalizer Dummy Plate into the opening).
and secure by bending the metal locking tabs down. Slide the aftermarket head unit
6 7
A
B
C
D
"A"
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
3
"B"
COROLLA: Re-connect the battery terminal and
test the unit for proper operation. Mount the head
unit/kit assembly to the sub-dash with (4) Phillips
screws previously removed in step #1.
PRIZM: Re-connect the battery terminal and test
the unit for proper operation. Mount the head
unit/kit assembly to the sub-dash with (2) Phillips
screws previously removed in step #1 ("A") and
Phillips Screws supplied ("B").
(2)
"A"
"B"
rev. 06-13-07
Equalizer
provisions
KIT COMPONENTS
Radio Housing
Prizm
Spacers
Equalizer
Dummy Plate
(2) Phillips
Screws
TOOLS REQUIRED
Phillips screwdriver
Cutting tool
Wrench
INSTRUCTIONS
APPLICATIONS
CAR PAGE
CHEVROLET
Prizm 1998-2003.........................................................1
TOYOTA
Corolla 1998-2002.....................................................2
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001-07 METRA ELECTRONICS CORPORATION
CHEVROLET Prizm 1998-2003 TOYOTA Corolla 1998-2002
1 1
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the ashtray. Unclip the radio trim bezel and
disconnect the wiring. Remove (4) Phillips
s securing the fact o r y h e a d
screw
unit/cupholder assembly, slide the assembly
out and disconnect the wiring.
3
"B"
2 2
Locate the faceplate supplied with the
aftermarket head unit. Place the faceplate
into the recessed opening in the Radio
Housing.
opening with no interference, leave the
Housing intact. If the faceplate does NOT fit
easily into the opening, trim away the ribs
located on the top and bottom of the opening
("A").
If the faceplate fits easily into the
"A"
4
Disconnect the negative battery terminal to
prevent an accidental short circuit. Unclip
the radio trim bezel (upper dash). Remove
(4) Phillips screws from the factory head
unit, slide the unit out and disconnect the
wiring. Remove the ashtray and unclip the
trim bezel (lower dash). Remove (4) Phillips
screws from the factory pocket/cupholder
assembly and remove the assembly. (Metra
recommends
88-00-9000
dash
ordering the 88-00-8000 or
to fill the space left in the upper
location).
3
"A"
Locate the faceplate supplied with the
aftermarket head unit. Place the faceplate
into the recessed opening in the Radio
Housing.
opening with no interference, leave the
Housing intact. If the faceplate does NOT fit
easily into the opening, trim away the ribs
located on the top and bottom of the opening
("A").
If the faceplate fits easily into the
4
"C"
"C"
"A"
Convert the Radio Housing by cutting and
g the pins located under the
removin
equalizer opening ("A"). Trim no less than
and no more than 1/4" from the bottom
1/8"
of each upper mounting tab ("B"). Snap the
Spacers onto the back of the lower
Prizm
mounting tabs ("C").
1
Remove the cupholder from the factory head
unit assembly. Slide the cupholder into the
bottom of the Radio Housing until the
locating pins engage the slots in the kit.
(Once the locating pins are engaged, PUSH
the cupholder into the Housing until it stops).
Skip to the Installation Instruction for ALL
VEHICLES on Page #3.
Locate the v-cut along the top lip of the
Housing. Using the v-cut as a guide,
Radio
cut and remove the top portion of the
Housing as indicated above.
Remove the cupholder from the factory head
unit assembly. Slide the cupholder into the
bottom of the Radio Housing until the
locating pins engage the slots in the kit.
(Once the locating pins are engaged,
maneuver the cupholder until it is flush with
the face of the Housing). Skip to the
Installation Instruction for ALL VEHICLES on
Page #3.
2
