INSTALLATION INSTRUCTIONS FOR PART 99-3305
99-3305
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Radio Provision with Pocket
• A) Radio Housing • B) ISO Brackets • C) Trim Plate
KIT COMPONENTS
A
Small Flat Blade Screwdriver • Panel Removal Tool
• Phillips Screwdriver • Socket Set • Torx Driver • Allen Wrench
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
TOOLS REQUIRED:
APPLICATIONS
CHEVROLET
Avalanche 2007-09/Equinox 2007-09
Express Van 2008-09/Impala 2006-09
Monte Carlo 2006-07/Tahoe 2007-09
Silverado 2007-09
(Excluding Classic Models)
Suburban 2007-09
B
C
BUICK Enclave 2008-09, Lucerne 2006-09
GMC
Acadia 2008-09
Savanna 2008-09
Sierra 2007-09
(Excluding Classic Models)
Yukon 2007-09
SA
TURN Outlook 2008-09/Vue 2008-09
SUZUKI
XL7 2007-09
HUMMER
H2 2008-09
PONTIA
C Torrent 2007-08
WIRING AND ANTENNA CONNECTIONS:
(Sold Separately)
Harness:
• GMOS-LAN-01 - GM LAN interface 2006-up
• GMOS-LAN-02 - GM LAN amplified interface 2006-up
Antenna Adapter:
• 40-CR10 - Chrysler/GM antenna adapter 2002-up
Page 2
TABLE OF CONTENTS
99-3305
*Note:
Refer also to the instructions included with the aftermarket radio.
D
ash Disassembly
- Chevrolet Impala 2006-2009. ................................................1
- Chevrolet Monte Carlo 2006-2007 .......... ..................................1
- Buick Lucerne 2006-2009 ................................................... 1
- Chevrolet Avalanche 2007-2009 ..............................................2
- Chevrolet Silverado
(Excluding Classic Models)
2007-2009 .....................2
- Chevrolet Suburban 2007-2009 ...............................................2
- Chevrolet Tahoe 2007-2009 ...................................................2
- GMC Sierra
(Excluding Classic Models)
2007-2009 . ...........................2
- GMC Yukon 2007-2009 . . .....................................................2
- Chevrolet Express Van 2008-09/GMC Savanna 2008-2009 ........................3
- Suzuki XL-7 2007-2009 .....................................................4
- Chevrolet Equinox 2007-089/Pontiac Torrent 2007-2008 . . . . . . . . . . . . . . . . . . . . . . . . . . 5
- Buick Enclave/ GMC Acadia//Saturn Outlook 2008 . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . 6
- Hummer H2 2008-2009 ......................................................7
- Saturn Vue 2008-2009........................................................8
Kit Assembly
- DIN Radio Provision with Pocket .............................................9
- ISO Radio Provisionwith Pocket ..............................................9
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..10
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take
steps toward a better tomorrow.
Page 3
99-3305 DASH DISASSEMBLY

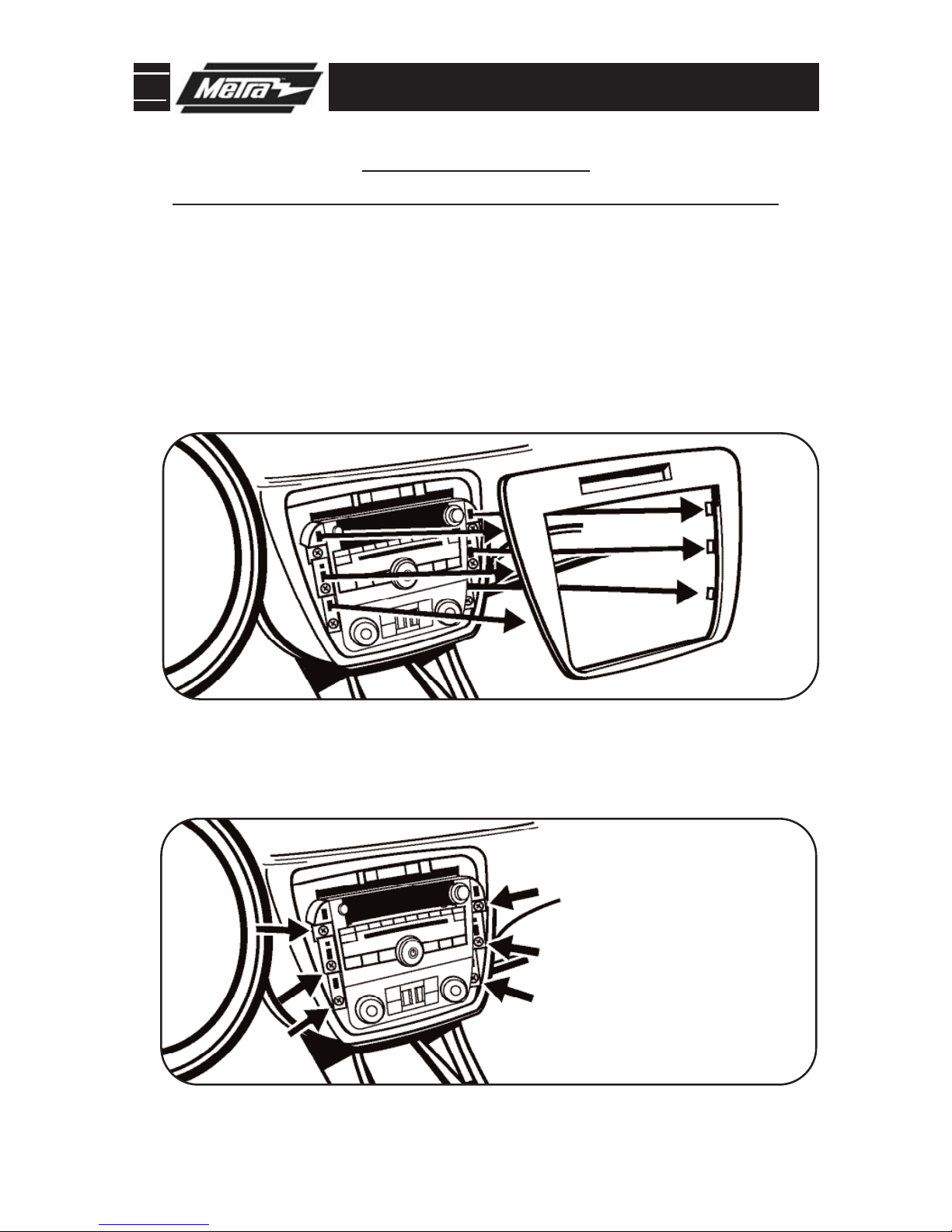

BUICK LUCERNE
CHEVY IMPALA / MONTE CARLO 2006-09
A
B
1
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unclip and remove the trim panel
around radio and a/c control.
(Figure A)
2
Remove (6) 9/32” screws to extract
radio and a/c control from sub dash.
(Figure B)
3
Continue to kit assembly.
Page 4
2
99-3305 DASH DISASSEMBLY
A
B
C

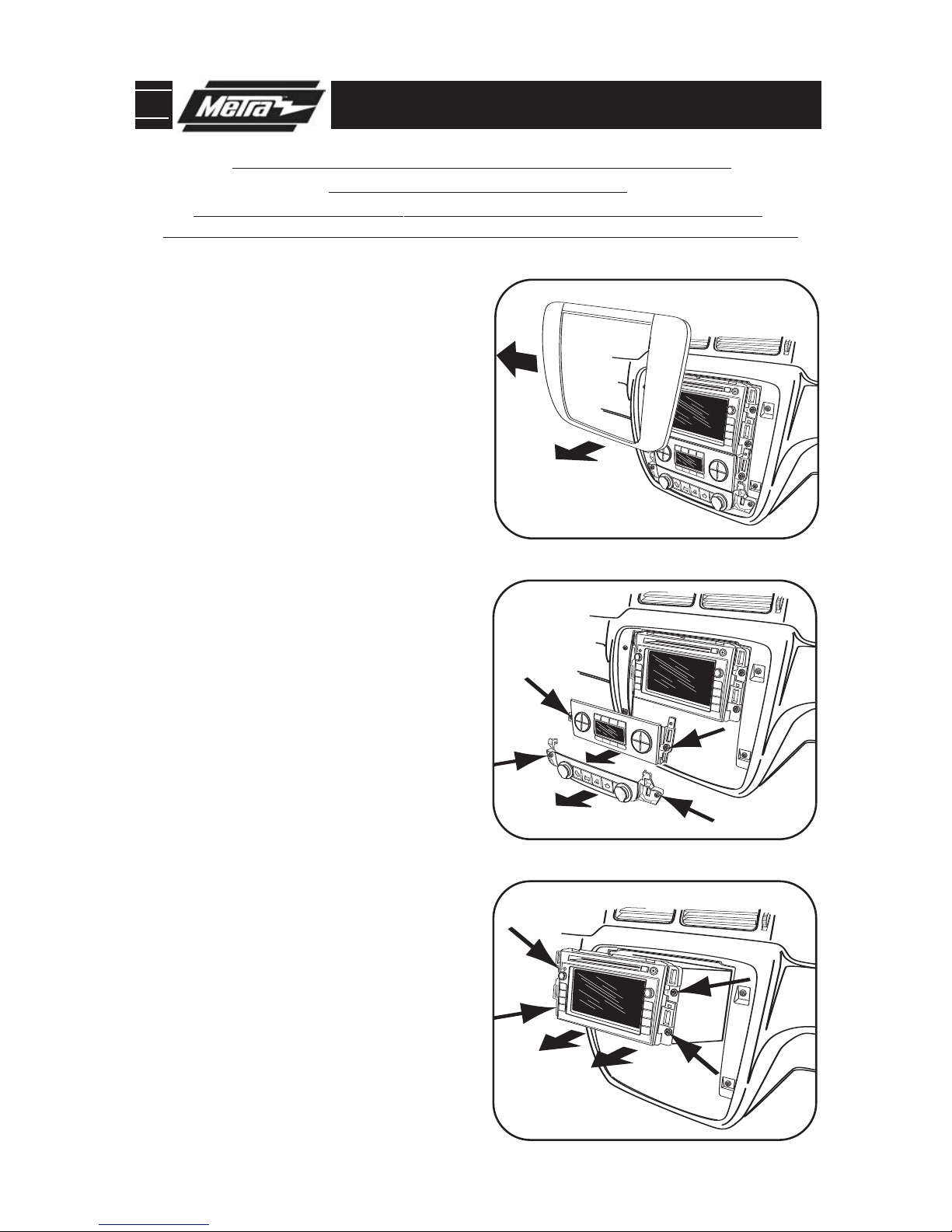

SILVERADO
(Excluding Classic Models)
/SUBURBAN
CHEVY AVALANCHE/TAHOE
GMC YUKON/SIERRA
(Excluding Classic Models)
2007-09
Unclip and remove radio trim panel.
(Figure A)
2
Remove (2) 8mm screws securing
switch panel below climate controls.
Unplug and remove switch panel.
(Figure B)
3
Remove (2) 8mm screws securing climate controls. Unplug and remove climate controls.
(Figure B)
4
Remove (4) 9/32” screws securing
radio. Unplug and remove the radio.
(Figure C)
5
Continue to kit assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short circuit.
1
Page 5
3
99-3305 DASH DISASSEMBLY

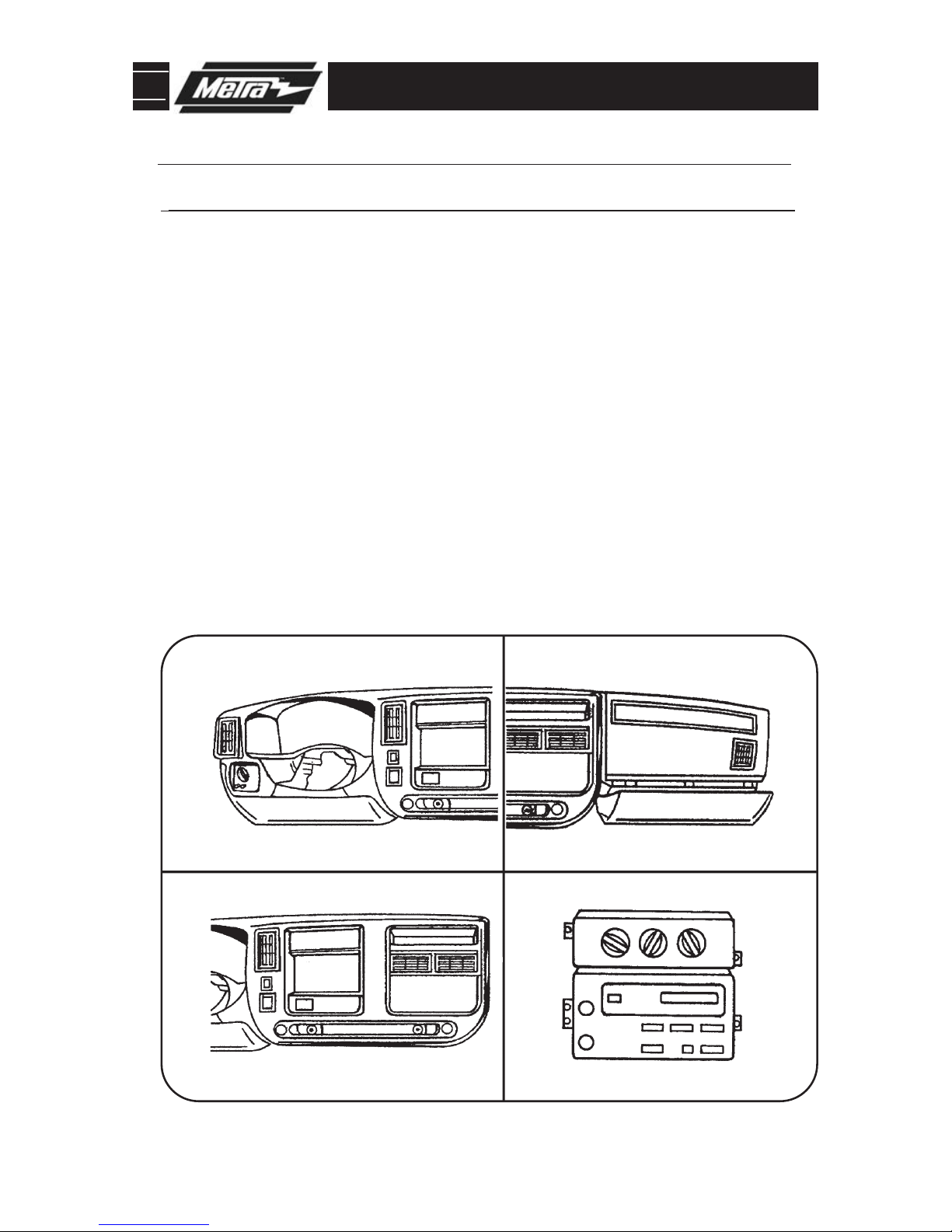

CHEVY EXPRESS VAN 2008-09/GMC SAVANNA 2008-09
Remove (2)10mm bolts from below knee bolster under steering column and remove
panel.
2
Remove (2)10mm bolts from panel below passenger dash airbag and remove panel.
3
Unsnap and remove radio and instrument cluster panel. (May not be necessary to
completely remove radio and instrument cluster panel to access radio.)
4
Remove (4) 9/32” bolts to remove radio.
5
Continue to kit assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short circuit.
1
Page 6
4
99-3305 DASH DISASSEMBLY
A
B
C
D
E

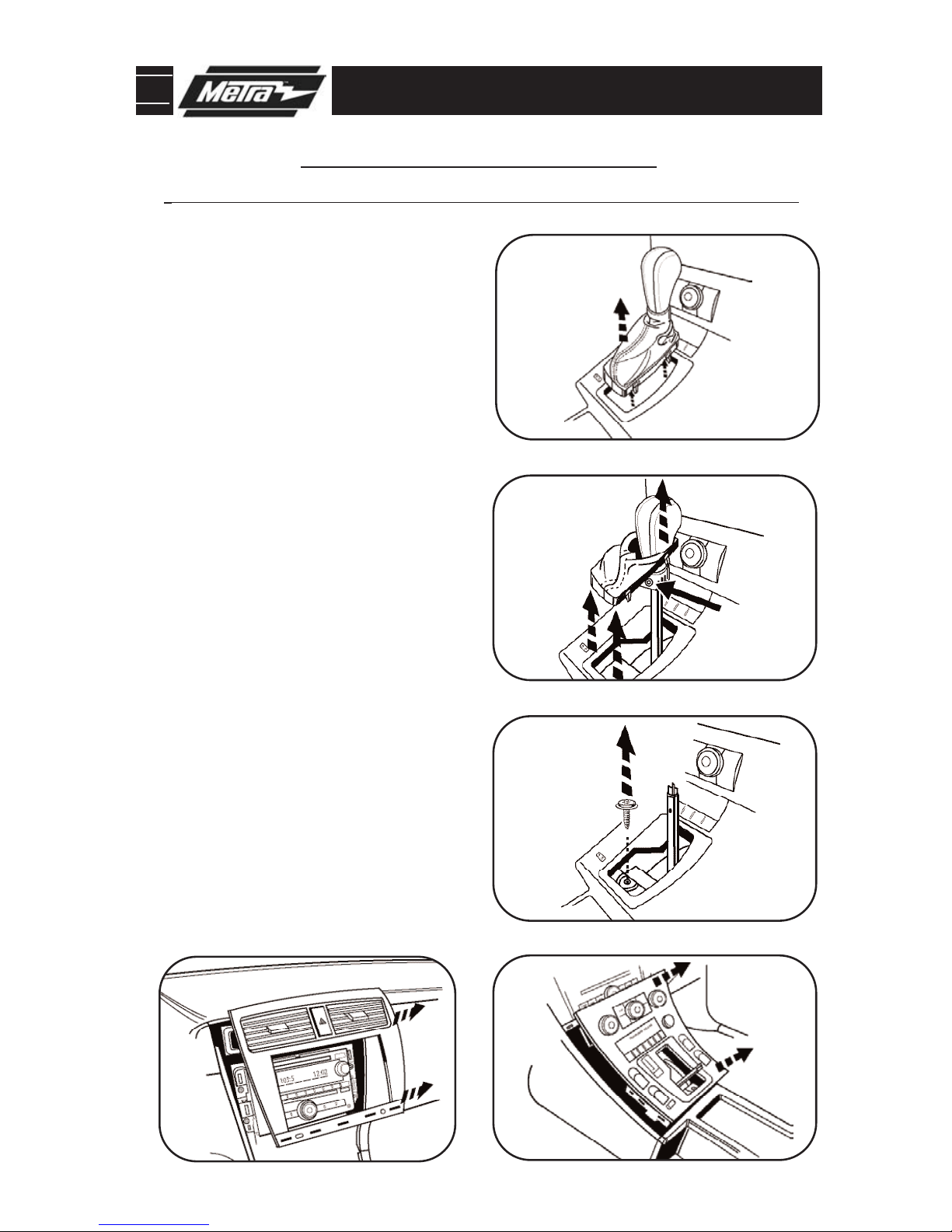

SUZUKI XL-7 2007-09
Press in on sides of the shifter boot to
release it from the shifter trim panel.
(Figure A)
2
Lift the boot up to access the Allen
screw securing the shifter knob to the
shifter lever. Loosen the Allen screw
and remove the shifter knob.
(Figure B)
3
Remove (1) torx screw from the shifter
trim panel
(Figure C)
, then using a
panel removal tool unsnap the shifter
trim panel. Unplug and remove the
panel.
(Figure D)
4
Remove (4) 9/32” screws securing
the radio. Unplug and remove the
radio.
6
Using a panel removal tool unsnap
the radio trim panel. Unplug and
remove the panel.
(Figure E)
5
Continue to kit assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short circuit.
1
Page 7
5
99-3305 DASH DISASSEMBLY
A
B
C

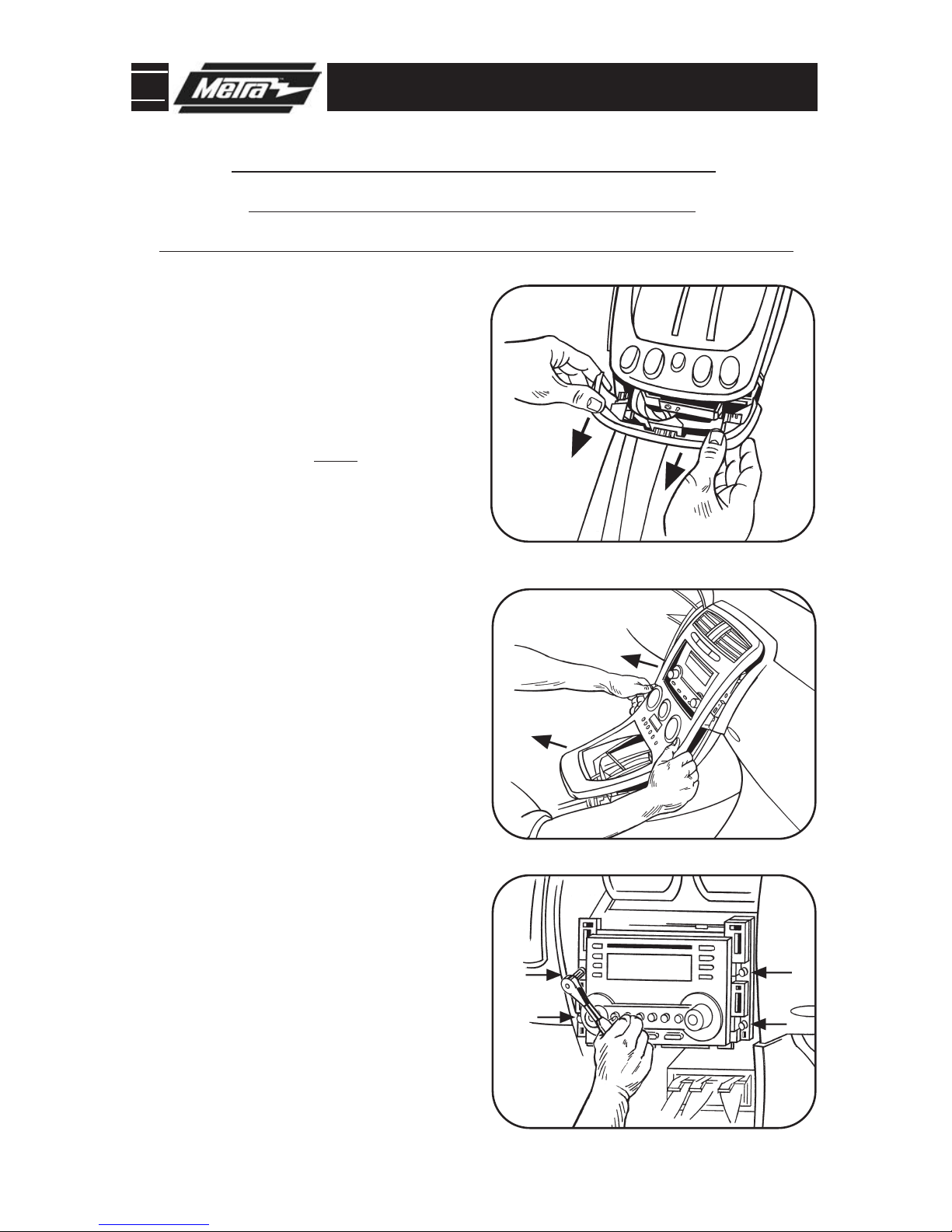

CHEVROLET EQUINOX 2007-09
PONTIAC TORRENT 2007-09
Unsnap panel below power window
switch and remove.
Note: This allows
you to unplug the window switch easi-
er.
(Figure A)
3
Unsnap and remove entire panel surrounding radio and shifter.
(Figure B)
4
Remove shifter knob.
2
Remove (4) 9/32 screws securing
radio. Unplug and remove the radio.
(Figure C)
5
Continue to kit assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short
circuit.
1
Page 8
6
99-3305 DASH DISASSEMBLY
BUICK ENCLAVE
GMC ACADIA
SATURN OUTLOOK
BUICK ENCLAVE/GMC ACADIA/
SATURN OUTLOOK 2008-09
Unclip the radio trim panel including
the climate controls. Unplug the climate controls and remove the panel.
(See drawings)
2
Remove (4) 9/32 screws securing the
radio. Unplug and remove the radio.
3
Continue to kit assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short circuit.
1
Page 9
7
99-3305 DASH DISASSEMBLY
A
HUMMER H2 2008-09
Unclip the radio trim panel including
the a/c vents. Unplug any harnesses
connected to the panel and remove the
panel.
(Figure A)
2
Remove (4) 9/32” screws securing the
climate controls. Unplug and remove
the climate controls.
3
Remove (4) 9/32 screws securing the
radio. Unplug and remove the radio.
4
Continue to kit assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short circuit.
1
Page 10
8
99-3305 DASH DISASSEMBLY
A
B
C
SATURN VUE 2008-09

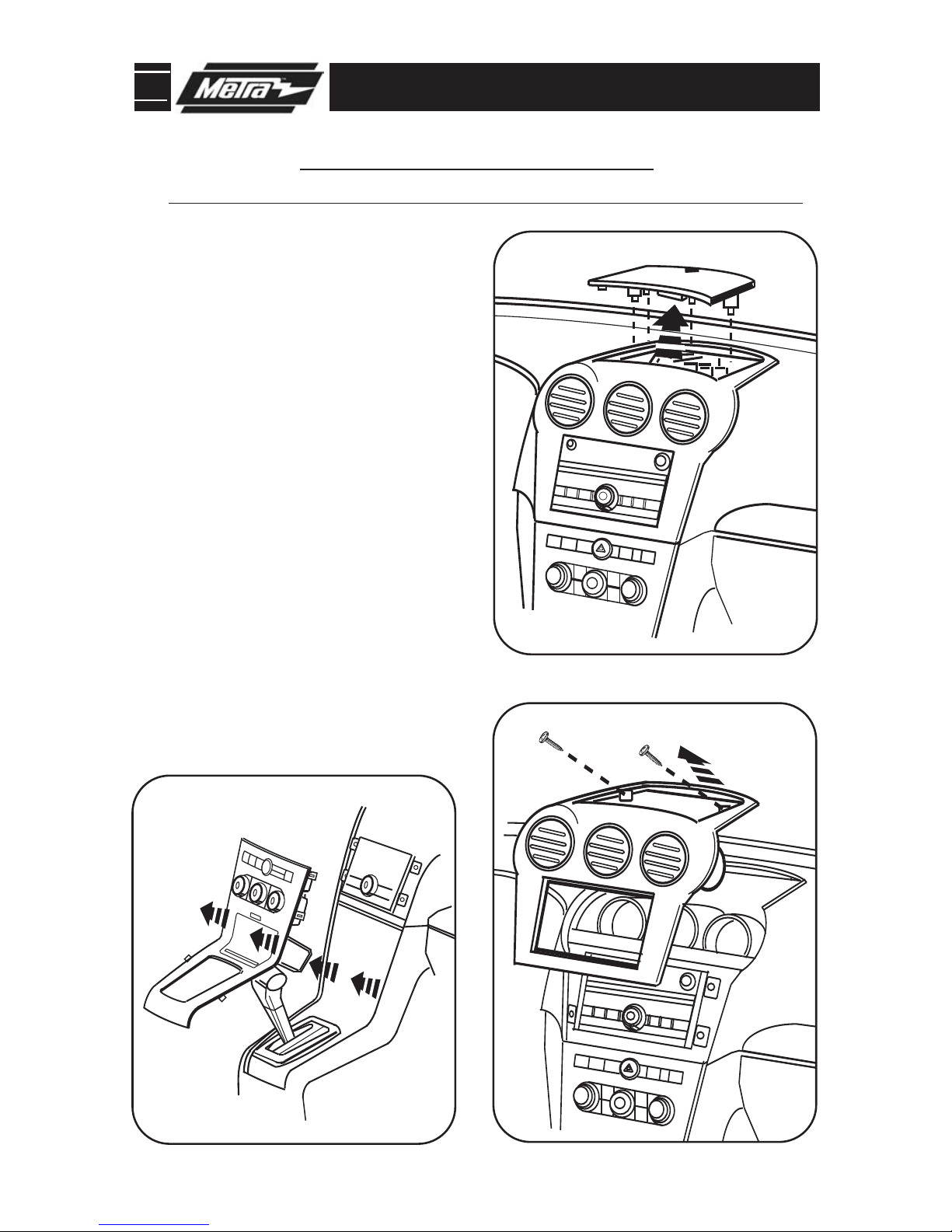

Unclip and remove the trim panel on
top of the radio trim panel.
(Figure A)
2
Remove (2) Phillips screws exposed
under panel removed in step 2.
(Figure B)
3
Unclip and remove the radio trim panel
including the a/c vents.
(Figure B)
4
Remove (4) 9/32 screws securing the
radio. Unplug and remove the radio.
6
Unclip and remove the trim panel
surrounding the shifter including the
climate controls.
(Figure C)
5
Continue to kit assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short circuit.
1
Page 11
99-3305 KIT ASSEMBLY
B
C
C
DIN RADIO PROVISION
ISO RADIO PROVISION
Slide the aftermarket radio into the
cage and secure.
(Figure C)
2
Continue to final assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
Slide the DIN cage into the Radio
Housing and secure by bending the
metal locking tabs down.
(Figure B)
1
Slide the radio into the radio opening
until the side clips engage.
) (Figure C)
2
Snap the Trim plate into the Radio
Housing.
(Figure C)
3
Mount the ISO Brackets to the radio
with the screws supplied with the
unit.
(Figure B)
1
NOTE: XL-7 ONLY
Trim top corners of radio housing.
(Figure A)
B
A
NO
TE: XL-7 ONLY
Trim top corners of radio housing.
(Figure A)
A
9
Page 12
99-3305 FINAL ASSEMBLY
FINAL ASSEMBLY

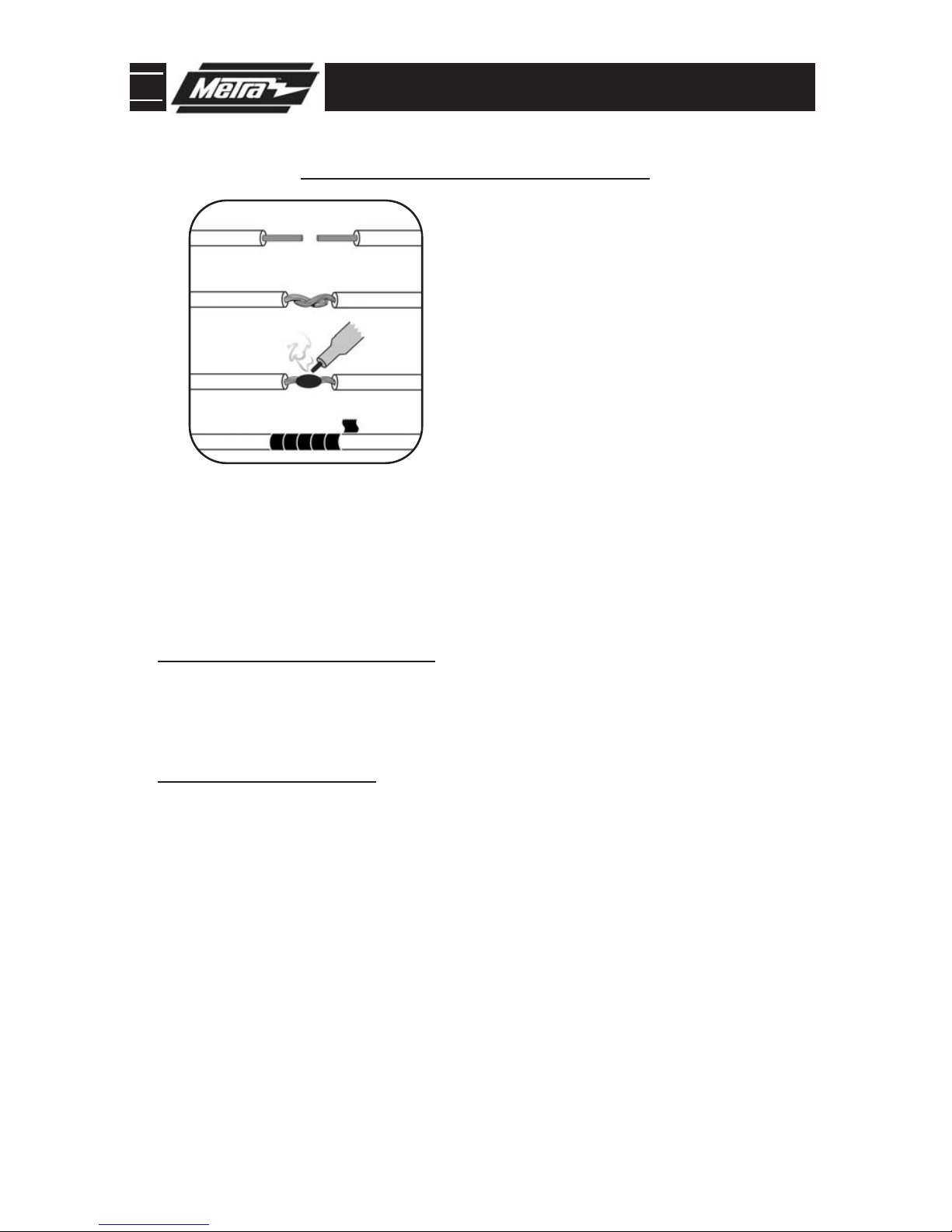

(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
1
2
3
10
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
REV. 05/27/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-3305
