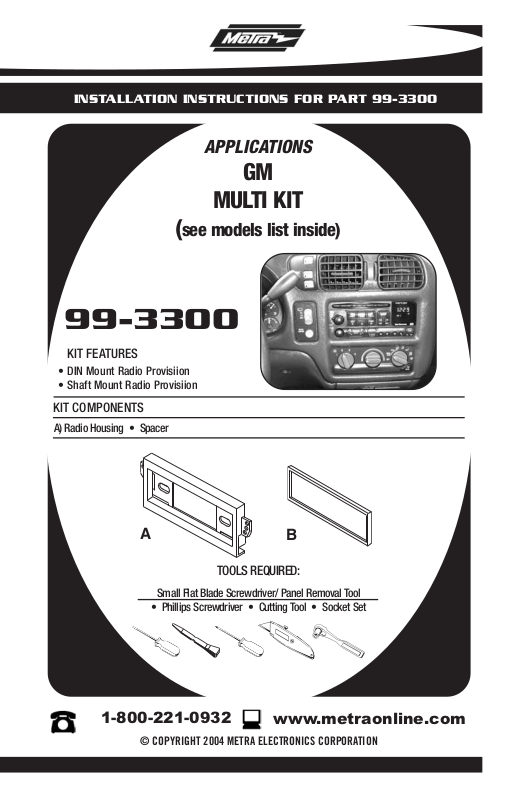

INSTALLATION INSTRUCTIONS FOR PART 99-3300
APPLICATIONS
GM
MULTI KIT
see models list inside)
(
99-3300
KIT FEATURES
• DIN Mount Radio Provisiion
• Shaft Mount Radio Provisiion
KIT COMPONENTS
A) Radio Housing • Spacer
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Cutting Tool • Socket Set
1-800-221-0932
© COPYRIGHT 2004 METRA ELECTRONICS CORPORA
B
www.metr
aonline.com
TION
99-3300
TABLE OF CONTENTS
Dash Disassembly
Chevrolet
-
Blazer 1998-2002 ...............................................
-
Camaro 1997-2002 ..............................................
- Caprice
-
-
- Impala
-
- Malibu 1997-2000
-
-
-
GMC
- Envoy 1998-2001
- Jimmy 1998-2002
- Sonoma Pickup 1998-2002
Isuzu
- Hombre 1998-2001 . . .
Oldsmobile
-
1994-1996 ................................................
Cavalier 1995-1999 ...............................................
Corvette 1997-2004 ...............................................
1994-1996 ................................................
Lumina 1995-2001 ...... .........................................
...... ............................................
Monte Carlo 1995-1999.............................................
S-10 Pickup 1998-2002. . . . . . ......................................
Venture 1997-1999 ...............................................
...........................................................
.......................................................
. . ..............................................
...................................................
Bravada 1998-2001 .................................................
. . . . . . . .1
. . . . . . . 2
. . . . . .. 3
. . . . . . . 4
. . . . . . . 5
. . . . . .. 3
. . . . . . . 6
. . . . . . . 7
. . . . . . . 6
. . . . . . . 1
. . . . . .. 8
1
. . . .1
. . . .1
. . . . .1
. . . . . 1
-
Silhouette 1997-1999 .............................................
Pontiac
-
Montana 1999 ....................................................
-
TransSport 1997-1999..............................................
Kit Assembly
DIN Mount provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Shaft Mount provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Final
*Note:
Refer also to the instructions included with the aftermarket radio.
. . . . . . . 8
. . . . . . . 8
. . . . . . . 8
99-3300 DASH DISASSEMBLY
Chevrolet Blazer/S-10 Pickup,
GMC Jimmy/Sonoma 1998-2002, GMC Envoy,
Isuzu Hombre, Oldsmobile Bravada 1998-2001
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Remove (2) 9/32” hex head screws
2
from the lower dash trim panel below
steering column.
Remove (2) 9/32” hex head screws
3
from bottom edge of instrument cluster trim panel.
Remove (1) Phillips head screw from
4
above the instrument cluster.
5
Unclip and remove instrument cluster
trim panel.
Remove (2) 9/32” hex head screws
6
securing radio. Unplug and remove
radio.
Continue to kit assembly.
1
99-3300 DASH DISASSEMBLY
Chevrolet Camaro 1997-2002
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the radio trim
2
panel. (Figure A)
Remove (2) 9/32” hex head screws
3
securing radio. Unplug and remove
radio. (Figure A)
Cut and remove the rear support from
4
the back of radio cavity. (Figure B)
Continue to kit assembly.
A
B
Dash cavity
2
99-3300 DASH DISASSEMBLY
Dash cavity
Chevrolet Caprice, Impala 1994-1996
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Remove (5) 9/32” hex head screws
2
from the ashtray cavity.
Remove (4) 9/32” hex head screws
3
from bottom edge of dash trim
panel.
Unclip fuse box cover and remove
4
(1) 9/32” hex head screw from fuse
box cavity.
Unclip and remove instrument cluster
7
trim panel.
Remove (1) 9/32” hex head screw
8
from the left edge of dash trim panel.
Unclip and remove dash trim panel.
9
Remove (2) 9/32” hex head screws
10
securing radio. Unplug and remove
radio.
Cut and remove the rear support from
11
the back of radio cavity. (Figure A)
Remove (2) 9/32” hex head screws
5
from above instrument cluster.
Engage parking brake and place
6
gear selector in “D1”.
Continue to kit assembly.
A
3
99-3300 DASH DISASSEMBLY
Dash cavity
Chevrolet Cavalier 1995-1999
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Remove (3) 9/32” hex head screws
2
from along top edge inside of glove
box.
Remove (2) 9/32” hex head screws
3
from behind glove box. (Access
these screws thru cutout in rear of
glove box at top left corner.)
Remove (1) Phillips head screw from
4
defroster vent and remove the vent.
Remove (1) Phillips head screw from
5
inside defroster.
Unclip and remove the trim panel at
6
each of dash and remove (1) Phillips
head screw from behind panel.
Remove dash pad.
7
Remove (3) Phillips head screws from
8
top edge of instrument cluster/radio
trim panel. Unclip and remove dash
trim panel.
Remove (2) 9/32” hex head screws
9
securing radio. Unplug and remove
radio.
Cut and remove the rear support from
10
the back of radio cavity. (Figure A)
Continue to kit assembly.
A
4
99-3300 DASH DISASSEMBLY
Chevrolet Corvette 1997-1999
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Using a panel removal tool pry out
2
on the “Ride Control” switch, unplug
and remove switch.
Unclip and remove switch trim
3
panel.
Remove (2) 10 MM hex head bolts
4
from behind panel.
Open center console door and
5
remove (4) screws from hinge to
remove door.
Open ashtray and remove (1) screw
6
securing ashtray.
Remove ashtray and remove (1)
7
screw from ashtray cavity.
Unclip and remove small grill to the
8
left of the ignition switch.
Remove one (1) screw from behind
9
grill. Unclip and remove dash trim
panel.
Remove (2) 9/32” hex head screws
10
securing radio. Unplug and remove
radio.
Continue to kit assembly.
5
99-3300 DASH DISASSEMBLY
Dash cavity
Chevrolet Lumina/Monte Carlo 1995-2001
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove dash trim panel.
2
(It may be necessary to loosen the
lower dash trim panel below steering column.)
Remove (2) 9/32” hex head screws
3
securing radio. Unplug and remove
radio.
Cut and remove the rear support from
4
the back of radio cavity. (Figure A)
Continue to kit assembly.
A
6

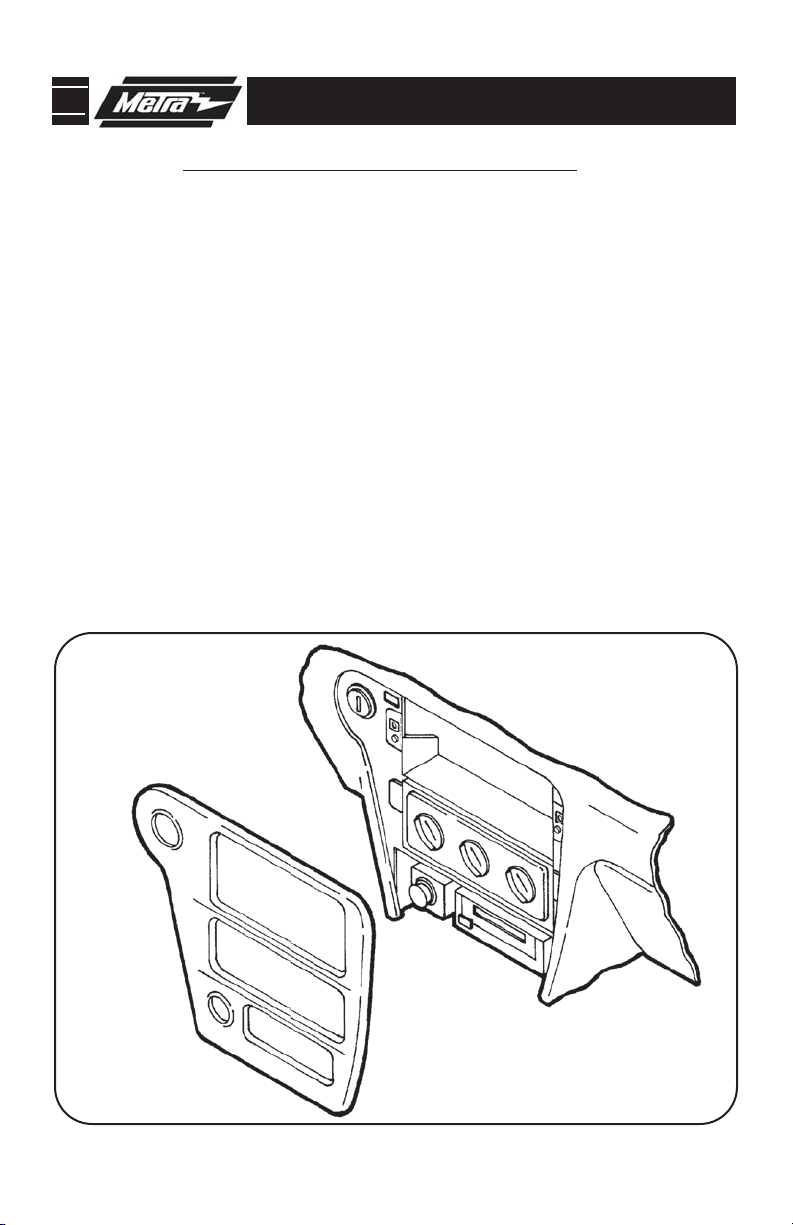

99-3300 DASH DISASSEMBLY
Chevrolet Malibu 1997-2000
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the radio trim
2
panel.
Remove (2) 9/32” hex head screws
3
securing radio. Unplug and remove
radio.
Continue to kit assembly.
7
99-3300 DASH DISASSEMBLY
Dash cavity
Chevrolet Venture, Pontiac TransSport 1997-
1999, Oldsmobile Silhouette 1997-2000,
Pontiac Montana 1999
1
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
Remove ashtray and remove (1)
2
Phillips head screw from ashtray
cavity.
Remove (1) Phillips head screw from
3
cigarette lighter cavity.
Unclip and remove the radio trim
4
panel.
Remove (2) 9/32” hex head screws
5
securing radio. Unplug and remove
radio.
Cut and remove the rear support from
6
the back of radio cavity. (Figure A)
Continue to kit assembly.
A
8
99-3300 KIT ASSEMBLY
DIN MOUNT RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Cut and remove the shaft supports
1
from the radio housing.
Slide the DIN cage into the Radio
2
Housing and secure by bending the
metal locking tabs outward.
NOTE: The spacer included with this kit
can be used between the radio and the
DIN cage fror vehicles with shallow
radio cavities if necessary.
Slide the aftermarket radio into the
3
cage until it snaps into place.
Continue to final assembly.
(Figure A)
(Figure B)
(Figure D)
(Figure C)
B
9
CD
99-3300 KIT ASSEMBLY
SHAFT MOUNT RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
Slide the aftermarket radio into the
1
radio housing from the back and
secure using shaft nuts supplied with
the radio.
Continue to final assembly.
(Figure A)
A
10
99-3300 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wir
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
es to prevent electrical short circuit.)
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+)
Left Rear (-) . . . . . . . . . . . . . . Green / Black
. . . . . . . . . . . . .
Green
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
11
99-3300
NOTES
12
99-3300
NOTES
13
99-3300 INSTRUCTIONS
1-800-221-0932
REV. 10/02/06 © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION INST99-3300
www.metraonline.com
