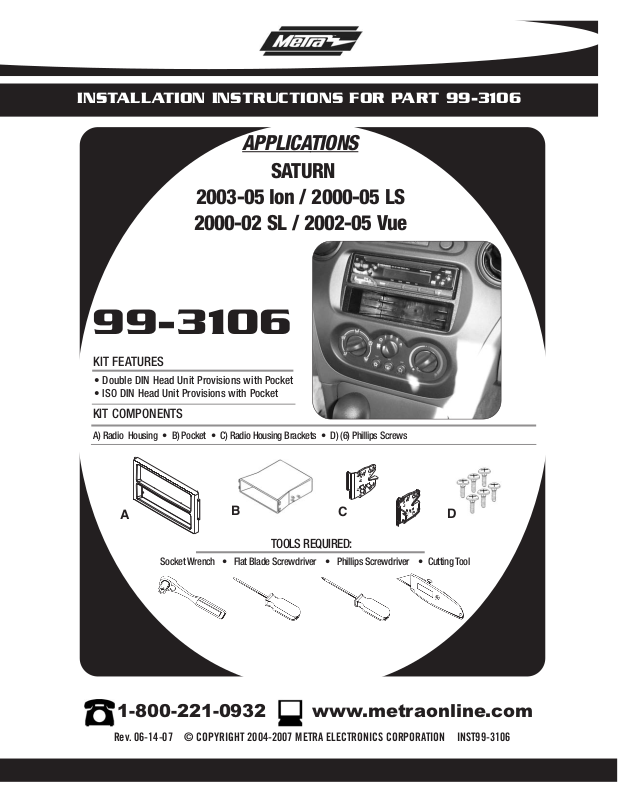

Unclip and remove the trim panel
surrounding the radio.
Remove (2) 9/32” screws from radio to
3
remove.
(Figure A)
(Figure A)
A
DASHDISASSEMBLY
2000-2005 SATURN LS
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Unclip and remove the trim panel
2
surrounding the radio.
Remove (2) 9/32” screws from radio
3
to remove.
(Figure B)
(Figure B)
B
1
99-3106
2000-2002 SATURN SL
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Remove (4) Phillips from panel below
2
steering column and unclip and
remove.
(Figure A)
A
DASHDISASSEMBLY
Remove (4) Phillips screws from the
3
steering column trim panel and
remove.
Remove (2) screws from the end
4
cap/vent on the left side of the
steering column then unclip and
remove.
Unclip and remove the entire dash
5
panel surrounding the radio, instrument cluster and a/c controls.
(Figure D)
Remove (2) 9/32” screws securing
6
the head unit to remove.
(Figure B)
(Figure C)
(Figure D)
B
C
2
D
99-3106
2002-2005 SATURN VUE
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Unsnap and remove shifter trim
2
panel.
Remove (4) 9/32” screws from the
3
dash pocket and remove.
Unsnap and remove panel surround-
4
ing radio and a/c controls.
(Figure A)
(Figure A)
(Figure A)
A
DASHDISASSEMBLY
Remove (2) 9/32” screws from radio
5
to remove.
(Figure A)
3
99-3106

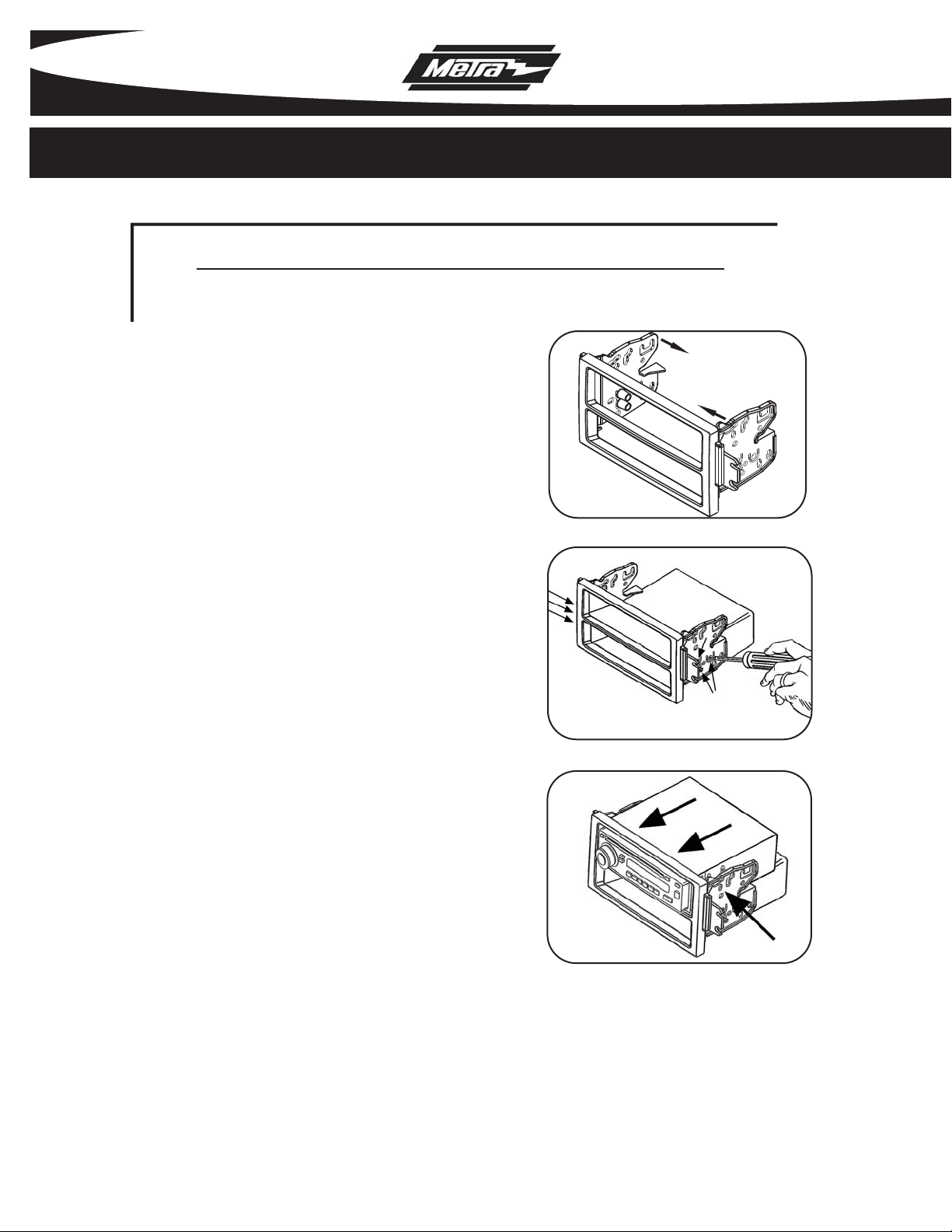

ISO DIN HEAD UNIT PROVISIONS
A
Slide the radio housing brackets
1
onto the radio housing.
Snap the pocket onto the back of the
2
radio housing, align the holes in the
pocket with the holes in the radio
housing brackets and mount with
the (6) Phillips screws supplied.
(Figure B)
(Figure A)
B
KITASSEMBLY
Align the holes in the radio housing
3
brackets with the holes in the ISODIN head unit and secure the brackets to the head unit with the screws
included with the unit.
(Figure C)
C
4
99-3106
DOUBLE DIN HEAD UNIT PROVISION
A
Cut and remove the center bar on
1
the radio housing (A), the protruding
bracket tabs (B), the bracket sockets
(C), and the locating pins on the
back of the radio housing (D).
(Figure A)
Slide the radio housing brackets
2
onto the sides of the radio housing.
(Figure A)
B
KITASSEMBLY
Align the holes in the radio housing
3
brackets with the holes in the DDIN
head unit and secure the brackets to
the head unit with the screws
included with the unit.
(Figure B)
5
INST99-3106
A
FINALASSEMBLY
B
C
D
Locate the factory wiring harness in the
1
dash. Metra recommends using the
proper mating adapter and making the
connections as shown. (Isolate and individually tape off the ends of any unused
wires to prevent electrical short circuit)
Re-connect the negative battery terminal
2
and test the unit for proper operation.
A)Strip wire ends back 1/2"
B)Twist ends together
C)Solder
D)Tape
Reassemble radio and dash assemblies in
3
reverse order of disassembly.
6
