Page 1
KIT COMPONENTS
ISO-DIN
Brackets
(4) 5mm
Flat-head
Screws
(2) #6 Selftapping Screws
Equalizer
Dummy Plate
Faceplate
(2) Keps Nuts

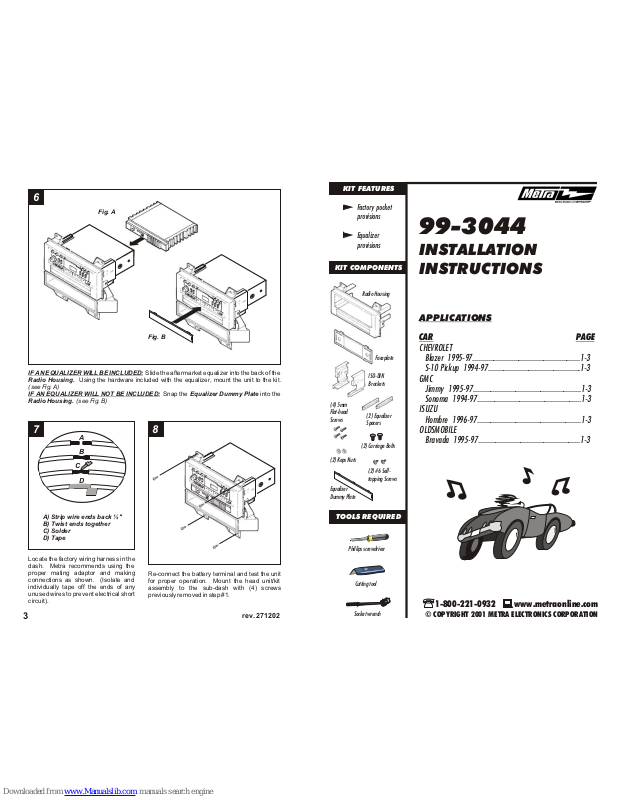

99-3044
INSTALLATION
INSTRUCTIONS
APPLICATIONS
CAR PAGE
CHEVROLET
Blazer 1995-97........................................................1-3
S-10 Pickup 1994-97................................................1-3
GMC
Jimmy 1995-97........................................................1-3
Sonoma 1994-97......................................................1-3
ISUZU
Hombre 1996-97......................................................1-3
OLDSMOBILE
Bravada 1995-97.....................................................1-3
TOOLS REQUIRED
Cutting tool
Socket wrench
Phillips screwdriver
KIT FEATURES
Factory pocket
provisions
Equalizer
provisions
7
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
6
IF AN EQUALIZER WILL BE INCLUDED: Slide the aftermarket equalizer into the back of the
Radio Housing. Using the hardware included with the equalizer, mount the unit to the kit.
(see Fig. A)
IF AN EQUALIZER WILL NOT BE INCLUDED: Snap the Equalizer Dummy Plate into the
Radio Housing. (see Fig. B)
8
Re-connect the battery terminal and test the unit
for proper operation. Mount the head unit/kit
assembly to the sub-dash with (4) screws
previously removed in step #1.
3
(2) Carriage Bolts
(2) Equalizer
Spacers
Radio Housing
Fig. A
Fig. B
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
rev. 271202
Page 2
2
1
ALL VEHICLES
Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (2)
screws above the speedometer cluster. Remove the ashtray and (1) screw exposed in the
ashtray cavity. Remove (2) screws from the lower steering column trim bezel and remove the
bezel. Unclip the dash trim bezel, disconnect the light switch wiring and remove the bezel.
Remove (4) screws securing the climate control panel and remove the panel. Remove (4)
screws securing the factory head unit/pocket assembly and disconnect the wiring.
1
2
IF AN EQUALIZER WILL NOT BE INCLUDED: Skip to step #3.
IF AN EQUALIZER WILL BE INCLUDED: Snap the Equalizer Spacers onto the bottom of
the ISO-DIN Brackets. (see Fig. A). Slide the Brackets onto the Radio Housing legs. (see
Fig. B)
DIN HEAD UNITS: Slide the DIN cage into the kit and secure by bending the metal locking
tabs down. Slide the aftermarket head unit into the cage until secure. (see Fig. B)
ISO-DIN HEAD UNITS: Cut and remove the shaft supports from the Faceplate. Snap the
Faceplate into the Radio Housing. Slide the aftermarket head unit into the back of the kit.
Slide the ISO-DIN Brackets onto the Housing legs and align the holes in the Brackets with the
holes in the unit. Mount the Brackets to the unit with (4) 5mm Flat-head Screws supplied
("A"). Mount the Brackets to the top of the Housing legs with (2) #6 Self-tapping Screws
("B"). (see Fig. C)
2-SHAFT HEAD UNITS:
Snap the Faceplate into the
Radio Housing. Slide the
aftermarket head unit into
the kit and secure with shaft
nuts. (see Fig. A)
5
Fig. A
3
Remove the pocket from the factory head
unit and slide the mounting tabs on the
pocket over the side tabs on the Radio
Housing.
4
Mount the pocket to the Radio Housing with
(2) Carriage Bolts and (2) Nuts supplied.
Fig. B
Fig. B
Fig. A
Fig. C
"B"
"B"
"A"
"A"
