INSTALLATION INSTRUCTIONS FOR PART 99-2003
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
Phillips Screwdriver • Utility Knife • Socket Wrench
KIT FEATURES
APPLICATIONS
GM/SUZUKI MULTI KIT
• DIN Head Unit Provisions with Pocket
• ISO DIN Head Unit Provisions with Pocket
• Double DIN head unit provision
• Stacked ISO head unit provision
A) Radio Housing w/ Pocket • B) ISO Trim Plate • C) DDIN Trimplate • D) DDIN Stacked ISO Brackets
E) DIN Spacer • F) ISO Snap In Brackets • G) Carriage Bolts • H) Kep Nuts • I) (3) Screws/(3) Speed Clips
KIT COMPONENTS
TOOLS REQUIRED:
C
99-2003
D
E
F
G
I
A
H
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
• Wiring Harness - Please see www.metraonline.com
for specific interface applications
• Antenna
Adapter -
• 40-GM10 - GM Antenna Adapter 1988-up
• 40-CR10 - Chrysler Antenna Adapter 2002-up
B
99-2003
BUICK
Century 1997-2005 3
Le Sabre 1995-2005 4,5
Park Avenue 1995-2005 4,5
Regal 1995-2004 3
Rendezvous 2002-2005 6
Riviera 1996-1999 7
Roadmaster 1995-1996 8
Skylark 1996-1998 9
CADILLAC
Escalade/EXT 2003-2005 10
Fleetwood/ Broughham
1990-1996 11-13
CHEVROLET / GEO
Avalanche 2003-2005 10
Blazer 2002-2005 14
Cavalier 2000-2005 15
Express Van 2001-2004 16,17
Colorado 2004-2009 43
Impala 2000-2005 18
Malibu 2001-2003 19
Malibu Classic 2004 19
Metro 1995-2001 20
Monte Carlo 2000-2005 21
SSR 2003-2006 22
S-10 2002-2004 14
Silverado 2003-2005 10
Suburban 2003-2005 10
Tahoe 2003-2005 10
Tracker 1992-2004 23
Trailblazer 2002-2009 24
Venture 2000-2005 25,26
GMC
Canyon 2004-2009 44
Envoy 2002-2009 29
Savanna 2001-2005 16,17
Sierra 2003-2005 10
HUMMER
H2 2003-2005 27,28
ISUZU
Ascender 2003-2008 29
OLDSMOBILE
Achieva 1996-1998 30
Alero 1999-2004 31
Aurora 1995-2003 32
Bravada 1998-01 14
Bravada 2002-04 29
Cutlass 1997-1999 33
Cutlass Supreme 1995-1997 33
Eighty-Eight 1994-1999 34
Intrigue 1998-2002 35
LSS 1996-1999 36
Ninety-Eight 1994-1996 34
Regency 1997-1998 36
Silhouette 2000-2004 25,26
PONTIAC
Aztec 2001-2008 37
Bonneville 2000-2005 38
Grand Am 2001-2005 39
Montana 2000-2004 25,26
Sunfire 2000-2005 40
SUZUKI
Aerio 2002 41
Esteem 1995-2003 42
Sidekick 1992-1998 23
Swift 1995-2001 20
Vitara 1999-2005 23
ALL VEHICLES

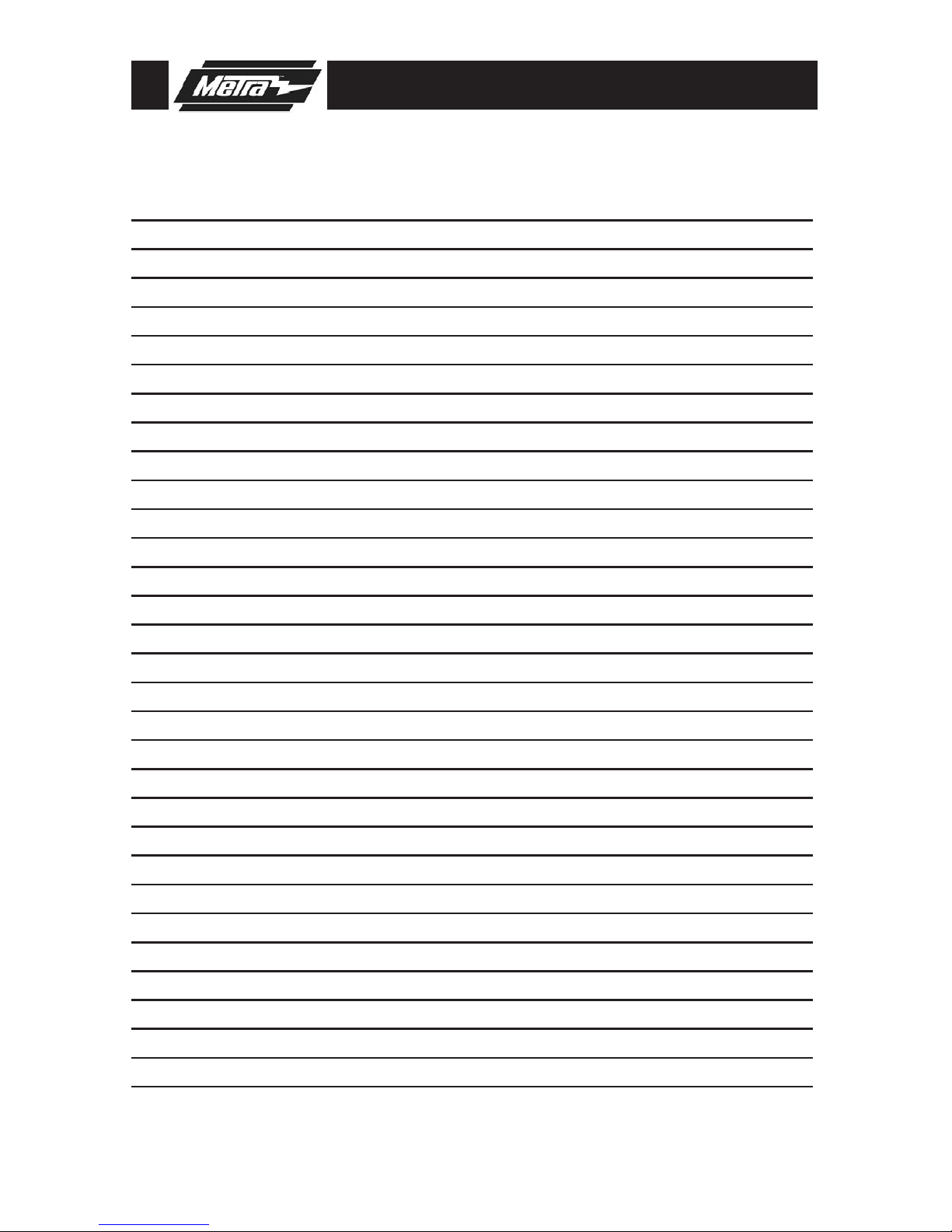

Notes 51,52
Tab Instructions 45
Kit Assembly 46-49
Final Assembly 50
2
99-2003 DASH DISASSEMBLY
3
BUICK • Century 1997-04 / Regal 1997 - 04
1. Open both doors and remove end caps from both ends of dashboard.
2. Open glove box, then remove (1) 9/32" screw from panel above passenge
kick panel and remove.
3. Remove 9/32" screws from bottom left and right of ashtray assembly
and unclip and remove.
4. Unclip top edge of panel below steering column and let hang.
5. Remove (1) 9/32" screw from right side of instrument cluster and
radio trimpanel and remove entire panel from right to left.
6. Remove (3) 9/32" screws to remove radio.
7. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
4
BUICK • LeSabre 1995-99 / Park Avenue 1995-99
1. Unsnap the climate control trim panel (from door to door) and remove (5) 9/32”
screws exposed.
2. Pop out the a/c vents and remove (1) Phillips screw exposed in each vent cavity.
3. Unclip the radio trim bezel and remove.
4. Remove the screws securing the factory head unit and disconnect the wiring.
5. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
BUICK • LeSabre 2000-04 / Park Avenue 2000-04
1. Open drivers door and unsnap and remove dash end cap.
2. Remove (2) Phillips screws from underneath steering column cover.
3. Unsnap and remove steering column cover.
4. Unsnap and remove instrument panel.
5. Remove (2) 9/32" screws and remove radio.
6. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
NOTE: For the Buick Le Sabre, Oldsmobile Aurora and the Pontiac Bonneville
the (3) speed clips and screws provided with the kit will need to be installed
into the sub dash where the screw holes line up on the kit.
5
99-2003 DASH DISASSEMBLY
BUICK • Rendezvous 2002-2005
1. Open center console and remove (2) Torx T-15 screws at front of console
opening.
2. Remove liners from cup holders and storage pocket next to cup holders,
then remove (4) Torx T-15 screws. Unsnap and remove panel.
3. Remove (2) 7mm hex head screws from bottom of driver side dash panel and
remove.
4. Unclip dash panel and remove.
5. Remove (3) 9/32" hex head screws to remove radio.
6. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
6
99-2003 DASH DISASSEMBLY
7
BUICK • Rivieria 1996-
1. Unsnap left side panel exposing (1) Phillips screw to remove.
2. Remove (1) Phillips screw and unsnap right side panel to expose
(1) Phillips screw beneath panel and remove.
3. Unsnap underside of overhanging dash to unsnap (6) plastic rivets and
remove panel.
4. Remove (5) hex head screws now exposed under overhang.
5. Unsnap bottom edge of trim bezel, then while holding overhang up,
unsnap and remove trim bezel by removing any necessary harnesses.
6. Remove (3) Phillips screw to remove climate control.
7. Remove (2) Phillips screws to remove rear support and (3) 9/32" hex
head screws to remove radio.
8. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
8
BUICK • Roadmaster 1995-1996
1. Unclip dash panel sides and remove.
2. Unclip panel below steering column and remove.
3. Unclip panel next to glove box on passenger side and remove.
4. Remove (2) 7mm screws above instrument cluster.
5. Set parking brake, turn car on, and move shifter to the lowest gear. Tilt steering
wheel down then unsnap entire instrument cluster/radio panel and remove.
6. Remove (3) 7mm screws to remove radio.
7. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
9
BUICK • Skylark 1996-
1. Remove (6) 9/32" screws inside glove box.
2. Under glove box and drivers knee bolster, remove (2) plastic panels by
turning (2) 1/4 turn fasteners per side.
3. Remove (4) 9/32" screws revealed. (2 per side).
4. Unsnap panel from driver's side to passenger's side.
5. Remove (3) 9/32" screws to remove radio.
6. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
10
CADILLAC • Escalade 2003-2004
CHEVROLET • Avalanche 2003-2004
Silverado 2003-04 / Suburban 2003-2004
Tahoe 2003-2004
GMC • Sierra 2003-2004
Yukon / Denali / XL 2003-2004
1. Unsnap and remove dash bezel.
2. Remove (3) 9/32" screws and remove radio.
3. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
11
CADILLAC • Fleetwood 1990-1996 /
Fleetwood Brougham 1990-1996
1. Carefully unsnap trim panel above a/c controls.
2. Remove (2) 7mm screws at the top of the radio/air conditioning bezel, then
unclip panel and remove.
3. Remove (4) 7mm screws that hold the radio in, slide radio out, unplug the
radio harnesses and remove radio.
4. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
Continued on page 12 and 13.
99-2003 DASH DISASSEMBLY
12
1) Remove (4) 10mm nuts, (2) on top of the radio and (2) on the bottom of the
radio, that hold the factory mounting brackets on.
99-2003 DASH DISASSEMBLY
13
2) Using carriage bolts and Keps nuts supplied, mount the factory brackets
to the radio housing with the pocket, keeping in mind which bracket is top
and which one is bottom.
99-2003 DASH DISASSEMBLY
14
CHEVROLET • Blazer 2002-04 / S-10 2002-04
GMC • Sonoma 2002-04
OLDSMOBILE • Bravada 1998-01
1. Remove (2) 9/32" hex-head screws from the knee bolster.
2. Pull down on the bolster and remove 9/32" screws exposed on the base of
the dash trim bezel.
3. Remove (1) Phillips screw above the instrument cluster.
4. Unclip the dash trim bezel and remove.
5. Unclip the dash trim bezel and remove.
6. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
15
CHEVROLET • Cavalier 2000-2004
1. Open driver door and remove fuse panel on the end of dash.
2. Open passenger door and remove panel on end of dash.
3. Remove (1) Phillips screw from each side exposed.
4. Remove (3) screws from top of glove box liner.
5. Remove (2) screws from the top-left corner of the glove box cavity.
6. Remove (1) Phillips screw from the defroster duct.
7. Remove the duct work and (1) Phillips screw exposed.
8. Remove the dash pad and (3) Phillips screws exposed at the top of the
radio trim bezel.
9. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
16
CHEVROLET • Express Van 2001-02 / GMC • Savanna 2001-02
1. Unsnap and remove small trim panel below steering column.
2. Unsnap radio/climate/instrument panel.
3. Move shift lever to first gear position.
4. Rotate panel counterclockwise to lift over steering column and remove.
5. Remove (3) 9/32" hex head screws to remove radio.
6. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
17
CHEVROLET • Express Van 2003-04 / GMC • Savanna
2003-04
1. Remove (2) 10mm bolts from below knee bolster under steering column
and remove panel.
2. Remove (2) 10mm bolts from panel below passenger dash airbag and
remove panel.
3. Remove (2) 10mm nuts from inside center pocket between power outlets.
4. Unsnap and remove radio and instrument cluster panel. (May not be necessary to completely remove radio and instrument cluster panel to access
radio.)
5. Remove (3) 9/32" bolts to remove radio.
7. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
18
CHEVROLET • Impala 2000-2004
1. Unclip each side of the dash trim bezel (fuse access) and remove (1) Phillips
screw exposed on each side.
2. Remove (2) Phillips screws under the instrument cluster.
3. Unclip the trim panel above the pedals. (It is not necessary to remove the
panel, it can be left hanging.
4. Remove (2) Phillips screws from under the knee panel.
5. Unclip the knee panel and remove (1) Phillips screw exposed on the right
side of the steering column.
6. Unclip and remove the entire dash trim bezel.
7. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
19
CHEVROLET • Malibu 2001-03 / Malibu Classic 2004
1. Unsnap and remove radio bezel.
2. Remove (3) 9/32" hex head screws and remove radio.
3. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
20
CHEVROLET • Metro 1995-01 / SUZUKI • Swift 1995-01
1. Remove the ashtray and (2) Phillips screws exposed
2. Remove (2) Phillips screws above the radio opening.
3. Unclip the radio trim bezel and disconnect the cigarette lighter wiring.
4. Remove (2) screws securing each side of the factory head unit and (1) screw
form the rear support.
5. Slide the unit out and disconnect the wiring.
6. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
21
CHEVROLET • Monte Carlo 2000-2004
1. Unclip the trim panel above the pedals. (It is not necessary to remove the
panel, it can remain hanging.)
2. Remove (2) 9/32" screws from the knee panel and unclip the panel.
3. Unsnap the driver's side fuse panel cover and remove (1) 9/32" screw.
4. Open the glove box and remove (1) 9/32" screw from the upper left corner.
5. Remove (3) 9/32" screws securing the factory radio and disconnect the
wiring.
6. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
22
99-2003 DASH DISASSEMBLY
CHEVROLET • SSR 2003-2006
A
B
C
D
1
Unclip and remove the long trim panel
below the radio and passenger air
bag. (Figure B)
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unclip and remove the (3) climate
control knobs. (Figure A)
2
Unclip and remove the small trim
panel to the left of the steering
wheel. (Figure C)
4
Remove the (5) 9/32” screws securing
the radio/instrument panel then unclip
and remove the panel. (Figure D)
5
Remove the screws securing the
factory head unit and disconnect the
wiring.
6
Continue to kit assembly.
99-2003 DASH DISASSEMBLY
23
CHEVROLET • Tracker 1992-04
SUZUKI • Sidekick 1992-98 / Vitara 1999-04
1. Remove the cigarette lighter and climate control knobs.
2. Remove the ashtray and (1) screw exposed.
3. Pull out on the climate control cluster and remove (2) screws exposed.
4. Unclip the radio trim bezel.
5. Remove (4) screws from the factory head unit, slide the unit out and disconnect the wiring.
6. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
24
CHEVROLET • Trailblazer 2002-2009
1. Remove (2) Phillips screws inside instrument cluster.
2. Remove (1) Phillips screw under climate controls to the left of the power
outlet.
3. Remove (2) 7mm hex heads from under steering column and lower the
panel. Remove (3) Phillips screws around steering wheel.
4. Unsnap and remove bezel. (Use caution pulling over hazard switch.)
Remove (3) 7mm hex head screws to remove radio.
5. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
25
CHEVROLET • Venture 2000
OLDSMOBILE • Silhouette 2000
PONTIAC • Montana 2000
1. Remove the ashtray and (1) Phillips screw exposed in the ashtray cavity.
2. Remove (1) Phillips screw from the cigarette lighter compartment.
3. Remove (3) 9/32" hex-head screws securing the factory head unit and dis-
connect the wiring.
4. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
26
CHEVROLET • Venture 2001-2004
OLDSMOBILE • Silhouette 2001-2004
PONTIAC • Montana 2001-2004
1. Open cup holders and remove (2) Phillips 7mm screws.
2. Unsnap and remove dual power outlet assembly from lower storage.
3. Open lower storage door and remove (2) 7mm screws inside.
4. Models with DVD - Remove DVD player and remove (2) 7 mm screws from
behind and (2) 7 mm screws near the floor.
5. Remove lower storage compartment .
6. Remove (2) 7mm screws (facing up) from under cup holder.
7. Remove (3) 7mm hex-head screws and remove radio.
8. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
27
HUMMER • H2 2003-2004
1. Open center console and remove (4) 9/32” screws from console box and
remove box.
2. Remove (4) phillips screws from hinge on console door inside console
and remove door.
3. Loosen (1) T-15 torx on forward facing side of shift lever and pull up to
remove.
4. Unclip cup holder/shifter trim assembly and remove.
5. Remove (6) phillips screws from top of center console.
6. Remove (2) phillips screws from inside pocket on back of center console,
then unclip and remove.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
28
HUMMER • H2 2003-2004
Disconnect the negative battery terminal to prevent an accidental short circuit.
7. Remove (1) 10mm bolt to right of shift lever.
8. Remove (2) phillips screws from under console box on drivers side and (2)
phillips screws from under console trimtop on passenger side.
9. Slide control assembly rearwards.
10. Remove (2) T-30 torx bolts from top of rado/climate control trim and
unclip and remove.
11. Remove (3) 9/32” screws that hold the radio in.
12. See page 44 for all vehicle tab instructions.7
99-2003 DASH DISASSEMBLY
29
1. Remove (4) Phillips screws, (2) from left and (2) from right of carpeted panel
below dash forward of center console.
2. Slide carpeted panel down and backwards to reveal (2) Phillips screws and
remove.
3. Unsnap radio bezel and unplug cigarette lighter and accessories.
4. Remove (3) 9/32" hex head screws and remove radio.
5. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
GMC • Envoy 2002-09 / ISUZU • Ascender 2003-08
OLDSMOBILE • Bravada 2002-04
99-2003 DASH DISASSEMBLY
30
OLDSMOBILE • Achieva 1996-1998
1. Open the glove box, press inward on the walls of the glove box liner and
remove the liner.
2. Remove (10) torx-head screws from the glove box location.
3. Remove (2) 9/32" hex-head screws under the steering column.
4. Unclip the dash trim bezel.
5. Remove the screws securing the factory head unit and disconnect the
wiring.
6. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
31
OLDSMOBILE • Alero 1999-1904
1. Remove shift knob by using a small screwdriver to remove U-clip from front
of shifter and pull upward.
2. Unclip and remove shifter trim panel.
3. Unclip and remove radio and climate control panel by pulling from bottom.
4. Remove (3) 9/32" screws from radio and remove.
5. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
32
OLDSMOBILE • Aurora 1995-
1. Unclip the radio trim bezel and remove.
2. Remove (3) 9/32" screws securing the factory head unit and disconnect the
wiring.
3. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
NOTE: For the Buick Le Sabre, Oldsmobile Aurora and the Pontiac Bonneville
the (3) speed clips and screws provided with the kit will need to be installed
into the sub dash where the screw holes line up on the kit.
99-2003 DASH DISASSEMBLY
33
OLDSMOBILE • Cutlass 1997-1999
1. Unclip the radio trim bezel and remove.
2. Remove (3) 7mm hex-head screws securing the factory head unit and
disconnect the wiring.
3. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
OLDSMOBILE • Cutlass Supreme 1995-1997
99-2003 DASH DISASSEMBLY
34
OLDSMOBILE • Eighty Eight 1994-99 / Ninety Eight 1994-96
1. Open the glove box and remove (2) hex-head screws securing the wood
trim.
2. Unsnap the wood trim and remove.
3. Remove (2) 9/32" hex-head screws below the radio trim bezel.
4. Lift up on the bezel and remove.
5. Remove (3) 9/32" hex-head screws securing the factory head unit and dis-
connect the wiring.
6. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
35
OLDSMOBILE • Intrigue 1998-
1. Open the center console storage compartment and remove (2) 9/32" hex-
head screws exposed.
2. Remove the center console.
3. Unclip the radio trim bezel and remove.
4. Remove (3) 9/32" hex-head screws securing the factory head unit and dis-
connect the wiring.
5. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
36
OLDSMOBILE • LSS 1996-1999 / Regency 1997-
1. Open glove box and remove two-center trim bezels attached by screws.
2. Unsnap and remove radio trim bezel.
3. Remove (3) 9/32" hex-head screws and remove radio.
4. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
37
PONTIAC • Aztec 2001-2008
1. Pull out cup holder inserts.
2. Remove (1) Phillips screw exposed inside bottom cup holder.
3. Unsnap and remove shifter trim with cup holders.
4. Remove (2) #15 torx at bottom of radio / climate bezel.
5. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
38
PONTIAC • Bonneville 2000-2004
1. Remove (2) Phillips screws from the instrument cluster.
2. Unclip the ignition trim and remove.
3. Unclip the climate control / radio trim panel and remove.
4. Depress the spring clips on each side of the factory head unit and remove.
5. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
NOTE: For the Buick Le Sabre, Oldsmobile Aurora and the Pontiac Bonneville
the (3) speed clips and screws provided with the kit will need to be installed
into the sub dash where the screw holes line up on the kit.
99-2003 DASH DISASSEMBLY
39
PONTIAC • Grand Am 2001-2004
1. Unsnap and remove radio trim bezel.
2. Remove (3) 9/32" screws from radio brackets and remove radio.
3. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
40
PONTIAC • Sunfire 2000-2004
1. Open the glove box and remove (2) Phillips screws exposed on the right
edge of the radio trim bezel.
2. Unclip the bezel and remove.
3. Remove (3) 9/32" hex-head screws securing the factory head unit and disconnect the wiring.
4. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
41
SUZUKI • Aerio 2002
1. Unclip the dash trim bezel and remove.
2. Remove (4) Phillips screws securing the factory head unit and disconnect
the wiring.
3. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
42
SUZUKI • Esteem 1995-
1. Remove the climate control knobs.
2. Remove (1) Phillips screw located above the radio opening.
3. Unclip the radio trim bezel.
4. Remove (4) screws from the factory head unit, slide the unit out and disconnect the wiring.
5. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
43
CHEVROLET • Colorado 2004-2009
1. Unsnap and remove the entire panel surrounding the radio and A/C controls.
(Figure A)
2. Remove (3) 9/32”screws securing the radio to remove. (Figure B)
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 DASH DISASSEMBLY
44
GMC • Canyon 2004-
Disconnect the negative battery terminal to prevent an accidental short circuit.
1. Unsnap and remove the entire panel surrounding the radio and A/C controls.
(Figure A)
2. Remove (3) 9/32”screws securing the radio to remove. (Figure B)
99-2003 TAB INSTRUCTIONS
45
ALL VEHICLES
A = GM Vehicles
B = Suzuki Vehicles
C = Cadillac Fleetwood / Brougham Vehicles
99-2003 KIT ASSEMBLY
46
ALL VEHICLES - DIN HEAD UNIT PROVISIONS
1. Slide DIN cage into the Housing and secure by bending metal locking tabs
outward. See Figure A
2. Slide radio into DIN cage. See Figure B
3. Skip to step #1 in the Final Assembly on page 49.
NOTE: A snap-in DIN spacer has been provided for some applications where
depth is an issue. Snap the spacer in the housing and slide DIN cage
into the assembly and secure by bending metal locking tabs down.
See Figure C
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 KIT ASSEMBLY
47
ALL VEHICLES - DIN HEAD UNIT PROVISIONS
1. Slide DIN cage into the Housing and secure by bending metal locking tabs
outward. See Figure A
2. Slide radio into DIN cage. See Figure B
3. Skip to step #1 in the Final Assembly on page 49.
NOTE: A snap-in DIN spacer has been provided for some applications where
depth is an issue. Snap the spacer in the housing and slide DIN cage
into the assembly and secure by bending metal locking tabs down.
See Figure C
Disconnect the negative battery terminal to prevent an accidental short circuit.
48
ALL VEHICLES - DOUBLE DIN HEAD UNIT PROVISION
1. Remove the center bar from DDIN Trimplate. See Figure A
2. Attach the DDIN / stacked ISO brackets by aligning the holes and securing
the unit to the brackets using the screws supplied with the unit.
See Figure B
3. Snap the bracket & unit assembly to the DDIN Trimplate. See Figure C
4. Skip to step #1 in the Final Assembly on page 49.
99-2003 KIT ASSEMBLY
99-2003 KIT ASSEMBLY
49
ALL VEHICLES - TWO ISO RADIOS PROVISION
1. Attach the DDIN/stacked ISO brackets by aligning the holes and securing the
units to the brackets using the screws supplied with the units. See Figure A
2. Snap the bracket & unit assembly to the DDIN Trimplate. See Figure B.
3. Skip to step #1 in the Final Assembly on page 49.
Disconnect the negative battery terminal to prevent an accidental short circuit.
99-2003 FINAL ASSEMBLY
ALL VEHICLES
1. Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and indi-
vidually tape off the ends of any unused wires to prevent electrical short cir-
cuit.) See figure A
2. Re-connect the battery terminal and test the unit for proper operation.
3. Reassemble dash in the reverse order of your specific vehicle's Dash
Disassembly.
A
A
B
C
D
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
50
99-2003
NOTES
51
99-2003 INSTRUCTIONS
REV. 04/15/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-2003
www.metraonline.com
1-800-221-0932
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Loading...
