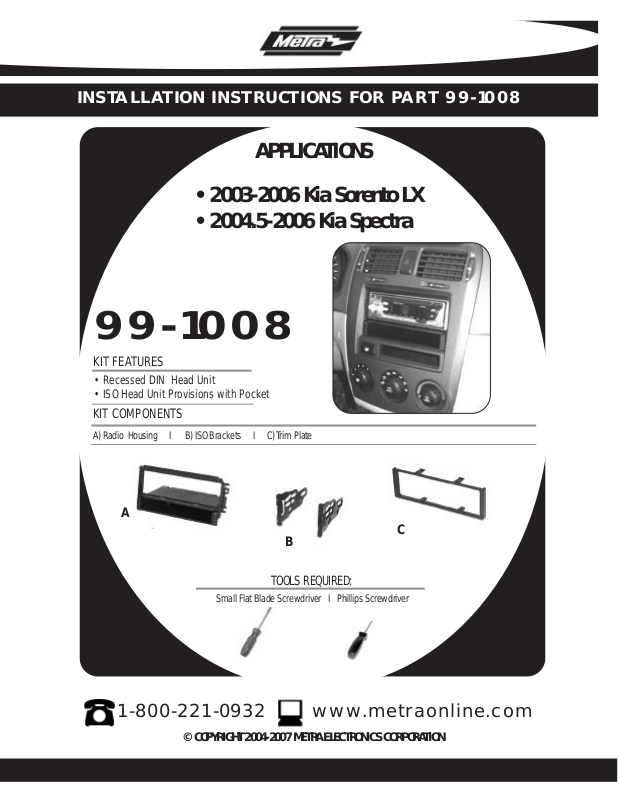

INSTALLATION INSTRUCTIONS FOR PART 99-1008
APPLICA TIONS
• 2003-2006 Kia Sorento LX
• 2004.5-2006 Kia Spectra
99-1008
KIT FEATURES
• Recessed DIN Head Unit
• ISO Head Unit Provisions with Pocket
KIT COMPONENTS
A) Radio Housing I B) ISO Brackets I C) Trim Plate
A
B
TOOLS REQUIRED:
Small Flat Blade Screwdriver I Phillips Screwdriver
C
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION
99-1008
•
Dash Disassembly
- 2003-2006 Kia Sorento LX ...................................................... 1
- 2004.5-2006 Kia Spectra ........................................................ 2
•
Kit Assembly
- DIN Head Unit Provision........................................................... 3
- ISO DIN Head Unit Provision ...................................................... 3
•
Final Assembly ...........................................................................4
TABLE OF CONTENTS
•
Notes.......................................................................................... 5
99-1008
2003-2006 KIA SORENTO LX
A
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Open ash tray and unsnap and
2
remove outside trim panels.
(Figure A)
ip: Start at the bottom of the trim
T
panels.
3
Remove (8) Phillips screw from the
radio trim panel. Disconnect any
plugs from the trim panel and then
remove panel.
(Figure B)
B
DASH DISASSEMBLY
Remove (4) Phillips screw from radio
4
to remove radio.
Cut along the scored lines of the
5
radio housing’s mounting tabs.
(Figure C)
(Figure D)
C
D
1
99-1008
2004.5- 2006 KIA SPECTRA
A
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Using a flat blade screwdriver as a
2
pry tool, unsnap and remove the
center dash panel including the climate controls and vents from around
the radio.
(Figure A)
B
DASH DISASSEMBLY
Remove (4) phillips screws to
3
remove radio.
(Figure B)
2
99-1008
DIN HEAD UNIT PROVISION
A
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs down.
Slide the aftermarket head unit into
2
the cage and secure.
Snap the Trim plate into the Radio Housing.
3
(Figure A)
ISO DIN HEAD UNIT PROVISION
KIT ASSEMBLY
Mount the ISO Brackets to the head
1
unit with the screws supplied with
the unit.
Slide the head unit into the radio
2
opening until the side clips
engage.
Snap the Trim plate into the Radio
3
Housing.
(Figure A)
A
3
99-1008
A
FINAL ASSEMBLY
B
C
D
Locate the factory wiring harness in the
1
dash. Metra recommends using the proper
mating adapter and making the connections
as shown. (Isolate and individually tape off
the ends of any unused wires to prevent
electrical short circuit)
2
Re-connect the negative battery terminal and test
the unit for proper operation.
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
3
Reassemble in reverse order of disassembly.
4
99-1008
NOTES
5
INST991008
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION Rev. 06-13-07
