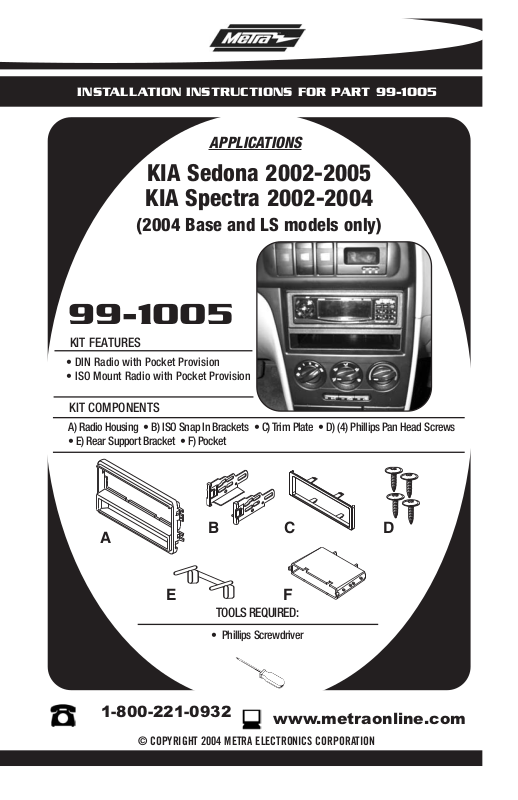

INSTALLATION INSTRUCTIONS FOR PART 99-1005
APPLICATIONS
KIA Sedona 2002-2005
KIA Spectra 2002-2004
(2004 Base and LS models only)
99-1005
KIT FEATURES
• DIN Radio with Pocket Provision
• ISO Mount Radio with Pocket Provision
KIT COMPONENTS
A) Radio Housing • B) ISO Snap In Brackets • C) Trim Plate • D) (4) Phillips Pan Head Screws
• E) Rear Support Bracket • F) Pocket
A
B
E
TOOLS REQUIRED:
• Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2004 METRA ELECTRONICS CORPORA
C
F
www.metr
D
aonline.com
TION
99-1005
TABLE OF CONTENTS
Dash Disassembly
- KIA Sedona 2002-2005 ...........................................1
- KIA Spectra 2002-2004
(2004 Base and LS models only) .
...........2
DIN Radio Provision with Pocket ....................................3
ISO Mount Radio with Pocket Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Final Assembly ...................................................5
*Note:
Refer also to the instructions included with the aftermarket radio.
99-1005 DASH DISASSEMBLY
KIA SEDONA 2002-2005
Disconnect the negative battery-
1
terminal to prevent an accidental
short circuit.
Remove the ashtray and (1) Phillips
2
screw exposed in the ashtray cavity.
(Figure A)
Unclip and remove the small trim
3
panel from around radio, climate controls and shifter.
Remove (4) Phillips screws from the
4
radio trim panel then unclip and
remove the panel.
Remove (4) Phillips screws securing
5
radio. Unplug and remove radio.
(Figure C)
(Figure A)
(Figure B)
A
B
Continue to kit assembly.
C
1
99-1005 DASH DISASSEMBLY
KIA SPECTRA 2002-2004
(2004 Base and LS models only)
*Note: Refer also to the instructions included with the aftermarket radio.
A
D
isconnect the negative battery-
1
terminal to prevent an accidental
short circuit.
Remove (2) Phillips facing up above
2
gauge cluster.
Unsnap and remove top portion of
3
steering wheel column cover.
Unsnap and remove entire panel from
4
left side of steering wheel to right side
surrounding radio.
Remo
5
ve (4) Phillips screws securing
radio.
(Figure D)
Continue to kit assembly.
(Figure A)
(Figure C)
(Figure B)
B
D
C
2
99-1005 KIT ASSEMBLY
DIN RADIO WITH POCKET PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Mount the pocket to the back of the
1
radio housing using (2) of the screws
supplied with the kit. (
Mount the rear support bracket to the
2
back of the pocket using the remaining
(2) screws supplied with the kit.
(Figure A)
• Spectra only skip to final assembly.
Slide the DIN cage into the Radio
3
Housing and secure by bending the
metal locking tabs outward. (
Slide the aftermarket radio into the
4
cage until it snaps into place. (
Continue to final assembly.
Figure A)
B
Figure B)
Figure C)
3
C
99-1005 KIT ASSEMBLY
ISO MOUNT RADIO WITH POCKET PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Mount the pocket to the back of the
1
radio housing using (2) of the screws
supplied with the kit. (Figure A)
Mount the rear support bracket to
2
the back of the pocket using the
remaining (2) screws supplied with
the kit.
Mount the ISO Brackets to the after-
3
market radio using the screws supplied with the radio. (
Slide the radio into the radio open-
4
ing until the side clips snap into
place. (
Snap the trim plate onto the front of
5
the Radio Housing. (
(Figure A)
Figure B)
B
Figure C)
Figure D)
Continue to final assembly.
Note:
To remove the radio from the
radio housing, unclip and remove
ISO trim-plate. Then use a small
flat blade screw driver to release
the ISO snap in brackets and slide
the radio out of the radio housing.
D
C
4
99-1005 FINAL ASSEMBLY
FINAL ASSEMBLY
(
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
2
Re-connect the negative battery terminal and test the unit for proper operation.
(All Sedona and Spectra ISO mount radio only) Reassemble radio and dash
3
assemblies in reverse order of disassembly.
(Spectra DIN radio only) Place assembled kit into the radio cavity in the dash, do
not bolt in.
(Spectra DIN radio only) Snap the dash panel back into place over the dash.
4
Pressure fit the kit between the dash and the dash panel.
5
(Spectra DIN radio only) Slide the DIN cage into the radio opening in the dash
panel and radio housing. Secure the cage by bending the metal locking tabs
outward.
(Spectra DIN radio only) Slide the aftermarket radio into the cage until it snaps
6
into place.
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
*NOTE: When a Black wire is not present,
All colors may not be present on all leads due to manufacturer’
ground radio to vehicle chassis.
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
s specifica
tions.
5
99-1005 INSTRUCTIONS
1-800-221-0932
REV. 11/09/06 © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION INST99-1005
