Metra Electronics 95-9308B User Manual

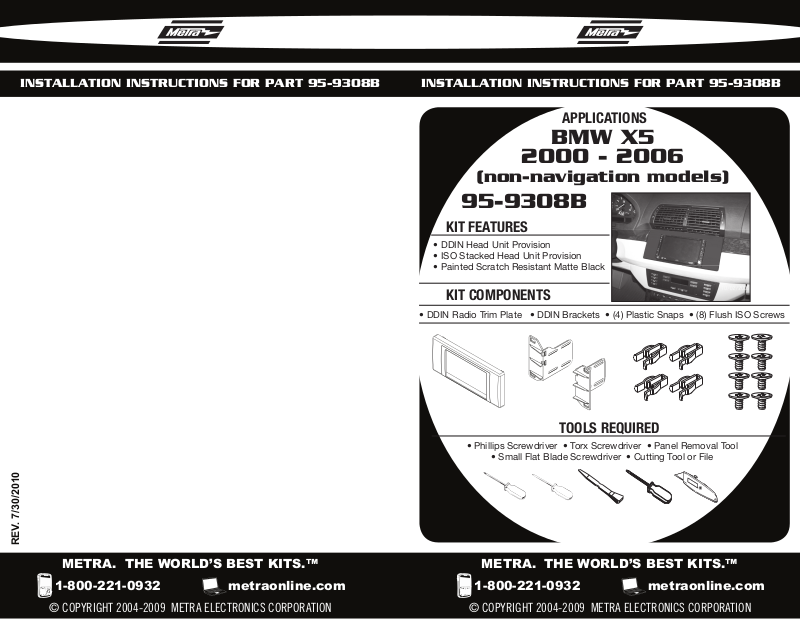

APPLICATIONS
BMW X5
2000 - 2006
(non-navigation models)
95-9308B
KIT FEATURES
• DDIN Head Unit Provision
• ISO Stacked Head Unit Provision
• Painted Scratch Resistant Matte Black
KIT COMPONENTS
• DDIN Radio Trim Plate • DDIN Brackets • (4) Plastic Snaps • (8) Flush ISO Screws
REV. 7/30/2010
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932 metraonline.com
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
TOOLS REQUIRED
• Phillips Screwdriver • Torx Screwdriver • Panel Removal Tool
• Small Flat Blade Screwdriver • Cutting Tool or File
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932 metraonline.com
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
95-9308B 95-9308B
TABLE OF CONTENTS
DASH DISASSEMBLY
• BMW X5 2000 - 2006 . . . . . . . . . . . . . . 1,2
KIT ASSEMBLY
• BMW X5 2000 - 2006 . . . . . . . . . . . . . . . 3
*NOTE: Refer Also to the instructions included with the aftermarket radio.
NOTES
Metra recommends MECP certified technicians
95-9308B
95-9308B DASH DISASSEMBLY
NOTES
BMW X5 2000-2006
Disconnect the negative
1
battery terminal to prevent an accidental short circuit.
2
Remove the volume knob. (Fig. A)
3
Using a T-10 torx-head screwdriver, turn the release lever under the shaft 90º. (Fig. A)
4
Leaving the screwdriver in position, pull out on the bottom of the factory head unit and remove the unit. (Fig. A)
5
Disconnect the wiring.
6
Using a T-10 torx-head screwdriver, loosen (2) T-10 torx-head screws located beside the head unit guides and remove the top of the factory head unit. (Fig. B)
A
B
7
Disconnect the wiring.
Continued on Pg. 2 .............
1
95-9308B DASH DISASSEMBLY 95-9308B KIT ASSEMBLY
BMW X5 2000-2006 BMW X5 2000-2006
.............Coninued from Pg. 1
8
With the factory radio door open, press in on the tabs at either side and remove the door. (Fig. C)
9
Cut and remove shown sec­tion from the sub dash. (Fig. D)
1
C A
D B
Mount the DDIN radio to the supplied DDIN brackets us­ing the ISO screws supplied with the aftermarket radio
(screws must be fl ush).
(Fig. A)
2
Locate the factory wiring har­ness in the dash. Metra rec­ommends using the proper mating adapters from Metra and AXXESS to integrate your new radio. Re-connect the negative battery terminal and test the unit for proper operation.
3
Snap the radio bracket as­sembly into the dash opening
(tight fi t). (Fig. B)
4
Snap the DDIN trim plate over the radio (be sure to align the snaps with the holes in the brackets or it
Continue to Kit Assembly
won’t seat properly). (Fig. B)
2 3
