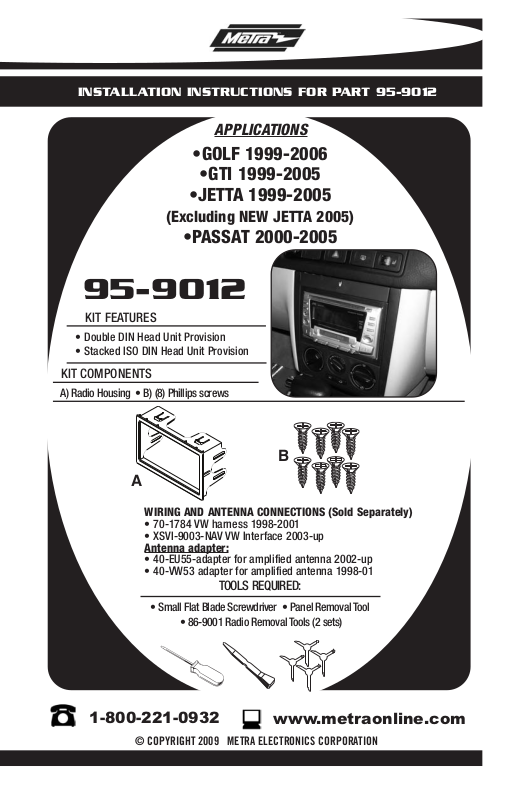

INSTALLATION INSTRUCTIONS FOR PART 95-9012
APPLICATIONS
•GOLF 1999-2006
•GTI 1999-2005
•JETTA 1999-2005
(Excluding NEW JETTA 2005)
•PASSAT 2000-2005
95-9012
KIT FEATURES
• Double DIN Head Unit Provision
• Stacked ISO DIN Head Unit Provision
KIT COMPONENTS
A) Radio Housing • B) (8) Phillips screws
B
A
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
• 70-1784 VW harness 1998-2001
• XSVI-9003-NAV VW Interface 2003-up
Antenna adapter:
• 40-EU55-adapter for amplified antenna 2002-up
• 40-VW53 adapter for amplified antenna 1998-01
TOOLS REQUIRED:
• Small Flat Blade Screwdriver • Panel Removal Tool
• 86-9001 Radio Removal Tools (2 sets)
1-800-221-0932
© COPYRIGHT 2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
95-9012
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com
or call 800-354-6782 for more information
and take steps toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
- Golf 1999-2006 ..................................................1
- GTI 1999-2005 ..................................................1
- JETTA 1999-2005 (Excluding NEW JETTA 2005) . . . . . . . . . . . . . . . . . . . . . . . 1
- PASSAT 2000-2005 ..............................................1
Kit Assembly
- Double DIN Head Unit Provision . . . . ................................2
- ISO Stacked Head Unit Provision ...................................2
Assembly
Final
*Note:
Refer also to the instructions included with the aftermarket radio.
Note: This installation kit is an extremely tight fit and requires force to be
“snapped” into the dash opening. Removal of aftermarket radio is even
more difficult than installation, so please be sure to fully test the aftermarket radio prior to completing the kit’s installation.
. . . . . . ............................................2
95-9012 DASH DISASSEMBLY
•GOLF 1999-2006 •GTI 1999-2005
•JETTA 1999-2005
(Excluding NEW JETTA 2005)
•PASSAT 2000-2005
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Insert the long ends of the 86-9001
2
into the slots on the factory radio and
pull out to remove. Note: Flat edge
of key should point outward.
(Figure A)
3
For single DIN radios with the pocket,
remove the radio and pocket, then
pull out on the plastic tray separating
the dash cavity.
(Figure B)
A
Continue to kit assembly.
Note: This installation kit is an extremely tight fit and requires force to be
“snapped” into the dash opening. Removal of aftermarket radio is even
more difficult than installation, so please be sure to fully test the aftermarket radio prior to completing the kit’s installation.
B
1
95-9012 KIT ASSEMBLY/ FINAL ASSEMBLY
DOUBLE DIN HEAD UNIT PROVISION/
ISO STACKED HEAD UNIT PROVISION

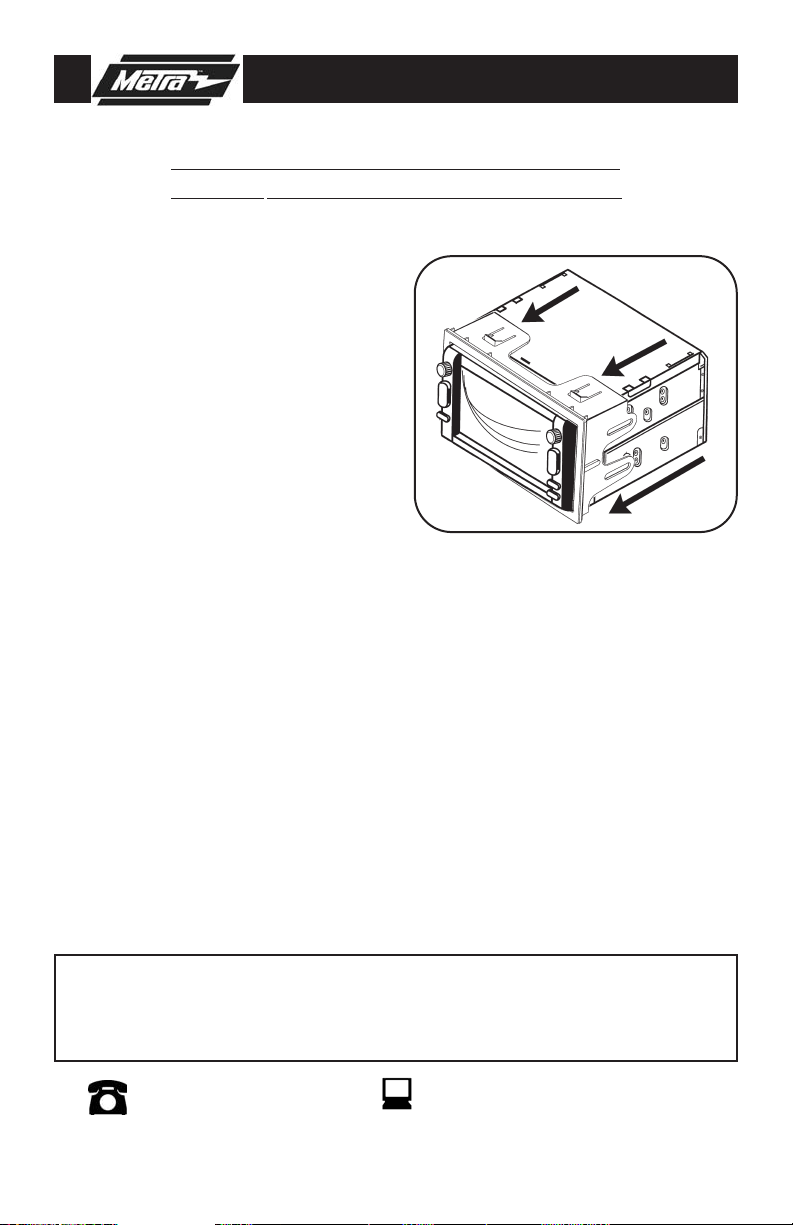

Slide the DDIN radio unit into the
1
DDIN bracket/radio housing assembly
and secure the unit to the kit using
the (8) Phillips screws supplied with
(Figure A)
the kit.
Locate the factory wiring harness in
2
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
Snap kit/ radio assembly into the
3
dash opening.
A
Note: This installation kit is an extremely tight fit and requires force to be
“snapped” into the dash opening. Removal of aftermarket radio is even
more difficult than installation, so please be sure to fully test the aftermarket radio prior to completing the kit’s installation.
1-800-221-0932
REV. 09-02-09 © COPYRIGHT 2009 METRA ELECTRONICS CORPORATION INST95-9012
www.metraonline.com
