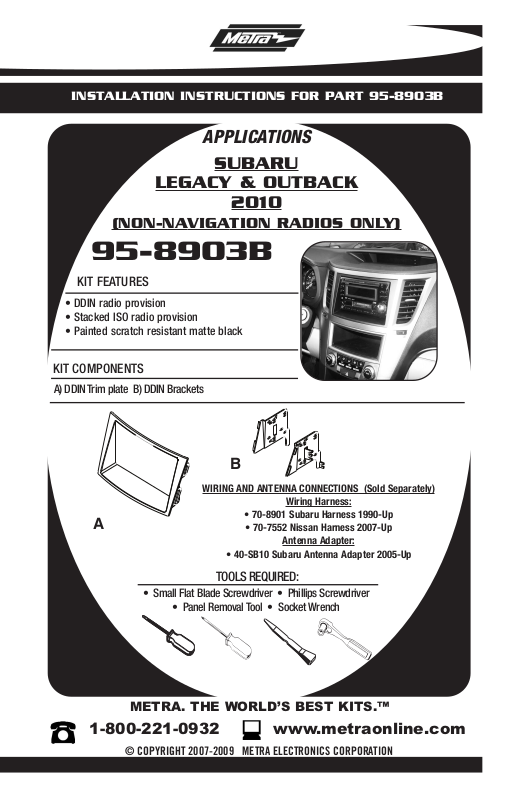

Page 1
INSTALLATION INSTRUCTIONS FOR PART 95-8903B
APPLICATIONS
SUBARU
LEGACY & OUTBACK
2010
(NON-NAVIGATION RADIOS ONLY)
95-8903B
KIT FEATURES
• DDIN radio provision
• Stacked ISO radio provision
• Painted scratch resistant matte black
KIT COMPONENTS
A) DDIN Trim plate B) DDIN Brackets
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
A
• Small Flat Blade Screwdriver • Phillips Screwdriver
• Panel Removal Tool • Socket Wrench
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2007-2009 METRA ELECTRONICS CORPORATION
• 70-8901 Subaru Harness 1990-Up
• 70-7552 Nissan Harness 2007-Up
Antenna Adapter:
• 40-SB10 Subaru Antenna Adapter 2005-Up
TOOLS REQUIRED:
www.metraonline.com
Page 2
TABLE OF CONTENTS
Dash Disassembly
95-8903B
- 2010 Subaru Legacy . . . . . . . . . . .
- 2010 Subaru Outback . . . . . . . . . .
..........................
..........................
1
Kit Assembly
- Double DIN / Stacked ISO DIN Head Unit Provision. . . . . . . . . . . . . . . . 2
*Note:
er also to the instructions included with the aftermarket radio.
Ref
1
Metra recommends MECP certified
technicians.
Page 3
95-8903B DASH DISASSEMBLY
2010 SUBARU LEGACY / OUTBACK
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the radio trim
2
panel including the a/c vents.
(
Figure A)
Remove (4) Phillips screws securing
3
the factory radio.
A
1
Page 4
95-8903B KIT ASSEMBLY
2010 SUBARU LEGACY / OUTBACK
DOUBLE DIN / STACKED ISO DIN HEAD UNIT
PROVISIONS
Locate the factory wiring harness in
1
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
Attach the Double DIN brackets to the
2
Double DIN trim plate. (Figure A)
Slide the Double DIN head unit or
3
stacked ISO head units into the
bracket/radio housing assembly and
secure the Double DIN head unit or
stacked ISO head units to the assembly using the screws supplied with
the radio. (Figure B)
Reassemble dash in reverse order of
4
disassembly.
A
B
2
Page 5
95-8903B
NOTES
Page 6
95-8903B
NOTES
Page 7
95-8903B
NOTES
Page 8
95-8903B INSTRUCTIONS
INSTRUCTIONS
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932
REV. 12/18/09 © COPYRIGHT 2003-2009 METRA ELECTRONICS CORPORATION INST95-8903B
www.metraonline.com
