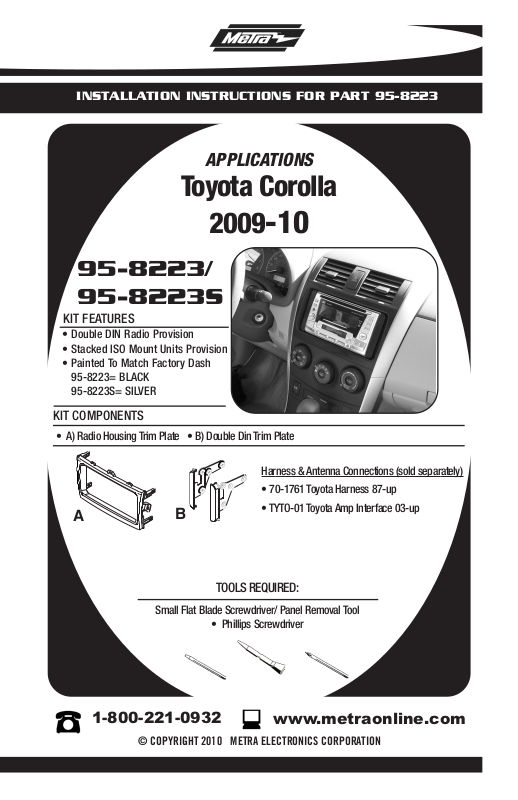

INSTALLATION INSTRUCTIONS FOR PART 95-8223
APPLICATIONS
Toyota Corolla
2009
-10
95-8223/
95-8223S
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• Painted To Match Factory Dash
95-8223= BLACK
95-8223S= SILVER
KIT COMPONENTS
• A) Radio Housing Trim Plate • B) Double Din Trim Plate
ness &
Har
• 70-1761 Toyota Harness 87-up
A
B
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
• TYTO-01 Toyota Amp Interface 03-up
Antenna Connections (sold separately)
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
www.metraonline.com
95-8223
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
-
Toyota Corolla 2009-10. . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . 1
Kit Assembly
- Double DIN/Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . 2
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
*Note:
Refer also to the instructions included with the aftermarket radio.
95-8223 DASH DISASSEMBLY
REMOVE (4) SCREWS
FROM FACTORY BRACKET FROM EACH SIDE
Toyota Corolla 2009-10
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the (4) side trim
2
panels from the right and left side of
the radio and a/c controls. (
Unclip and remove the a/c vent panel
3
above the factory radio.
Remove (4) 10 MM bolts securing the
4
radio.
(Figure C)
5
Remove (8) screws securing the
brackets to the factory radio and
remove the brackets. (Retain the
brackets for re-use during kit
assembly.)
Remove (4) plastic clips from the
6
back of the factory radio. (Retain the
clips for re-use during kit assembly.)
Continue to kit assembly.
(Figure D)
Figure A)
(Figure B)
A
B
D
C
1
95-8223 KIT ASSEMBLY
DOUBLE DIN/STACKED ISO MOUNT UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Attach the clips removed from the
1
factory radio to the back of the radio
housing trim plate.
2
Attach the factory mounting brackets
and the Double DIN trim plates to the
Double DIN or the stacked ISO mount
unit(s) using the screws supplied with
the unit(s).
Continue to final assembly.
(Figure B)
(Figure A)
B
2
95-8223 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble in reverse order of disassembly using the 95-8223 Radio Housing
3
Trim Plate in place of the factory radio trim panel.
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’
s specifications.
3
