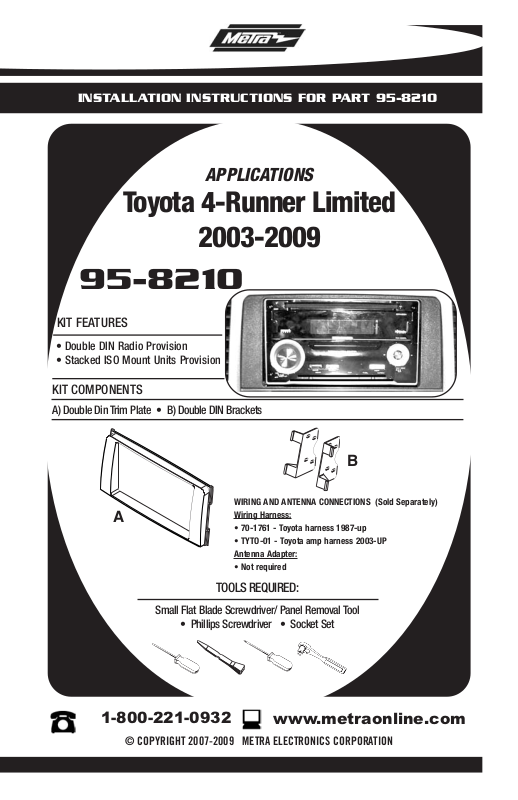

INSTALLATION INSTRUCTIONS FOR PART 95-8210
APPLICATIONS
Toyota 4-Runner Limited
2003-2009
95-8210
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Double Din Trim Plate • B) Double DIN Brackets
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
A
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
1-800-221-0932
© COPYRIGHT 2007-2009 METRA ELECTRONICS CORPORATION
Wiring Harness:
• 70-1761 - Toyota harness 1987-up
• TYTO-01 - Toyota amp harness 2003-UP
Antenna Adapter:
• Not required
TOOLS REQUIRED:
www.metraonline.com
95-8210
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take
steps toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
-
Toyota 4-Runner Limited 2003-2009 . . . . . . . . . . .
. . . . . . 1,2
Kit Assembly
- Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
- Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
*Note:
Refer also to the instructions included with the aftermarket radio.
95-8210 DASH DISASSEMBLY
Toyota 4-Runner Limited 2003-2009
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unsnap and remove trim from around
2
shifter. (
Unsnap and remove center console
3
cover.
Unsnap trim ring from around ignition
4
key cylinder.
Remove (1) 10 mm bolt from bottom
5
right side of panel below steering column. Unsnap panel and pull away to
gain access behind panel. (
Figure A)
(Figure B)
Figure C)
A
B
Remove (1) 10 mm bolt on bottom left
6
of center panel behind panel below
steering column. (
(Figure D)
C
D
1
95-8210 DASH DISASSEMBLY
PAS
SEN
G
ER
Toyota 4-Runner Limited 2003-2009
Remove (1) 10 mm bolt beneath cli-
7
mate control behind pocket door.
(Figure E)
unplug and remove climate control.
(Figure F)
Remove (2) 10 mm bolts beneath
8
radio behind climate controls.
(Figure G)
Unsnap and remove entire center
9
panel around radio.
Remove (2) 10 mm bolts securing
10
radio. Unplug and remove radio.
(Figure H)
Continue to final assembly.
Unsnap climate control,
E
F
G
H
2
95-8210 KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION
*
Note: Refer also to the instructions included with the aftermarket radio.
A
Snap the factory brackets to the side
1
of the radio.
Snap the Double DIN brackets to the
2
outside edge of the Double DIN trim
plate.
Slide the Double DIN radio into the
3
bracket/trim plate assembly and
secure the radio to the assembly
using the screws supplied with the
radio.
Continue to final assembly.
(Figure A)
(Figure B)
(Figure C)
B
3
C
95-8210 KIT ASSEMBLY
STACKED ISO UNITS PROVISION
*
Note: Refer also to the instructions included with the aftermarket radio.
A
Snap the factory brackets to the side
1
of the radio.
Snap the Double DIN brackets to the
2
outside edge of the Double DIN trim
plate.
Slide the stacked ISO mount units into
3
the bracket/trim plate assembly and
secure the units to the assembly
using the screws supplied with the
units.
Continue to final assembly.
(Figure A)
(Figure B)
(Figure C)
B
4
C
95-8210 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
5
95-8210 INSTRUCTIONS
1-800-221-0932
REV. 06/03/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST95-8210
