Metra Electronics 95-8154 User Manual

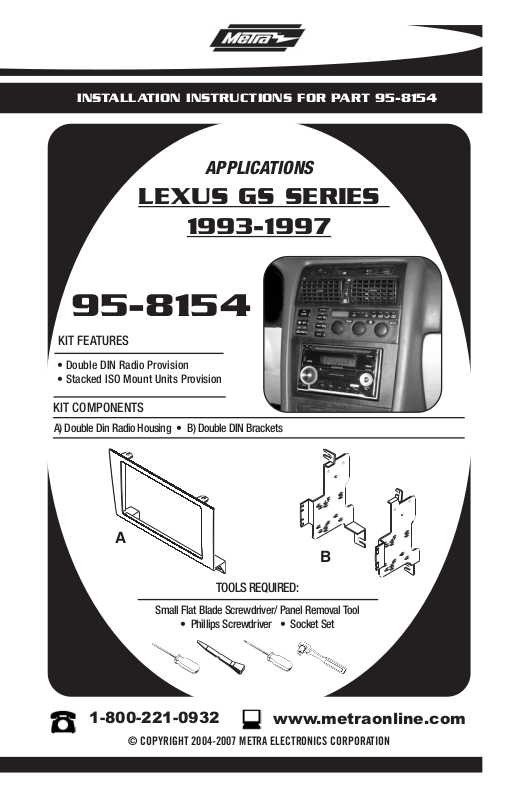

INSTALLATION INSTRUCTIONS FOR PART 95-8154
APPLICATIONS
LEXUS GS SERIES
1993-1997
95-8154
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
A) Double Din Radio Housing • B) Double DIN Brackets
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
1-800-221-0932
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORA
www.metr
B
aonline.com
TION
95-8154
TABLE OF CONTENTS
Dash Disassembly
-
Lexus GS Series 1993-1997 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
Kit Assembly
- Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
- Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Final
*Note: Refer also to the instructions included with the aftermarket radio.
95-8154 DASH DISASSEMBLY
LEXUS GS SERIES 1993-1997
Disconnect the negative battery ter-
1
minal to prevent an accidental short circuit.
Using a panel removal tool gently pry
2
out on the top of the a/c vent assem­bly (including clock) and remove. (
Figure A)
Unclip and remove ashtray assembly.
3
Tip: Open ashtray door and pull from inside.
(Figure B)
Remove (4) screws securing factory
4
radio/climate control assembly. Unplug and remove the assembly.
(Figure C)
Remove (4) screws securing factory
5
climate controls to the assembly. Remove the climate controls and retain them and the screws for re­installation during kit assembly
Figure D)
(
Continue to kit assembly.
D
A
B
C
1
95-8154 KIT ASSEMBLY
LEXUS GS SERIES 1993-1997
DOUBLE DIN RADIO
STACKED ISO MOUNT UNITS PROVISON
Note: Refer also to the instructions included with the aftermarket radio.
Snap the Double DIN Brackets onto
1
the Double DIN Radio Housing.
(Figure A)
Slide the factory climate controls into
2
the Bracket/Radio Housing assembly aligning the top of the assembly with alignment pins in the bottom of the climate controls and secure using the factory hardware.
Slide the Double DIN or stacked ISO
3
mount units into the bracket/radio housing assembly and secure the Double DIN or stacked ISO mount units to the assembly using the screws supplied with the Double DIN or stacked ISO mount units.
(Figure B)
(Figure C)
A
B
Continue to final assembly.
C
2
95-8154 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individ­ually tape off the ends of any unused wir
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
es to prevent electrical short circuit.)
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+)
Left Rear (-) . . . . . . . . . . . . . . Green / Black
. . . . . . . . . . . . .
Green
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
3
95-8154
NOTES
4
95-8154
NOTES
5
95-8154 INSTRUCTIONS
1-800-221-0932
REV. 10/25/07 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION INST95-8154
www.metraonline.com
