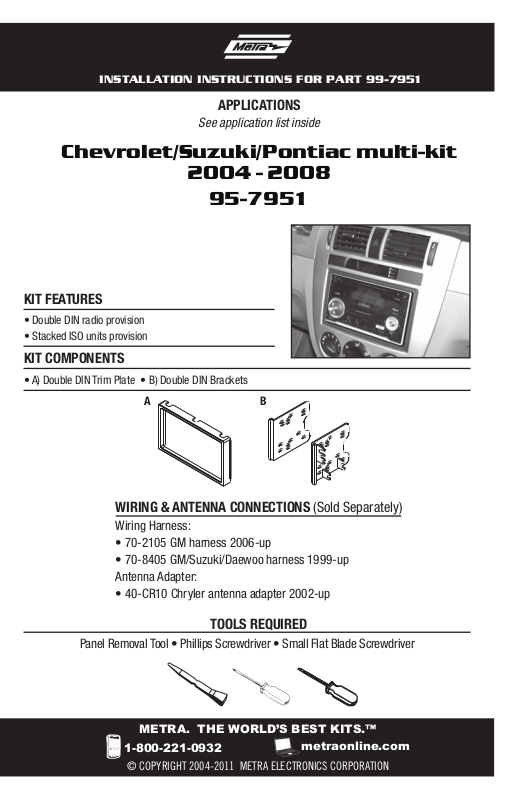

INSTALLATION INSTRUCTIONS FOR PART 99-7951
APPLICATIONS
See application list inside
Chevrolet/Suzuki/Pontiac multi-kit
2004 - 2008
95-7951
KIT FEATURES
• Double DIN radio provision
• Stacked ISO units provision
KIT COMPONENTS
• A) Double DIN Trim Plate • B) Double DIN Brackets
BA
WIRING & ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-2105 GM harness 2006-up
• 70-8405 GM/Suzuki/Daewoo harness 1999-up
Antenna Adapter:
• 40-CR10 Chryler antenna adapter 2002-up
TOOLS REQUIRED
Panel Removal Tool • Phillips Screwdriver • Small Flat Blade Screwdriver
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
metraonline.com
Page 2
95-7951
Applications
Chevrolet
Aveo 2004-2006
Aveo Hatchback 2007-2008
Suzuki
Forenza 2004-2008
Reno 2005-2008
Verona 2004-2006
Pontiac
G3 Hatchback 2007
Table of Contents
Dash Disassembly
– Chevrolet Aveo 2004-2006 3
– Chevrolet Aveo Hatchback 2007-2008 3
– Pontiac G3 Hatchback 2007 3
– Suzuki Forenza 2004-2008 4-5
– Suzuki Reno 2005-2008 4-5
– Suzuki Verona 2004-2006 6
Kit Assembly
– Double DIN radio provision 7-8
– Stacked ISO mount units provision 9-10
Caution
Metra recommends disconnecting the negative battery terminal before beginning any
installation. All accessories, switches, and especially air bag indicator lights must be
plugged in before reconnecting the battery or cycling the ignition.
*NOTE: Refer also to the instructions included with the aftermarket radio.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
Page 3
Dash Disassembly 95-7951
Chevrolet Aveo 2004-2006
Chevrolet Aveo Hatchback 2007-2008
Pontiac G3 Hatchback 2007
1. Unclip and remove the trim panels from
both sides of radio/climate controls.
(Figure A)
2. Remove (4) Phillips screws securing the
radio. Unplug and remove radio.
(Figure B)
Continue to kit assembly
(Figure A)
3
(Figure B)
Page 4
Dash Disassembly 95-7951
Suzuki Forenza 2004-2008
Suzuki Reno 2005-2008

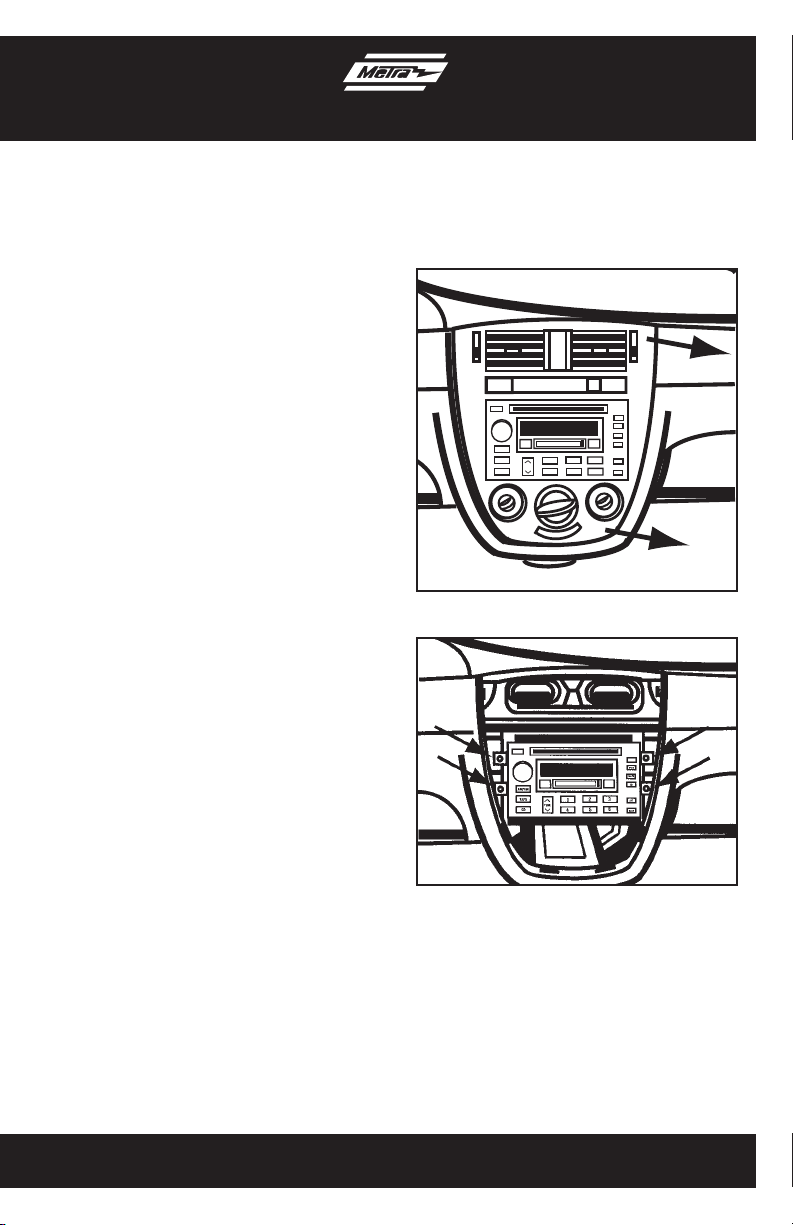

1. Disconnect air selector cable on driver’s
side of center console behind dash
above accelerator pedal. (Figure A & B)
2. Open glove box and remove (5) Phillips
screws ((3) on top and (2) on bottom)
then remove entire glove box.
3. Disconnect temperature selector cable
on passenger side of center console
behind glove box. (Figure C)
Continued on next page
(Figure A)
4
(Figure B)
Inside of Glove Box
(Figure C)
Page 5
Dash Disassembly 95-7951
Suzuki Forenza 2004-2008
Suzuki Reno 2005-2008

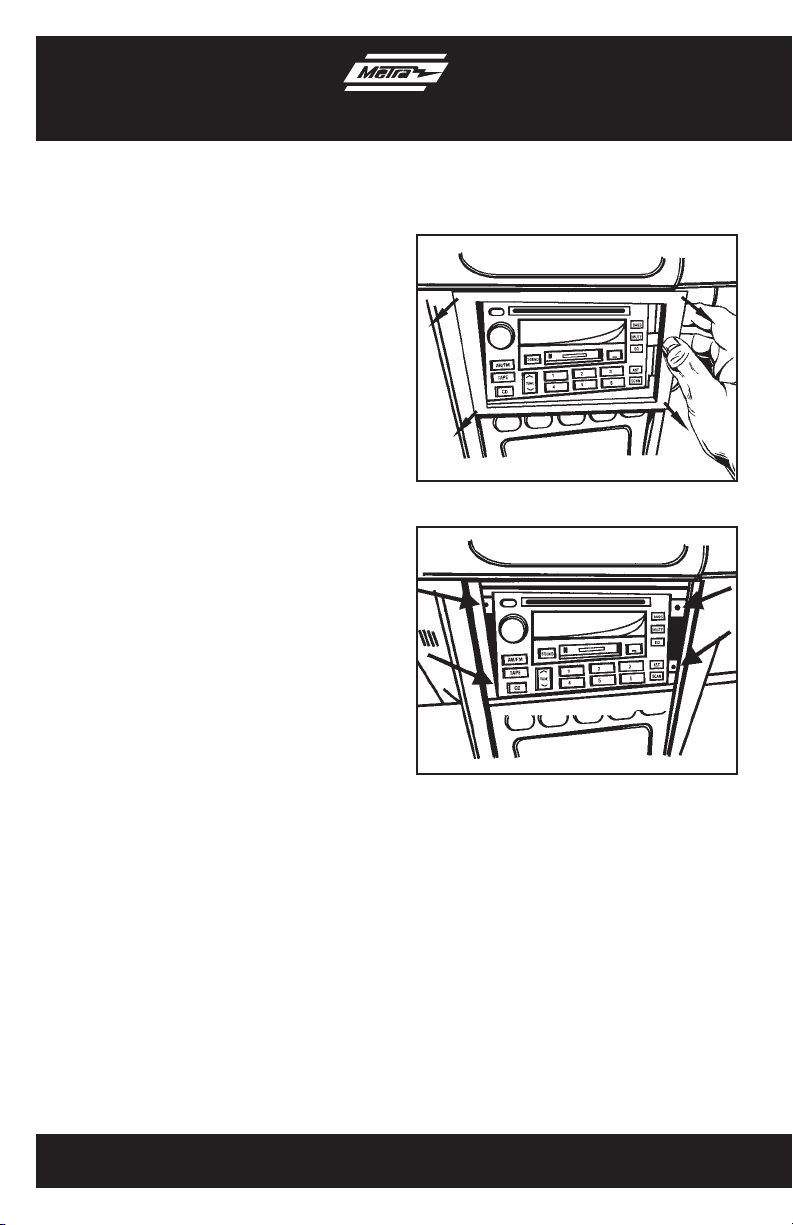

4. Unsnap and remove entire panel
surrounding radio. NOTE: The clips
holding radio panel to dash are
very strong. (Figure D)
5. Remove (4) 10 mm bolts securing radio.
Unplug and remove radio. (Figure E)
Continue to kit assembly
(Figure D)
BASS
MUTE
AM/FM
TAPE
1
TUNE
CD
4
EQ
3
2
AST
6
5
SCAN
5
(Figure E)
Page 6
Dash Disassembly 95-7951
Suzuki Verona 2004-2006
1. Unclip and remove the trim panel
surrounding the radio. (Figure A)
2. Remove (4) Phillips screws from radio.
Unplug and remove radio. (Figure B)
Continue to kit assembly
(Figure A)
6
(Figure B)
Page 7
Kit Assembly 95-7951
Double DIN radio provision
NOTE: For the Chevrolet Aveo 2004-06,
Chevrolet Aveo Hatchback 200708, Pontiac G3 Hatchback 2007
and Suzuki Verona 2004-06, cut
and remove front lower mounting
tabs from the Double DIN trim
plate (Figure A). For the Suzuki
Forenza 2004-08 and the Suzuki
Reno 2005-08, cut the rear lower
mounting tabs (Figure B).
NOTE: The Verona 2004-2006 sub dash
will need to be trimmed slightly
for proper fit. Refer to illustration.
(Figures C and D)
Continued on next page
(Figure A)
(Figure B)
(Figure C)
CUT
HERE
ON BOTH SIDES
7
(Figure D)
Page 8
Kit Assembly 95-7951
Double DIN radio provision
1. Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adapter from Metra or
AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.

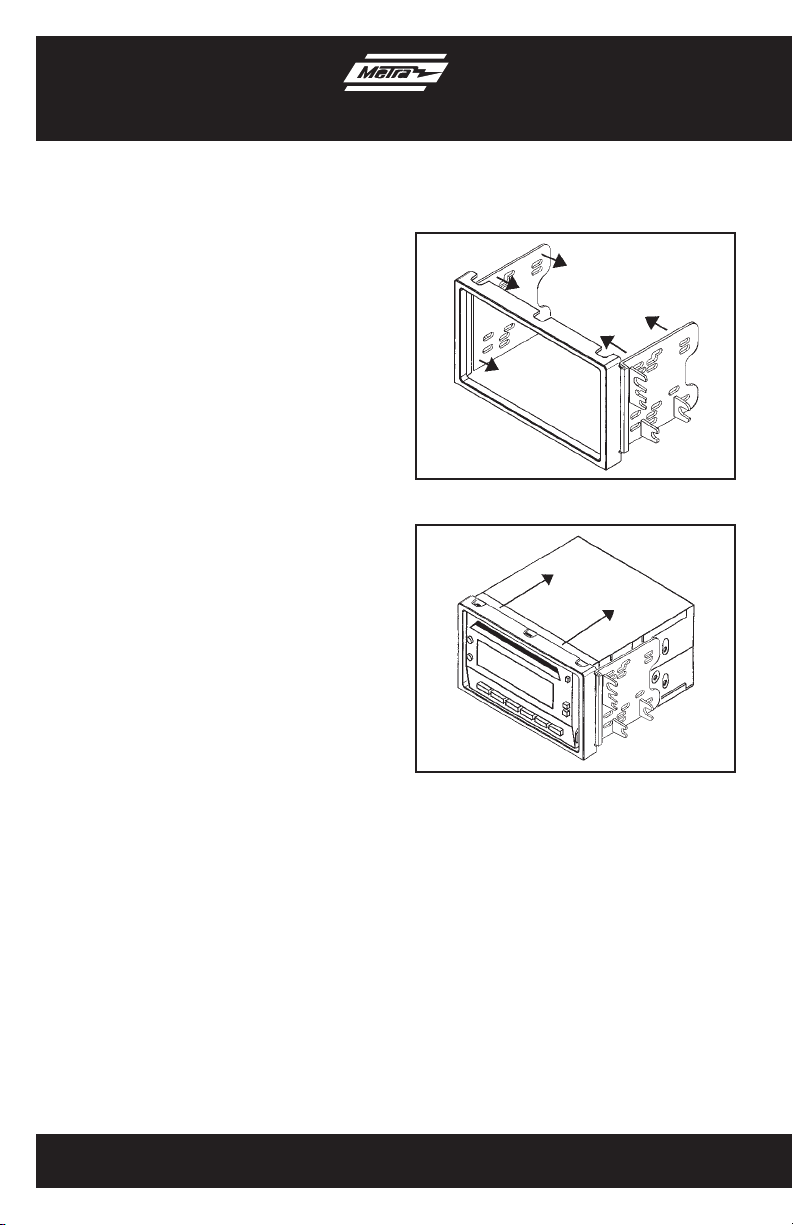

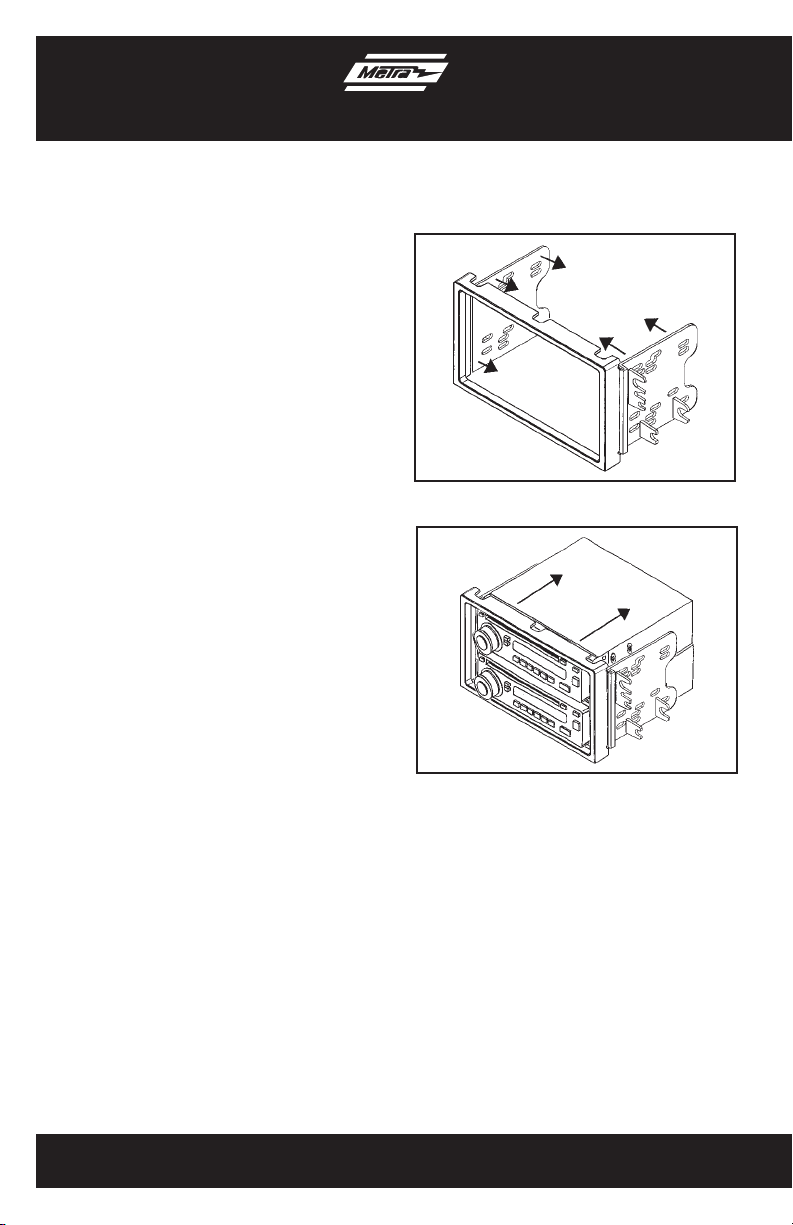

2. Snap the Double DIN brackets to the
outside edge of the Double DIN trim
plate. (Figure E)
3. Slide the Double DIN radio into the
bracket/trim plate assembly and secure
the radio to the assembly using the
screws supplied with the radio.
(Figure F)
4. Reassemble dash in reverse order
of disassembly.
(Figure E)
8
(Figure F)
Page 9
Kit Assembly 95-7951
Stacked ISO mount units provision
NOTE: For the Chevrolet Aveo 2004-06,
Chevrolet Aveo Hatchback 200708, Pontiac G3 Hatchback 2007
and Suzuki Verona 2004-06, cut
and remove front lower mounting
tabs from the Double DIN trim
plate (Figure A). For the Suzuki
Forenza 2004-08 and the Suzuki
Reno 2005-08, cut the rear lower
mounting tabs (Figure B).
NOTE: The Verona 2004-2006 sub dash
will need to be trimmed slightly
for proper fit. Refer to illustration.
(Figures C and D)
Continued on next page

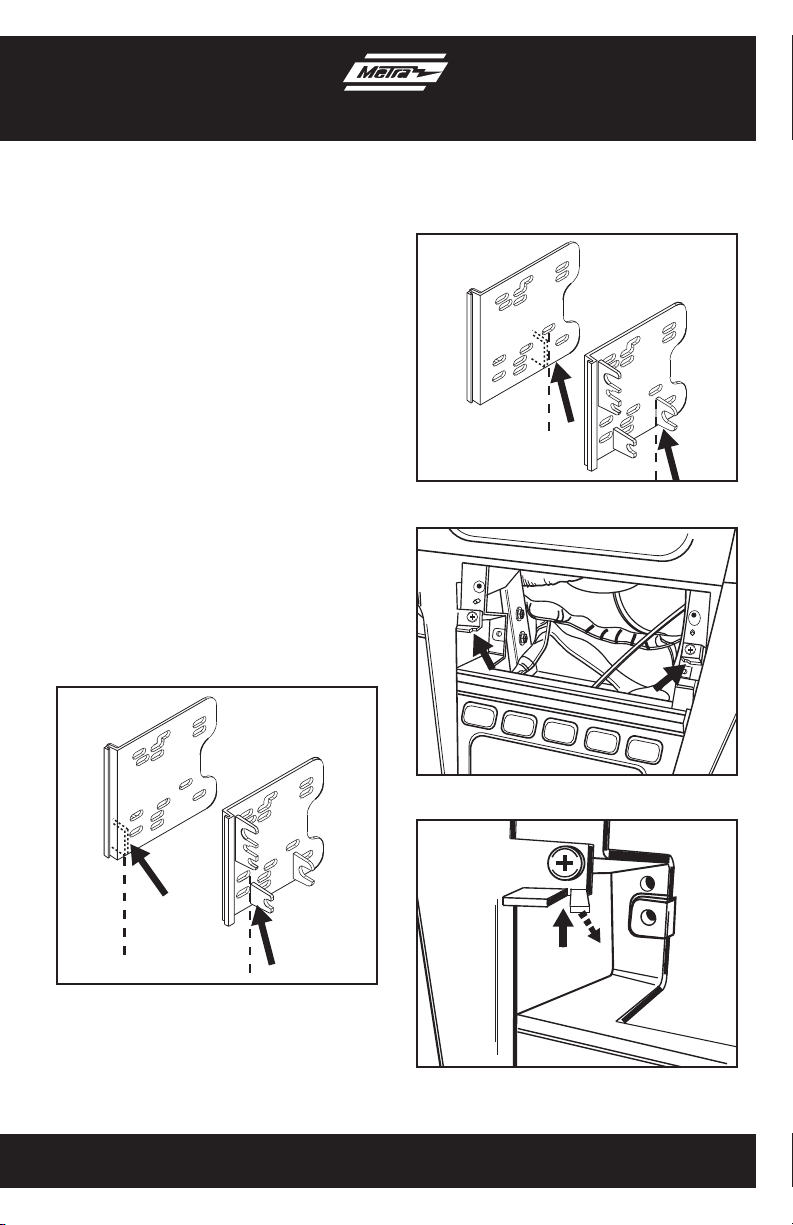

(Figure A)
(Figure B)
(Figure C)
CUT
HERE
ON BOTH SIDES
9
(Figure D)
Page 10
Kit Assembly 95-7951
Stacked ISO mount units provision
1. Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adapter from Metra or
AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
2. Snap the Double DIN brackets to the
outside edge of the Double DIN trim
plate. (Figure E)
3. Slide the stacked ISO units into the
bracket/trim plate assembly and secure
the units to the assembly using the
screws supplied with the units.
(Figure F)
4. Reassemble dash in reverse order
of disassembly.
(Figure E)
10
(Figure F)
Page 11
