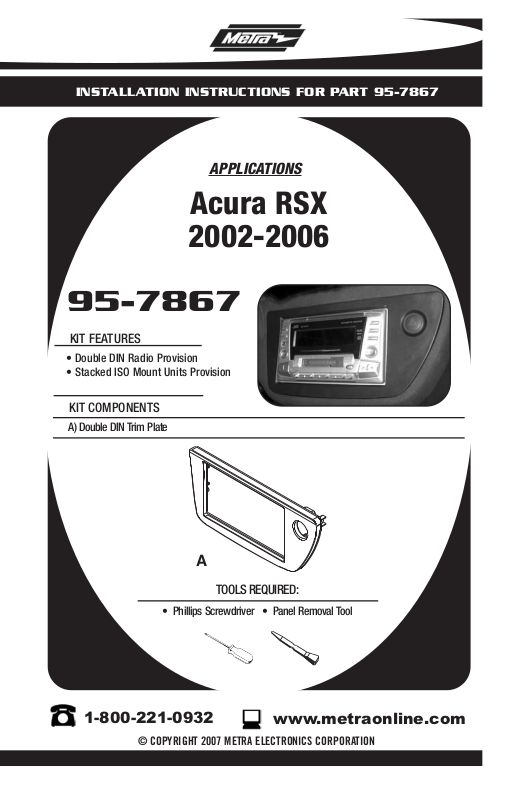

INSTALLATION INSTRUCTIONS FOR PART 95-7867
APPLICATIONS
Acura RSX
2002-2006
95-7867
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Double DIN Trim Plate
A
TOOLS REQUIRED:
• Phillips Screwdriver • Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2007 METRA ELECTRONICS CORPORA
www.metr
aonline.com
TION
95-7867
TABLE OF CONTENTS
Dash Disassembly
- Acura RSX 2002-2006 ............................................1
Kit Assembly
- Double DIN Radio Provision .......................................2
- Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Final
*Note:
Refer also to the instructions included with the aftermarket radio.
3
95-7867 DASH DISASSEMBLY
"C"
"C"
"C"
"C"
"D"
"D"
ACURA RSX 2002-2006
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip the power outlet panel and
2
remove (2) Phillips screws exposed
facing up.
Unclip the radio trim panel assembly
3
(including the head unit and the hazard switch) then unplug and remove
the assembly. (
(“A” in Figure A)
Figure A)
A
Remove (4) Phillips screws securing
4
the factory head unit to the bracket
assembly and remove the unit.
(“B” in Figure A)
If a factory pocket is present,
5
remove (4) Phillips screws securing
the pocket to the bracket assembly
and remove.
Remove (4) Phillips screws securing
6
the bracket assembly to the back of
the radio trim bezel and remove the
bezel. (Retain the bracket assembly
and screws to be reinstalled into the
double DIN trim plate during kit
assembly)
Remove (2) Phillips screws securing
7
the hazard switch to the back of the
radio trim panel and remove the
switch. (Retain the switch and screws
to be reinstalled into the double DIN
trim plate during kit assembly)
(“D” in Figure C)
(“C” in Figure B)
B
C
Continue to kit assembly.
1
95-7867 KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION
STACKED ISO MOUNT UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Mount the hazard switch to the back of
1
the Double DIN Trim Plate using the
factory hardware. (Removed in step 7
of dash disassembly)
Mount the bracket assembly (Removed
2
in step 6 of dash disassembly) to the
back of the Double DIN Trim Plate
using the factory hardware.
Slide the Double DIN radio or stacked
3
ISO mount units into the bracket/radio
housing assembly and secure to the
assembly using the screws supplied
with the Double DIN head radio or
stacked ISO mount units.
(Figure A)
(Figure B)
B
(Figure C)
Continue to final assembly.
C
2
95-7867 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’
s specifications.
3
95-7867
NOTES
4
95-7867
NOTES
5
95-7867 INSTRUCTIONS
1-800-221-0932
REV. 11/02/07 © COPYRIGHT 2007 METRA ELECTRONICS CORPORATION INST95-7867
www.metraonline.com
