INSTALLATION INSTRUCTIONS FOR PART 95-7427
APPLICATIONS
Nissan Maxima 2009-11
w/o Navigation or Technology Package
95-7427B/
95-7427G
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• PAINTED TO MATCH FACTORY DASH:
95-7427B=BLACK, 95-7427G=GRAY
• Textured To Match Factory Dash
KIT COMPONENTS
• A) Double DIN Radio Housing
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
www.metraonline.com
95-7427
TABLE OF CONTENTS
Dash Disassembly
- Nissan Maxima 2009-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Kit Assembly
- Double DIN Radio Provision / Stacked ISO Mount Units Provision . . . .2
Final Assembly
*Note:
Refer also to the instructions included with the aftermarket radio.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
95-7427 DASH DISASSEMBLY
X
OFF
PASS
AIR
BAG
CD CHANGER
AUX IN
NISSAN MAXIMA 2009-11
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unclip and remove the panel above
the radio including the a/c vents and
the climate controls. Unplug and
remove the panel. (
3
Unclip and remove the panel below
the radio. (
4
Remove (6) Phillips screws securing
Figure B)
the radio. Unplug and remove the
Figure C)
radio. (
5
Remove (5) Torx head screws securing each side b
and remove brackets and module.
(Retain brackets, module and (2)
screws from module for re-use during
kit assembly.) (
Figure A)
racket to factory radio
Figure D)
A
B
Continued on page 2.
D
C
1
95-7427 KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION OR
STACKED ISO MOUNT UNIT(S) PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
1
Attach the factory brackets and module to the Double DIN or stacked ISO
mount unit(s) with the screws supplied
with the unit(s) and (2) screws from
Continue to final assembly.
A
2
95-7427 FINAL ASSEMBLY
FINAL ASSEMBLY
FINAL ASSEMBLY
A
B

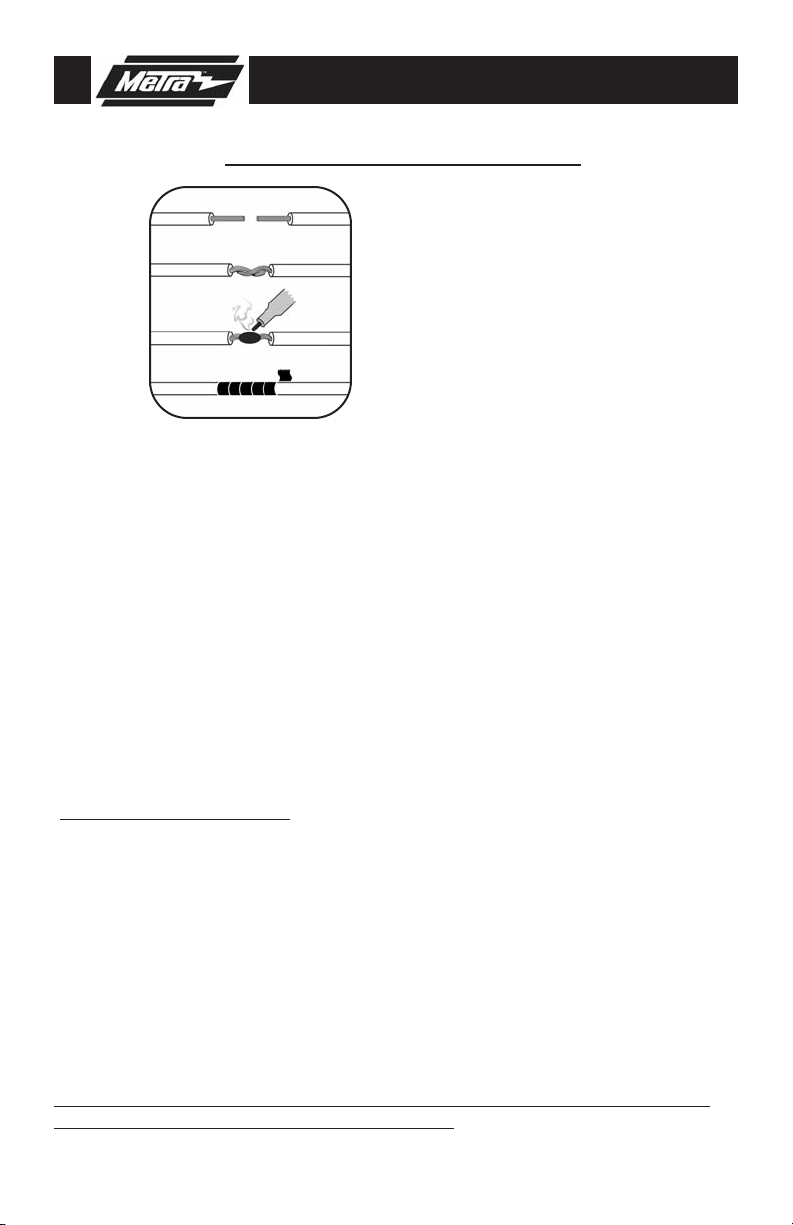

(A) Strip wire ends back 1/2"
B) Twist ends together
C
C) Solder
D) Tape
D
Locate the factory wiring harness in the dash. Metra recommends using the proper mating
1
adapter and making the connections as shown. (Isolate and individually tape off the ends of
any unused wires to prevent electrical short circuit).
2
Re-connect the negative battery terminal and test the unit for proper operation.
Position the factory bracket/aftermarket radio assembly into the dash and secure using
3
he factory hardware.
t
Secure the Double DIN radio housing to the sub dash using the factory hardware.
4
Reassemble the rest of the dash in reverse order of disassembly.
5
Make wiring connections using the EIA color code chart shown below and the instructions
included with the head unit. Metra recommends making connections shown below; Strip, Splice,
Solder, Tape. Isolate and individually tape off ends o
f any unused wires to prevent electrical short
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
*NOTE:
When a Black wire is not present, ground radio to vehicle chassis. All colors may not be
present on all leads due to manufacturer’s specifications.
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
3
95-7427
NOTES
4
95-7427
NOTES
5
95-7427 INSTRUCTIONS
1-800-221-0932
REV. 10-06-10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST95-7427
www.metraonline.com
