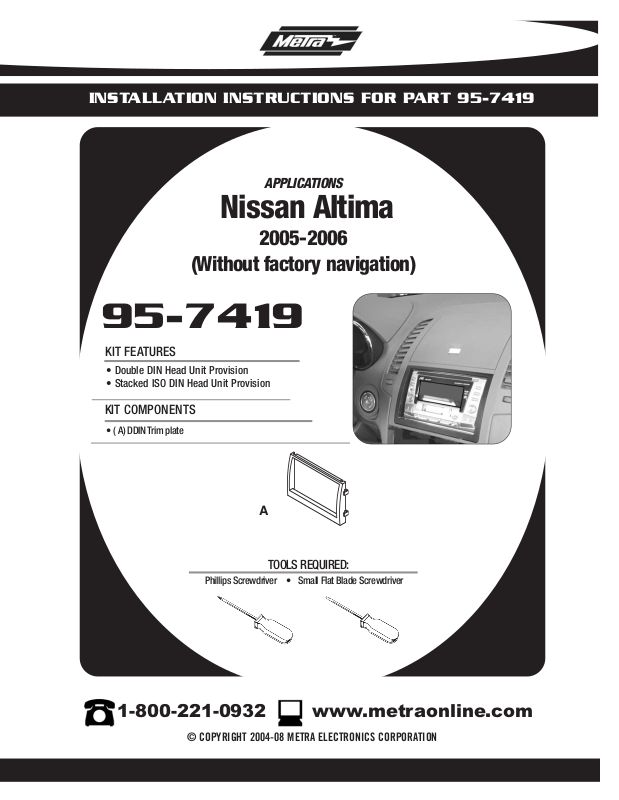

INSTALLATION INSTRUCTIONS FOR PART 95-7419
APPLICA TIONS
Nissan Altima
2005-2006
(Without factory navigation)
95-7419
KIT FEATURES
• Double DIN Head Unit Provision
• Stacked ISO DIN Head Unit Provision
KIT COMPONENTS
• ( A) DDIN Trim plate
A
TOOLS REQUIRED:
Phillips Screwdriver • Small Flat Blade Screwdriver
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-08 METRA ELECTRONICS CORPORATION
95-7419
TABLE OF CONTENTS
Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 3
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
95-7419
SCAN
AU
D
IO
CLO
C
K
CAT-R
PT
1
2
3
4
5
6
7
5
SCAN
AUDIO
CLOC
K
CAT-RPT
1
2
3
4
5
6
75
AUTO
A/C
AUTO
OFF
HI
90
60
2005-06 NISSAN ALTIMA
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Unclip and remove the trim panel
surrounding the climate controls.
(Figure A)
Remove (4) Phillips screws securing
3
climate control and remove.
(Figure B)
DASH DISASSEMBLY
A
B
Unclip and remove the panel sur-
4
rounding radio including A/C vents.
(Figure C)
Remove (4) Phillips screws securing
5
radio to remove.
D
(Figure D)
C
1
95-7419
Install the 95-7419 Trim Plate
from Rear
KIT ASSEMBLY
2005-06 NISSAN ALTIMA
DOUBLE DIN HEAD UNIT PROVISION
Snap the 95-7419 trim plate into the
1
radio trim panel.
Slide the DDIN radio unit into the
2
factory brackets and secure the unit
to the brackets using the screws
supplied with the head unit.
(Figure B)
(Figure A)
A
B
2
95-7419
Install the 95-7419 Trim Plate
from Rear
KIT ASSEMBLY
2005-06 NISSAN ALTIMA
STACKED ISO DIN HEAD UNIT PROVISION
Snap the 95-7419 trim plate into the
1
radio trim panel.
Slide the stacked ISO DIN units into
2
the factory brackets and secure the
units to the brackets using the
screws supplied with the head units.
(Figure B)
(Figure A)
A
B
3
95-7419
FINAL ASSEMBLY
FINAL ASSEMBLY
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown.
(Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
Dimmer . . . . . . . . . . Orange / White
*NOTE: When Black a wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Right Front (+) . . . . . Gray
Right Front (-). . . . . . Gray / Black
Left Front (+) . . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Left Rear (-) . . . . . . . Green / Black
4
95-7419
NOTES
5
95-7419
1-800-221-0932 www.metraonline.com
REV 03-03-08 © COPYRIGHT 2004-08 METRA ELECTRONICS CORPORATION INST95-7419
