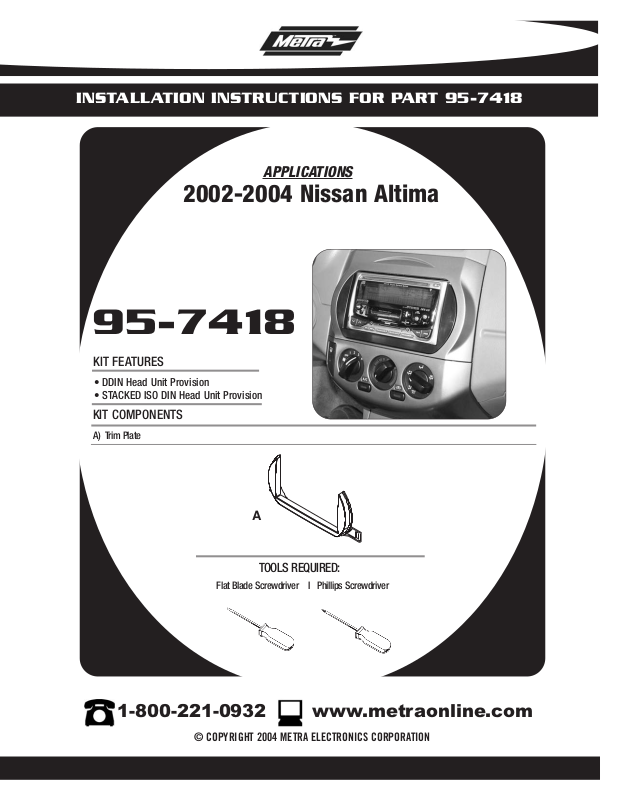

INSTALLATION INSTRUCTIONS FOR PART 95-7418
APPLICATIONS
2002-2004 Nissan Altima
95-7418
KIT FEATURES
• DDIN Head Unit Provision
• STACKED ISO DIN Head Unit Provision
KIT COMPONENTS
A) Trim Plate
A
TOOLS REQUIRED:
Flat Blade Scr
ewdriver I Phillips Scr
ewdriver
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
Page 2
95-7418
TABLE OF CONTENTS
Dash Disassembly ............................................................................ 1
Kit Assembly ................................................................................. 2-3
Final Assembly ................................................................................. 4
Page 3
95-7418
2002-2004 NISSAN ALTIMA
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Unclip and remove the trim panel
surrounding the climate controls.
(Figure A)
Remove (1) Phillips screw (bottom
3
right side of panel) securing the
panel surrounding the radio then
unclip and r
(Figure B,C)
Remove (4) Phillips screws securing
4
radio to remove.
Remove the screws securing the
5
factory brackets to the radio and
remove brackets. (Retain brackets
for re-use during kit assembly.)
emove the panel.
(Figure D)
DASH DISASSEMBLY
A
B
D
C
1
Page 4
95-7418
Install from rear
KIT ASSEMBLY
DOUBLE DIN HEAD UNIT PROVISION
Snap the 95-7418 trim plate into the
1
radio trim panel.
A
(Figure A)
Slide the DDIN radio unit into the
2
factory brackets and secure the unit
to the brackets using the screws
supplied with the head unit.
B)
B
(Figure
2
Page 5
95-7418
Install from rear
STACKED ISO DIN HEAD UNIT PROVISION
Snap the 95-7418 trim plate into the
1
radio trim panel.
A
(Figure A)
KIT ASSEMBLY
Slide the stacked ISO DIN units into
2
the factory brackets and secure the
units to the brackets using the
screws supplied with the head unit.
(Figure B)
B
3
Page 6
95-7418
FINAL ASSEMBLY
FINAL ASSEMBLY
Locate the factory wiring harness in the dash and make the connection as shown.
1
Metra recomends using the proper mating adapter and making the connections as
shown. (Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
3
Reassemble radio and dash assemblies in reverse order of disassembly.
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
A
B
C
D
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
Right Front (+) . . . . . Gray
Right Front (-) . . . . . . Gray / Black
Left Front (+) . . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Dimmer . . . . . . . . . . Orange / White
*NOTE: When Black a wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Left Rear (-) . . . . . . . Green / Black
4
Page 7
95-7418
NOTES
5
Page 8
95-7418 INSTRUCTIONS
1-800-221-0932 www.metraonline.com
REV. 09/06/07
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION INST95-7418
