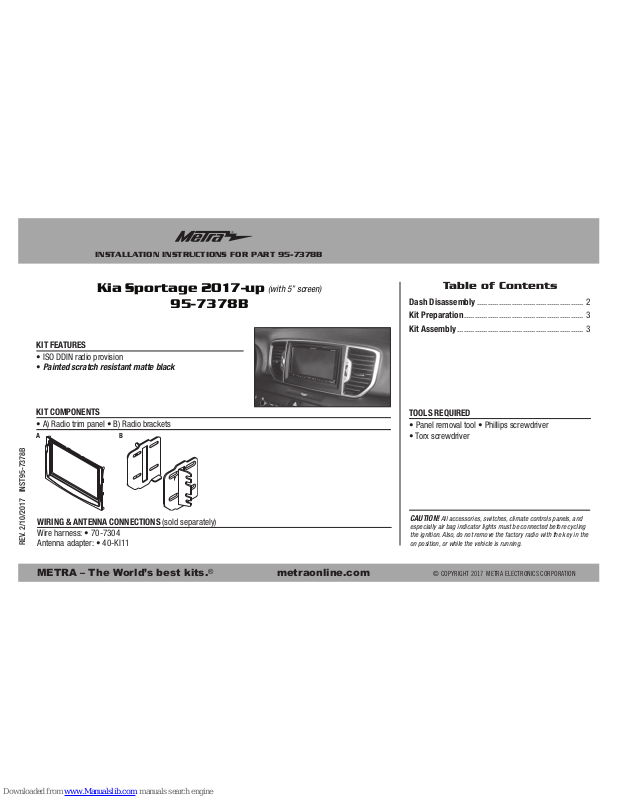

REV. 2/10/2017 INST95-7378B
INSTALLATION INSTRUCTIONS FOR PART 95-7378B
METRA – The World’s best kits.
®
metraonline.com
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
• ISO DDIN radio provision
• Painted scratch resistant matte black
• A) Radio trim panel • B) Radio brackets
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wire harness: • 70-7304
Antenna adapter: • 40-KI11
• Panel removal tool • Phillips screwdriver
• Torx screwdriver
TOOLS REQUIRED
Kia Sportage 2017-up (with 5” screen)
95-7378B
Table of Contents
A B
Dash Disassembly ................................................. 2
Kit Preparation ....................................................... 3
Kit Assembly .......................................................... 3
95-7378B
2
Dash Disassembly
1. Unclip and slide the top of the
center console (including the cup
holders) back slightly. (Figure A)
2. Open the passenger door, and then
unclip and remove the dashboard
trim panel. Remove (1) Phillips
screw exposed. (Figure B)
3. Unclip and remove the entire panel
that is above the glove box, and
below the radio. (Figure C)
4. Remove (2) Phillips screws from
the radio/vent panel, and then
unclip and remove. (Figure D)
5. Remove (4) Phillips screws
securing the radio, and then
unplug and remove.
Continue to Kit Preparation
(Figure A) (Figure C)
(Figure B) (Figure D)
95-7378B
3
Kit Assembly
ISO DDIN radio provision
1. Attach the radio brackets to the
radio using the screws supplied
with the radio. (Figure A)
2. Locate the factory wiring harness
and antenna connector in the
dash, and complete all necessary
connections to the radio. Metra
recommends using the proper
mating adapter from Metra and/or
AXXESS. Test the radio for proper
operation.
3. Secure the completed assembly
into the dash using the factory
hardware, and then reassemble
the dash in reverse order of
disassembly.
(Figure A)
Kit Preparation
From the factory radio/vent panel:
1. Remove (4) screws securing the inner radio trim panel to the panel, and then
unclip and remove. (Figure A)
2. Attach the 95-7378B radio trim panel to the factory radio/vent panel, and then
secure using the factory hardware. (Figure A)
Continue to Kit Assembly
REAR VIEW
OF
FACTORY RADIO/VENT PANEL
(Figure A)
REV. 2/10/2017 INST95-7378B
INSTALLATION INSTRUCTIONS FOR PART 95-7378B
METRA – The World’s best kits.
®
metraonline.com
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
IMPORTANT
If you are having difficulties with the
installation of this product, please call our
Tech Support line at 1-800-253-TECH.
Before doing so, look over the instructions a
second time, and make sure the installation
was performed exactly as the instructions
are stated. Please have the vehicle apart
and ready to perform troubleshooting steps
before calling.
