Metra Electronics 95-7339B, 95-7339S User Manual

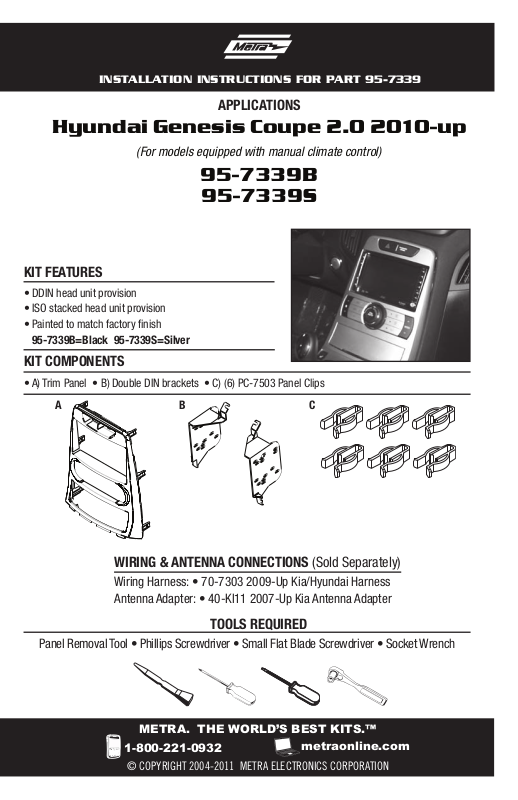

INSTALLATION INSTRUCTIONS FOR PART 95-7339

APPLICATIONS

Hyundai Genesis Coupe 2.0 2010-up

(For models equipped with manual climate control)

95-7339B

95-7339S

KIT FEATURES

• DDIN head unit provision

• ISO stacked head unit provision

• Painted to match factory finish

95-7339B=Black 95-7339S=Silver

KIT COMPONENTS

• A) Trim Panel • B) Double DIN brackets • C) (6) PC-7503 Panel Clips

A B C

WIRING & ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness: • 70-7303 2009-Up Kia/Hyundai Harness
Antenna Adapter: • 40-KI11 2007-Up Kia Antenna Adapter

TOOLS REQUIRED

Panel Removal Tool • Phillips Screwdriver • Small Flat Blade Screwdriver • Socket Wrench

METRA. THE WORLD’S BEST KITS.™

1-800-221-0932

© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION

metraonline.com

95-7339

Table of Contents

Dash Disassembly

– Hyundai Genesis Coupe 2.0 2010-up 3

Kit Preparation

– Hyundai Genesis Coupe 2.0 2010-up 4

Kit Assembly

– Double DIN/stacked ISO DIN head unit provision 5

Caution

Metra recommends disconnecting the negative battery terminal before beginning any
installation. All accessories, switches, and especially air bag indicator lights must be
plugged in before reconnecting the battery or cycling the ignition.

*NOTE: Refer also to the instructions included with the aftermarket radio.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.

Metra recommends MECP
certified technicians

95-7339

Dash Disassembly

1. Unclip and remove the shifter trim
panel. (Figure A)

2. Unclip and remove the radio/climate
control trim panel. (Figure B)

3. Unclip and remove the display trim
panel above radio. (Figure C)

4. Remove (4) Phillips screws securing
the radio.

5. Remove (4) Phillips screws securing the
climate control to the factory trim panel.

Continue to kit preparation

(Figure A)

3

(Figure B)

(Figure C)
