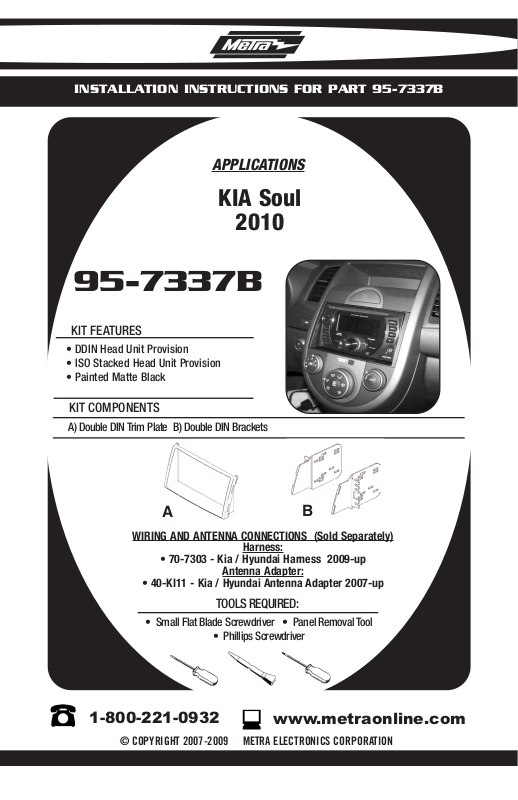

INSTALLATION INSTRUCTIONS FOR PART 95-7337B
APPLICATIONS
KIA Soul
2010
95-7337B
KIT FEATURES
• DDIN Head Unit Provision
• ISO Stacked Head Unit Provision
• Painted Matte Black
KIT COMPONENTS
A) Double DIN Trim Plate B) Double DIN Brackets
A
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-7303 - Kia / Hyundai Harness 2009-up
Antenna Adapter:
• 40-KI11 - Kia / Hyundai Antenna Adapter 2007-up
TOOLS REQUIRED:
• Small Flat Blade Screwdriver • Panel Removal Tool
• Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2007-2009 METRA ELECTRONICS CORPORATION
B
www.metraonline.com
95-7337B
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
- KIA Soul 2010 ...................................................1
Kit
Assembly
- DDIN / Stacked ISO DIN Head Unit Provisions . . . . . . . . . . . . . . . . . . . . . . . . 2
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
*Note:
er also to the instructions included with the aftermarket radio.
Ref
Metra recommends MECP certified
technicians.
95-7337B DASH DISASSEMBLY
KIA SOUL 2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the radio/climate
2
control trim panel.
Remove (4) Phillips screws securing
3
the climate control.
Remove (4) Phillips screws securing
4
the radio.
Continue to kit assembly.
(Figure C)
(Figure A)
(Figure B)
A
B
C
1
95-7337B KIT ASSEMBLY
DOUBLE DIN / STACKED ISO DIN HEAD UNIT
PROVISIONS
*Note: Refer also to the instructions included with the aftermarket radio.
A
1
Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from
Metra or AXXESS. Re-connect the
negative battery terminal and test
the unit for proper operation.
2
Attach the Double DIN brackets to the
Double DIN Trim Plate.
Slide the radio into the bracket/radio
3
housing assembly and secure using
the screws supplied with the radio.
(Figure B)
Reassemble dash in reverse order of
4
disassembly.
(Figure A)
B
2
95-7337B INSTRUCTIONS
NOTES
3
95-7337B INSTRUCTIONS
NOTES
4
95-7337B INSTRUCTIONS
NOTES
5
95-7337B INSTRUCTIONS
INSTRUCTIONS
1-800-221-0932
REV. 11/03/09 © COPYRIGHT 2003-2009 METRA ELECTRONICS CORPORATION INST95-7337B
