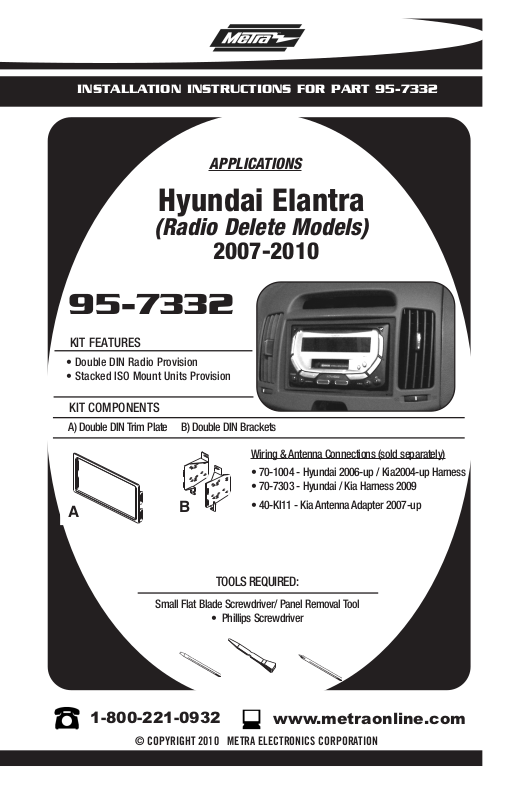

INSTALLATION INSTRUCTIONS FOR PART 95-7332
APPLICATIONS
Hyundai Elantra
(Radio Delete Models)
2007-2010
95-7332
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Double DIN Trim Plate B) Double DIN Brackets
A
B
Small Flat Blade Screwdriver/ Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
Antenna Connections (sold separ
Wiring &
• 70-1004 - Hyundai 2006-up / Kia2004-up Harness
• 70-7303 - Hyundai / Kia Harness 2009
• 40-KI11 - Kia Antenna Adapter 2007-up
TOOLS REQUIRED:
• Phillips Screwdriver
www.metraonline.com
ately)
Page 2
95-7332
TABLE OF CONTENTS
Dash Disassembly
- Hyundai Elantra (Radio Delete Models) 2007-2010 . . . . . . . . . . . . . . . . . . . . 1
Kit
Assembly
- Double DIN/Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . 2
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
*Note:
Refer also to the instructions included with the aftermarket radio.
Page 3
95-7332 DASH DISASSEMBLY
1
2
3
4
A/C
HYUNDAI ELANTRA 2007-2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unclip the panel surrounding the
radio including the a/c vents and hazard switch. Unplug the hazard switch
and remove the panel.
Remove (4) Phillips screws securing
3
the blank plate/pocket covering the
radio cavity and remove the plate.
(Figure B)
(Figure A)
A
Continue to kit assembly.
B
1
Page 4
95-7332 KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION
STACKED ISO MOUNT UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Snap the Double DIN brackets to the
1
inside edge of the Double DIN trim
plate.
(Figure A)
2
Slide the Double DIN or stacked ISO
mount unit(s)into the bracket/trim
plate assembly and secure the
unit(s) to the assembly using the
screws supplied with the unit(s).
(Figure B)
Continue to final assembly.
B
2
Page 5
95-7332 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
3
