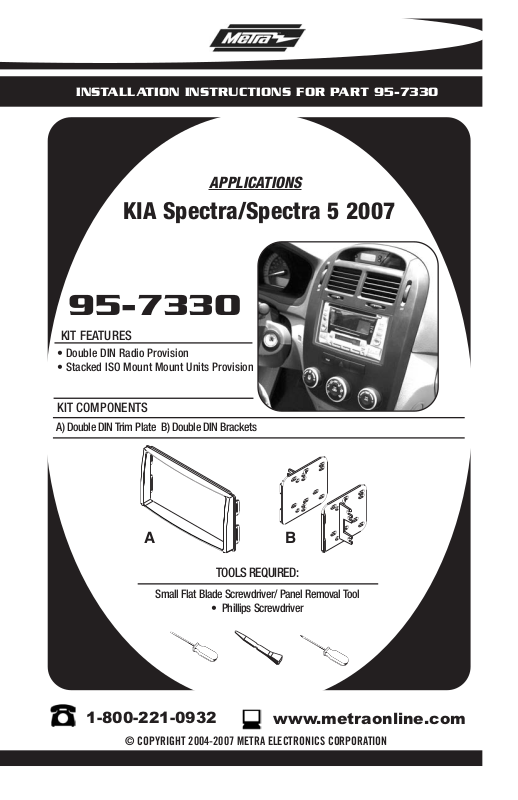

INSTALLATION INSTRUCTIONS FOR PART 95-7330
APPLICATIONS
KIA Spectra/Spectra 5 2007
95-7330
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Mount Units Provision
KIT COMPONENTS
A) Double DIN Trim Plate B) Double DIN Brackets
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORA
www.metr
B
aonline.com
TION
95-7330
TABLE OF CONTENTS
Dash Disassembly
- KIA Spectra/Spectra 5 2007 ........................................1
Kit Assembly
- Double DIN/Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . .2
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
*Note:
Refer also to the instructions included with the aftermarket radio.
95-7330 DASH DISASSEMBLY
KIA SPECTRA/SPECTRA 5 2007
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the trim panel sur-
2
rounding the radio and including the
a/c vents.
Remove (4) Phillips screws securing
3
the radio. Unplug and remove radio.
(Figure B)
Continue to kit assembly.
(Figure A)
A
B
1
95-7330 KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION
STACKED ISO MOUNT UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Snap the Double DIN brackets to the
1
inside edge of the Double DIN trim
plate.
(Figure A)
Slide the Double DIN radio or the
2
stacked ISO mount units into the
bracket/trim plate assembly and
secure the radio or ISO mount units
to the assembly using the screws
supplied with the radio or ISO mount
(Figure B)
units.
Continue to final assembly.
B
2
95-7330 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+)
Left Rear (-) . . . . . . . . . . . . . . Green / Black
. . . . . . . . . . . . . Green
*NOTE: When a Black wire is not present,
All colors may not be present on all leads due to manufacturer’
ground radio to vehic
le chassis.
s specifica
tions.
3
95-7330
NOTES
4
95-7330
NOTES
5
95-7330 INSTRUCTIONS
1-800-221-0932
REV. 09/11/07 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION INST95-7330
www.metraonline.com
