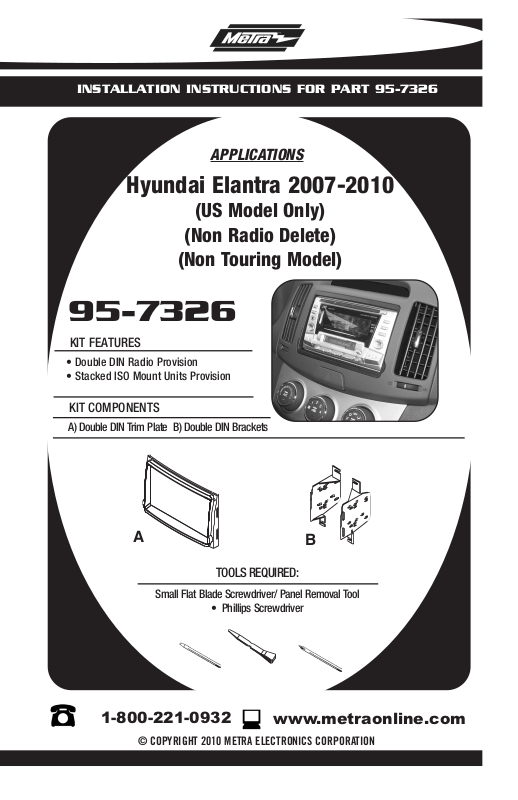

INSTALLATION INSTRUCTIONS FOR PART 95-7326
APPLICATIONS
Hyundai Elantra 2007-2010
(US Model Only)
(Non Radio Delete)
(Non Touring Model)
95-7326
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Double DIN Trim Plate B) Double DIN Brackets
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
www.metraonline.com
B
95-7326
TABLE OF CONTENTS
Dash Disassembly
- Hyundai Elantra 2007-2010........................................1
Kit
Assembly
- Double DIN Radio Provision .......................................2
- Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
*Note:
er also to the instructions included with the aftermarket radio.
Ref
95-7326 DASH DISASSEMBLY
1
2
3
4
A/C
HYUNDAI ELANTRA 2007
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unclip and remove the panel surrounding the radio including the a/c
vents and hazard button.
Remove (4) Phillips screws to remove
3
radio.
(Figure B)
Continue to kit assembly.
(Figure A)
-2010
A
B
1
95-7326 KIT ASSEMBLY
CUT OUT BAR
CUT HERE
DOUBLE DIN RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Cut and remove the bar in the factory
1
radio trim panel.
TIP: The smoother the cut, the better
the 95-7326 will look in the dash panel.
2
Snap the Double DIN brackets to the
inside edge of the Double DIN trim
(Figure B)
plate.
3
Slide the Double DIN radio into the
bracket/trim plate assembly and
secure the radio to the assembly using
the screws supplied with the radio.
(Figure C)
Continue to final assembly.
(Figure A)
B
C
2
95-7326 KIT ASSEMBLY
C
UT OUT BAR
CUT HERE
STACKED ISO MOUNT UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Cut and remove the bar in the factory
1
radio trim panel.
TIP: The smoother the cut, the better
the 95-7326 will look in the dash panel.
2
Snap the Double DIN brackets to the
inside edge of the Double DIN trim
(Figure B)
plate.
3
Slide the stacked ISO units into the
bracket/trim plate assembly and
secure the units to the assembly using
the screws supplied with the units.
(Figure C)
Continue to final assembly.
(Figure A)
B
C
3
95-7326 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
4
95-7326
NOTES
5
95-7326 INSTRUCTIONS
