INSTALLATION INSTRUCTIONS FOR PART 95-7325
APPLICATIONS
Hyundai Santa Fe
2007-10
(excludes 2010 NAV models)
95-7325
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Units Provision
KIT COMPONENTS
A) Double DIN Trim Plate B) Double DIN Brackets
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-7302 - Hyundai Harness 2007-up
• 70-7305 - Hyundai / KiA Harness 2009
A
B
Antenna Adapter:
• 40-KI11 - 2009-10 Santa Fe Adapter
TOOLS REQUIRED:
Small Flat Blade Screwdriver • Panel Removal Tool
• Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
www.metraonline.com
95-7325
TABLE OF CONTENTS
Dash Disassembly
- Hyundai Santa Fe 2007-10 .........................................1
Kit
Assembly
- Double DIN Radio Provision .......................................2
- Stacked ISO Units Provision.......................................3
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
*Note:
er also to the instructions included with the aftermarket radio.
Ref
95-7325 DASH DISASSEMBLY
HYUNDAI SANTA FE 2007
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Remove (1) Phillips screw from the
right side of the panel below the
steering column then unclip and let
right side of panel hang.
Unclip and remove the cover above
3
the clock on top of panel surrounding
the radio.
4
Unclip and remove the panel extending across the dash below the a/c
control and above the glove box
including the ash tray.
5
Remove (2) Phillips screws then
unclip and remove the panel surrounding the radio including the a/c
vents.
(Figure B)
(Figure D)
(Figure A)
(Figure C)
-10
A
B
Remove (4) Phillips screws securing
6
the radio. Unplug and remove radio.
Continue to kit assembly.
D
C
1
95-7325 KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Snap the Double DIN brackets to the
1
outside edge of the Double DIN trim
plate.
(Figure A)
2
Slide the Double DIN radio into the
bracket/trim plate assembly and
secure the radio to the assembly using
the screws supplied with the radio.
(Figure B)
Continue to final assembly.
B
2

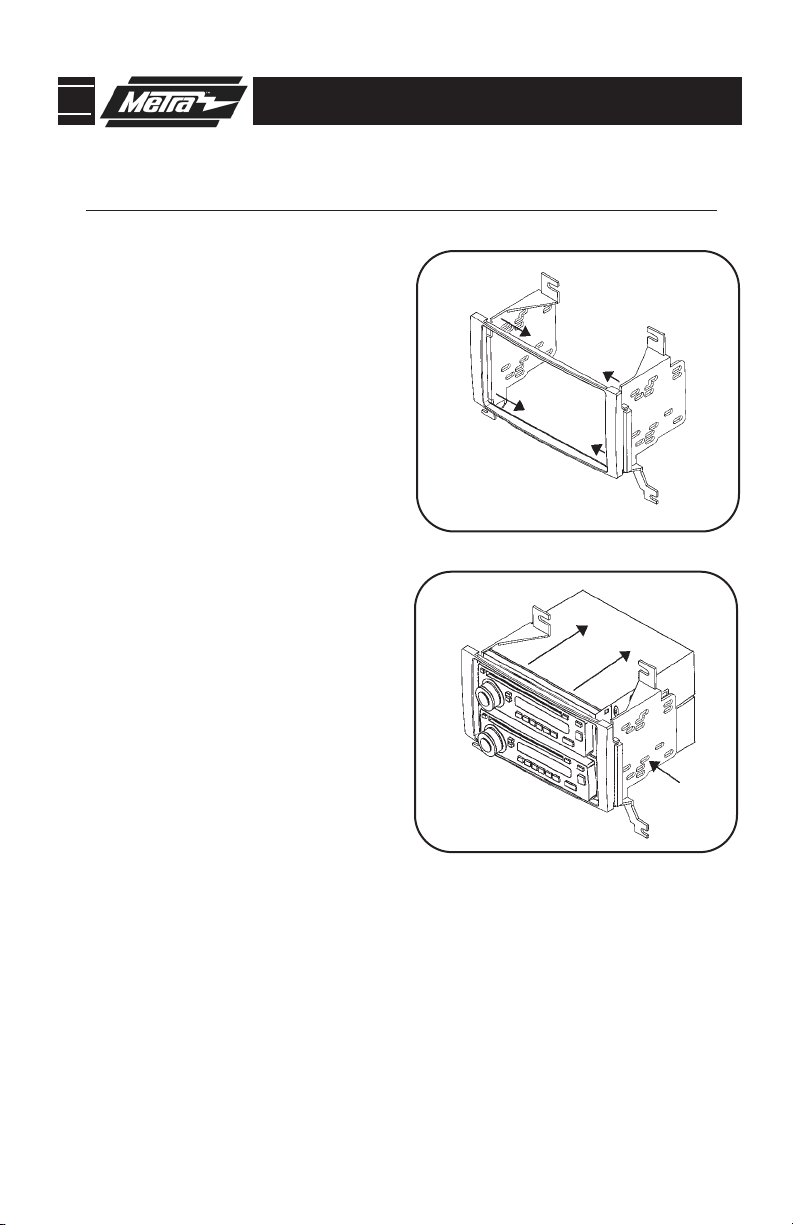

95-7325 KIT ASSEMBLY
STACKED ISO UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Snap the Double DIN brackets to the
1
outside edge of the Double DIN trim
plate.
(Figure A)
2
Slide the stacked ISO units into the
bracket/trim plate assembly and
secure the units to the assembly using
the screws supplied with the units.
(Figure B)
Continue to final assembly.
B
3
95-7325 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
4
95-7325
NOTES
5
95-7325 INSTRUCTIONS
1-800-221-0932
REV. 04/27/10 © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION INST95-7325
www.metraonline.com
