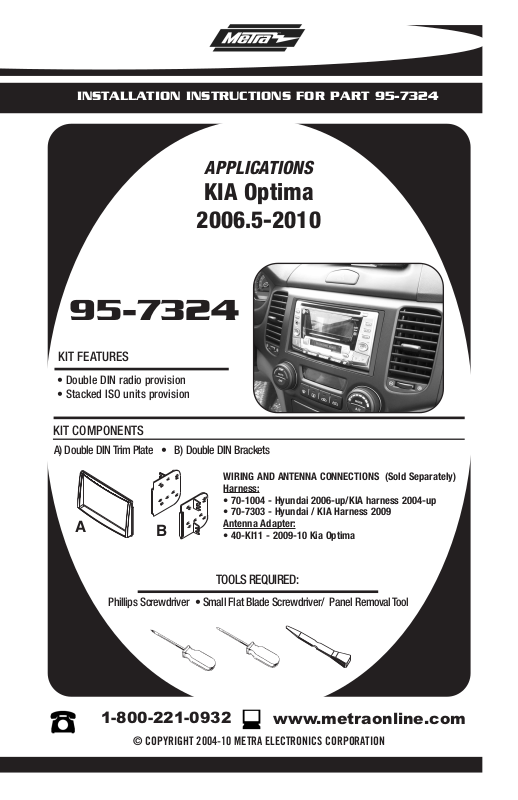

INSTALLATION INSTRUCTIONS FOR PART 95-7324
APPLICATIONS
KIA Optima
2006.5-2010
95-7324
KIT FEATURES
• Double DIN radio provision
• Stacked ISO units provision
KIT COMPONENTS
A) Double DIN Trim Plate • B) Double DIN Brackets
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1004 - Hyundai 2006-up/KIA harness 2004-up
• 70-7303 - Hyundai / KIA Harness 2009
A
Phillips Screwdriver • Small Flat Blade Screwdriver/ Panel Removal Tool
B
1-800-221-0932
© COPYRIGHT 2004-10 METRA ELECTRONICS CORPORATION
Antenna Adapter:
• 40-KI11 - 2009-10 Kia Optima
TOOLS REQUIRED:
www.metraonline.com
Page 2
95-7324
TABLE OF CONTENTS
Dash Disassembly
- Kia Optima 2006.5 - 2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 1
Kit
Assembly *
- Double DIN Radio Provision. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
- Stacked ISO Units Provision. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
*Note:
Refer also to the instructions included with the aftermarket radio.
Page 3
95-7324 DASH DISASSEMBLY
PU
S
H
A/
C
PU
SH
TEM
P
FM
A
M
4R
P
T
P
OW
E
R
V
OL
U
ME
S
E
E
K
TR
A
C
K
103.
9
1
2
3
2
FF
R
E
W
5
R
D
M
103.5 FM
3:05
EQ
CD
FM
AM
SCAN
A
UDIO
P
OWER
VOLUME
TUNE
SEEK
TRACK
RPT
RDM
FF
REW
1
425
3
6
KIA OPTIMA 2006.5-2010
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove the panel sur-
2
rounding the radio including the a/c
vents and climate controls.
Remove (4) Phillips screws securing
3
(Figure A)
radio. Unplug and remove radio.
(Figure B)
Continue to kit assembly.
A
B
1
Page 4
95-7324 KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
1
Snap the Double DIN brackets to
the inside edge of the Double DIN
trim plate.
2
Slide the Double DIN radio into the
bracket/trim plate assembly and
secure the radio to the assembly
using the screws supplied with the
radio.
Continue to final assembly.
(Figure A)
(Figure B)
B
2
Page 5
95-7324 KIT ASSEMBLY
STACKED ISO UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Snap the Double DIN brackets to
1
the inside edge of the Double DIN
trim plate.
2
Slide the stacked ISO units into the
bracket/radio housing assembly
and secure the units to the kit
using the screws supplied with the
units.
(Figure A)
(Figure B)
Continue to final assembly.
B
3
Page 6
95-7324 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
4
