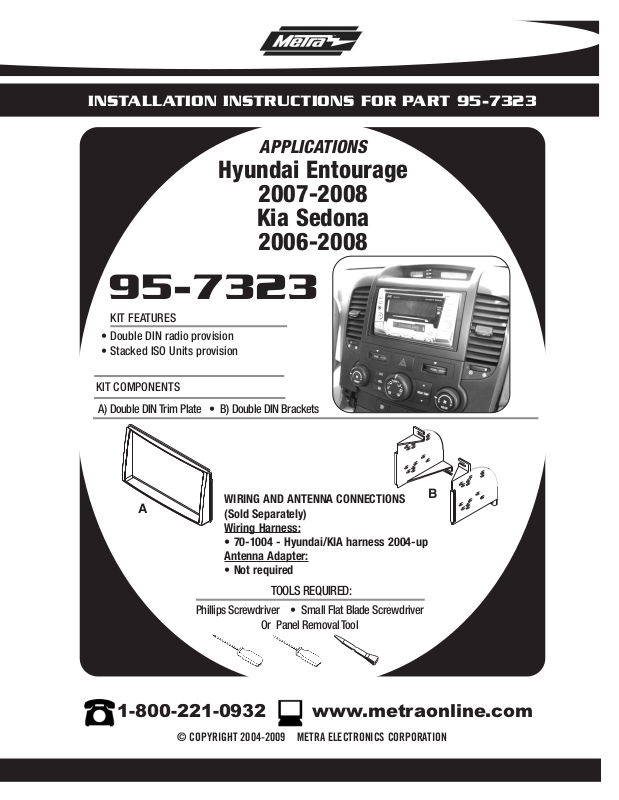

INSTALLATION INSTRUCTIONS FOR PART 95-7323
APPLICATIONS
Hyundai Entourage
2007-2008
Kia Sedona
2006-2008
95-7323
KIT FEATURES
• Double DIN radio provision
• Stacked ISO Units provision
KIT COMPONENTS
A) Double DIN Trim Plate • B) Double DIN Brackets
A
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
Wiring Harness:
• 70-1004 - Hyundai/KIA harness 2004-up
Antenna Adapter:
• Not required
TOOLS REQUIRED:
Phillips Screwdriver • Small Flat Blade Screwdriver
Or Panel Removal Tool
B
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
95-7323
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take
steps toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
- Hyundai Entourage 2007-2008 . . . . . . . . . . . . . . . . . . . . . . . . 1
- Kia Sedona 2006-2008 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Assembly
Kit
- Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . 2
- Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . 3
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
95-7323
HYUNDAI ENTOURAGE 2007-2008
KIA SEDONA 2006-2008
1
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
2
Unclip and remove panel surrounding shifter.
Remove (2) Phillips screws at
3
bottom corners of panel surrounding radio.
Unclip and remove entire panel
4
surrounding radio including the
clock and a/c vents.
(Figure A)
(Figure B)
(Figure C)
DASH DISASSEMBLY
A
B
5
Remove (4) Phillips screws
securing radio.
6
Unplug and remove the radio.
Continue to kit assembly.
C
1
95-7323

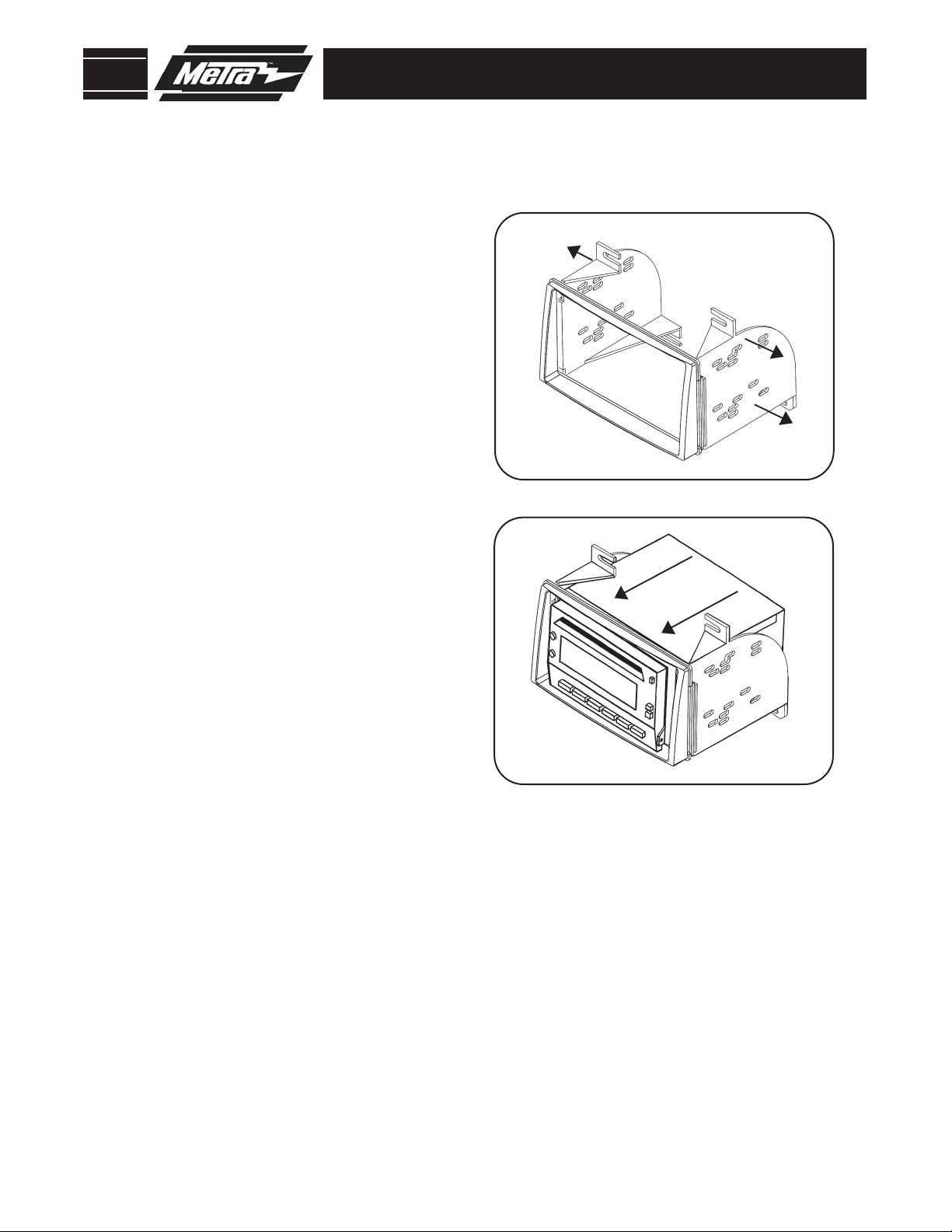

KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION
Snap the Double DIN brackets to
1
the inside edge of the Double DIN
trim plate.
Slide the Double DIN radio into the
2
bracket/trim plate assembly and
secure the radio to the assembly
using the screws supplied with the
radio.
Continue to final assembly.
(Figure B)
(Figure A)
A
B
2
95-7323
KIT ASSEMBLY
STACKED ISO UNITS PROVISION
Snap the Double DIN brackets to
1
the inside edge of the Double DIN
trim plate.
Slide the stacked ISO units into the
2
bracket/radio housing assembly and
secure the units to the kit using the
screws supplied with the units.
(Figure B)
Continue to final assembly.
(Figure A)
A
B
3
95-7323
FINAL ASSEMBLY
FINAL ASSEMBLY
A
B
C
D
1
2
3
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individually
tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble in reverse order of disassembly.
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
Dimmer . . . . . . . . . . Orange / White
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Right Front (+) . . . . . Gray
Right Front (-) . . . . . . Gray/ Black
Left Front (+) . . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Left Rear (-) . . . . . . . Green / Black
4
95-7323
NOTES
5
95-7323 INSTRUCTIONS
1-800-221-0932 www.metraonline.com
REV. 05/28/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST95-7323
