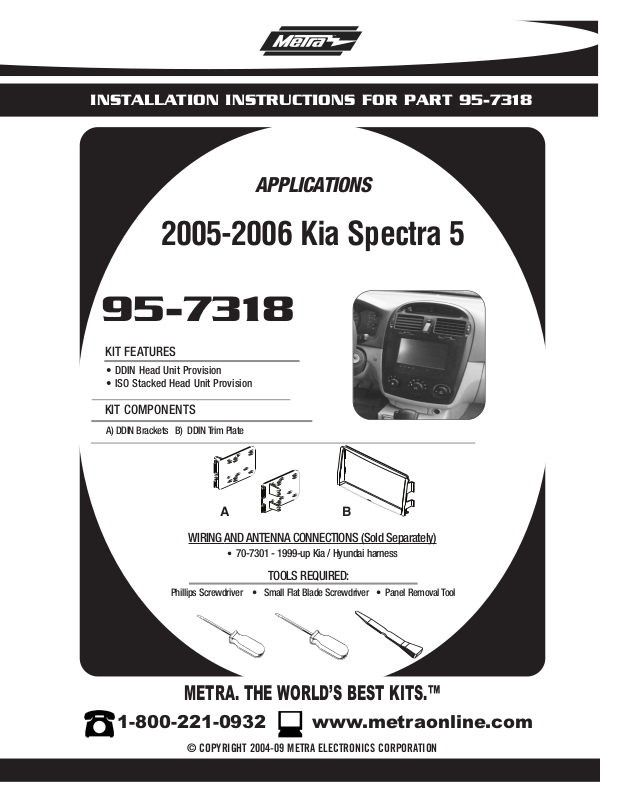

INSTALLATION INSTRUCTIONS FOR PART 95-7318
APPLICA TIONS
2005-2006 Kia Spectra 5
95-7318
KIT FEATURES
• DDIN Head Unit Provision
• ISO Stacked Head Unit Provision
KIT COMPONENTS
A) DDIN Brackets B) DDIN Trim Plate
AB
WIRING
Phillips Screwdriver • Small Flat Blade Screwdriver • Panel Removal Tool
AND ANTENNA CONNECTIONS (Sold Separately)
•
70-7301 - 1999-up Kia / Hyundai harness
METRA. THE WORLD’S BEST KITS.™
TOOLS REQUIRED:
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-09 METRA ELECTRONICS CORPORATION
95-7318
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Note:
Refer also to the instructions included with the aftermarket radio.
Metra recommends MECP certified
technicians
95-7318
2005-2006 KIA SPECTRA 5
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Unclip and remove entire panel surrounding radio and including A/C
controls.
Remove (4) Phillips screws to extract
3
radio from dash.
(Figure A)
(Figure B)
DASH DISASSEMBLY
A
B
1
95-7318
KIT ASSEMBLY
2005-2006 KIA SPECTRA 5
DOUBLE DIN / STACKED ISO DIN HEAD UNIT
PROVISION
Locate the factory wiring harness in
1
the dash. Metra recommends using
the proper mating adapter from
Metra or AXXESS. Re-connect the
negative battery terminal and test
the unit for proper operation.
Attach the Double DIN brackets to
2
the inside edge of the Double DIN
trim plate. (Figure A)
Slide the Double DIN head unit or
3
stacked ISO head units into the
bracket/radio housing assembly and
secure the Double DIN head unit or
stacked ISO head units to the
assembly using the screws supplied
with the radio. (Figure B)
A
B
Reassemble dash in reverse order of
4
disassembly.
2
95-7318
NOTES
95-7318
NOTES
95-7318
NOTES
95-7318 INSTRUCTIONS
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932 www.metraonline.com
