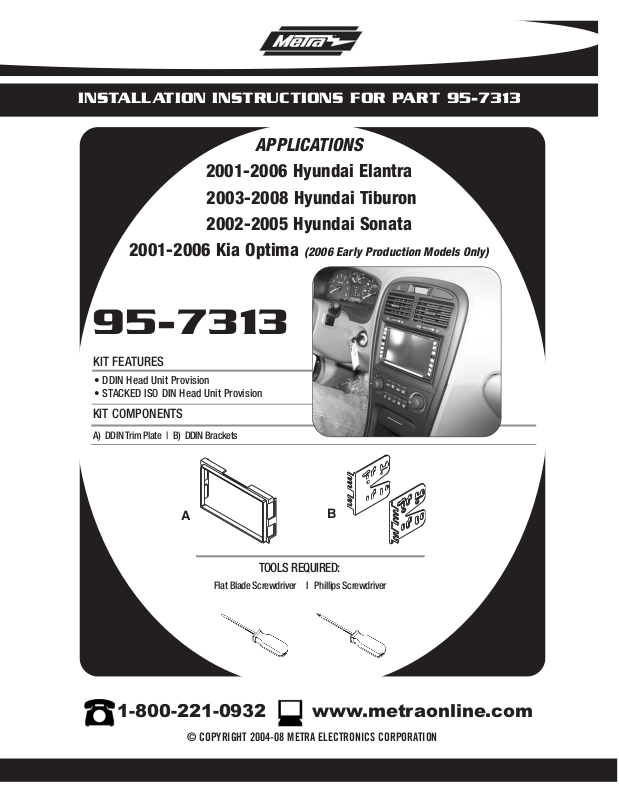

INSTALLATION INSTRUCTIONS FOR PART 95-7313
APPLICATIONS
2001-2006 Hyundai Elantra
2003-2008 Hyundai Tiburon
2002-2005 Hyundai Sonata
2001-2006 Kia Optima
95-7313
KIT FEATURES
• DDIN Head Unit Provision
• STACKED ISO DIN Head Unit Pro
KIT COMPONENTS
A) DDIN Trim Plate | B) DDIN Brackets
A
vision
(2006 Early Production Models Only)
B
TOOLS REQUIRED:
Flat Blade Scr
ewdriver I Phillips Scr
ewdriver
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-08 METRA ELECTRONICS CORPORATION
95-7313
Dash Disassembly ........................................................................ 1-4
Kit Assembly ................................................................................. 5-6
Final Assembly ................................................................................. 7
TABLE OF CONTENTS
95-7313

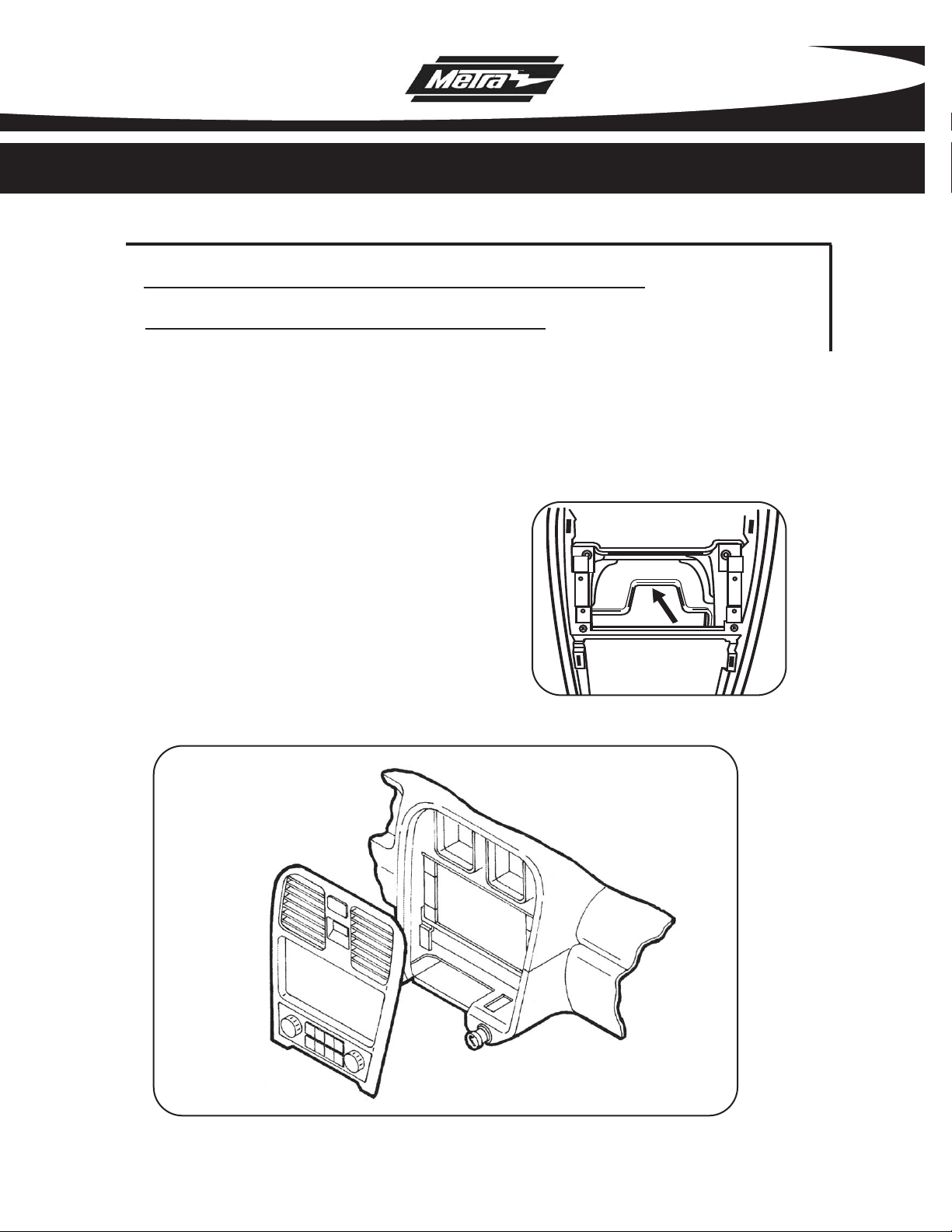

2001-2006 HYUNDAI ELANTRA
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Remove (2) Phillips screws from
under the instrument cluster.
Remove ashtray then remove (2)
3
Phillips screws in ashtray cavity.
Unclip and remove panel surround-
4
ing radio.
5
Remove (4) Phillips screws securing
radio.
(Figure A)
DASH DISASSEMBLY
A
1
95-7313
2003-2008 HYUNDAI TIBURON
Disconnect the negative battery terminal to
1
prevent an accidental short circuit.
Unclip and remove the radio trim panel starting
2
with the bottom edge.
Remove (2) Phillips screws securing radio.
3
(Figure A)
DASH DISASSEMBLY
A
2
95-7313
2002-2005 HYUNDAI SONATA
2001-2005 KIA OPTIMA
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Unclip and remove entire panel surrounding radio.
Remove (4) Phillips screws securing
3
radio.
The rear support bar in the sub dash
4
will need to be cut and removed for
aftermarket radio clearance.
(Figure B)
A
(Figure A)
DASH DISASSEMBLY
B
3
3
:30
3:
3:30
95-7313
DASH DISASSEMBLY

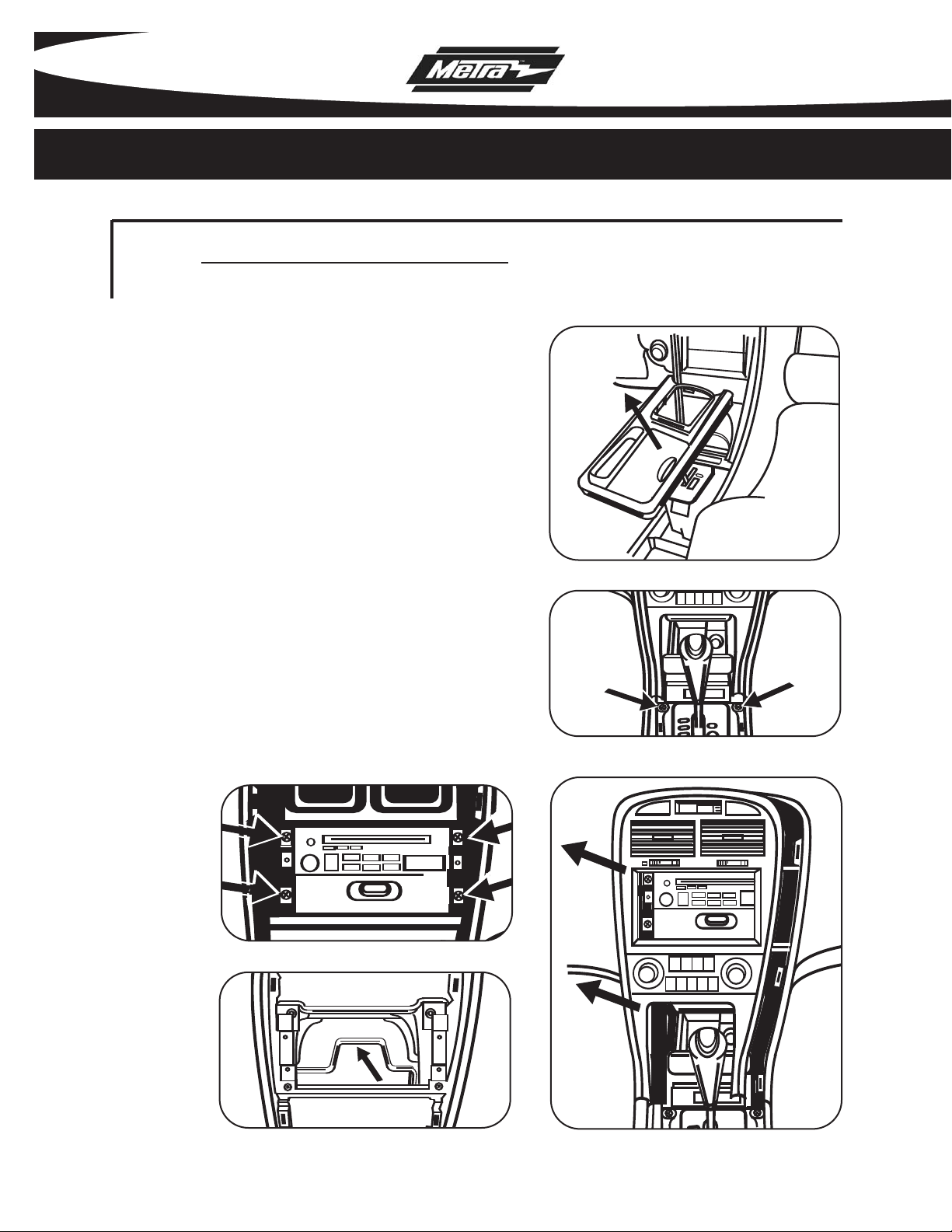

2006 KIA OPTIMA
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip and remove panel surround-
2
ing shifter.
Remove (2) Phillips screws at bottom
3
of panel surrounding radio and climate control then unclip and remove
entire panel.
Remove (4) Phillips screws securing
4
radio.
The rear support bar in the sub dash
5
will need to be cut and removed for
aftermarket radio clearance.
(Figure E)
D
(Figure A)
(Figure B,C)
(Figure D)
(2006 Early Production Models Only)
A
B
C
E
4
95-7313
CUT
CUT

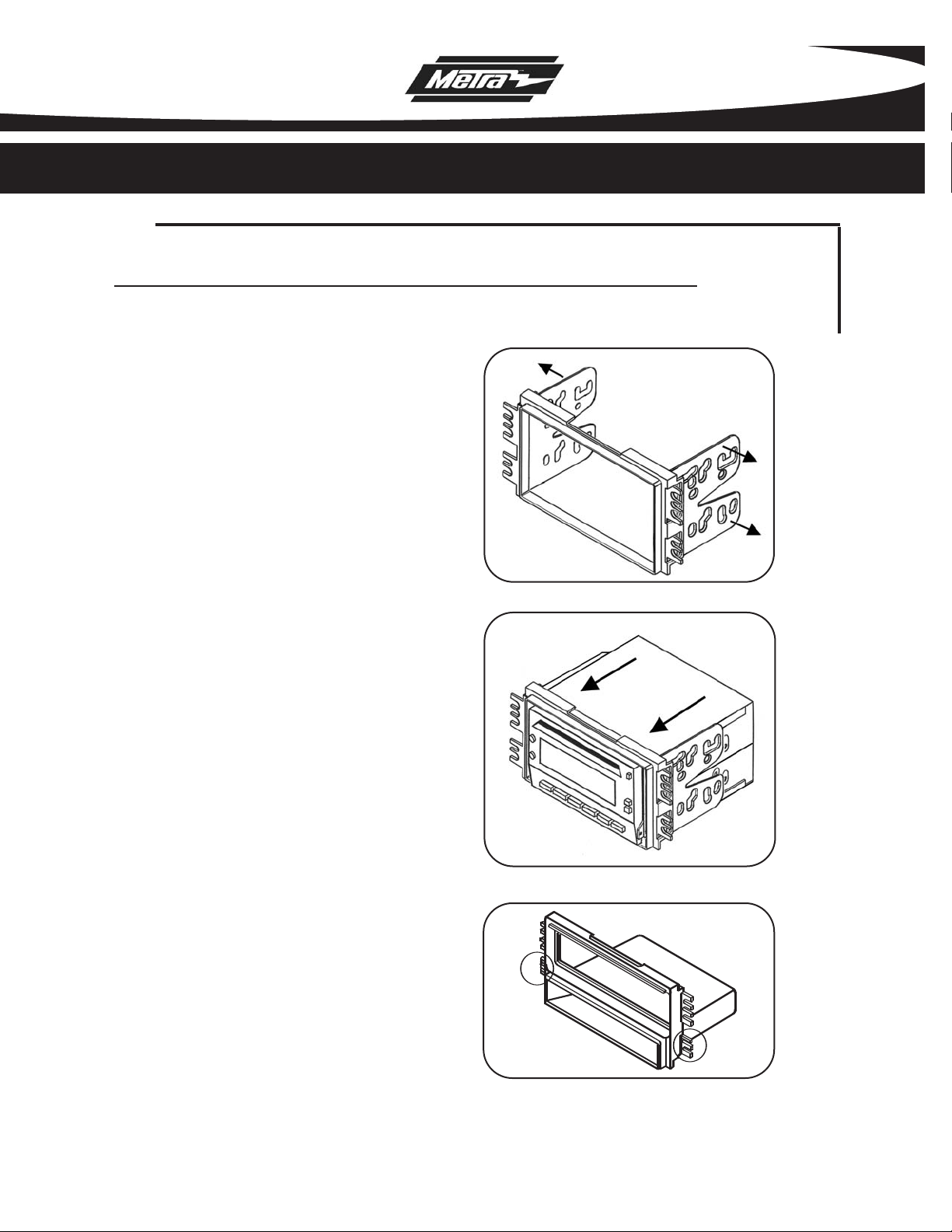

DOUBLE DIN HEAD UNIT PROVISION
Slide the appropriate bracket into
1
the trim plate aligning the holes in
the trim plate to the clips on the
bracket.
Slide the DDIN radio unit into the
2
trim plate bracket assembly and
secure the unit to the kit using the
screws supplied with the head unit.
(Figure B)
(Figure A)
A
B
KIT ASSEMBLY
C
NOTE: For the 2003-2008 Hyundai
Tiburon applications you will need to
cut and remove the bottom mounting tabs on the DDIN brackets.
(Figure C)
5
95-7313
CUT
CUT

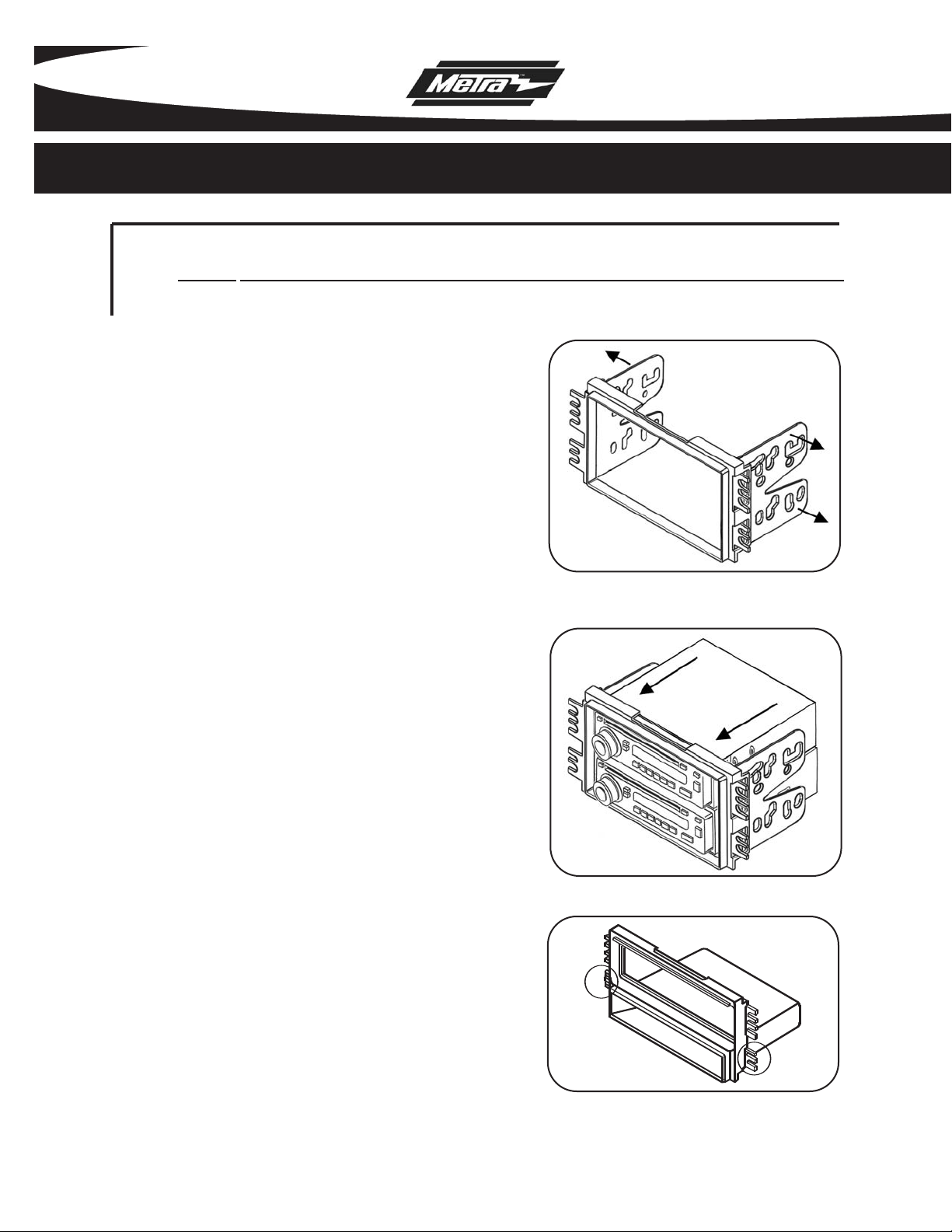

STACKED ISO DIN HEAD UNIT PROVISION
A
1
Slide the appropriate bracket into
the trim plate aligning the holes in
the trim plate to the clips on the
bracket.
Slide the stacked ISO DIN units into
2
the trim plate bracket assembly and
secure the unit to the kit using the
screws supplied with the head unit.
(Figure B)
(Figure A)
B
KIT ASSEMBLY
NOTE: For the 2003-2008 Hyundai Tiburon
applications you will need to cut and
remove the bottom mounting tabs on the
DDIN brackets.
(Figure C)
C
6
95-7313
FINAL ASSEMBLY
FINAL ASSEMBLY
Locate the factory wiring harness in the dash and make the connection as shown.
1
Metra recomends using the proper mating adapter and making the connections as
shown. (Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
3
Reassemble radio and dash assemblies in reverse order of disassembly.
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
A
B
C
D

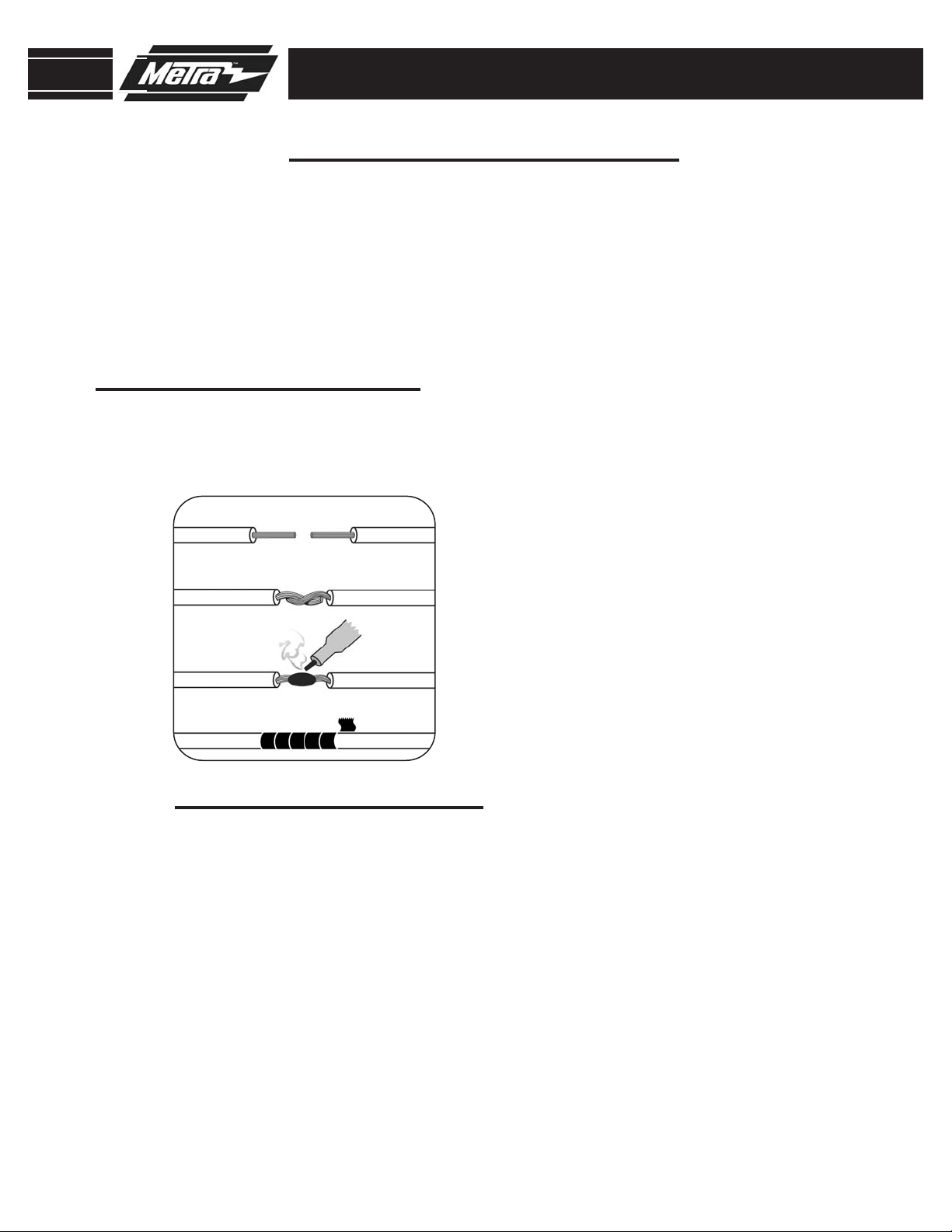

A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
Right Front (+) . . . . . Gray
Right Front (-). . . . . . Gray / Black
Left Front (+) . . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Dimmer . . . . . . . . . . Orange / White
*NOTE: When Black a wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Left Rear (-) . . . . . . . Green / Black
